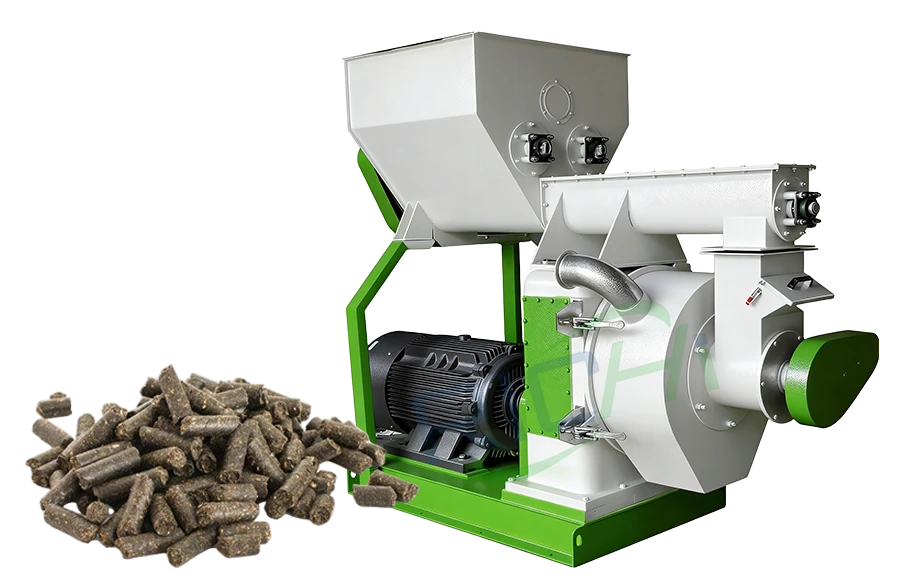

Organic Fertilizer Pellet Machine
RICHI organic fertilizer pellet machine is a new type of pelletizing equipment, with stable and reliable operation, adopting microbial fermentation technology, no drying room temperature process into production, one-time molding, production capacity of 1-12t/H.
Organic Fertilizer Pellet Machine Introduction
Organic fertilizer pellet machine is the core equipment in the organic fertilizer production line, which can process all kinds of organic materials after fermentation into deodorized and sterile organic fertilizer pellets with high fertilizer efficiency, such as animal manure, urban food waste, crop waste, organic solid waste and so on.

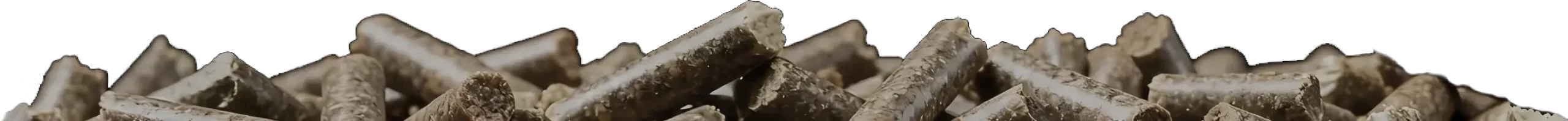

The organic fertilizer pellets produced can be used in grain fields, fruits, vegetables and flowers.

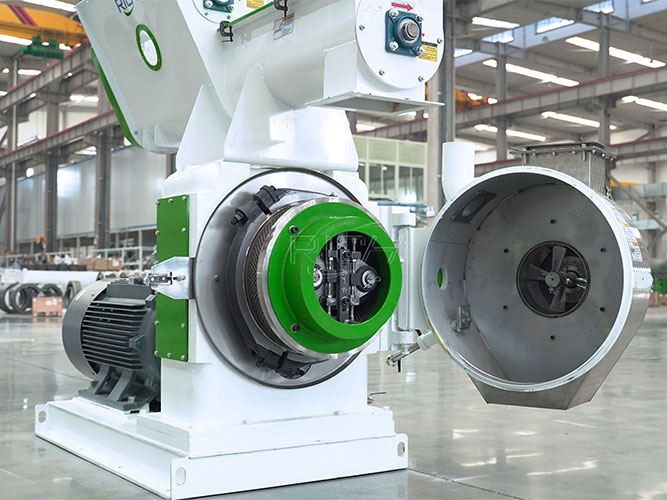

RICHI organic fertilizer pellet machine is a professional organic fertilizer pelletizing equipment. The pelletizing rate is more than 90%, with simple structure, low investment, easy maintenance and so on.
The principle of pelletizing the same as our wood pellet mill. The difference is that the raw materials used to make organic fertilizer pellets first need to undergo fermentation. And then crushed in the crusher, mixed uniformly into the pelletizer feeder. In the mold extrusion of raw materials into a uniform size can adapt to different formulas.
The user can control the adjustment of the size of the particles according to their own needs. The production of organic fertilizer pellets of high density, good fertilizer efficiency, organic matter content of saturation. Fertilizer effect is good, full of organic matter content.

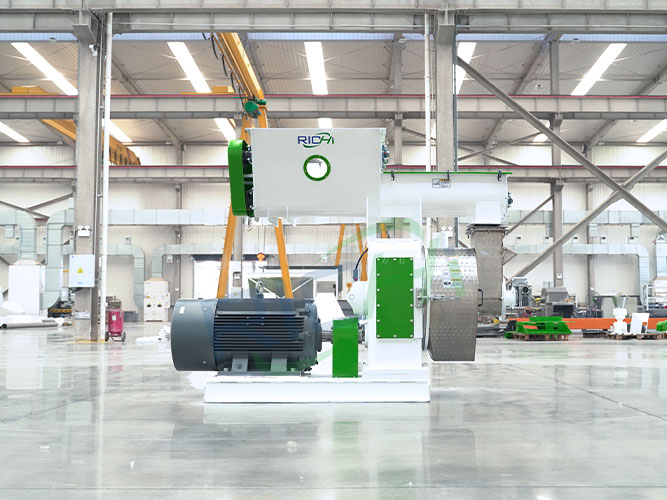

High quality organic fertilizer pellet machine make high-quality organic fertilizer pellets
Choose a high quality organic fertilizer pellet making machine
parameters of RICHI organic fertilizer pellet machine
1-2 T/h poultry manure pellet machine
| Model | MZLH320 |
|---|---|
| Capacity(T/H) | 1-2 |
| Main Motor Power(KW) | 37 |
| Anti-caking Feeder Power(KW) | 1.5 |
| Forced Feeder Power(KW) | 0.55 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 320 |
| Finished Pellet Diameter (mm) | 6-12 |
3-4 T/h organic fertilizer pellet mill
| Model | MZLH350 |
|---|---|
| Capacity(T/H) | 3-4 |
| Main Motor Power(KW) | 55 |
| Anti-caking Feeder Power(KW) | 1.5 |
| Forced Feeder Power(KW) | 0.55 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 350 |
| Finished Pellet Diameter (mm) | 6-12 |
5-6 t/h organic fertilizer pellet making machine
| Model | MZLH420 |
|---|---|
| Capacity(T/H) | 5-6 |
| Main Motor Power(KW) | 90 |
| Anti-caking Feeder Power(KW) | 1.5 |
| Forced Feeder Power(KW) | 0.55 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 420 |
| Finished Pellet Diameter (mm) | 6-12 |
7-8 t/h chicken manure pellet machine
| Model | MZLH520 |
|---|---|
| Capacity(T/H) | 7-8 |
| Main Motor Power(KW) | 110/132 |
| Anti-caking Feeder Power(KW) | 2.2 |
| Forced Feeder Power(KW) | 0.75 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 520 |
| Finished Pellet Diameter (mm) | 6-12 |
9-10 t/h horse manure pellet maker
| Model | MZLH768 |
|---|---|
| Capacity(T/H) | 9-10 |
| Main Motor Power(KW) | 250/280 |
| Anti-caking Feeder Power(KW) | 3 |
| Forced Feeder Power(KW) | 1 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 762 |
| Finished Pellet Diameter (mm) | 6-12 |
10-12 t/h Cow dung pellet making machine
| Model | MZLH858 |
|---|---|
| Capacity(T/H) | 10-12 |
| Main Motor Power(KW) | 280 |
| Anti-caking Feeder Power(KW) | 3 |
| Forced Feeder Power(KW) | 1 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 858 |
| Finished Pellet Diameter (mm) | 6-12 |
Features of organic fertilizer pellet machine
The features of the RICHI organic fertilizer pellet machine are:
- RICHI organic fertilizer pellet machine has beautiful appearance, simple operation, compact structure and small volume.
- The machine has high pelletizing rate, low failure rate and almost no maintenance.
- Organic fertilizer pellet making machine has the characteristics of multi-function. It not only can be used for all kinds of organic fertilizer pelletizing but also can be used for other biomass pelletizing.
- The pelletizing strength of the machine can be adjusted according to the needs. And the size of the pellets can also be adjusted according to the needs of the customers.

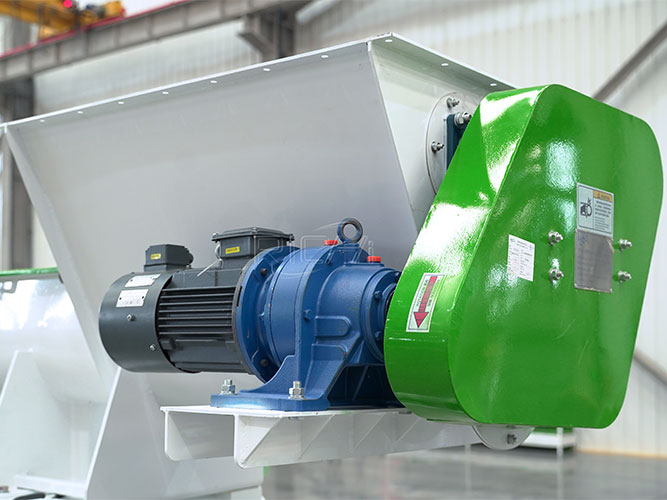

- The feeder is equipped with anti-caking bins to ensure that the material can smoothly enter the pelletizing chamber to guarantee the normal operation of the biomass pellet machine.

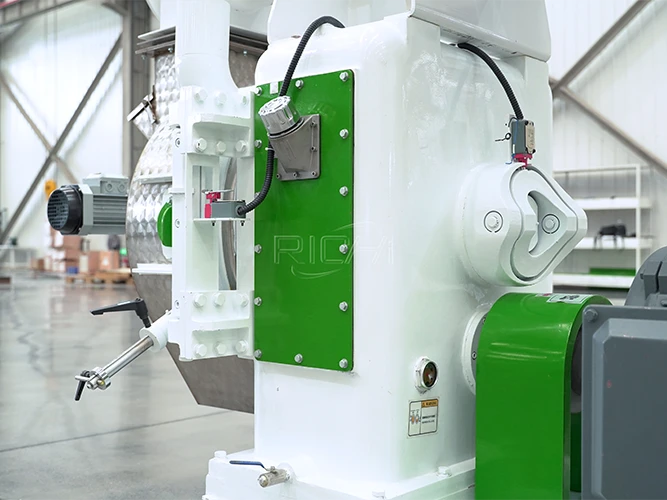

- The machine adopts gear-type rotation, more than 15% higher than the belt-driven type output
- Low energy consumption and high output of pelletizer
- Stainless steel design, longer service life, not easy to be damaged
- Imported Siemens electronics and SKF bearings.
RICHI Machinery is an expert in feed, wood, biomass, and organic fertilizer pelletizing solutions, we design every pellet production line according to customers’ needs. We have provided thousands of customers from 127 countries with complete pelletizing projects. If you have any pelletizing needs, just send an inquiry to us.
Applications of organic fertilizer pellet machine
- It is the ideal equipment for pelletizing in biofertilizer factory, feed factory, agriculture and animal husbandry factory, sewage treatment plant.
- Organic fertilizer pelletizing with grass charcoal, lignite, organic sludge, pond sludge, cane sugar residue, starch residue as raw materials
- Organic compound fertilizer pelletizing with chicken manure, duck manure, pig manure, cow manure, sheep manure, deer manure, earthworm manure and other organic fertilizers as main raw materials.
- City garbage, sewage treatment plant waste, paper mill scraps as raw materials.
- Bean cake residue, fruit residue, palm oil residue, etc. as the main raw material of the pelletizing.
- Full-price feeds and mixed feeds made from corn, beans, grass flour, etc.
- Bio-feed straw pellet meal pelletizing with crop straw as raw material.
There are too many applications of organic fertilizer pellet machines. Many people may have this doubt: what are the advantages of organic fertilizer pellets, and how to make organic fertilizer pellets? Then I will introduce you to the advantages of organic fertilizer pellets and the production process of organic fertilizer production plant below.
Advantages of organic fertilizer pellets
When put into the organic fertilizer pellets, due to the beneficial biological activities to improve the soil structure, increase the soil water retention capacity, thus reducing the loss of nutrients, can make the effective utilization rate of chemical fertilizer increased to more than 50%. And also can reduce the amount of fertilizer, reduce the cost of fertilizer.
The benefits of organic fertilizer pellets are:
- Chemical fertilizers have high nutrient content, fast fertilizer, but the duration of a short period of time, a single nutrient, organic fertilizer pellets is just the opposite, organic fertilizers and chemical fertilizers can be mixed to complement the shortcomings of the crop to meet the needs of the nutrients of the various growth periods.
- After adding organic fertilizer pellets, it can reduce the contact surface of chemical fertilizer and soil, reduce the chance of chemical fertilizer being fixed by the soil, and improve the effectiveness of nutrients.
- Generally, chemical fertilizers are highly soluble and cause high osmotic pressure on the soil after application, which affects the absorption of nutrients and water by crops and increases the chance of nutrient loss. If it is mixed with organic fertilizer, it can avoid this disadvantage, and the crops can absorb the nutrients and water.
- If acidic fertilizer is applied to alkaline soil, after ammonium is absorbed by plants, the remaining acid root combines with hydrogen ions in the soil to form acid, which will lead to increased acidity and soil crusting. If mixed with organic fertilizers, it can enhance the buffering capacity of the soil and effectively regulate the acidity and alkalinity, so that the acidity of the soil will not increase.
- Because organic fertilizer pellets is the energy of microbial life, fertilizer is the supply of microbial growth and development of inorganic nutrients. Mixing the two can use strain microbial vitality, and thus the decomposition of crop organic fertilizer. The activity of soil microorganisms can also produce vitamins, biotin, nicotinic acid, etc., which can increase soil nutrients, improve soil vitality and the growth of paddy crops.
Now many countries have reduced the use of chemical fertilizers and pesticides, fertilizers are mainly organic fertilizer pellets, so that not only can make the output of grain greatly increased, the quality of grain is also much better than before. So ” to organic fertilizer pellets as the main, chemical fertilizers as a supplement ” fertilizer method, is currently the most reasonable way of fertilization!
Production process of Organic fertilizer manufacturing plant
There are so many advantages of organic fertilizer pellets, which have a very high utilization value. At present, it is very popular in the market, the sales prospects are good, but also is the relevant industry concerns one of the hot industries.
Many people with relevant raw materials have actually considered the production of organic fertilizer pellets, but for the organic fertilizer manufacturing plant does not understand to become one of their main concerns, today we will give you an introduction to the process of organic fertilizer production plant as well as what are the required production equipment, first let us understand the production process of organic fertilizer production line!
As a general organic fertilizer manufacturing plant, its steps mainly contain fermentation, crushing, pelletizing, drying, cooling, packaging and so on, but if you want to suit the local needs, you also need to add a certain amount of N, P, K, and other composite fertilizers, and then mixed and stirred, and the use of physical extrusion made of pellets.
There is no fixed standard process, we can combine with your needs for you to customize the production line process for your needs. Generally speaking, the specific operation process of organic fertilizer production line is as follows:
01 fermentation of raw materials
Because the fresh manure of livestock and poultry is generally large in water content, often add a large number of straw, husk chaff and other auxiliary materials, the use of organic fertilizer fermentation equipment during the stacking period for turning, promoting oxygen, evaporation of excess water, control of the internal temperature of the heap is not too high leading to the inactivation of beneficial bacteria.
02 Raw material Crushing
As the late fermentation needs lefting to rot and decompose for about a week, it will produce a lot of lumps and other phenomena, which is not conducive to the later mixing, pelleting and other links. At the same time in order to meet the local soil and crop fertilizer requirements, but also need to add a certain amount of N, P, K and other composite fertilizers, you need to crush these composite fertilizers in advance, which is conducive to the next step of the mixing and stirring!
03 Raw material Mixing
Here mainly used mixer for mixing, well-fermented, crushed organic materials and composite fertilizers fully mixed. 3-5 minutes to mix a bin. After mixing by the conveyor directly to the organic fertilizer pellet machine for pelletizing section.
04 Pelletizing section
We recommend you to choose RICHI new organic fertilizer pellet machine for pelletizing. Our machine adopts stainless steel ring die and Siemens motor with high speed rotation for pelletizing, with high pelletizing rate, high output, low energy consumption and strong adaptability.
05 Drying and cooling section
The freshly made pellets need drying in order to quickly evaporate the excess water in the pellets. It is conducive to packing, bagging and prolonging the storage cycle. Cooling organic fertilizer pellets is to prevent the surface of the pellets from cracking, affecting the quality of the pellets.
06 Organic ferlitizer pellet packaging
Customers can according to their own needs, screening, pellet size, quality consistent with the packing machine packaged as a finished product for sale, which can improve the economic value of goods, the rest of the unqualified pellets and crushed material back to the crushing process.
RICHI Machinery is an expert in feed, wood, biomass, and organic fertilizer pelletizing solutions, we design every pellet production line according to customers’ needs. We have provided thousands of customers from 127 countries with complete pelletizing projects. If you have any pelletizing needs, just send an inquiry to us.
CUSTOM SOLUTIONS
—— GET A QUOTE ——
Accurate control of cost accounting, scientific calculation of expected profits, to achieve cost reduction and efficiency, profit can be expected.From equipment selection and program planning in the early stage
Checking Order
Quality Test Before Delivery
Check Items When Packing
Packaging And Transport
Training Support
After-sale Service
Main Equipment Of organic Fertilizer Production line
From the preparation stage of raw materials, the main production equipment required for organic fertilizer production plant are:
organic fertilizer turner
The fermented material continuously into the fermentation tank.
The use of turning machine turning fermentation, can play a moisture adjustment and mixing uniform purpose, so that can save a lot of labor and achieve the purpose of full maturation.
cleaning equipment
The common used cleaning equipment are: pre-cleaner, permanent magnet cylinder, Powder cleaning screen. The fermented organic fertilizer is screened, and the large pieces and debris inside are detected, which is convenient for the next step of crushing and packaging.
Organic fertilizer crusher
If your raw materials have large clumps, you need to crush them to the appropriate size.hammer crusher can be sieved out of the organic fertilizer in the large debris and stone sorted out after crushing, so that the beauty and can ensure the quality of the product.
Conveying equipment
Mainly belt conveyor, bucket elevator, screw conveyor, these are mainly used between each equipment. In order to automatically convey the production raw materials to the next link, reduce labor costs.
organic fertizer mixer
Before entering the pelletizing process, the need for raw materials and strains and auxiliary materials mixed evenly.
This machine can mix the screened and crushed organic fertilizer to ensure product quality and stability. But also for the production of special fertilizers and a variety of compound fertilizers in the addition of fertilizers and trace elements to play a role in mixing.
Organic fertilizer pellet machine
Pelletizing equipment process the powdered organic fertilizer into organic fertilizer pellets. And also to improve the appearance of the product in order to enhance the competitiveness of the market.
Organic fertilizer pelletizer equipment due to more pellet rate, stable operation, durable equipment, long service life. And is chosen by the majority of customers as the ideal product. The organic fertilizer granulator developed and produced by our company is durable and never deformed. Coupled with the solid base design, make its operation more and stable.
organic fertizer Dryer
The dryer can dry the organic fertilizer pellets, reduce the water content of organic fertilizer granules. So that the granules can store for a longer time.
Cooling machine
Commonly used is the counterflow cooler, which can quickly cool the organic fertilizer particles to room temperature.
Screening equipment
Vibrating screening machine, the use of screening equipment can screen out in line with your production requirements of organic fertilizer particles, can help you for sale.
Automatic Packing machine
After complete all the production process, you can pack the finished organic fertilizer pellets. Automatic quantitative packaging machine can be automatically discharged according to the demand for all kinds of different specifications of packing operations.
The above is a complete set of necessary organic fertilizer production line equipment. According to your raw material type, production scale and demand, you can choose the appropriate scale of production line.
If you just want to simple granulation of raw materials in hand, an organic fertilizer pelletizer can meet your production needs. If you want to carry out large-scale specialized organic fertilizer production, then you need to complete the entire production line equipment required in accordance with the size of the production scale.
Why choose RICHI Machinery?
- Devoted to the pellet machinery industry for 27years
- All products have passed ISO, CE, SGS, BV, and other international certifications.
- Have a perfect sales system and a complete service network
- Can customize a turnkey pellet production line project according to your need.

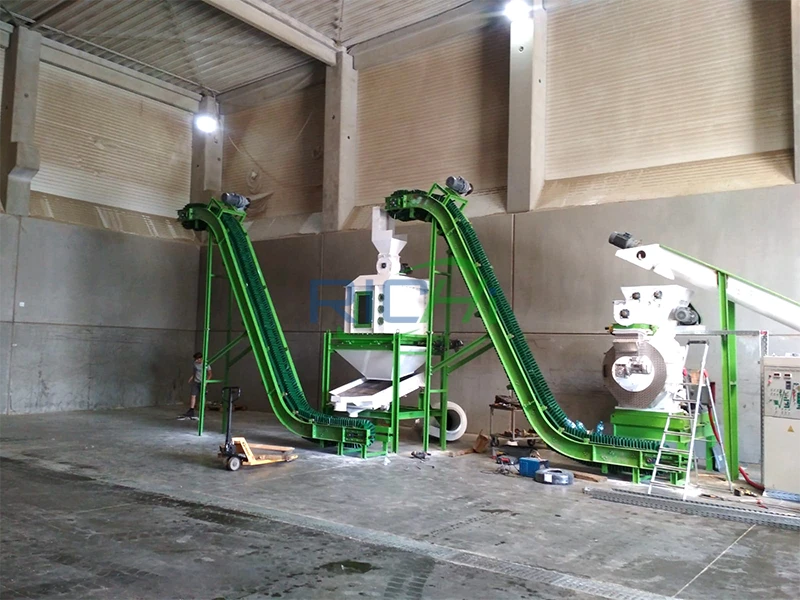

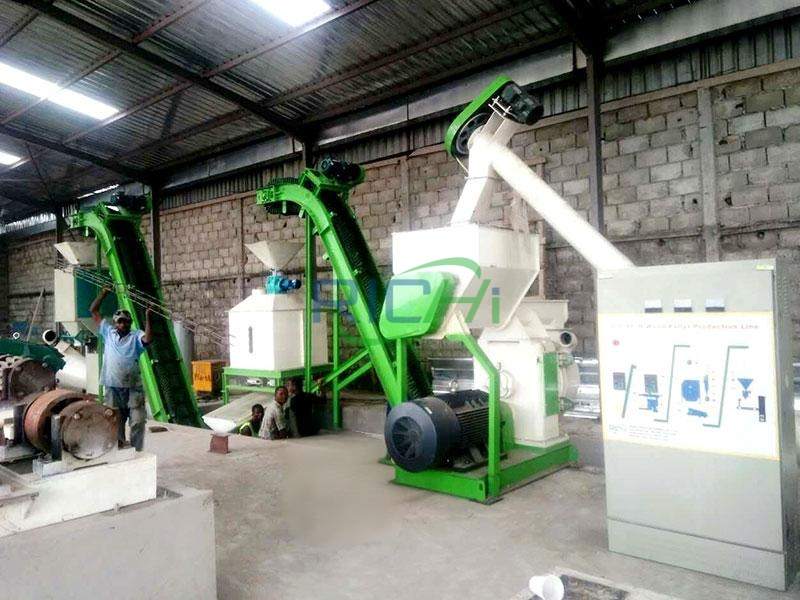

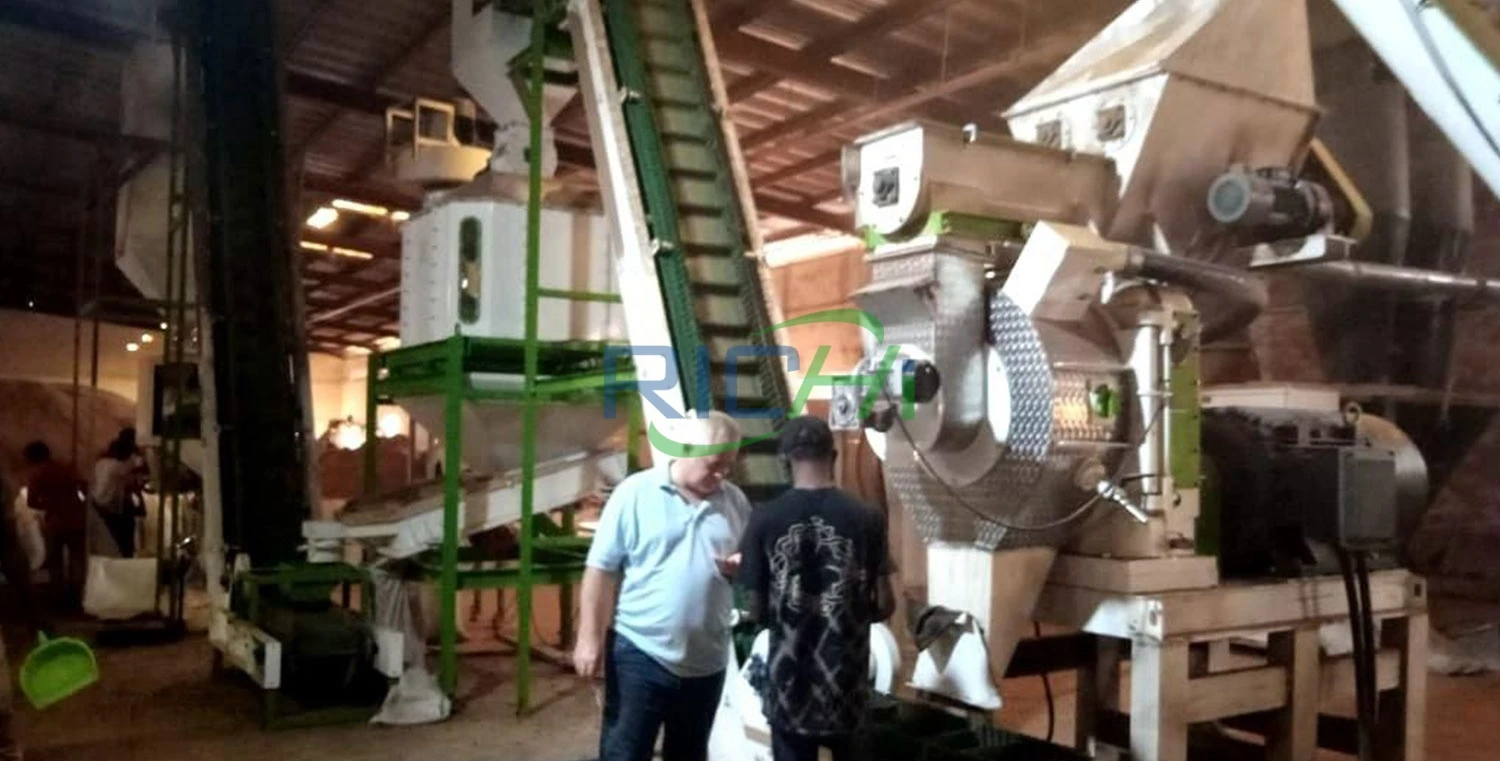

Project cases related to organic fertilizer pellet machine
There are just some of the project cases related to organic fertilizer mill RICHI have completed, of course, we can undertake much more than these, in addition to organic fertilizer pellet line, we can also provide feed production line, biomass pellet production line, wood pellet production line and so on. You can refer to our project cases page to learn more about the cases we have done. (Read more: project cases >>)
8t/h chicken manure fertilizer pellet processing factory project in China
- Country： China
- Date： June 2016
- Capacity：8T/H
- Total Power：763KW
- Workshop size of this project：4325m²
- Main Machines in this line: chicken manure hammer mill, chicken manure mixe, chicken manure pellet machine, drum screening machine, rotary drum dryer, pellet cooling machine, automatic packaging machine, etc.
- The install period：1 Month
- The operate worker in this line：5
3-5T/H Organic Fertilizer Pellet Line In Thailand
- Country： Thailand
- Date： Aug 27th,2018
- Capacity：3-5T/H
- Total Power：80KW
- Workshop size of this project：9m*3m*10m (L*W*H)
- Main Machines in this line: organic fertilizer pellet mill*55KW, cooling machine, shifter
- The install period: 10 Days
- Number of installation engineers assisted by our company：2 person
- The operate worker in this line：3 person
2-4T/H organic fertilizer pellet line in Mexico
- Country：Mexico
- Date：August 11, 2023
- Capacity：2-4T/H
- Guiding price: $80,000-$120,000
420 organic fertilizer pellet making machine
- Country：Pakistan
- Date：December 8, 2021
- Capacity：5-6T/H
- Guiding price: $20,000-$40,000
