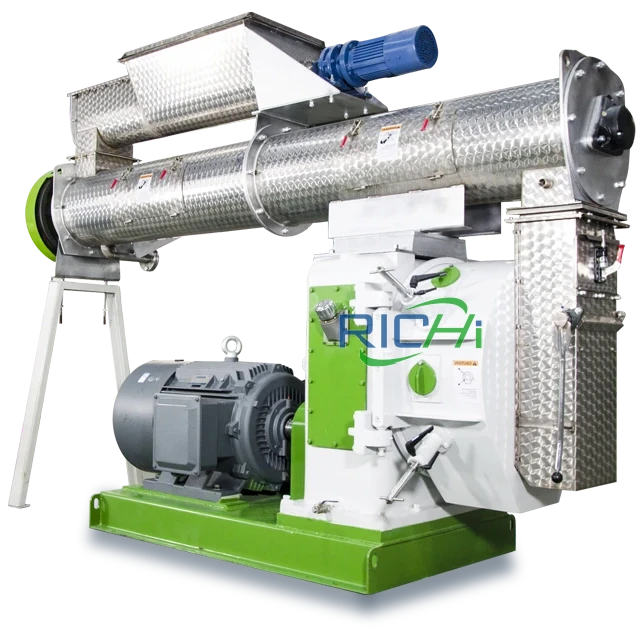

Chicken Feed Making Machine For Sale

The chicken feed making machine sale is specially suitable for the production of various livestock and poultry feeds in large and small feed mills.

chicken feed pellet
chicken feed making machine for sale

Working principle of the chicken feed pellet Making machine

When the chicken feed pellet machine is working, the mixed powder in the granulation bin is transported to the modulator by the screw feeder, and at the same time, steam, grease and stirring are added to the mixture, and then the wet and hot tempering treatment is fed into the granulator.

In order to control the material into the amount and uniformity in a row, to ensure the granulating machine Lord work within the rated load, motor feeder generally adopts stepless speed regulation, after entering pressure grain device is uniform distribution between the die roller, and finally into strips from was continuous extrusion die, again by the fixed installation on the outside of die cutting knife cut into the length of the strip.

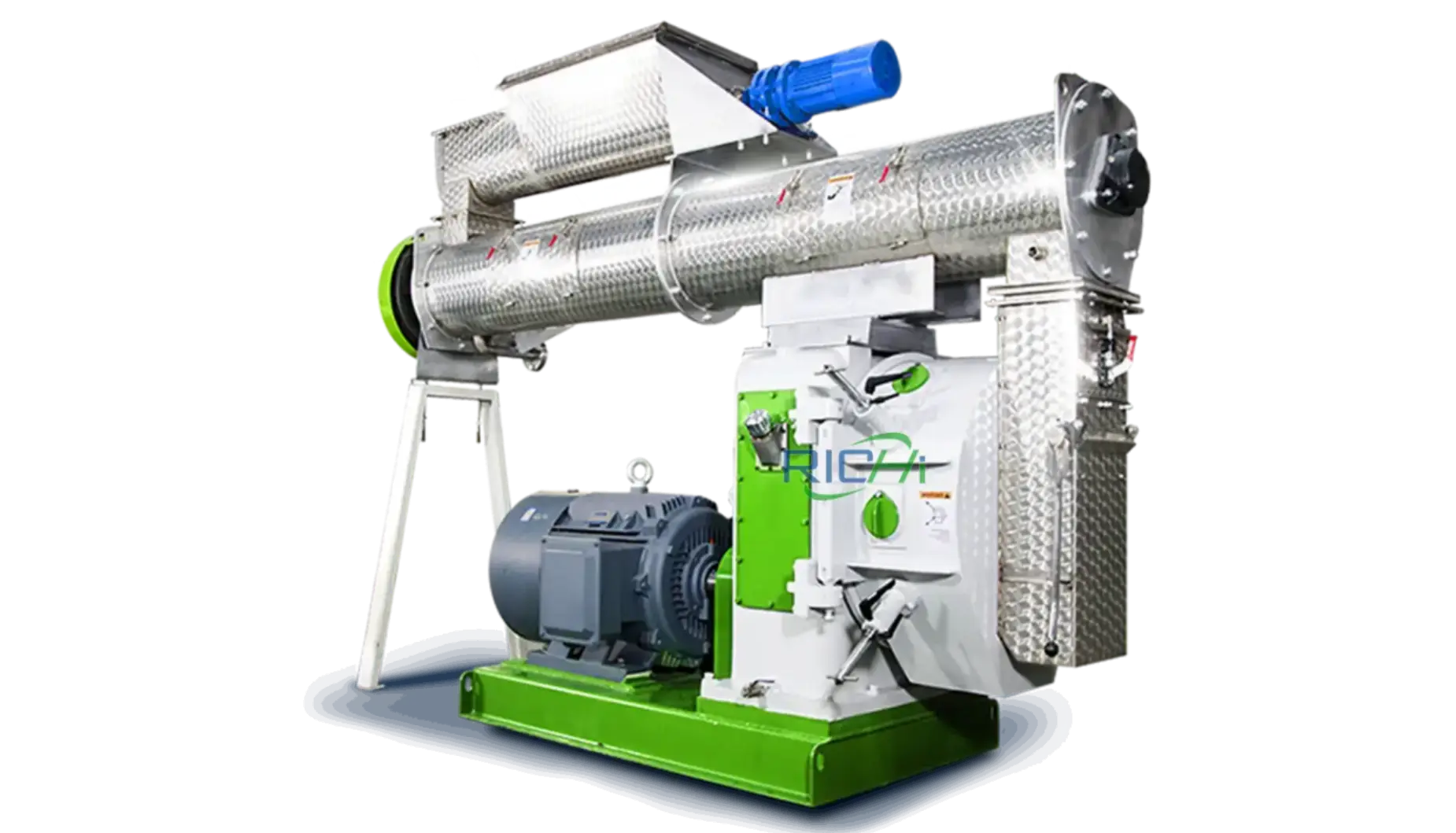

Features of Chicken Feed Making Machine For Sale

  • The feeding system of the feed pellet machine is controlled by stepless variable frequency motor, which can be manipulated freely.
  • The two-layer full-length large door stainless steel jacket tempering device adopts radial multi-point air intake, which makes the raw material and steam contact more fully and the tempering more uniform;
  • Upgrading of the transmission structure of the conditioner: the original transmission structure of the pulley has been upgraded to the gear transmission mechanism, which has high transmission efficiency and stable speed ratio;
  • The quality maintainer adopts special blade structure design, frequency conversion control, material conditioning time can be up to 2-4 minutes;
  • Humanized design, with the door safety protection device: the adjuster, the quality of the large door and the pelletizer door cover is equipped with a travel switch, the maintenance door cover is opened automatically power off, to achieve active protection;
  • The main transmission system adopts aero-grade gear and gear shaft transmission structure, and high precision CNC gear grinding technology to ensure smooth transmission and low noise;
  • Equipped with a new type of safety protection system, such as the main motor overload, safety pin break, overload protection;
  • Integrated design of gate cover, chute and external discharge ensures sealing, no steam and dust leakage;
  • The main drive and pressing chamber are upgraded and optimized, and the slightly tapered stainless steel die cover is customized to make the guiding quantity larger and more uniform;
  • Intelligent control: equipped with electric ring mold lifting device, automatic oil cooling circulation system, automatic grease lubrication system, optional compounding machine automatic control.
Features of Chicken Feed Making Machine For Sale

The Parameters Of The Chicken Feed Making Machine For Sale

Specific parameters of the chicken feed making machine are as follows:

Model SZLH250 SZLH320 SZLH350 SZLH420 SZLH508 SZLH558 SZLH678 SZLH768 SZLH858
Capacity(T/H) 1-2 3-4 5-7 8-12 10-18 15-25 20-30 25-40 25-42
Main Motor
22 37 55 110 160 180/20 220/250 280/315 280/315
Feeder Motor
0.75 1.5 1.5 1.5 2.2 2.2 2.2 2.2 2.2
1.5 2.2 3 7.5 11 11 11 11 15
Dia.of Ring Die(mm) 250 320 350 420 508 558 678 768 858
Pellet Length(mm) 2-12
(Note: Richi Machinery’s products are always updated and improved. Therefore, if there is any difference between the pictures, feature descriptions and performance parameters of the actual model, please refer to the actual product.)

RICHI Machinery is an expert in feed, wood, biomass, and organic fertilizer pelletizing solutions, we design every pellet production line according to customers’ needs. We have provided thousands of customers from 127 countries with complete pelletizing projects. If you have any pelletizing needs, just send an inquiry to us.


Why choose RICHI Machinery?

  • Devoted to the pellet machinery industry for 27years
  • All products have passed ISO, CE, SGS, BV, and other international certifications.
  • Have a perfect sales system and a complete service network
  • Can customize a turnkey pellet production line project according to your need.

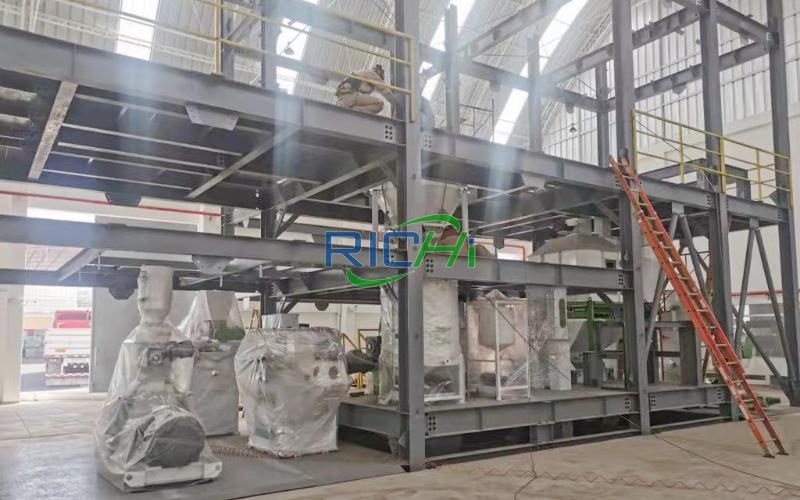

Projects cases of chicken feed making machine for sale

These are some of the complete chicken feed pellet projects successfully delivered by RICHI. All of the projects adopt advanced feed pellet equipment, are designed by our RICHI company to meet customers’ demands.

chicken feed pellet ine

Chicken poultry feed line and premix feed mill

  • Capacity: 5-7T/H
  • Country: Israel
  • Finished pellet size: 2-6mm
chicken feed plant turnkey project

Chicken feed plant turnkey project

  • Capacity: 10 T/H
  • Country: Afghanistan
  • Finished pellet size: 1-6mm
turnkey chicken feed pellet line

Turnkey chicken feed Plant

  • Capacity: 5T/H
  • Country: Belgium
  • Finished pellet size: 1-5mm
chicken feed pellet making line

poultry feed production line

  • Capacity: 10-12T/H
  • Country: Uzbekistan
  • Finished pellet size: 3-4mm
chicken feed pellet plant

Chicken poultry pellet feed plant

  • Capacity: 2T/H
  • Country: Nigeria
  • Finished pellets: 2-5mm
chicken feed pellet manufacturing line

Chicken feed Production line

  • Country: Saudi Arabia
  • Capacity: 10 T/H
  • Finished pellet size:2-12mm

FAQ about the chicken feed making machine for sale

What’s the process of making chicken feed pellets?

The process of making chicken feed pellets varies according to the production needs. Generally speaking, the process of making chicken feed pellets are: crushing, mixing, pelletizing, cooling and packing. Below I will give you a detailed description of each step.

the process of making chicken feed pellets

First of all, a crusher is needed to crush the raw materials used to make chicken feed pellets into powdery ingredients. This will not only promote the digestion and absorption of chickens, but also ensure the effect of pelletizing.

Then, put all the raw materials in accordance with the formula into the feed mixer and mix them until they are evenly mixed. This ensures that the poultry absorbs the full range of nutrients and promotes the healthy growth of the animal, thus increasing the chicken’s egg production or meat production.

The next step is the most critical pelletizing step. The mixed feed materials are put into the feeder of the poultry feed pellet machine by hand or machine, and then the raw materials enter into the conditioner and pelletizing chamber through the feeder, and finally extrude from the die hole. The average moisture content of the chicken feed pellets is about 16-17%.

Then the finished chicken feed pellets are cooled to about room temperature, which can avoid the surface of the feed pellets from getting broken or bad.

The last step is to pack the cooled chicken feed pellets. Generally speaking, the chicken feed manufacturing plant with large production capacity will adopt automatic packing machine to pack the bags with high packing precision and high efficiency!

What are the types of chicken feed?

Powdered Chicken Feed:

Traditional chicken feed is usually powdered chicken feed made by crushing feed ingredients and mixing them, such chicken feed can provide chickens with the required nutrients, but it also has certain drawbacks, such as poor palatability, and it is more dispersed, which is easy to cause feed waste.

Chicken feed pellets:

Chicken feed pellets are compact, high-density particles that are crushed, mixed and pelletized. The chicken feed pellets used to feed chickens has very many benefits, pellet feed not only helps chicken digestion and absorption, but also because it is processed through high temperature and high pressure, can reduce the chance of machine interference with Salmonella. So now more and more chicken farmers choose to use chicken feed pellets to feed chicken.

Crumble chicken feed:

Crumble chicken feed is the feed produced by crushing the feed pellets. Such chicken feed is more suitable for chicks and laying hens.

types of chicken feed
