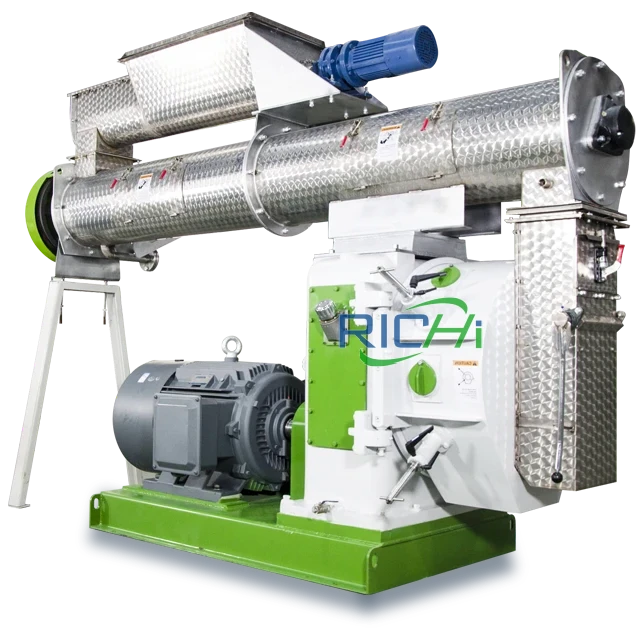

Chicken Feed Pellet Machine For Sale
RICHI chicken feed pellet machine for sale can produce high-quality feed pellets for chickens. Its capacity ranges from 1ton/h to 45ton/h, the finished pellet diameter is 2-12mm. The chicken feed pellet machine is suitable for almost all food raw materials, such as corn, bran, soybean cake, cottonseed cake, fish meal, bone meal and etc.
Working principle of the chicken feed pellet Making machine
Working principle of the chicken feed pellet mill is to extrude corn, bran, soybean cake, cottonseed cake, fish meal, bone meal, and other feed raw materials, and make mixed feed pellets. The feed pellets made by a Chicken feed pellet making machine have a smooth surface, a small loss of nutrients, and can kill pathogenic microorganisms.
The material is in full contact and fused with steam in the conditioner, cooked under high temperature and moisture. Then they enter the pelletizing room of the chicken feed pellet maker, under the strong extrusion of the ring die and the pressure roller, the pellets are formed and then cut into the desired length by the cutter.
Features of chicken feed pellet machine
- Adopts high-precision gear rotation, the efficiency is increased by about 15% than the type of belt transmission.
- Equipped with overload production device to increase the service of equipment.
- The parts that have contact with raw materials are made of stainless steel to avoid contamination of raw materials due to corrosion of equipment, and to ensure the food safety of animals.
- Adopts high-quality imported bearings and oil seals, ensuring efficiency, stability, and low noise.
- Configured with variable frequency speed feeder
- Enlarged and widened conditioner, prolongs the effective conditioning time and ensures the materials can be fully conditioned and matured.
- Centralized valve control system, reliable steam addition, and convenient operation.
- Equipped with high-efficiency conditioners, improve the pelletizing effect.

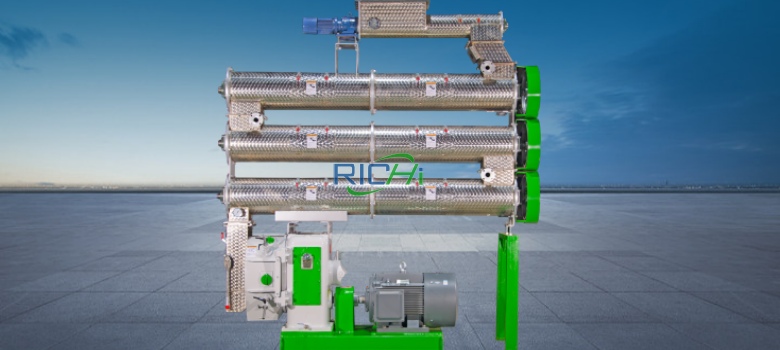

The Parameters Of The Feed Pellet Machine
Specific parameters are as follows:
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 | SZLH858 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity(T/H) | 1-2 | 3-4 | 5-7 | 8-12 | 10-18 | 15-25 | 20-30 | 25-40 | 25-42 |
| Main Motor Power(kw) |
22 | 37 | 55 | 110 | 160 | 180/20 | 220/250 | 280/315 | 280/315 |
| Feeder Motor Power(kw) |
0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Conditioner Power(kw) |
1.5 | 2.2 | 3 | 7.5 | 11 | 11 | 11 | 11 | 15 |
| Dia.of Ring Die(mm) | 250 | 320 | 350 | 420 | 508 | 558 | 678 | 768 | 858 |
| Pellet Length(mm) | 2-12 | ||||||||
Knowing so much about the chicken feed pellet machine for sale, you may have doubts: how to choose the suitable animal feed pellet machine? Then I will offer some tips for your reference! If you have any pelletization questions, welcome to contact RICHI, we are glad to help you solve your pelleting problems.
How to choose the right chicken feed pellet mill?
First of all, according to your production capacity, different capacity requirement needs different models of machine. For example, if you want a 10TPH capacity, you can buy an SZLH 420 poultry feed mill machine. If you want a 28-45TPH capacity, you can buy two 558 or 858 feed pellet machines.
Then, think about the chicken’s kind you feed, chickens of different kinds and different growth stages eat different feed, and need different equipment. If you feed baby chicken, you need to buy a crumbler to crush the feed pellets into smaller sizes.
The last but not the least, find a reliable manufacturer. They not only can provide you with high-quality feed pellet equipment but also can help you to choose the most suitable machine for you.
As a professional feed pellet equipment manufacturer, RICHI Machinery has been devoted to the industry for 27 years. We strive to provide high-quality equipment at reasonable prices for every customer.
What are the types of chicken feed pellet machines ?
There are two types of common chicken feed pellet mills: Flat die chicken feed pellet makers and ring die chicken feed pellet mills.
Ring Die Feed Pellet Making Machine
- Its production capacity ranges from 1-45T/H
- Mainly consist of a feeder, conditioner, pelletizing chamber (ring die and press roller, motor)
- The compression ratio range: 1:3-1:23
Flat Die Feed Pellet Making Machine
- The compression ratio is usually: 1:4, 1:3
- Mainly consist of a hopper, press roller & flat die, motor, and control cabinet.
- The production capacity is 40-1000KG/H
Generally speaking, the higher the compression ratio, the higher the particle hardness. According to the feeding habits of chickens, chickens like to eat harder pellet feed, and the compression ratio is about 1:8. So the ring die pelletizer is more suitable for making chicken pellet feed, and the feed pellets produced by ring die poultry feed pellet machine are highly cooked and more easily digested and absorbed by the chicken.
RICHI is an expert in chicken feed pellet machinery and can provide high-grade pellet equipment, can customize a chicken feed production line according to customers’ needs.

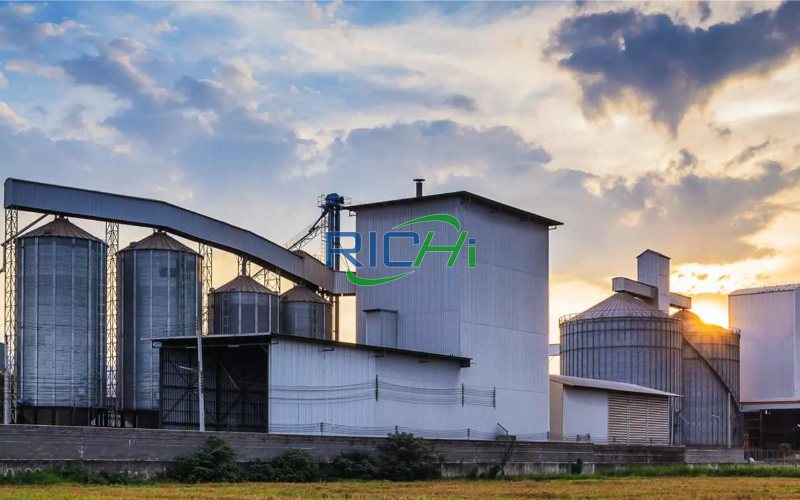

Chicken feed production line for sale
RICHI not only is a manufacturer providing various feed pellet machines, but also can undertake the entire chicken feed production line from design to installation to after-sales service.
We can design:

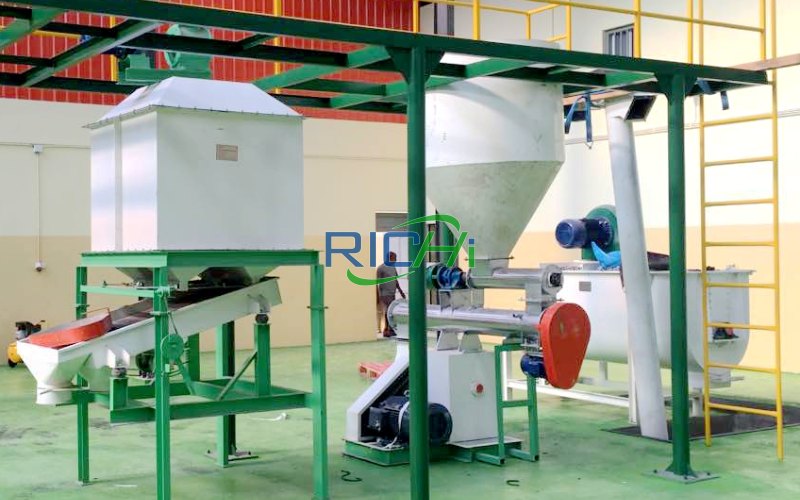

- 1-2T/H chicken feed pellet production line
- 3-4T/H chicken feed production line
- 5-7T/H chicken feed line
- 8-12T/H poultry feed production line
- 15-25T/H poultry feed manufacturing plant
- 25-40T/H chicken feed pellet plant
- 28-45T/H chicken feed production line
- ……

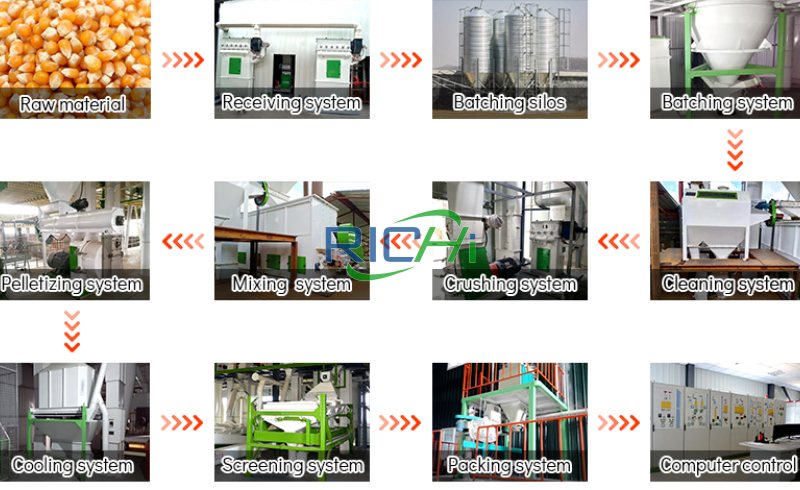

The process of the chicken feed production line are as follows:
The main equipment of this line are: feed hammer mill, single shaft double ribbon mixer, chicken feed pellet machine for sale, counterflow cooler, automatic packing system
It is worth mentioning that if you feed baby chickens, you need to equip a crumbler. RICHI SSLG Series double roll crumbler is designed for breaking large pellets into small pellets in the production of poultry feed and aquatic products, especially for baby chicken feed.
WHY CHOOSE RICHI MACHINERY
- 30 years of experience in the design, production, and R&D of Chicken feed pellet making machines.
- Customize a turnkey chicken feed pellet production line according to your need.
- All products have passed ISO, CE, SGS, BV, and other international certifications.
- Have perfect after-sale, providing professional systematic training, maximize to meet the needs of the project
- Have exported to 127 countries around the world.

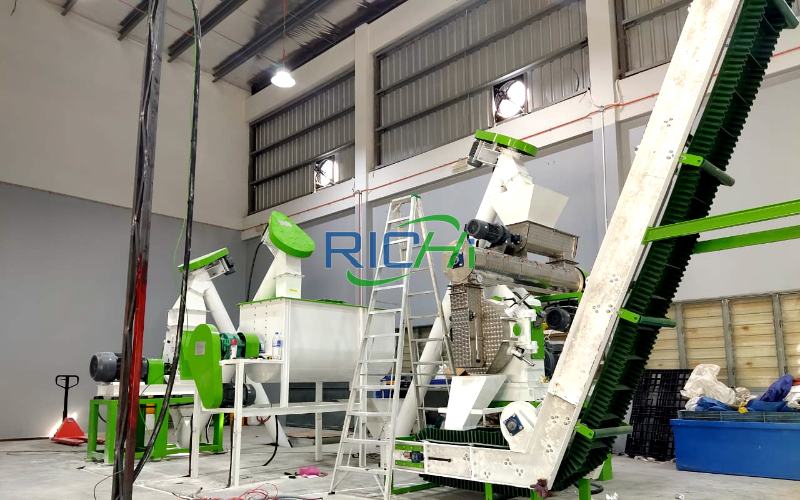

Projects cases of chicken feed pellet machine
These are some of the complete chicken feed pellet projects successfully delivered by RICHI. All of the projects adopt advanced feed pellet equipment, are designed by our RICHI company to meet customers’ demands.
Chicken poultry feed line
- Capacity: 5-7T/H
- Country: Israel
- Finished pellet size: 2-6mm
Chicken feed plant turnkey project
- Capacity: 10 T/H
- Country: Afghanistan
- Finished pellet size: 1-6mm
Turnkey chicken feed Plant
- Capacity: 5T/H
- Country: Belgium
- Finished pellet size: 1-5mm

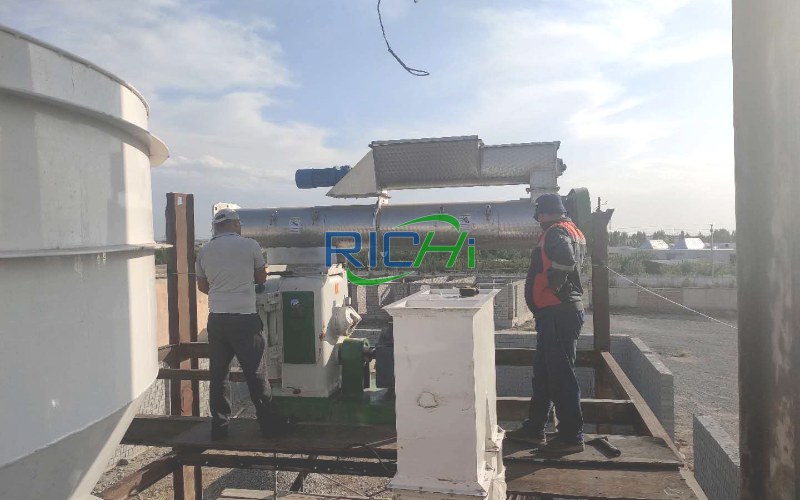

poultry feed production line
- Capacity: 10-12T/H
- Country: Uzbekistan
- Finished pellet size: 3-4mm
Chicken poultry pellet feed plant
- Capacity: 2T/H
- Country: Nigeria
- Finished pellets: 2-5mm
Chicken feed Production line
- Country: Saudi Arabia
- Capacity: 10 T/H
- Finished pellet size:2-12mm
FAQ of chicken feed pellet Maker
Chicken of a different kind of feed formula
Once you have the chicken feed pellet mill, you can start making chicken feed pellets according to the chicken feed formula and the machine operation manual.
Here are some common chicken feed formulas for your reference：
- Baby chicken (1 to 60 days) feed formula: 62% corn, 10% bran, 17% soybean cake, 9% fish meal, 2% bone meal
- Young chicken (61 to 120 days) feed formula: 55% corn, 20% bran, 7% soybean cake, 5% cottonseed cake, 5% rapeseed cake, 5% fish meal, 2% bone meal, 1% shellfish meal.
- Egg-laying period chicken feed formula:56% corn, 10% mixed grains, 6% bran, 17% soybean cake, 5% fish meal, 3% shellfish meal, 3% clear stones.
- Broiler chicken (0-5 weeks old) feed formula: 6% fish meal, 24.7% soybean meal, 3% bran, 61.6% corn, 1.5% secondary meal, 3.2% additives
The above is the advice provided by RICHI Machinery. If you want to learn more, just contact us.

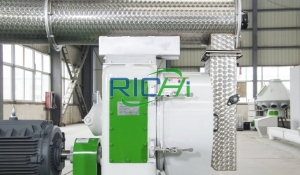

How to make chicken feed pellets?
First of all, prepare all the materials needed according to the feed formula. If the materials need to be crushed, you should equip them with a feed crusher.
Then, put the crushed and mixed materials into the chicken feed pellet making machine through the feeder.
Next, the materials are transported to the conditioner to be cooked
Finally, the cooked materials enter the pelletizing room, then, the feed pellets are extruded from the holes of the ring die by the pressure roller and the ring die.
What are the advantages of chicken feed pellets?
After knowing so much about chicken feed pellet maker, how much do you know about the advantages of chicken feed pellets? Then I will tell you the advantages of feed pellets.
- After high temperature and high-pressure conditioning feed pellets, a high degree of maturation, and starch gelatinization, easier for animals to digest and absorb
- Can provide comprehensive and rich nutrition for chickens, promoting the healthy growth of chickens
- Avoid chicken from picky eating
- Can kill salmonella in the chicken feed
- It is easy to store and transport
The chicken feed making machine is the chicken professional farmers and large, medium, and small-sized feed processing plants to reduce breeding costs, and improve the economic benefits of the ideal equipment, the preferred model.
There are not only the chicken feed pellet making machine, but also livestock, and aquatic feed pellet machines for sale in RICHI. If you have any pelletizing requirements, just contact us, and we will reply to you within one business day.
