Lucerne Pellet Machine
Lucerne pellet machine is a professional feed pelleting equipment designed to process lucerne and similar forage grasses into high-quality feed pellets. The equipment has high efficiency, uniform pellets and stable operation, making it an ideal choice for livestock farms, feed mills and animal nutrition projects. Granular alfalfa feed is easier to store and transport, and can increase feed intake and digestibility for animals such as cattle, sheep, goats and rabbits.
- Capacity: 1-12T/H
- Final pellet diameter: 2-12mm
Introduction of lucerne pellet machine
A lucerne pellet mill is a kind of biomass pellet mill. It can convert lucerne, alfalfa, corn stalk, rice husk, sawdust, wood chips and other agricultural and forestry waste as raw materials into high-density compact biomass pellets or feed pellets.

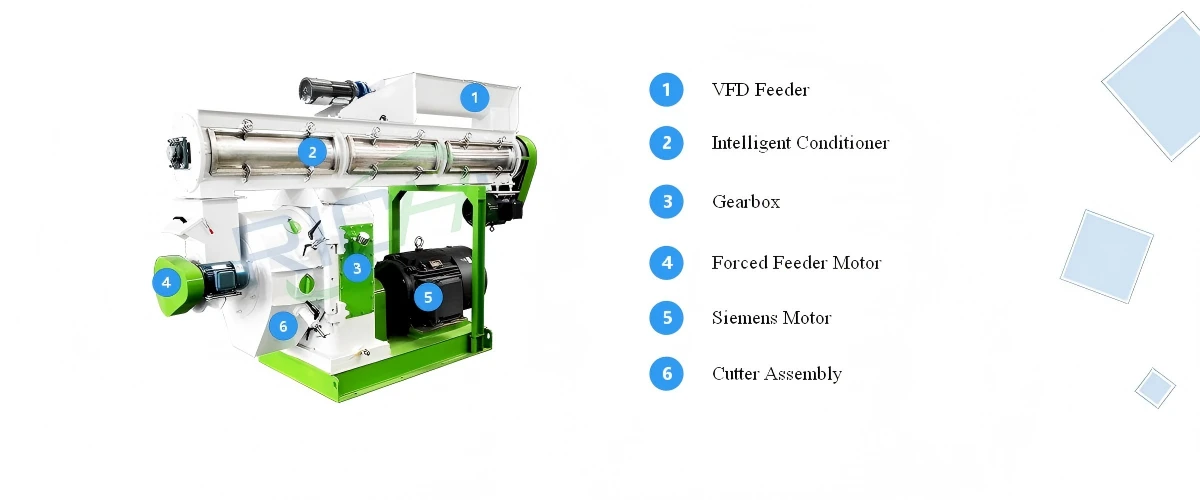

The machine mainly consists of feeder, conditioner, pelletizing chamber, motor and so on. It can make both lucerne feed pellets and lucerne fuel pellets. The process of making lucerne feed pellets is mainly to put the crushed and dried lucerne into the feeder, the material enters into the conditioner to be conditioned and ripened, and then the ripened material enters into the pelleting chamber for pelletizing. Finally, the material is extruded from the ring mold die hole under the extrusion of the ring mold and pressure roller. Among them, the size and diameter of lucerne pellets are adjustable. And there is no need to go through the conditioner to mature when making lucerne fuel pellets.
The lucerne pellet mill can also be called alfalfa pellet machine. The machine is suitable for various small, medium and large farms, feed processing plants and biomass fuel plants. It is widely used in feed processing, forage utilization, new energy development and other fields. It is a powerful tool for the resource utilization and value utilization of agricultural waste.
RICHI MACHINERY
Why making lucerne pellets?

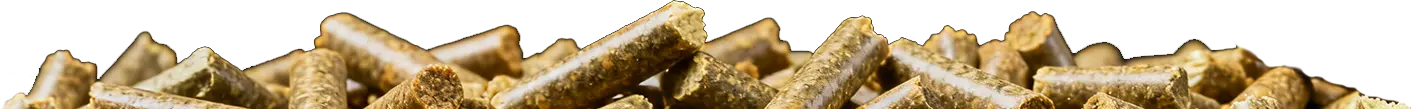

Lucerne pellets, also known as alfalfa pellets, are very rich in nutritional value. It is an excellent source of protein and high fiber for ruminants such as cattle, sheep and horses. Lucerne, known as the “King of Forages”, is rich in protein, fiber, and minerals, and is often used directly for animal feeding. However, processing lucerne into lucerne pellets not only preserves the nutrients it contains, but also better utilizes the value of lucerne.
Here are the benefits of lucerne pellets, and I’m sure you’ll understand why you should make lucerne pellets.
- Lucerne pellets are small in size, high in density, easy to manage and take up little space. It can save storage and transportation costs.
- Lucerne pellets are high-temperature cooked feed pellets, which are easy to be digested and absorbed by animals, and help to promote the growth and development of animals.
- Processing lucerne into lucerne pellets makes it more palatable to animals and can increase the amount of food they eat.
- Moreover, the process of making lucerne pellets can be mixed with other feed ingredients, which can provide more comprehensive and rich nutrition for animals.
- Lucerne pellets are not easy to be graded, which will not cause waste of feed and can avoid the phenomenon of picky eating by animals.
- Lucerne pellets are also an efficient and environmentally friendly biomass fuel pellet. With high calorific value and low ash content, it is an ideal product to replace coal.
The lucerne pellet machine can process lucerne into feed pellets for animals to provide nutrition, and also process lucerne into environmentally friendly biomass fuel pellets that can replace charcoal or wood.
Let’s learn how to make lucerne pellets below!

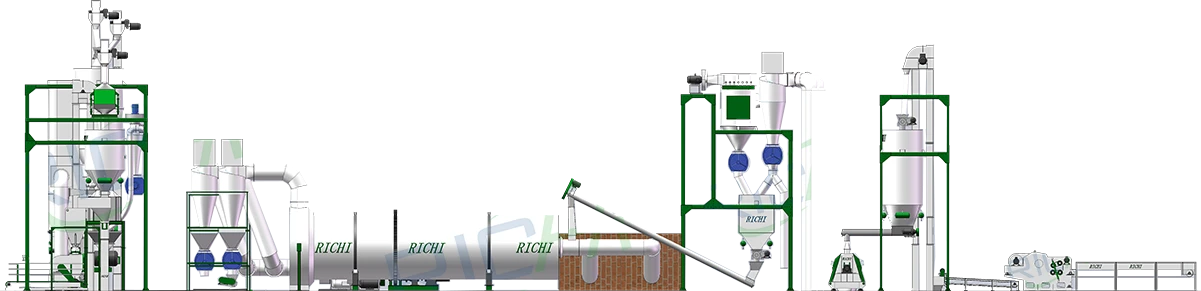

How to make lucerne pellets for animal feed ?
Lucerne is a high-protein, high-fiber, high-quality forage grass that is very suitable for livestock feed. Making it into pellets is not only convenient for storage and transportation, but also improves palatability and nutrient absorption. The entire production process is similar to that of a conventional feed pellet production line, mainly including:

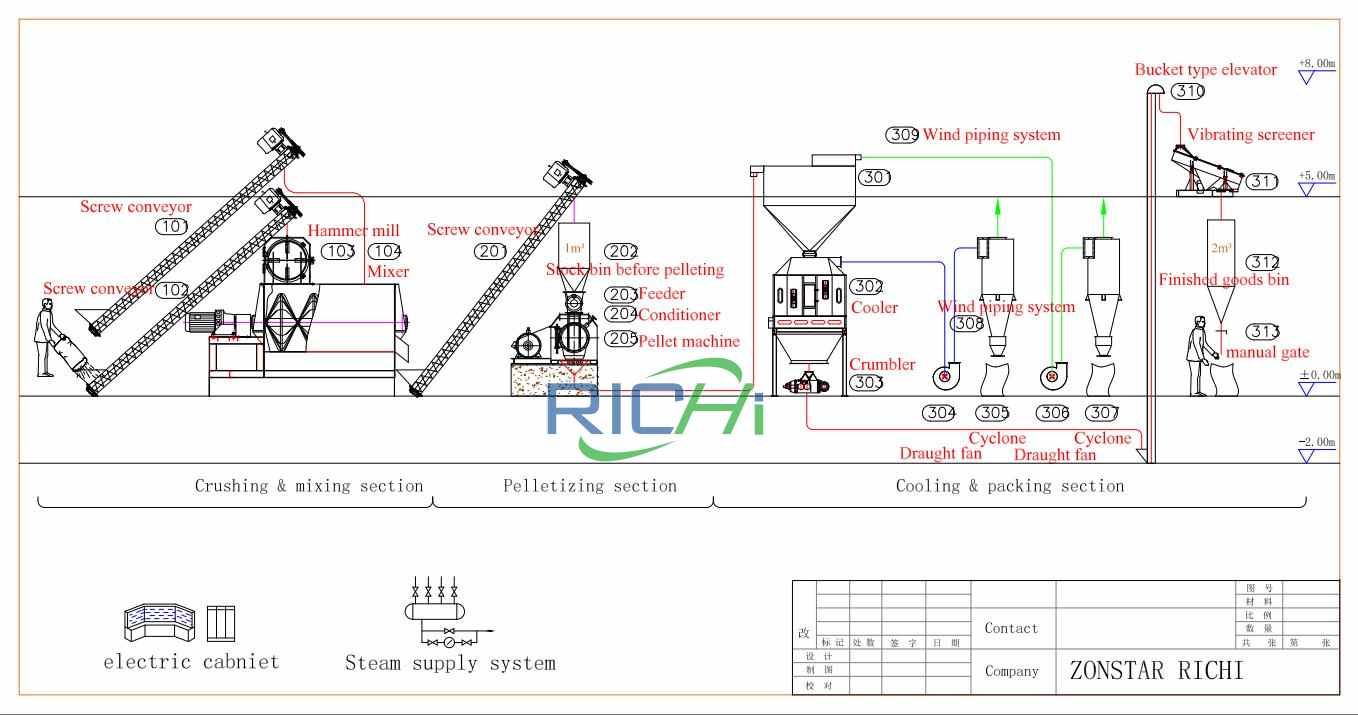

Crushing → Mixing → Granulation → Cooling → Packaging

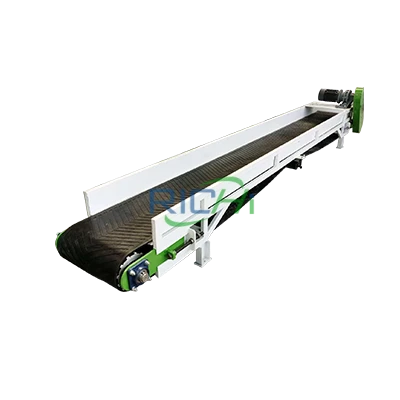

The main equipment required includes: lucerne crusher, animal feed mixer machine, lucerne pellet making machine, pellet cooler, packaging machine, conveying equipment, etc.
Below is a description of each process:

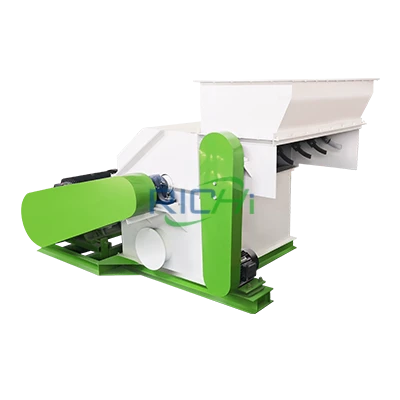

01 Crushing the raw material

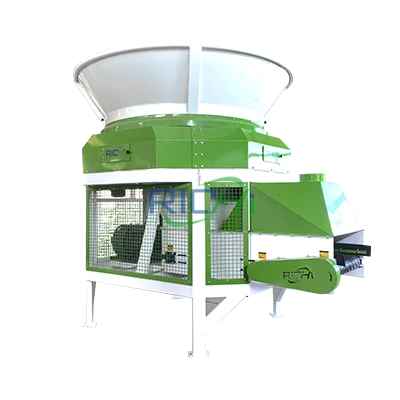

Generally lucerne is large in size, so the first step in making lucerne pellets is to reduce the size of the lucerne. In this process, the most commonly used processing equipment is the lucerne crusher, which has a high crushing efficiency and a long service life. The lucerne is crushed to a powder of 2-3mm for the following mixing and pelletizing.

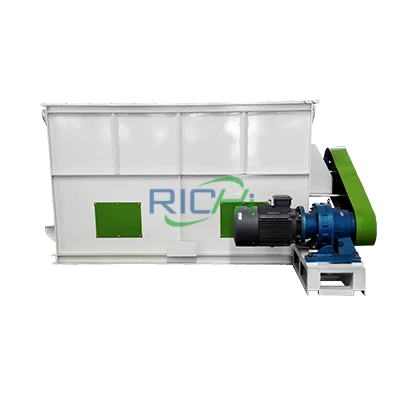

02 Mixing of raw materials
After crushing, the raw materials prepared according to the recipe and the crushed lucerne powder need to be mixed well. This is one of the benefits of feeding lucerne pellets to animals, when making lucerne pellets can be mixed with a variety of feedstuffs and other nutrients, which can provide comprehensive and balanced nutrition for animals. RICHI Machinery’s self-developed feed mixer is designed for the production of mixed feed pellets with high mixing uniformity and low energy consumption, which is one of the necessary equipments for animal feed processing plants.
03 pelletizing section
The mixed materials enter the conditioner of the pellet mill through the conveying equipment, and are injected with an appropriate amount of steam for maturation, so as to denature the protein and improve the absorption and utilization rate of nutrients by animals. Subsequently, the materials enter the pelleting chamber and are squeezed by the ring die and the roller to form dense and round lucerne pellets. The pellet length can be adjusted according to the cutter.
04 lucerne pellet cooling section

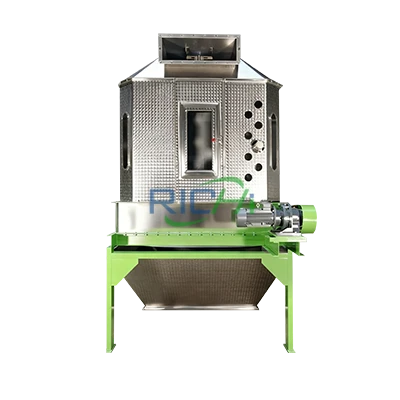

The pellets just made are hot and humid. If they are not cooled in time, they are easy to deform and mold. You can choose RICHI countercurrent cooler to quickly cool them to room temperature to ensure the quality of pellets. If the output is small, you can also choose natural air drying.
05 packing section

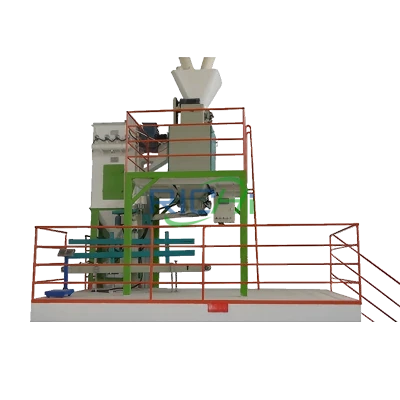

The cooled pellets can be automatically weighed and packaged as needed, or directly loaded into a storage silo for bulk discharging.
How to make lucerne pellets for biomass fuel?
Lucerne can not only be used as feed, but also as a high-quality biomass fuel raw material. After being made into fuel pellets, it can be widely used in energy fields such as boilers, fireplaces, and biomass power plants.
The process flow of lucerne fuel pellets is similar to that of the biomass pellet production line. The main steps include:
Drying → Crushing → Granulation → Cooling → Packaging
01 Drying of lucerne
First of all, the moisture content of fresh lucerne is relatively high, usually around 70%-80%, which is not suitable for direct pelletizing. The requirement of lucerne pellet machine for raw material moisture content is around 15%. Therefore, the first step in processing lucerne fuel pellets needs to use a dryer to dry the lucerne to a moisture content of about 15%.
02 lucerne crushing
Then, the lucerne grass is crushed to 2-3mm powder by pulverizer. The finer the material is crushed, the better the combustion effect.
03 Pelletizing lucerne
The crushed lucerne enters the pelletizer through the conveying equipment as part of the alfalfa pellet production line to be pelletized. The lucerne pellets machine is specially designed for producing lucerne pellets. It adopts a feeder equipped with an anti-arching bin and a forced feeder, which helps prevent material blockages and ensures that the lucerne flows smoothly into the pelletizing chamber. Once inside, the machine operates efficiently, and smooth, firm lucerne pellets are continuously discharged from the outlet.
04 Cooling and packing of lucerne fuel pellets
Freshly made lucerne fuel pellets should not be packed immediately, the temperature of the pellets should be reduced to room temperature before packing. The cooling and packing of the pellets can be done according to your needs.
High quality pelletizers make high-quality lucerne pellets
Customize a lucerne pellet machine
RICHI MACHINERY

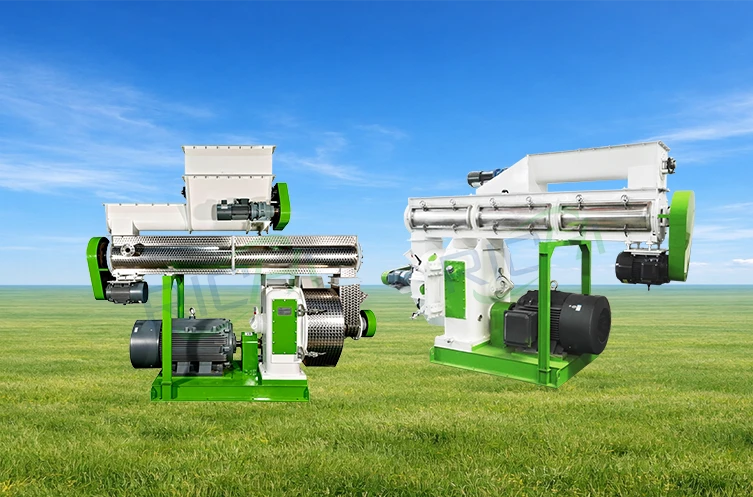

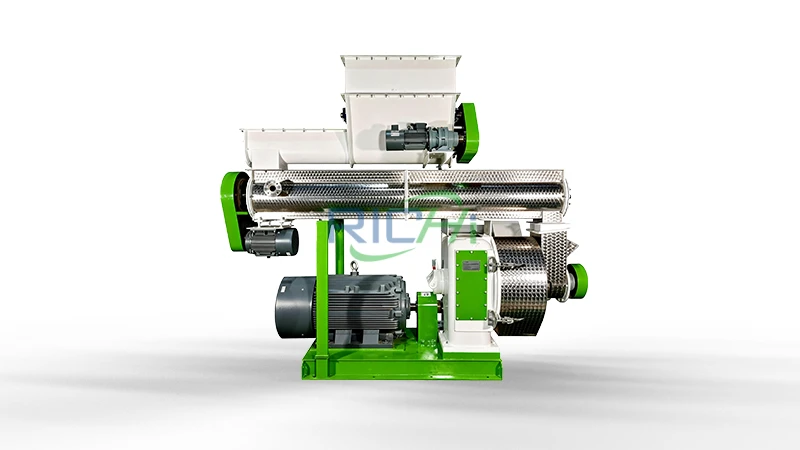

Efficient Pellet Production with RICHI Lucerne Pellet Machine
RICHI lucerne pellet machine is a new generation of energy-saving equipment that integrates the world’s advanced pelleting technology. It can efficiently process lucerne from powder or raw material into dense and uniform pellets. Compared with the traditional direct feeding method, this equipment significantly improves the palatability and nutrient absorption rate of feed, and solves the problems of inconvenience in storage and transportation. The core pelleting process is completed in the pelleting room, and the raw materials are squeezed into shape by the ring die and the roller, and the pellet length can be adjusted by the cutter device. Whether it is used for animal feed or biomass fuel, this pellet machine can meet different production capacity requirements and is suitable for various pellet production lines.
Main features of RICHI lucerne pellet making machine
- Optimized design for easy operation, low maintenance and long service life
- Flexible die selection with apertures ranging from 2 to 12 mm for different raw materials and pellet types
- High output and low energy consumption, with output ranging from 1 to 12 tons/hour and motor power ranging from 37 to 280 kW
- Stainless steel structure to ensure smooth operation, high reliability and compliance with hygiene standards
- High pellet quality, smooth surface, high density and good combustion or feeding performance
- Cost-effective solution to reduce production costs and increase project profitability
- High-end components with Siemens motors and SKF bearings for durability
The table below lists the technical specifications of the Lucerne pellet mill. If you are not sure which model is right for your needs, don’t worry – our professional sales team will recommend the best solution based on your materials, production capacity and usage scenarios. All machines and production lines are fully customizable to meet your specific needs.
| Model | Main motor power (kw) | Arch-breaking feeder power (kw) | Forced feeder power (kw) | Ring die inner diameter (mm) | Output (T/H) |

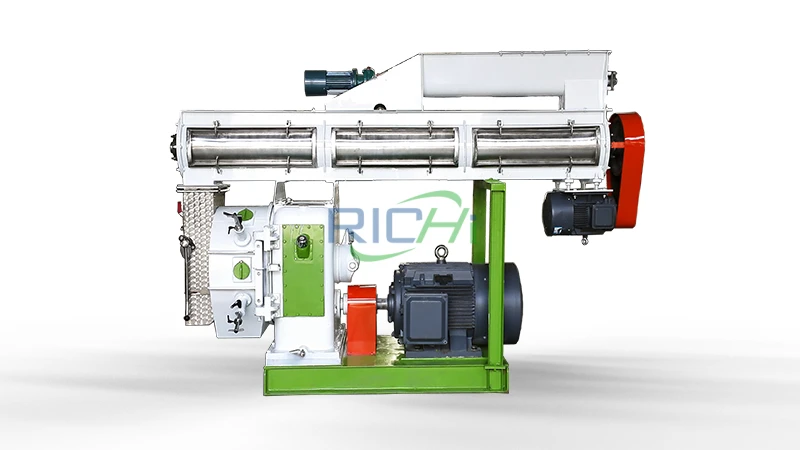

| CZLH-320 | 22 | 2.2 | 0.75 | 320 | 0.5-0.6 |

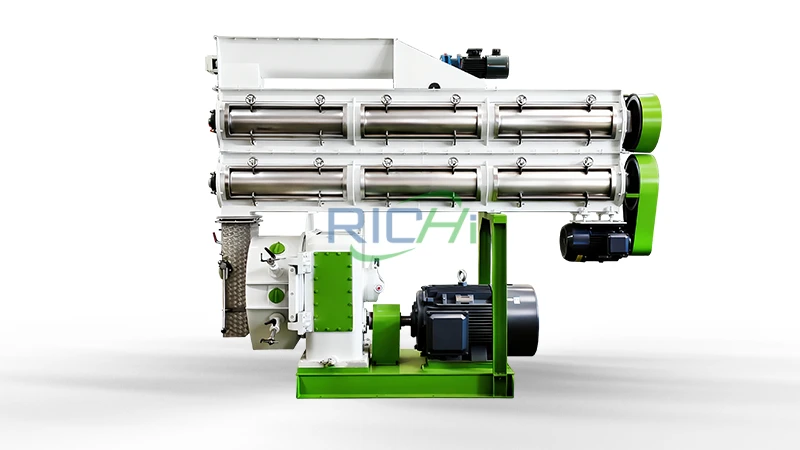

| CZLH-350 | 37 | 2.2 | 0.75 | 350 | 1.0-1.2 |

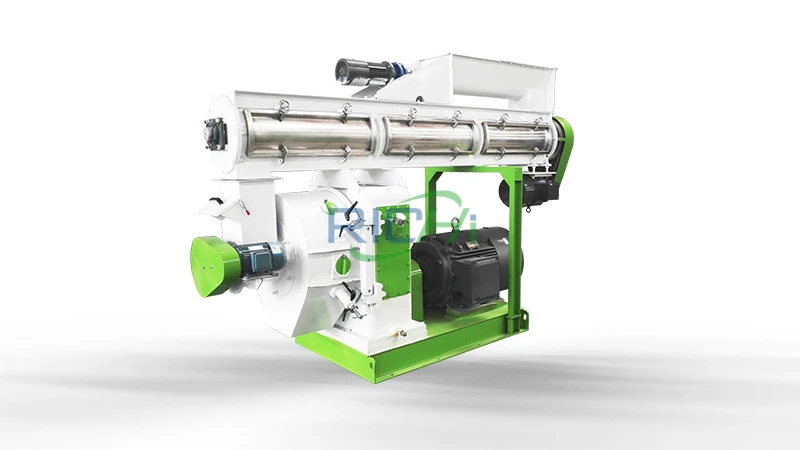

| CZLH-420 | 90 | 3 | 1.5 | 420 | 1.8-2.0 |
| CZLH-520 | 132 | 3 | 1.5 | 520 | 2.8-3.0 |

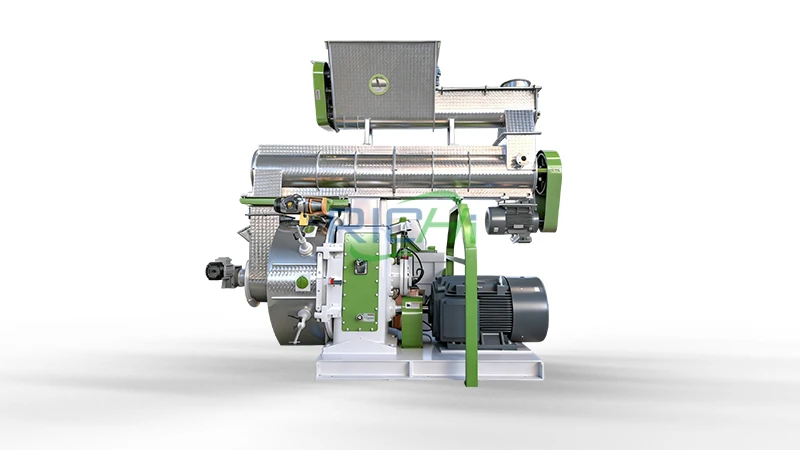

| CZLH-678 | 185 | 3 | 1.5 | 673 | 4-5 |

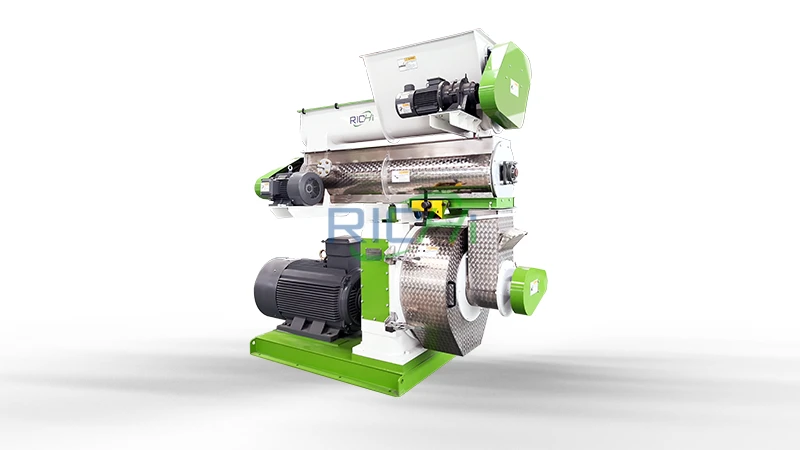

| CZLH-768 | 250 | 4 | 1.5 | 762 | 6-8 |
Application of Lucerne pellet machine
- The lucerne pellet machine can process a wide range of biomass raw materials, such as lucerne, hay, straw, wood chips, organic fertilizer and so on.
- The machine has a complete range of models and is suitable for biomass pellet plants and feed pelletizing lines of all sizes.
- The lucerne pellet mill is suitable for pelletizing light materials with specific gravity of 0.3-0.6g/cm3.
- The lucerne pellets processed by the lucerne pellets machine can be used as animal feed, livestock and poultry feed, and also be used as biomass pellet fuel.
Project cases related to lucerne pellet machine
As a pellet mill manufacturer with 30 years of experience in the industry, RICHI Machinery has served thousands of customers around the world, helping them make perfect pellets. Here are some examples of lucerne pellet mill projects for your reference.

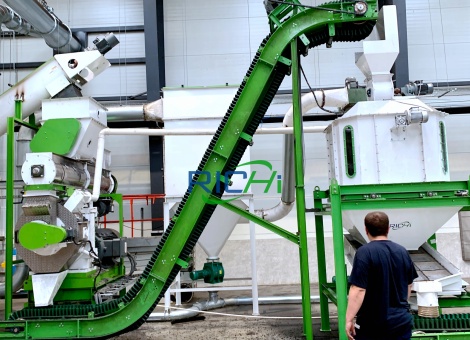

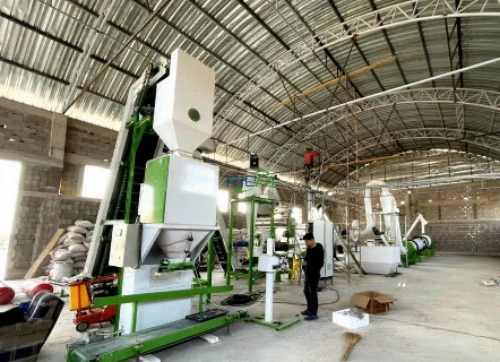

Lucerne pellet machine for sale Canada
- Date: July 28, 2022
- Capacity: 3-4T/H
- Final pellet diameter: 6mm
- Guiding price: $20,000-$30,000
- Raw materials: lucerne, hay

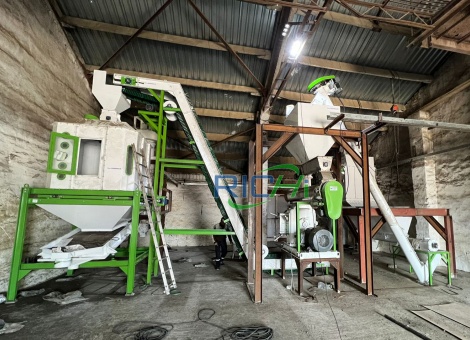

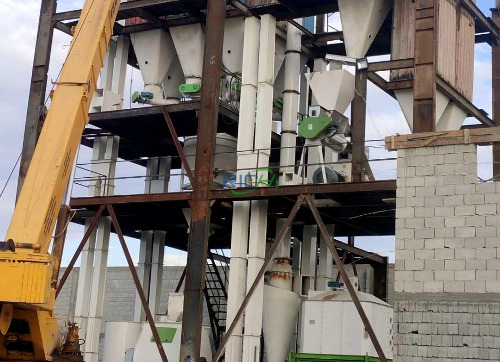

Lucerne pellet machine for sale Indonesia
- Date: Sept. 7, 2019
- Capacity: 5-6T/H
- Final pellet diameter: 6-8mm
- Guiding price: $30,000-$40,000
- Country: Indonesia

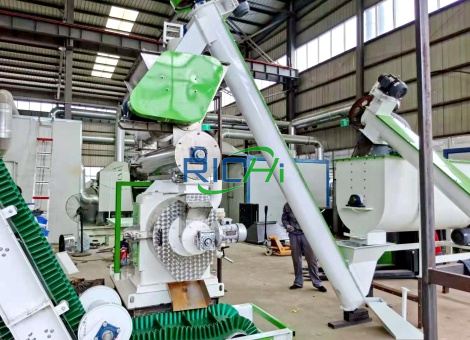

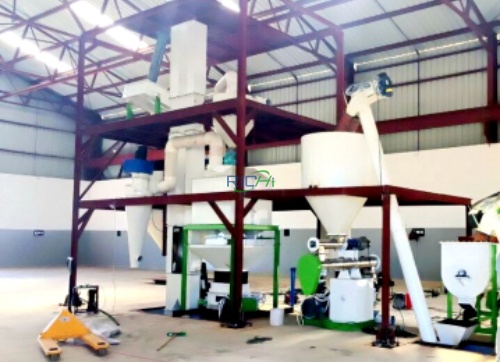

Lucerne pellet machine for sale America
- Capacity: 1-2 t/h
- Final pellet diameter:6mm
- Guiding price: $10,000-$20,000
- Raw materials: Mainly lucerne
- Date: March 17, 2020
Machines related to lucerne pellet machine
Alfalfa, also known as lucerne, is a high-protein feed widely used in animal nutrition. In order to meet different processing needs, Ruiqi Machinery offers a variety of pellet machines compatible with alfalfa and similar raw materials. Whether you are dealing with straw, biomass, sunflower seed hulls, or even wool + sheep manure, the following machines can efficiently process these materials and convert them into high-density pellets suitable for use as feed or fuel.
biomass pellets making machine
The biomass pellets making machine turns rice husk, straw, wood chips, EFB and other materials into pellets for heating, cooking, feed or bedding. It’s efficient, affordable, and popular among users.
Straw pellet mill
Straw pellet mill is a mechanical equipment used to make straw into pellets. It adopts ring mold design and can produce high quality straw pellets from 1-45T/H. Besides, it can process almost all biomass raw materials, such as wood chips, rice straw, alfalfa grass, bamboo and so on.
Coffee Pellet machine
Coffee pellet machine is used to make coffee shell pellets and coffee grounds pellets. The machine adopts the most advanced technical process and is made of imported high-quality materials with high efficiency and low energy consumption.
sunflower shell pellet machine
Sunflower shell pellet machine is a kind of biomass pellet machine, which is able to press the crushed material of sunflower seed husk into sunflower seed husk pellets. It is able to produce 6-12mm biomass pellets with a production capacity of 1-12T/H.
Grass Pellet Mill
Grass pellet mill is a kind of pelletizing machinery with all kinds of grass,branches, wood, wood chips, corn stalks, straw stalks, wood chaff, wood flour, sawdust and other agricultural wastes as raw materials, the pellets made by this machinery can be used in feed plant, fireplace, boiler, biomass power plant, etc.
How much does a lucerne pellet machine cost?
RICHI Machinery lucerne pellet mills typically cost between $10,000 and $100,000. The higher the capacity of the machine, the more expensive the lucerne pellet mill. Of course, the price of a pellet mill will vary from brand to brand because of the process used and the materials used. We always pursue to provide you with excellent quality pellet mill equipment, you can rest assured to choose us. The prices of the equipment we provide are all factory prices, if you want to know the specific information about the quotation of the pelletizer, you can leave your contact information, our sales staff will contact you within one business day.
Is the lucerne pellet business profitable?
Lucerne pellets are used for two main purposes. One is biomass fuel and the other is animal feed. It is obvious that nowadays people pay more and more attention to environmental protection, and the use of biomass fuel is in line with the trend of the times. Moreover, more and more countries and governments call on people to use biomass pellets to replace traditional fuels, so it is obvious that the development prospect of biomass pellet fuel is good.
As for processing lucerne into feed pellets, as we have said before, the traditional way of feeding lucerne directly has a series of disadvantages. With the continuous development of the farming industry, it is obvious that the traditional powder and fodder fed to animals in its raw state can no longer satisfy the animals’ needs, so it is also the trend to make feed into pelletized products. All in all, the lucerne pellet business is profitable. As long as you choose the right pellet mill plant to develop an lucerne pelletizing program just for you, I believe you can get a piece of the lucerne pellet business.
What raw materials can lucerne pellet machine process?
The raw materials that can be processed by a lucerne pellet making machine are many and various. Almost all biomass raw materials and feed materials can be processed into pelletized products by the lucerne pellet making machine. As an example, lucerne pellets machines are suitable for wheat, corn, wheat straw, corn stover, hay, lucerne grass, wood chips, paper, bamboo, and more. If you are not sure whether your raw material can be used in lucerne pellets machine, you can tell us, we will be happy to do product testing for you for free.
