Feed pellet production line
RICHI feed pellet production line can produce 2-12mm feed pellets, the production capacity is 1-45t/h. It is widely used in the feed manufacturing plants and feed processing lines.
The video of the feed pellet production line
The feed pellet manufacturing line can process feed pellets for various animals, such as chickens, cattle, fish, pigs, rabbits and shrimps. Due to the pelleted feeds are nutritious, easy to digest and absorb, easy to store and transport, more and more farmers tend to make feed pellets for their animals. The main equipment in this manufacturing line are: animal feed pellet maker, feed crushing machine, feed mixing machine, feed cooling machine, feed packaging machine, etc.
With 27 years of experience in in feed machinery manufacturing and development, RICHI Machinery can not only provides animal feed pellet production lines of various scale, but also can customized animal feed production business plan according every customers’ requirements. If you have any need in making feed pellets, welcome to contact RICHI, we will reply to you within one business day.
Application of feed pellet production line
- Can process various raw materials into feed pellets.
- Can produce feed pellets for almost all kinds of animals.
- Widely used in the large scale and medium scale feeding production plant, animal farms and individuals who raise animals.
- Make feed pellets like for chicken feed pellet, rabbit feed pellet, cattle feed pellet,pig feed pellets and etc.
- Process corn, cotton seed cake, corn stalks, straw and etc into feed pellets.
There are a lot of advantages to using feed pellet production lines. Then I will introduce you to the features, working process, and main equipment of the feed pellet lines below.
Features Of The feed pellet production line
- Simple operation, can reduce the labor consumption. The small production line only needs 1-2 persons. Even the large production line needs 5-10 persons.
- Reasonable craft, easy to install. The installation of the small production line does not require on-site civil construction and welding.
- Novel structure, compact, safe, low failure. Have a long working service life. Every production lines designed by RICHI use the high-quality feed processing equipment.
- Wide application. It can produce almost all kinds of animal feed pellets, such as chicken feed pellets, cattle feed pellets, fish feed pellets, shrimp feed pellets, pig feed pellets, ect.
- Small volume, low noise, and adjustable production speed. We designed every feed manufacturing lines according to your real requirements, and tmost to save your cost and cover an area of space
- It is suitable for the feed production plant of different scales, farms and individuals who raise animals.
- Equipped with the dust removal system, can protect the working environment. Using SKF bearings and Siemens motors
High quality production lines make high-quality feed pellets
Customize a animal feed pellet production
Feed pellet production line working process for small capacity
The feed pellet production line mainly includes raw material crushing systems, mixing system, pelletizing system, cooling system, and packaging system. According to the specific needs of customers, we can provide the design of a complete feed pellet production line suitable for various animals. The following is the flow chart and video of small output feed production line that we can design for your reference. It is a 1-2t/h animal feed pellet making line, if you have the need to build a production line of any output, freely contact us to customize.
01 Crushing system
The first step of the line is to crush the raw materials. The materials include the corn, soybean meal, wheat, they need crushing into powered materials. Then put them in to the next section.
02 Mixing system
After crushing, you can mix the crushed materials evenly through the feed mixer. Generally, the kinds of the raw materials used to make feed pellets are less than one kind, so we need to mix the raw materials, to ensure to provide uniform nutrition for the animals.
03 Pelletizing system
After mixing, the materials enter the pelletizing system. Put them into the conditioner of the animal feed pellet mill through the feeder, which can make the raw materials cooked. Under the pressure of the ring die and the rollers, the cooked materials finally pressed into uniform feed pellets.
04 Cooling system
After pelletizing, send the feed pellets to the cooling system. Due to the high temperature and moisture of the feed pellets, the feed pellets are soft and easily cracked. The temperature of the feed pellets needs cooling to room temperature, in case the surface of the feed pellets crack. In addition, the cooled feed pellets have a longer storage time.
05 Packing system
After cooling, the feed pellets can be packed manully or automatically, which makes it more convenient to store and transport.
Feed pellet production line working process for large capacity
We can design feed pellet lines of various production capacity, the following is the flow chart and video of large output feed production line that we can design for your reference. It is a 8-12t/h animal feed production line, if you have any pelletizing requirements, welcome to contact us to provide you with pelletizing solutions.
Then I will introduce you the working process of feed pellet plants of large production capacity. It mainly including 4 systems: cleaning & crushing system, batching & mixing system, pelletizing & cooling system, automatic packing system.

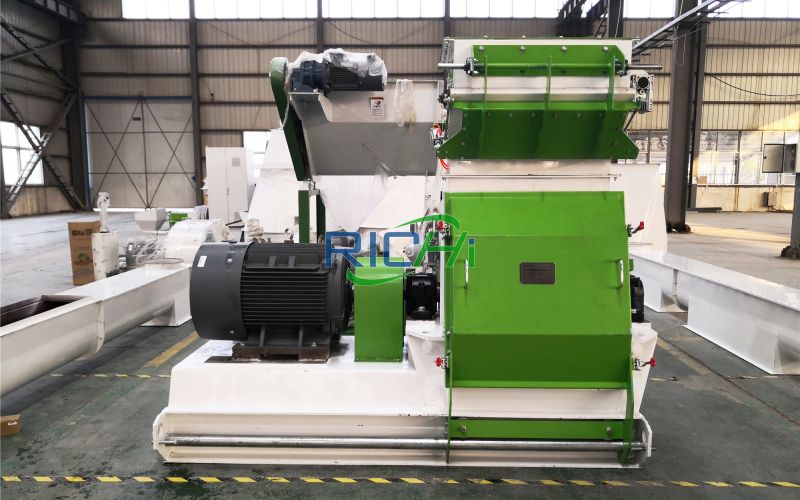

01 Cleaning&crushing system
The raw materials are put into the feeding hopper, then transported into the cleaning system vertically up by the bucket elevator. After a preliminary cleaning screen of a drum type precleaner, a permanent magnet cylinder, and then distributed by rotary distributor to different silos to be distributed. Then the raw materials enter the water-drop hammer mill for crushing, and the crushed raw materials are conveyed by bucket lift to the bin to be mixed.

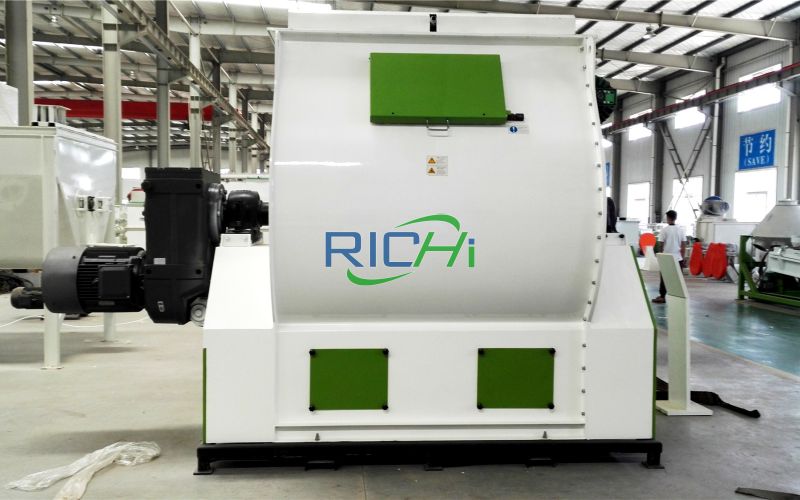

02 Batching&mixing system
Batching scale is controlled by computer to achieve accurate batching, overall batching error is less than 3%. The mixing of each batch of materials is divided into three stages: the first stage is the large materials into the mixer to start mixing; Then the premix is put into the small materials feeding hopper to start the second stage of small materials mixing. Finally, the grease is fed into the mixer through the grease adding system to start the third stage of mixing. After the material is mixed, they are sent to the pre-pelletizing bins by the bucket elevator.
03 Pelletizing&cooling system
The materials are transferred to the tempering conditioner through the variable frequency speed feeder. The variable frequency impeller feeder can control the feeding speed, so that the feed pellet maker can work under ideal conditions as much as possible.
The mixed powder materials contact and fuse with steam in the conditioner. After the materials are modulated to a certain temperature and moisture, enter the ring die of the pelletizer. Under the strongly extrusion between the ring die and the press roller, the pellets are formed and then cut into the desired length by the cutter.
The feed cooling machine is placed under the feed pellet machine, saving both floor space and the use of conveying equipment and storage bins. Cooling the temperature of the feed pellets to room temperature can avoid the phenomenon of sudden cooling caused by direct contact between cold air and hot material, and thus prevent the surface cracking of pellets
04 Automatic packing system
The system can pack the feed pellets into bags fully automatically, which makes it more convenient for storage and transportation.
RICHI packaging machine has an independent electric control cabinet, which can set the packaging weight on the program for automatic packaging.
As a professional feed pelletizing manufacturer, RICHI can not only provide various high-quality pelletizing equipment, but also many kinds of feed pellet manufacturing plants. We can design customized feed pellet lines of different production capacity, different configutions, etc.
CUSTOM SOLUTIONS
—— GET A QUOTE ——
Accurate control of cost accounting, scientific calculation of expected profits, to achieve cost reduction and efficiency, profit can be expected.From equipment selection and program planning in the early stage
Checking Order
Quality Test Before Delivery
Check Items When Packing
Packaging And Transport
Training Support
After-sale Service
The Main Equipment Of the feed pellet production line

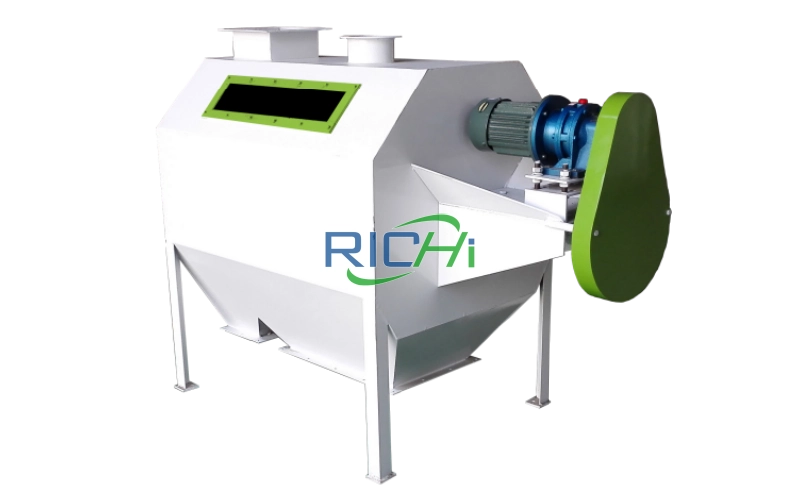

Drum type precleaner
RICHI Machinery Drum type precleaner is widely used in the raw material receiving part of feed pellet plant and other industries. Mainly used to remove large impurities such as rice straw, straw, hemp rope, corn cobs and etc to protect the feed pellet processing equipment from failure or damage.
Permanent magnet cylinder
The permanent magnet cylinder can clean the iron filings in the raw materials to protect the pelletizing equipment. It is mainly used for separating magnetic metal inclusions in raw materials, suitable for various scales of feed pellet mills, feed processing plant, etc.

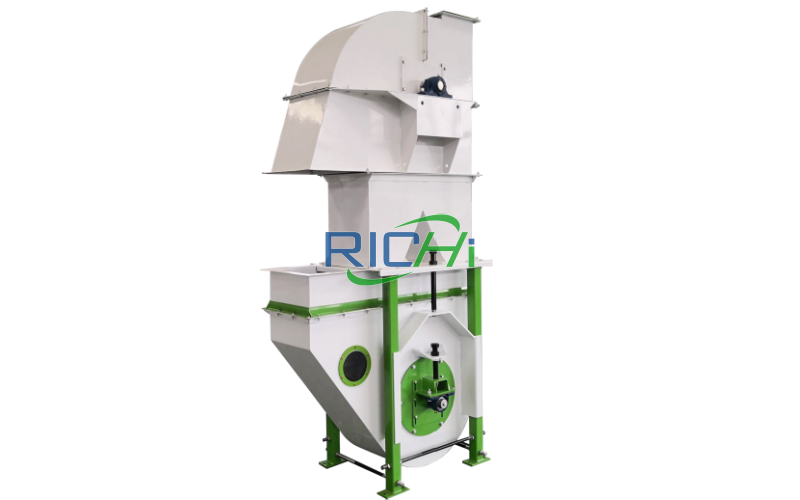

Bucket elevator
RICHI Machinery bucket elevator is a kind of professional conveying equipment. It has novel appearance, safe and simple operation, compact structure, high production capacity. It is widely used for vertical lifting of feed pellets and raw materials in the process of producing feed pellets.

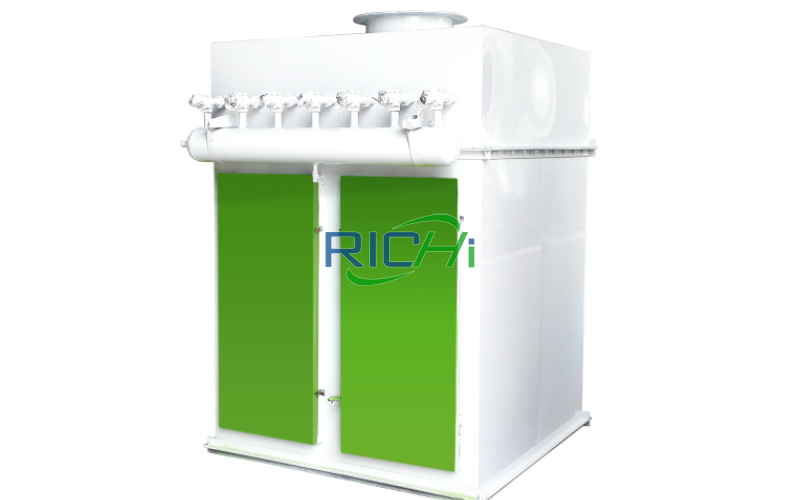

Pulse dust collector
Pulse dust collector is a centralized dust removal device, which can greatly reduce the dust generated during the process of manufacturing feed pellets. It is applicable to stand-alone or centralized air suction and dust removal or recycling filtration in feed processing, feed pellets plant, and etc.

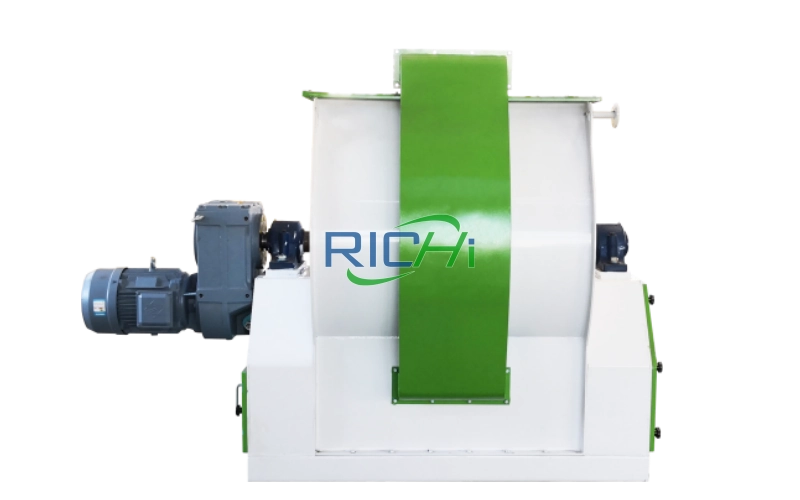

Single-shaft paddle mixer
The single-shaft paddle mixer can mix the raw materials evenly. It adopts a double-layer rotor design, and is widely used in the feed pellet production line and other feed plants. It is featured as reasonable design, easy operation and maintenance, high mixing uniformity, and short mixing time.

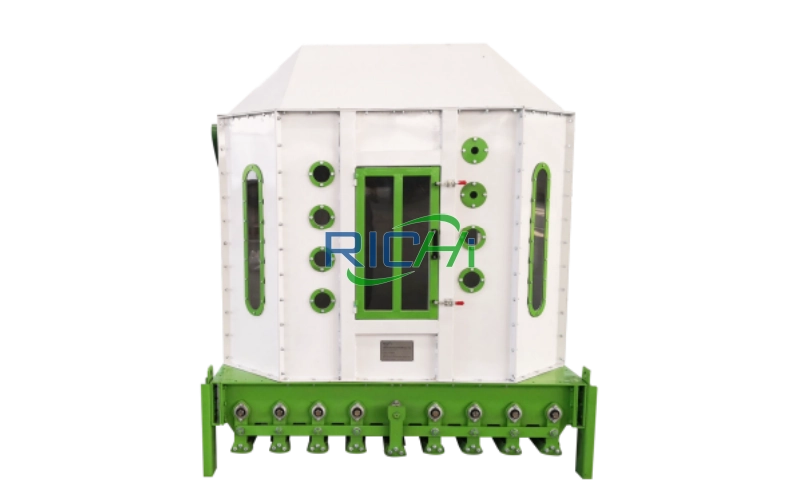

Counterflow Cooler
RICHI counterflow cooler adopts advanced theory of counterflow cooling to cool high temperature and high moisture feed pellets. It is widely applied in feed processing industry for cooling of all kinds of pellet materials.
Automatic Packing System
RICHI Machinery automatic packing system is a professional quantitative weighing and packaging equipment. It is suitable for quantitative weighing and packing pellets and powdered materials. The equipment is featured as high packing accuracy, fast packing speed and high efficiency.
The animal feed pellet maker is the core equipment in the feed processing lines, which directly decides the quality of the pellets. So it is better to choose a good feed pellet machine when producing feed pellets. If you are interested in making pellets, welcome to contact RICHI, we will customize and provide high-grade pellet equipment for you.
Hammer mill
RICHI water-drop hammer mill can crush the raw materials into powder, to ensure the best pelletizing effect. It can crush almost all kinds of feed raw materials, such as corn, wheat, beans, crushed cake and other materials. It has the characteristics of high efficiency, low labor consumption, small in size.

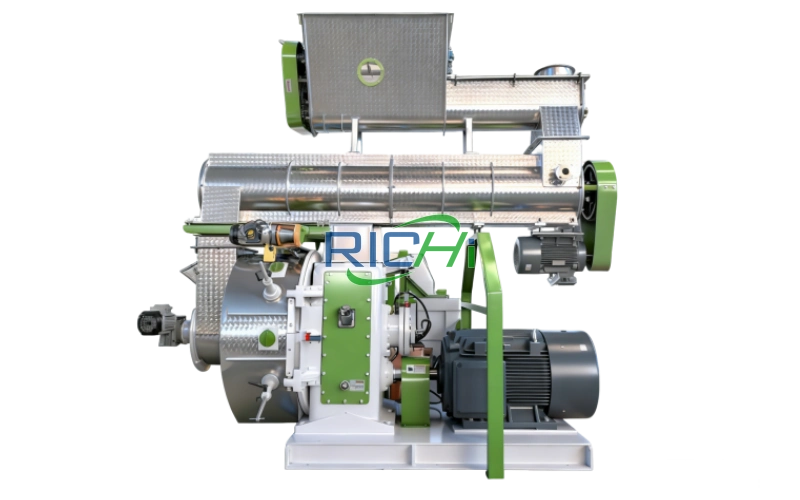

Animal feed pellet making machine
The machine is designed and manufactured with new technology and new materials, mainly used to produce feed pellets. The ring die, rollers and door of the pelletizing room are made of stainless steel. The working principle of the machine is modulating the raw materials to a certain temperature and moisture, then the feed pellets are formed under the strong extrusion between the ring die and the press rollers.
Here are the parameters of RICHI feed pellet maker. If you don’t know how to choose, just contact us directly.
| Model | SZLH250 |
|---|---|
| Capacity(T/H) | 1-2 |
| Main Motor Power(KW) | 22 |
| Feeder Power(KW) | 1.1 |
| Ring Die Diameter (mm) | 250 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH320 |
|---|---|
| Capacity(T/H) | 3-4 |
| Main Motor Power(KW) | 37 |
| Feeder Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 320 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH350 |
|---|---|
| Capacity(T/H) | 5-7 |
| Main Motor Power(KW) | 55 |
| Feeder Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 350 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH420 |
|---|---|
| Capacity(T/H) | 8-12 |
| Main Motor Power(KW) | 110 |
| Feeder Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 420 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH508 |
|---|---|
| Capacity(T/H) | 10-18 |
| Main Motor Power(KW) | 160 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 508 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH558 |
|---|---|
| Capacity(T/H) | 15-25 |
| Main Motor Power(KW) | 180/200 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 558 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH678 |
|---|---|
| Capacity(T/H) | 20-30 |
| Main Motor Power(KW) | 220/250 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 678 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH768 |
|---|---|
| Capacity(T/H) | 25-40 |
| Main Motor Power(KW) | 250/280 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 768 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH858 |
|---|---|
| Capacity(T/H) | 28-45 |
| Main Motor Power(KW) | 315/355 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 858 |
| Finished Pellet Diameter (mm) | 2-12 |
WHY CHOOSE RICHI MACHINERY
- 30 years’ experience in the design, production, R&D of animal feed pellet machinery.
- Customize a turnkey production line according to your need.
- All products have passed ISO, CE, SGS, BV and other international certification.
- Have perfect after-sale, providing professional systematic training, maximize to meet the needs of the project
Projects cases of chicken feed pellet machine for sale
These are some of the complete chicken feed pellet projects successfully delivered by RICHI Machinery. All of the projects adopt advanced feed pellet equipment, designed by our RICHI company to meet customers’ demands.
16 T/H Livestock Feed Pellet mill Italy
- Country: China
- Date: June 2016
- Total Power: 805KW
- Workshop size about this project:
20000m²
10-15T/H Animal Feed Pellet Production Line
- Country: Uzbekistan
- Date: July 1th,2019
- Total Power: 520KW
- Workshop size about this project: 35m*20m*25m(L*W*H)
The 10T/H Cattle Feed manufacturing plant In South Africa
- Country: South Africa
- Date: March 17th,2017
- Total Power: 335KW
- Workshop size about this project: 19m*6m*25m(L*W*H)
The 10-15T/H Poultry Feed ,manufacturing plant In Afghanistan
- Country: Afghanistan
- Date: Nov 18th,2017
- Total Power: 415KW
- Workshop size about this project: 12m*12m*25m(L*W*H)
The 5T/H Sinking Fish Feed Pellet Line In Uzbekistan
- Country: Uzbekistan
- Date: Nov 21th,2017
- Total Power: 298KW
- Workshop size about this project: 8m*5m*14m(L*W*H)
25T/H Chicken And Pig Feed Production Line Project
- Country: China
- Date: October 2018
- Total Power: 795KW
- Workshop size about this project:
4300m²
The animal feed pellet production line can make many kinds of animal feeds, such as cattle, shrimp, goat, pig, chicken, duck, rabbit, fish, goose, etc. Oobviously, using a feed pellet line can improve your production efficiency and reduce your labor consumption.
Many raw materials can be used to make feed pellets. Commonly used to make wood chip pellets are:corn, straw, soybean straw, hay, wheat, soybean, soybean meal, rapeseed meal, cotton meal, and etc.
If you don’t know if your raw materials can be used to make wood pellets, you can send us your samples, we will do a test freely for you.
Different production capacities of wood pellet production lines have different prices. Each kind of capacity of the line has a big difference from different configurations. Generally speaking, the simplest configuration of 8-10 t/h animal feed pellet production line costs 150000 USD, the highest configuration of the same production capacity is 300000 USD. You can contact us to get your customized feed pellet production line price.
