Wood Pellet Plant in Romania
The Wood Pellet Plant in Romania is specially designed by RICHI Machinery to meet the growing market demand in Romania. The project is a production line that processes waste wood raw materials such as sawdust into pellet fuel. The raw materials are first screened, crushed and dried, then extruded and formed by the pelletizing host, and then cooled, solidified, screened, and qualified products are packaged.
As a leading global supplier of wood pellet machinery, RICHI Machinery provides customized wood pellet plant solutions for Romania’s unique needs. Our solutions cover the entire process from raw material processing to finished product packaging, which greatly helps local producers improve the quality of wood pellets, effectively reduce costs and expand production scale.
Construction of the Wood Pellet Plant in Romania
Next, I will give you a detailed introduction to the 3 tons/hour wood pellet plant we have successfully built in Romania from multiple aspects. This pellet plant integrates advanced technology and efficient equipment. From raw material pretreatment to pellet forming, cooling and packaging, each process is closely connected, which can not only realize the high-value utilization of wood chips, but also inject new vitality into the local green energy industry. The basic information of the wood pellet production line in Romania is as follows:
- Project name: 3 tons/hour wood pellet processing production line
- Country: Romania
- Date: March 15, 2023
- Total power: 450kW
- Plant size of this project: 1500m²
- Production capacity: 3 tons of wood pellets can be produced per hour
- Raw materials: mainly use abundant forestry waste in Romania, such as logging residues, branches, bark, and sawdust and wood chips produced by wood processing.
- Installation period: 10 days
- Application scope: The produced wood pellets are mainly used in the field of biomass energy, providing fuel for local biomass power plants in Romania for power generation; they can also be used in the industrial field to provide clean energy alternatives for some companies that require heating and drying processes. In addition, some pellets can be used to make animal bedding and serve breeding companies.
- Final feedback: After the production line was officially put into production, the operation status was stable and reliable, reaching the expected production capacity of 5 tons per hour. The produced wood pellets are of excellent quality and have been highly recognized in the local energy market and related application fields. The customer fully affirmed RICHI’s equipment and services, believing that the equipment is easy to operate, has stable performance, and the after-sales team responds quickly, and can promptly solve problems that arise during the operation of the equipment, providing a strong guarantee for the company’s continued production.
Equipment and functions of the wood pellet plant in Romania:
Against the background of Romania’s rich forestry resources, a complete and efficient set of wood pellet production equipment is the key to realizing resource transformation and creating economic value. Every link from logs to pellet fuel is inseparable from the mutual cooperation of various equipment. Next, the various equipment and functions of the wood pellet factory will be introduced in detail.
Wood chipper (RICHI drum chipper 9FB56×120): Can quickly cut logs and branches with larger diameters into uniform wood chips of 3-5cm, which is convenient for subsequent processing.
Hammer mill (RICHI SFSP66*80): Responsible for crushing wood chips, straw and other raw materials into 2-5mm pellet size. The wear-resistant hammers of the equipment crush the raw materials at high speed, with built-in cooling structure, uniform discharge and low power consumption.
Drum dryer (ф1500 drum dryer): Reduces the moisture content of the raw materials to an appropriate level, ensures the quality of pellet molding, and prevents cracking or mildew.
Wood chip pellet machine (RICHI MZLH520 series ring die pellet machine): With the help of the extrusion effect of the roller and the ring die, the pre-treated raw materials are processed into high-density and high-strength pellet fuel. With stainless steel anti-arch silo design and Siemens high-efficiency motor, the energy-saving effect is significant.
Countercurrent cooler (RICHI SKLN1414 countercurrent cooler): Cools the high-temperature pellets to room temperature, solidifies the pellet structure, and prevents surface cracking.
Fully automatic packaging machine (RICHI ZZP-50 series): Realizes quantitative packaging of pellets, seamlessly connects with the weighing and conveying system, is efficient and convenient, and greatly improves the level of automated packaging.
Details of drawings provided by RICHI Machinery for the wood pellet plant in Romania:
During the construction and operation of the wood pellet factory in Romania, accurate drawing design is the key support to ensure the smooth implementation of the project and the efficient operation of the equipment. With its deep technical accumulation and rich project experience, RICHI has carefully compiled drawings covering the entire process and all links.

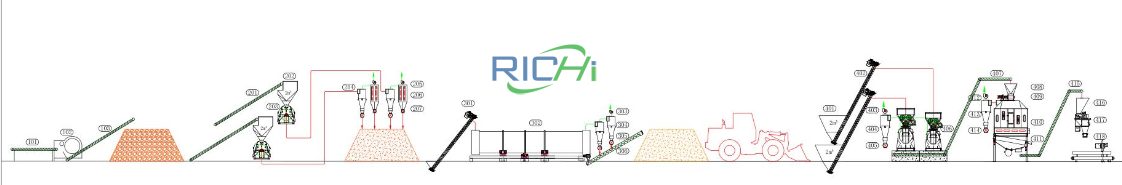

(1) Process flow chart
The flow chart provided by RICHI presents the overall production picture of the wood pellet line with intuitive and clear logic. From the time the raw materials enter the production line, the connection and material flow of each link are very detailed, which makes it easy for technicians to master the overall production process.
(2) Installation drawing
Each piece of equipment is marked with key information such as the installation location, fixing method, interface size, etc., to facilitate efficient construction by the installation team.
(3) Foundation pit drawing
For equipment that needs to be installed in the foundation pit, the drawing details the size, depth, shape, reinforcement and other parameters of the foundation pit to ensure that the foundation pit can withstand the weight and vibration of the equipment during operation and ensure the long-term stable operation of the entire production line.
(4) Equipment layout drawing
Fully consider the function of the equipment, production process, operating space, logistics channel and other factors, and reasonably arrange the location of each equipment to ensure smooth connection between the equipment and efficient logistics transportation.
(5) Production and construction design drawing
The production and construction design drawing of the wood pellet factory in Romania integrates multiple aspects such as equipment installation, pipeline laying, and electrical line layout, covering every construction step from plant foundation construction to equipment installation and commissioning, clarifying the construction process, technical standards and quality requirements to ensure a standardized and orderly construction process.
(6) Full drawing of steel structure and steel material list
Detailed display of the design plan of the plant and equipment support structure, including the shape, size, connection method, etc. of the steel frame. The supporting steel list clearly lists the specifications, models and quantities of the required steel, which facilitates accurate procurement by procurement personnel and construction by construction personnel.
(7) Plant plan and section drawings
The plan shows the distribution of various areas of the plant, while the section shows the height, floor structure, equipment installation height and other information of the plant, helping designers, construction personnel and enterprise managers to fully understand the spatial layout of the plant.
(8) Steel structure construction drawings
The steel structure construction drawings include the processing technology, welding requirements, anti-corrosion treatment, etc. of each component, providing precise technical guidance for the processing and on-site installation of the steel structure, and ensuring the safe operation of the plant and equipment.
(9) Floor diagram
For multi-story plant structures, the floor diagram clearly defines the functional divisions, equipment distribution and connection methods of each floor, helping enterprises to rationally plan production processes and improve production management efficiency.
Details of drawings
Process flow chart
Installation drawing
Foundation pit drawing
Equipment layout drawing
Production and construction design drawing
Full drawing of steel structure and steel material list
Plant plan and section drawings
Steel structure construction drawings
Floor diagram
High-grade wood pellet lines make high-quality wood pellets
Accurate drawings are the key to the construction of the wood pellet Production in Romania project, laying a solid foundation for equipment installation and plant construction. However, a reasonable and efficient production process is also extremely important. Next, we will explain in detail the production process of the 3T/H wood pellet production line in Romania.
Production process of the 3T/H wood pellet production line in Romania:
Relying on Romania’s rich forestry resources, RICHI Machinery’s carefully built 3T/H wood pellet production line uses customized and efficient processes to convert forestry waste into high-value biomass fuel. From raw material processing to finished product output, all links are closely coordinated. The following is a detailed description of the production line:
3T/H wood pellet production line in Romania
01 Wood chipping process
In the 3T/H wood pellet plant for sale, logs are fed into the drum chipper through professional conveying equipment. With its high-speed rotating and adjustable blade head, this equipment can quickly cut logs and branches with larger diameters into uniform wood chips of 3-5cm.
02 Wood crushing process
The wood chips processed by the chipper are fed into the hammer mill by a screw conveyor. Here, wood chips and any raw materials such as straw that may be mixed in are crushed to a pellet size of 2-5 mm. The wear-resistant hammers of the equipment crush the raw materials at high speed, and the built-in cooling structure effectively prevents friction overheating, ensuring uniform discharge and low power consumption.
03 Drying process
The drying process is a key step in the Romanian wood chip pellet production line and directly determines the quality of pellet molding. The drum dryer equipped in the production line adopts hot air circulation heating technology and can be adapted to a variety of raw materials. During the drying process, the intelligent temperature control system accurately controls the inlet air temperature, combined with strict control of the drying time and ventilation volume, to reduce the moisture content of the raw materials to an appropriate level.
04 Granulation process
After the dried wood chips enter the granulation section, they are first screened out of impurities such as iron and stone through a special cleaning equipment. Subsequently, the wood chips enter the MZLH520 series ring die pellet machine through the feeder. The equipment processes the pre-treated raw materials into high-density and high-strength pellet fuels by the extrusion of the roller and the ring die. In the Romanian project, the pellet machine’s stainless steel anti-arch silo design, combined with a forced feeder and Siemens high-efficiency motor, provides strong power for the stable operation of the equipment.
05 Cooling process
The temperature of the newly produced wood pellets is as high as 70-90℃, which is in a high temperature and high humidity state. At this time, the countercurrent cooler needs to play its own important role. The equipment adopts reverse airflow cooling technology to evenly cool the pellets to room temperature, effectively solidify the pellet structure, and prevent surface cracking.
06 Screening and packaging process
At this time, the customer has produced wood pellets through a series of processes. However, unqualified wood pellets are inevitable in the pelletizing process, so the wood pellets need to be screened after cooling, and the qualified wood pellets flow out from the middle and enter the finished product warehouse.
The fully automatic packaging machine is responsible for completing quantitative packaging. The packaging machine is seamlessly connected with the weighing and conveying system, and has the characteristics of large capacity, high efficiency and convenient operation. In the Romanian project, the level of automated packaging has been greatly improved, realizing the efficient connection of pellet products from production to market circulation.
Of course, RICHI can not only provide wood pellet production line with this capacity, but also can provide 1-45T/H wood pellet production line with even higher capacity, as long as you tell us your raw material, your production needs, we can customize the production line to meet your requirements. Learn more.
Can’t find the wood pellet line manufacturer you want?
Contact us to customize for you
RICHI MACHINERY
Characteristics of the Wood Pellet Plant in Romania
In this project, the wood pellet production line in Romania has significant advantages in energy consumption, raw material processing, and molding with its unique technology, bringing core advantages such as environmental protection, high efficiency, and durability, effectively contributing to the industrial development in Romania.
(1) The project adopts advanced compression molding technology and innovative transmission system, combined with high-precision gear transmission, which can achieve the output of high-energy density pellets with low energy consumption. Compared with traditional equipment, the energy-saving effect is significant.
(2) The equipment can process a variety of forestry and agricultural wastes, such as various wood processing residues, fruit tree pruning branches, wood chip processing waste, and crop straw. Through special pretreatment technology, it can be compatible with different fiber raw materials, reduce dependence on a single raw material, and improve production flexibility.
(3) Using a variety of processes such as cold pressing and extrusion molding, combined with grease polishing and shaping technology, the produced pellets have high density and high strength. The pellets are not easy to break and lose during storage and transportation. The mold is made of high-quality alloy steel and has undergone special heat treatment, which has a long service life.
(4) Each production section adopts standardized modules, which is convenient for quick installation and commissioning, and also convenient for flexible adjustment of production capacity according to demand. Later maintenance and upgrading are more convenient and can adapt to the needs of production lines of different sizes.
Project cases related to wood pellet Plant
In the field of biomass energy, wood pellet plants of different sizes have diverse production needs and operating models. RICHI has not only built a wood pellet plant in Romania, but also built wood pellet production lines and wood pellet plants in many other regions. Its products have covered more than 150 countries and regions including Japan, Canada, Germany, Russia, the United Kingdom, Australia, Chile, etc. If you want to start a wood pellet business, you can refer to the following project cases:

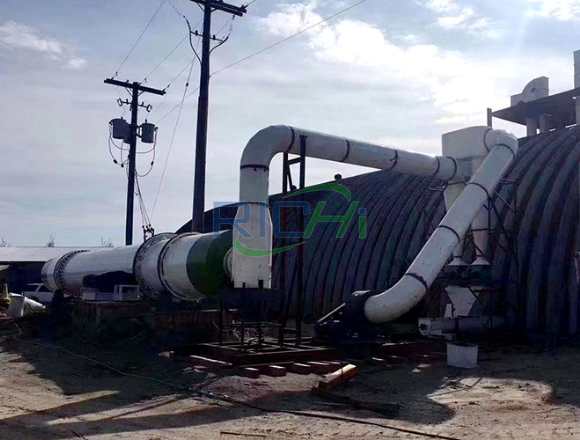

Germany 2-3 tons/hour wood pellet project
- Country: Germany
- Name: High-efficiency biomass wood pellet production system
- Total power: 150KW
- Production capacity: 2-3 tons/hour
- Plant size: 18m × 10m × 8m
- Description: This project is located in an area rich in forestry resources in Germany, making full use of the local rich forestry resources. The production line has an intelligent raw material screening function and can accurately remove impurities. The equipment is easy to operate and runs stably. The wood pellets produced have high density and high calorific value. They are widely used in local biomass energy heating and small power generation fields, and meet Germany’s strict environmental protection and energy standards.
3-4 tons/hour wood pellet automatic production line in Sweden
- Country: Sweden
- Name: Large modern wood pellet factory
- Total power: 450KW
- Production capacity: 3-4 tons/hour
- Plant size: 20m × 10m × 15m
- Description: Located in the core area of Sweden with a high forest coverage rate, it has a high degree of automation. Equipped with an efficient waste heat recovery device, it greatly improves energy utilization. The wood pellets produced are of excellent quality and occupy an important share in the biomass fuel market in the Nordic region, which has strongly promoted the development of the local green energy industry.
5 tons/hour wood pellet production line in Austria
- Country: Austria
- Name: Modern wood pellet production project
- Total power: 515KW
- Production capacity: 5 tons/hour
- Plant size: 28m × 18m × 23m
- Description: This project is located in Austria, a country with mature forestry management and a high demand for renewable energy. The plant adopts a fully automated production system and uses wood waste chips as the main raw material. Equipped with a high-efficiency control system and a stable pelletizing section, it ensures consistent pellet size of 6mm. With its excellent product quality and stable output, the production line has gained recognition in local biomass fuel markets. The project was installed within 60 days with support from 2 RICHI engineers, and only 6-8 workers are required for daily operation.

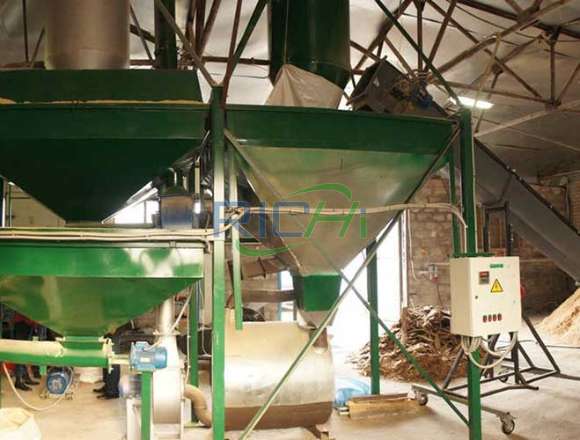

1–1.5 tons/hour wood pellet production line in Indonesia
- Country: Indonesia
- Name: Compact wood pellet production facility
- Total power: 75KW
- Production capacity: 1–1.5 tons/hour
- Plant size: 13m × 9m × 6.5m
- Description: Built in Indonesia to support the local shift toward sustainable energy, this small-scale pellet production line focuses on processing wood sawdust into 8mm biomass pellets. The plant is compact but highly efficient, ideal for mid-sized operations. It was fully installed and commissioned within 30 days, assisted by 2 engineers from RICHI. The project now runs smoothly with 1-2 local operators and has contributed to promoting the use of clean energy in the region.
RICHI MACHINERY
Why Choose RICHI Machinery
Choosing RICHI Machinery means you’ll receive not only high – quality equipment but also one – stop solutions and comprehensive service support. Here are some key reasons to choose us:
30 years of industry experience
Since its establishment in 1995, RICHI Machinery has amassed 30 years of rich experience in the design, production, and R & D of wood pellet mill machine. With our profound technical accumulation and global development, we can provide our customers with reliable equipment and solutions.
Customized turnkey solutions
We offer a complete turnkey production line, covering project design, equipment manufacturing, installation and commissioning, and personnel training, according to your specific needs. Whether it’s a small farm or a large feed factory, we can tailor a suitable production plan for you.
Complete after – sales service
We have a comprehensive after – sales system, providing you with all – round services from pre – sales consultation to after – sales maintenance. This includes professional and systematic training to help you quickly master equipment operation and maintenance skills and maximize project requirements.
Built Around Your Needs
We can create customized turnkey pellet production line projects based on your unique requirements. For example, in this project, we provided customized technical solutions and operation training for the wood pellet plant in Romania to help the production line operate stably in the long term. You can find us on YouTube.
