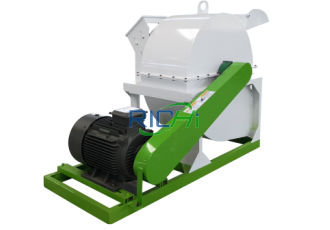

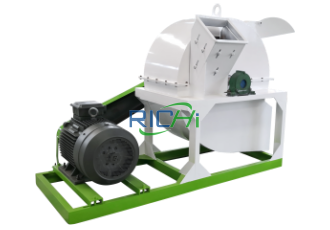

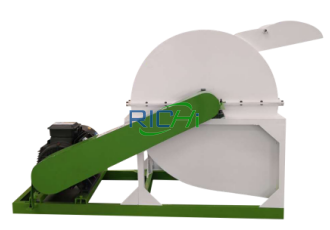

Introduction Of Wood Grinding Machines
This wood grinder machine boasts a sturdy structure and can be configured to meet various production requirements. During its design, we prioritized not only efficiency but also operator safety and machine durability. We aim to ensure customers can operate at high capacity without worrying about equipment failures while also minimizing maintenance costs.
The equipment can crush raw materials up to 5 cm in diameter into sawdust, and the screen size can be customized. By changing the screen, the finished particle size can be controlled to a range of 0.5 mm to 30 mm. This allows for easy adjustment, whether producing fine wood powder or retaining some coarse particles.
Overall, RICHI’s wood grinder machine helps businesses maximize raw material utilization, reduce waste, and streamline production. We offer different models to meet diverse needs, from coarse grinding to fine wood powder, and we can also provide customized designs based on your raw material and production requirements.
RI
Model
30-90
Power (kW)
4-8
Number of Cutters
15-48
Number of Hammers
How Wood Grinding Machines Work
- The most important part of a sawdust hammer mill is the rotor. It’s inspected and adjusted using a dynamic balancer before leaving the factory, ensuring that even at high speeds (around 2900 rpm), the deviation is controlled within 5 grams. This ensures stable operation, less vibration, quieter noise, and longer-lasting performance.
- Once the wood enters the grinding chamber, the rotor begins rotating, driving the blades and hammers. The blades first cut the wood into small pieces, and then the hammers strike the wood with powerful force, completely pulverizing it.
- Both the blades and hammers are made of 65 manganese steel and hardened for increased strength.
- The hammer heads are welded with tungsten carbide, making them more wear-resistant than other materials. Even with extended grinding of hardwoods, they experience minimal wear. This reduces the need for frequent part replacement, significantly reducing maintenance costs.
- Finally, the blades and hammers pulverize the wood to the desired size. The wood is then discharged through a screen, completing the grinding process.
RICHI MACHINERY
Wood Grinding Machines Models and Specifications
Because every plant’s raw material requirements, output volume, and scale vary, each customer’s equipment performance and output requirements for wood processing, wood pellet plants, and biomass pellet production also vary. To address this issue, RICHI offers a variety of wood chipper models, suitable for both small-scale wood processing plants and large-scale operations specializing in a wide range of wood materials.
Wood chipper equipment operates reliably and can process a variety of wood raw materials, such as logs, sawdust, branches, planks, pallets, and more. The table below provides detailed equipment specifications for comparison and selection. If you have any questions about model selection, please feel free to contact us and we will recommend the most suitable solution.
| Multifunctional Wood Grinding Machines | ||||
| Model | RI-600 | RI-800 | RI-1000 | RI-1200 |
| Power (kW) | 30 | 45 | 75 | 90 |
| Maximum Processing Diameter (mm) | 170 | 220 | 320 | 360 |
| Number of Cutters | 4 | 4 | 6 | 8 |
| Number of Hammers | 15 | 24 | 36 | 48 |
| Overall Dimensions (mm) | 1900*900*1300 | 2100*1200*1450 | 2600*1450*1800 | 3100*1800*2150 |

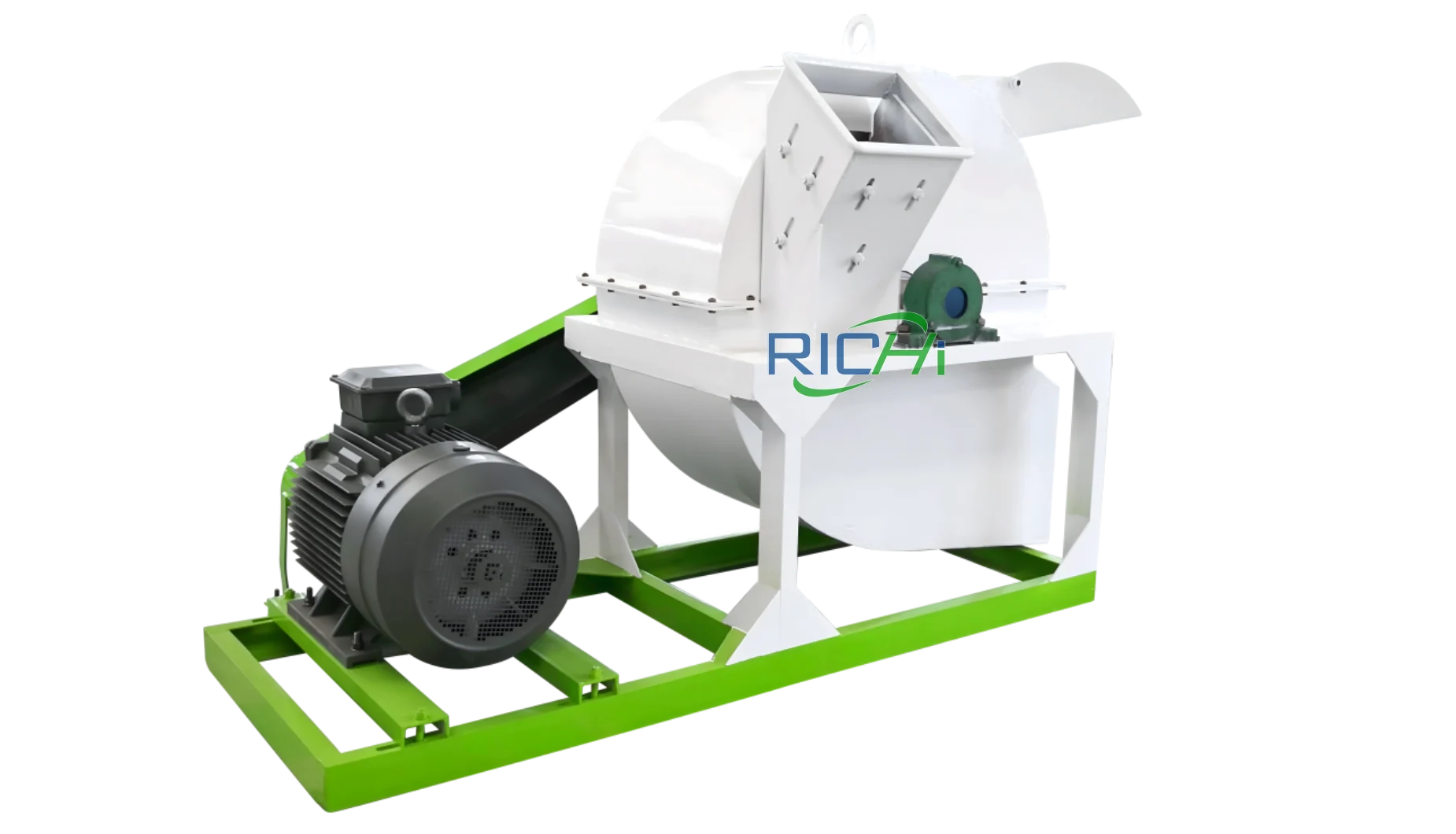

Main Applications of Wood Grinding Machines
Commercial wood chippers and industrial wood chipper are a highly versatile type of equipment that plays an important role in a variety of industries. Their main applications include:
Wood Pellet Production Line
A wood chipper is essential for wood pellet production. Raw materials such as logs and branches must first be crushed into uniform wood chips by the crusher before entering the wood pellet machine for pelleting.
Forestry and Arboriculture
Whether it’s logging or tree maintenance, wood crushing machines are essential. Harvested logs, pruned branches, and various other waste wood can all be processed into sawdust or mulch, effectively disposing of unused wood.
Landscaping and Gardening
Homeowners tending to their yards, landscapers doing landscaping, and gardeners planting crops often use small wood crushing machines. They crush clippings, dead wood, and landscaping debris into small pieces that can be used as mulch or compost, an organic soil fertilizer.
Recycling and Waste Management
In the recycling and waste management industry, wood crusher machine transforms demolition debris, pallets, crates, and other waste wood into reusable materials.
Renewable Energy Production
In the field of recycling and waste management, wood crusher machines can be of great use. For example, wood chips, old pallets, waste wooden boxes, etc. generated by demolition can be turned into reusable materials after being processed by it.
Animal Bedding
Farmers often use wood chips and wood shreds as animal bedding. Whether it’s a farm, stable, or large-scale operation, laying this type of bedding for horses, cattle, and poultry is absorbent, comfortable, and improves the quality of the breeding environment.
Features and Advantages of Wood Grinding Machines
The wood grinding machine is exceptionally durable and stable, offering powerful crushing power. The finished product size can be adjusted to meet customer requirements.
Even more conveniently, it can handle a wide range of wood materials, including fine wood from lumber mills, boards and pallets from furniture factories, branches, straw, and even large logs from wood pellet line and biomass pellet plant. Therefore, it’s indispensable for wood chipping and a favorite among customers.
Compatible with a variety of wood materials
This wood grinding machine’s adaptability is truly convenient! It’s hassle-free to use in the workshop. Whether it’s whole logs, cut branches, or wood chips, you can simply throw them in and they’ll be crushed, saving you a lot of effort in sorting and cutting. The finished product size can also be adjusted quickly—without disassembling the machine, simply replace the screen. Adjustable sizes are available from 0.5 mm to 30 mm.
The size of the crushed product can be adjusted.
Our wood grinding equipment also offers custom screens. You can select the appropriate aperture for your crushing needs. This allows for better control over the finished product size, greater processing flexibility, and more efficient production.
High-Quality Rotor Dynamic Balancing
The core rotor of our machine has undergone dynamic balance testing, and even at high speed (2900 rpm), the deviation is controlled within 5 grams. The benefits are substantial: the machine is durable and long-lasting, and it operates with low noise and minimal vibration, making it extremely reliable.
Excellent Blade and Hammer Design
The blade and hammer design is very rational: the blade first cuts through the bark and knots of hardwood, and then the hammer impacts and pulverizes them, resulting in higher efficiency. Furthermore, the blade and hammer are made of 65-grade manganese steel and are quenched for high hardness and durability.
Highly Wear-Resistant Hammer Head
The hammer head is exceptionally durable, with a 3mm-thick tungsten carbide coating for wear resistance and durability. Even with daily, intense work, the pulverization effect remains stable, and the need for frequent hammer head replacement saves significant maintenance costs.
Wood Grinding Machines for Sale Project cases
To help you better understand the wood crusher for sale offered by RICHI Machinery, below are some project cases, including wood pellet factory, furniture factory scrap recycling, biomass fuel pellet plant, and landscaping waste processing. We hope these real-world examples will help you choose the solution that best suits your production needs.
(Note: Since the equipment configurations for the first three projects are relatively simple, we only show some photos of the delivery site. Please understand.)

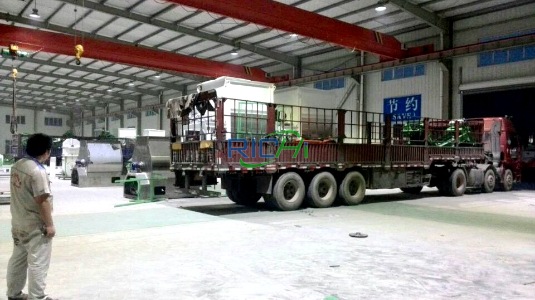

2T/H wood grinding machine for sale Australia
- Project Name: Farm Animal Bedding Processing Project
- Country: Australia
- Raw Materials: Eucalyptus branches, pruning wood chips
- Production Capacity: 2 tons/hour
- Application: Bedding for horse farms and dairy farms
- Core Equipment: Medium-sized wood grinder (small size to reduce costs), etc.
3T/H wood grinding machine for sale Poland
- Project Name: Furniture Factory Sawdust Recycling Project
- Country: Poland
- Raw Materials: Furniture factory offcuts, wood scraps, and wood board waste
- Production Capacity: 3 tons/hour
- Application: Particleboard and particleboard production
- Core Equipment: Medium-sized wood grinder + dust collection system (to improve workshop environment), etc.

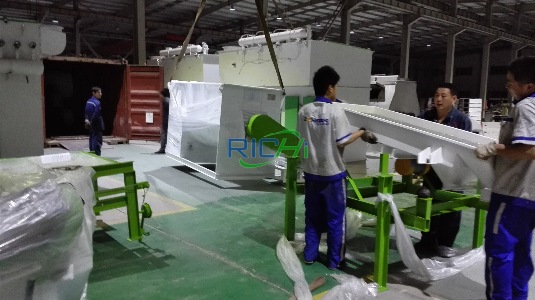

5T/H wood grinding machine for sale Canada
- Project Name: Urban Landscaping Waste Treatment Project
- Country: Canada
- Raw Materials: Park prunings, fallen leaves, and urban landscaping waste
- Production Capacity: 5 tons/hour
- Application: Garden mulch, organic compost, soil improvement, and landscaping materials.
- Core Equipment: Mobile wood grinder (for greater convenience), etc.

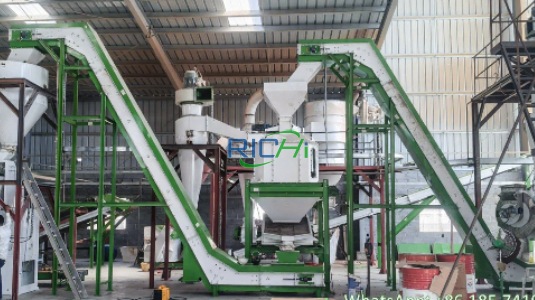

7T/H wood grinding machine for sale USA
- Project Name: Pallet Recycling and Shredding Project
- Country: United States
- Feedstock: Used wooden pallets, wooden boxes, packaging strips
- Output: 7 tons/hour
- Application: Recycled wood chip fuel, animal bedding
- Core Equipment: Commercial wood pellet mill, Heavy-duty wood grinder + automatic feeding device, etc.
9T/H wood grinding machine for sale Germany
- Project Name: Biomass Energy Plant Wood Grinding Project
- Country: Germany
- Feedstock: Wood scraps, branches, construction waste
- Output: 9 tons/hour
- Application: Production of biomass fuel pellets
- Core Equipment: Biomass pellet machine, Large-scale wood grinder + conveying system, etc.
10T/H wood crusher for sale South Africa
- Project Name: Wood Processing Plant Waste-to-Energy Project
- Country: South Africa
- Feedstock: Wood scraps, sawdust chunks, bark
- Output: 10 tons/hour
- Application: The crushed wood is used as biomass fuel, for pelletizing, animal bedding, and wood board production.
- Core Equipment: Wood granulator machine, Large-scale wood grinder + screening system, etc.
Why Choose RICHI Machinery?
Choosing RICHI machinery‘s wood grinding machines means choosing an efficient, stable, and reliable wood crushing solution. With years of industry experience and global project implementation, our equipment has been exported to over 150 countries, helping our customers achieve significant advantages in energy savings, efficiency, and cost control.
Efficient and comprehensive after – sales service:
RICHI machinery has a comprehensive and well – established after – sales service system. It has multiple overseas logistics routes to ensure that wood grinding equipment arrives safely and on time. Later on, if there’s any abnormality with the customer’s machine, we’ll provide after – sales staff to offer preliminary solutions right away. And within 48 hours, we’ll send professional technicians to the site for service, minimizing the customer’s downtime.
Scientific customized services:
We have a diverse and rich product system. With over 200 products, we can meet the needs of various wood production customers. The company is equipped with a professional R&D and design team. According to your actual situation, whether it is a small wood factory or a large industrial factory, we will design personalized solutions for you based on the actual situation.
Excellent equipment quality:
RICHI Machinery has won many international authoritative certifications. The company has passed BV certification, ISO9001 International Quality Management System Certification, European CE Certification, and Swiss SGS Certification, among others. You can find us on YouTube.
