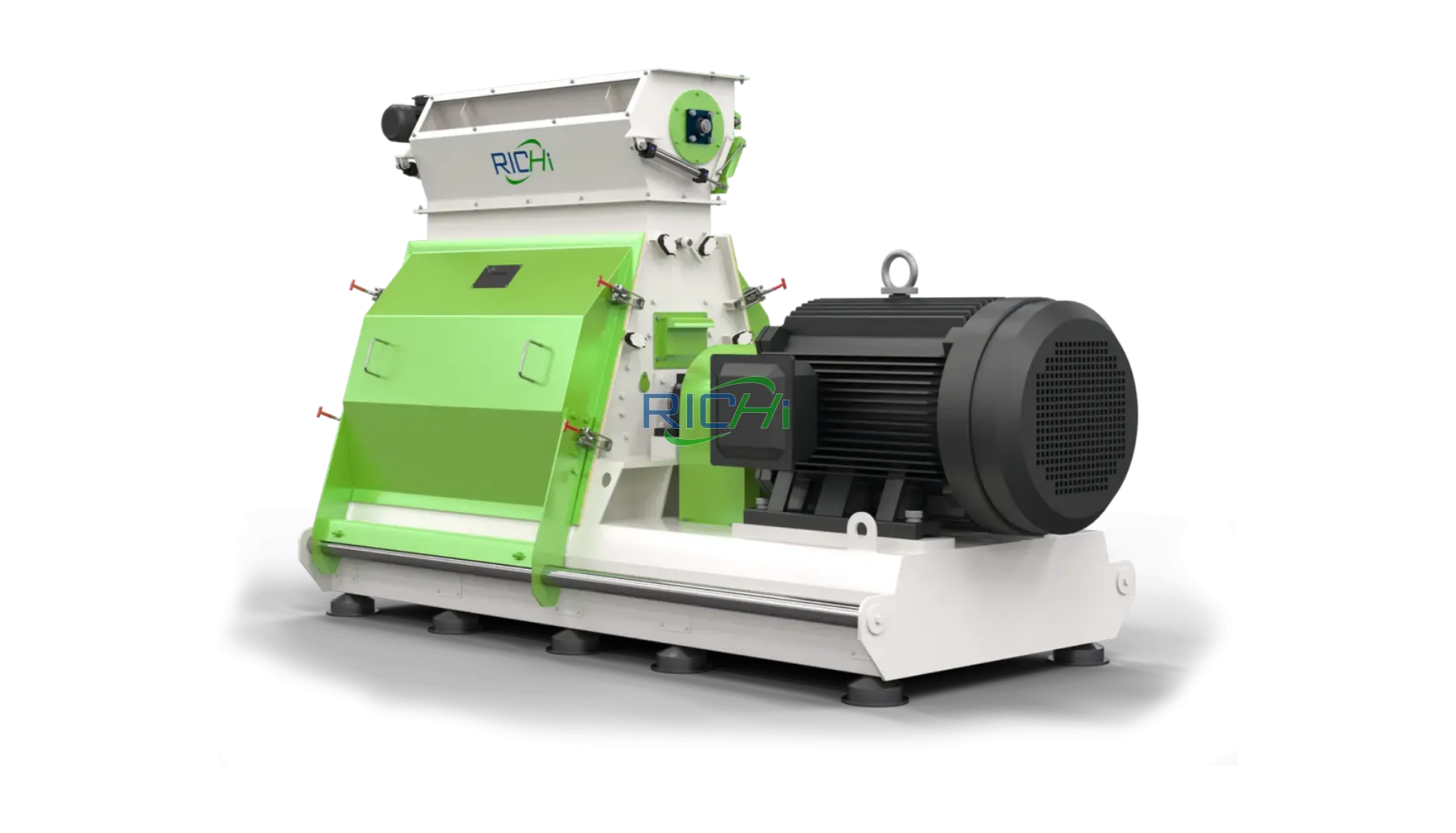

Wood Chip Hammer Mill
Wood chip hammer mill is a high-speed fine crushing equipment specially used for processing wood chips, sawdust, wood chips and agricultural waste, grinding them into wood sawdust or wood powder of required size. Wood hammer mill is a high-speed fine crushing equipment specially used for processing wood chips, sawdust, wood chips and agricultural waste, grinding them into wood sawdust or wood powder of required size.
Wood hammer mill is widely used in wood pellet plants, furniture factories, biomass pellet production lines, and animal feed processing (to achieve a finer size for easier digestion), helping you achieve high yields with low energy consumption and high quality. Whether you’re pre-processing logs or finely grinding waste materials, the wood hammer mill is the ideal choice.
RICHI MACHINERY
What is a Wood Chip Hammer Mill?
A hammer mill for wood chips can flexibly adjust the size of the final product between 0.5mm and 20mm by replacing the screens with different apertures, meeting the needs from coarse sawdust to fine wood powder. The flexible screen size allows for customization based on customer needs. Furthermore, if maintenance is required due to long-term use, two workers can easily replace the screen in 10 minutes.
It has a wide range of applications, including wood processing, biomass pellet processing, animal feed ingredients, and various grain processing. It is particularly suitable for efficiently grinding biomass materials and agricultural by-products, primarily serving clients in lumber mills, feed mills, and agricultural processing.
RICHI’s wood hammer mill, also known as a wood chip pellet hammer mill, boasts a robust structure and stable performance, earning it a strong reputation in the industry. For example, a machine we installed at a wood processing plant in Indonesia has been operating continuously for three years, processing an average of 6-8 tons of wood chips daily with minimal major repairs.
Many of our customers use this type of machine, some for over a decade. We always strive for efficient and economical grinding processes, so during the design phase, we specifically equipped the machine with a high-precision dynamically balanced rotor. This reduces vibration and noise during operation, significantly improving the workshop’s working environment.
In addition, the machine’s removable operating door and integrated screen-pressing mechanism make maintenance extremely convenient, demonstrating its user-friendly design. Safety is also a priority, with the machine equipped with a safety interlock to ensure operator safety.
How the Wood Chip Hammer Mill Works
The core function of an electric wood hammer mill is to pulverize material into fine powder. The screen size can be customized to meet your production needs — if you need to adjust the finished product size, simply replace the screen; it’s that simple.
- When the machine is in operation, raw materials enter the pulverizing chamber through the feed inlet. The high-speed rotor drives the hammers, which powerfully impact, shock, and shear the material, rapidly pulverizing it.
- Furthermore, the pulverizing chamber features an advanced teardrop-shaped design and is equipped with a secondary pulverizing mechanism, making it far more efficient than conventional pulverizers.
- We have also added a patented shaft-end air intake system. This system directs a large amount of air into the pulverizing area, further increasing output by over 20%, especially when using small-aperture screens.
- To ensure stable operation, the mill is equipped with a high-precision dynamically balanced rotor to effectively reduce vibration and noise, ensuring smooth operation.
- Furthermore, the mill is equipped with an adjustable screen plate and a material retaining device to effectively break up the material’s circulation layer, ensuring more uniform pulverization and finer size. Furthermore, the rotor can rotate forward and backward, extending the life of the hammers.
- We’ve simplified maintenance and operation. The hammer mill for wood pellets features a removable operator door and an integrated screen press, making screen replacement and equipment cleaning less time-consuming and labor-intensive.
Advantages of the Wood Chip Hammer Mill
A small hammer mill for wood chip is a machine that crushes wood, branches, planks, and agricultural waste into fine pellets or powder. It is widely used in biomass fuel production, wood pellet plants, wood processing plants, and feed processing plants.
Its rational structure, stable operation, and simple maintenance make it an ideal choice for small, medium, and large wood pellet factory.
Efficient Production Process
We’ve designed an advanced teardrop-shaped crushing chamber, coupled with secondary crushing. Compared to standard hammer crushers on the market, this crusher increases output by approximately 25%, making production more efficient in your workshop.
Intelligent Foreign Object Removal
This crusher’s vibrating impactor is intelligent: it automatically avoids any foreign objects that might enter the machine. You don’t need to stop the machine to manually remove small debris, which reduces the risk of equipment damage and unexpected malfunctions caused by small debris.
High Energy Efficiency
We’ve optimized the design of the crushing system. The most significant benefit is that the operating current fluctuation is only 10%, making it more stable than previous models, maximizing energy utilization and reducing long-term electricity costs.
Excellent Fine Grinding Performance
For fine grinding, it features an extra-wide crushing surface, precisely positioned hammer heads, an adjustable screen, and a material retaining device. Material circulates fully within the crushing chamber, ensuring high-quality, fine powder every time.
Extended Wear Part Life
The rotor can rotate forward or reverse — a small feature that means a lot. This ensures even force on the hammer head, preventing faster wear on one side. This means the hammer head lasts longer and you don’t need to frequently replace wearing parts, saving maintenance time and costs.
Safe and Convenient Design
Safety and ease of use are our top priorities. The machine is equipped with a safety interlock that automatically shuts off power if the access door is opened while the machine is running, ensuring your safety. Furthermore, the operator door is removable and features a linked screen lock mechanism, eliminating the need for complicated steps when replacing the screen or cleaning the machine, making it particularly convenient for daily production.
Wood Chip Hammer Mill parameters
To facilitate your selection, we’ve listed the core parameters of each model by production capacity. Small hammer mill for wood chip is more energy-efficient and suitable for small-batch production plants, while large models are suitable for continuous high-load production and offer stable efficiency. The finished size is determined by the screen mesh and can be flexibly adjusted between 0.5 mm and 20 mm. Refer to the data sheet below to easily find the model that best suits your needs.
| Model | SFSP56*40 | SFSP66*60 | SFSP66*80 | SFSP66*100 | SFSP66*120 | SFSP66*150 | |||||||
| Rotor Diameter (mm) | 560 | 660 | 660 | 660 | 660 | 660 | |||||||
| Grinding Chamber Width (mm) | 400 | 600 | 800 | 1000 | 1200 | 1500 | |||||||
| Speed (rpm) | 2980 | 2980 | 2980 | 2980 | 2980 | 2980 | |||||||
| Hammer Linear Speed (m/s) | 88 | 103 | 103 | 103 | 103 | 103 | |||||||
| Power (kW) | 37 | 55 | 75 | 75 | 90 | 110 | 110 | 132 | 160 | 160 | 185 | 220 | 220 |
| Wood Chip Yield (T/H) | 0.5-0.6 | 1.0-1.2 | / | / | 2.0-2.5 | / | / | 3.0-4.0 | / | / | 4.0-5.0 | 5.0-6.0 | 7.0-8.0 |
Applications of the Wood Chip Hammer Mill
A wood hammer mill not only efficiently pulverizes wood raw materials but can also be used in conjunction with a variety of supporting equipment. For example, it can be used with a wood chip pelletizer to produce high-quality wood pellets.
Alternatively, a wood hammer mill for biomass can produce pellets that can be used as fuel in various applications. Therefore, it plays a key role in a wide range of industries, including wood, furniture, biomass, papermaking, and animal feed.

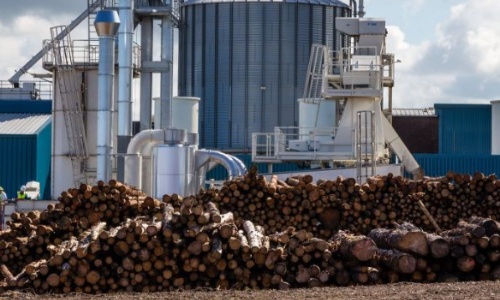

Wood chip Pellet Plant
- This equipment is suitable for wood pellet plants of all sizes.
- The pulverized wood chips can be directly used to produce biomass pellet fuel without additional processing, improving raw material utilization and significantly increasing the efficiency of the entire wood pellet line.
Biomass Fuel Production Line
- For plants specializing in fuel pellet plant, this equipment is particularly convenient for processing raw materials such as straw, wood chips, and branches.
- The resulting pellets are environmentally friendly and energy-efficient, meeting the needs of today’s green production processes.

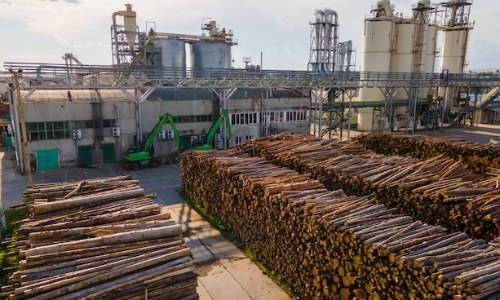

Wood chip processing plant
- If you use a wood hammer mill machine in conjunction with a pallet chipper, a wood hammer mill machine will suffice if you don’t require high pulverization fineness.
- A client of RICHI Mahinery in Australia processes large waste materials like pallets and wood boards and requires a finer powder.
- We recommended that they first process the materials through a chipper before finely grinding them in a grinder, turning otherwise unusable waste into usable material.

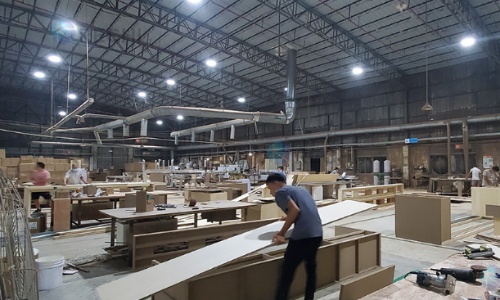

Furniture manufacturer
- This can be combined with a sawdust hammer mill.
- This multifunctional dual-feed design allows it to process scraps, shavings, and sawdust generated during furniture production.
- After pulverization, these materials can be reused, reducing waste.
Paper mill
- Combining a wood pellet hammer mill with a paper pellet machine can pulverize pulp or waste paper into raw materials suitable for papermaking or pelletizing, providing greater flexibility in raw material handling during the papermaking process.
Garden waste treatment plant
- The green waste such as branches and leaves that are usually trimmed can be crushed into resources for resource utilization, such as being made into organic mulch or biomass raw materials, which greatly improves the utilization rate of waste.
Global Wood Chip Hammer Mill Case Studies
RICHI’s wood hammer mills, renowned for their efficient and stable performance and excellent service, have been successfully exported to over 150 countries and regions worldwide. Whether in wood processing, furniture manufacturing, biomass fuel production, RICHI’s equipment helps customers achieve efficient shredding and resource recycling, earning it the trust of users worldwide.
1.5-2T/H Wood Hammer Mill for Sale Canada
- Country：Canada
- Date：March 2021
- Capacity: 1.5-2T/H
- Application: It is used to process logs, waste wood boards and sawmill scraps and crush them into uniform wood chips or sawdust.
- Crushing Materials: Sawdust, wood scraps, and waste branches
- Equipment Highlights: Stable output, continuous operation for over 8 hours per day, and uniform crushed pellets

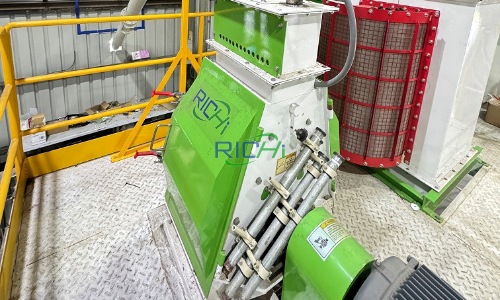

2-3T/H Wood Chip Hammer Mill for Sale Finland
- Country：Finland
- Date：July 2022
- Capacity: 2-3T/H
- Crushing Materials: Pine branches, sawdust, and garden waste
- Application: Crushed materials can be fed directly into a fuel pellet plant or used as composting feedstock
- Equipment Highlights: Simple operation and maintenance, improved production efficiency, and reduced material waste

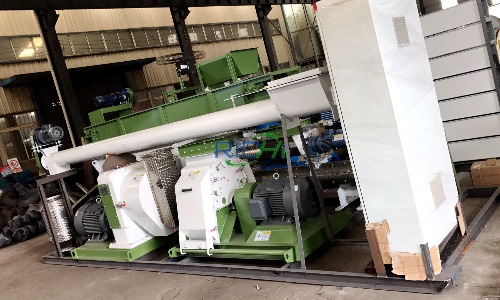

3-5T/H Wood Chip Hammer Mill for Sale Philippines
- Country：Philippines
- Date：November 2020
- Capacity: 3-5T/H
- Crushing Materials: Waste wooden pallets, wood boards, wood shavings
- Application: Finely crushes into uniform wood chips for pelletboard and fiberboard production, or as a biomass fuel feedstock
- Equipment Highlights: Stable operation, low noise, and uniform crushing

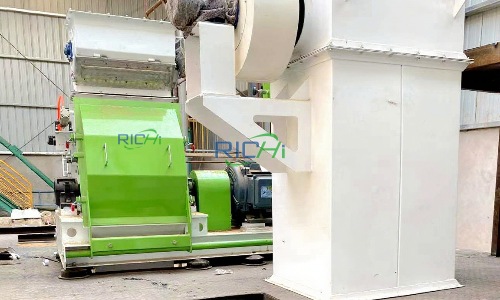

4-6T/H Wood Hammer Mill for Sale Sweden
- Country：Sweden
- Date：May 2023
- Capacity: 4-6T/H
- Crushing Materials: Furniture scraps, wood shavings, sawdust
- Application: Recycled raw materials for fuel pellet production, with some wood chips used for experimental biomass mixed pellet production
- Equipment Highlights: High efficiency and stability, with a long maintenance cycle
6-10T/H Wood Chip Hammer Mill for Sale Austria
- Country：Austria
- Date：September 2021
- Capacity: 6-10T/H
- Crushing Materials: Waste paper, pulp, cardboard, and some wood chips
- Application: Crushed into fiber pellets for recycled paper production or in conjunction with paper pellet machines
- Equipment Highlights: High continuous operation efficiency, uniform crushing, and easy maintenance

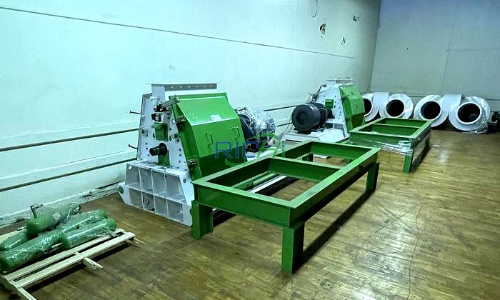

10-15T/H wood chip hammer mill crusher for Sale USA
- Country：USA
- Date：February 2022
- Capacity: 10-15T/H
- Crushing Materials: Pruned branches, fallen leaves, bark, wood chips
- Applications: Used for biomass composting and fuel pellet production, with some wood chips used as mulch
- Equipment Highlights: Smooth operation, easy operation, improved waste utilization, and reduced labor and transportation costs
Why Choose RICHI Machinery?
Choosing RICHI means choosing reliability, expertise, and efficiency. We specialize in the research, development, and manufacturing of wood chip hammer mills and related equipment. Our years of industry experience ensure that each unit withstands long-term, intensive operation.
From performance stability and energy efficiency to after-sales service and spare parts supply, RICHI adheres to high standards, helping customers reduce operating costs, improve production efficiency, and maximize the value of their equipment investment.
Efficient and comprehensive after – sales service:
RICHI Machinery has a comprehensive and well – established after – sales service system. It has multiple overseas logistics routes to ensure that machine arrives safely and on time. Later on, if there’s any abnormality with the customer’s machine, we’ll provide after – sales staff to offer preliminary solutions right away. And within 48 hours, we’ll send professional technicians to the site (within China) for service, minimizing the customer’s downtime.
Scientific customized services:
We have a diverse and rich product system. With over 200 products, we can meet the needs of various wood production customers. The company is equipped with a professional R&D and design team. According to your actual situation, whether it is a small wood chip processing plant or a large industrial biomass energy processing plant, we will design personalized solutions for you based on the actual situation.
Excellent equipment quality:
RICHI Machinery has won many international authoritative certifications. The company has passed BV certification, ISO9001 International Quality Management System Certification, European CE Certification, and Swiss SGS Certification, among others. You can find us on YouTube.
