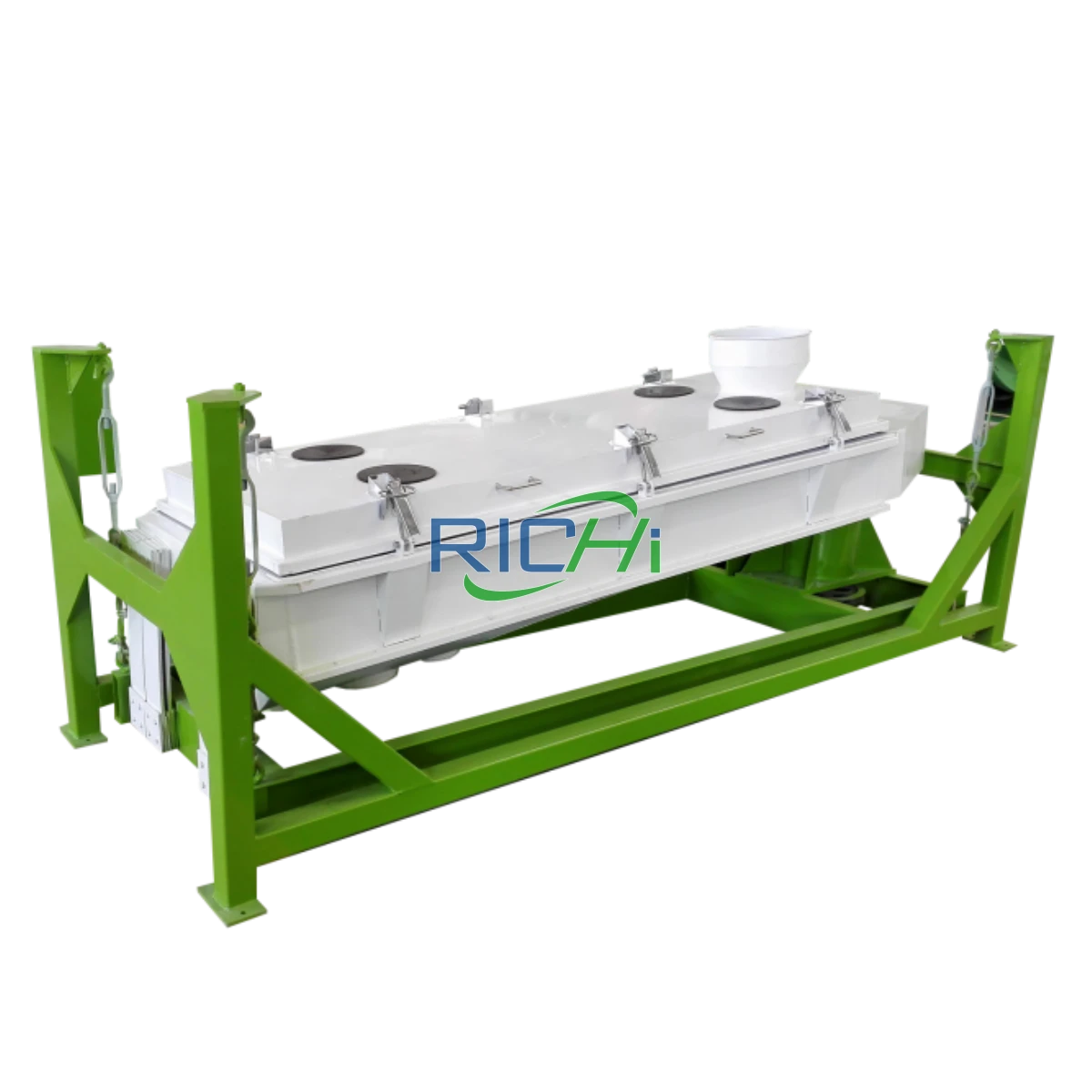

Vibrating Screening Equipment
If you are involved in or planning to start feed production, vibrating screening equipment is essential. It’s not an extra expense, but a necessary investment to improve product quality, increase customer satisfaction, and make your business more successful.
Not sure which model to choose? Unsure if it’s suitable for your production line? No problem, our engineers will provide you with the most professional advice and the most suitable solution based on your specific needs.
What is Vibrating Screening Equipment and Why Do You Need It?
Anyone involved in feed production knows that the pellets produced by a pellet mill are never 100% perfect. There will always be some that are too large, too small, or simply unformed powder. If you bag and sell them directly, your customers will certainly be dissatisfied. This is where vibrating screen machine comes in, separating out these “unqualified” particles.
Simply put, a vibrating screening machine is a “sieve,” but compared to an ordinary sieve, it’s much more intelligent and efficient. It uses vertical vibration to move the particles across the screen surface. The properly sized pellets remain on the screen, while the powder and broken pieces fall through, resulting in uniformly sized, clean finished pellets.
If you plan to sell or export your feed pellets, then this vibrating screen machine is essential. You might wonder why it’s so important? If the pellets are of inconsistent size, customers will perceive your product as unprofessional; too much powder can choke animals and lead to waste; and the presence of broken pellets makes the feed look low-quality. Therefore, using screening equipment solves all these problems.
Who are our vibrating screening equipment suitable for?
- Those with high requirements for feed pellet appearance and consistency.
- Those needing to separate pellets into multiple sizes (large, medium, small).
- Medium to large-sized feed mills or automated feed pellet line.
- Production capacity range: 3–40 tons/hour.
RICHI MACHINERY

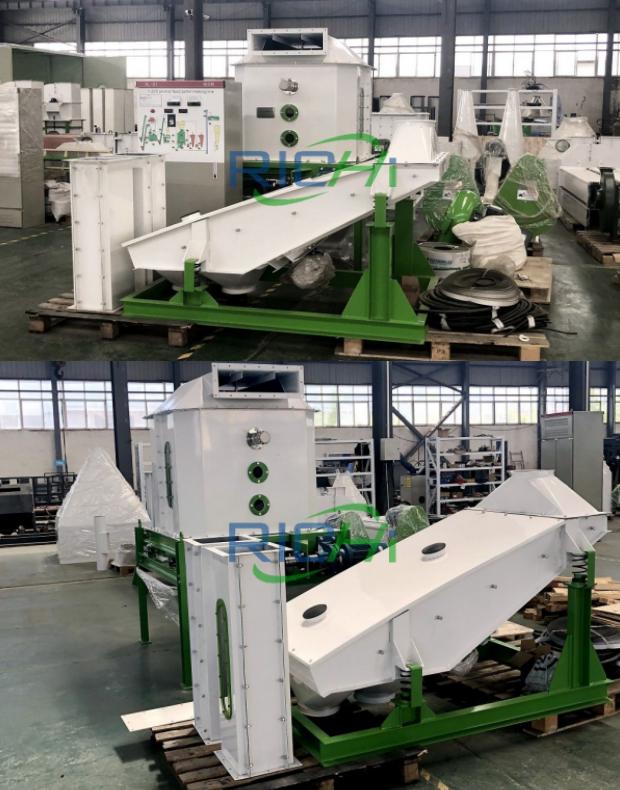

Where Can You Use Vibrating Screening Equipment?
Vibrating screening equipment is suitable for various industries that require grading, dedusting, and impurity removal of granular or powdered materials. Its application range is very wide, mainly including the following fields:
- Various animal feed industries (poultry, livestock, ruminants, aquaculture, etc.)
- Biomass and energy industries (biomass fuel pellets, solid fuel pellets)
- Wood processing industry (for wood chips, wood powder, etc.)
- Agriculture and food processing (grading of various grains)
- Organic fertilizer and fertilizer industry (organic fertilizer pellets, compound fertilizer pellets, etc.)
- Chemical and industrial raw materials (plastic pellets, resin pellets, chemical powders, etc.)
- Environmental protection and renewable resources (solid waste, recycled granules, etc.)
- Food raw material processing (for screening food raw materials and additives)
- Mineral and building materials industry (mineral sand, quartz sand, and building materials, etc.)
Model specifications of Vibrating Screening Equipment
The SFJH series covers a capacity range from 3 to 40 tons per hour, making it suitable for small, medium, and large-scale production lines, including animal feed production line, fish feed production line, wood pellet line, biomass pellet production line, and other pellet screening applications with different requirements.
| SFJH Series Vibrating Screening Equipment | |||||
| Model | SFJH80*2C | SFJH100*2C/3C | SFJH125*2C/3C | SFJH150*2C/3C | SFJH185*2C/3C |
| Power (kW) | 1.5 | 2.2 | 4 | 5.5 | 5.5 |
| Output (t/h) | 3-6 | 4-8 | 8-15 | 15-20 | 30-40 |
| Turning radius (mm) | 25~35 | ||||

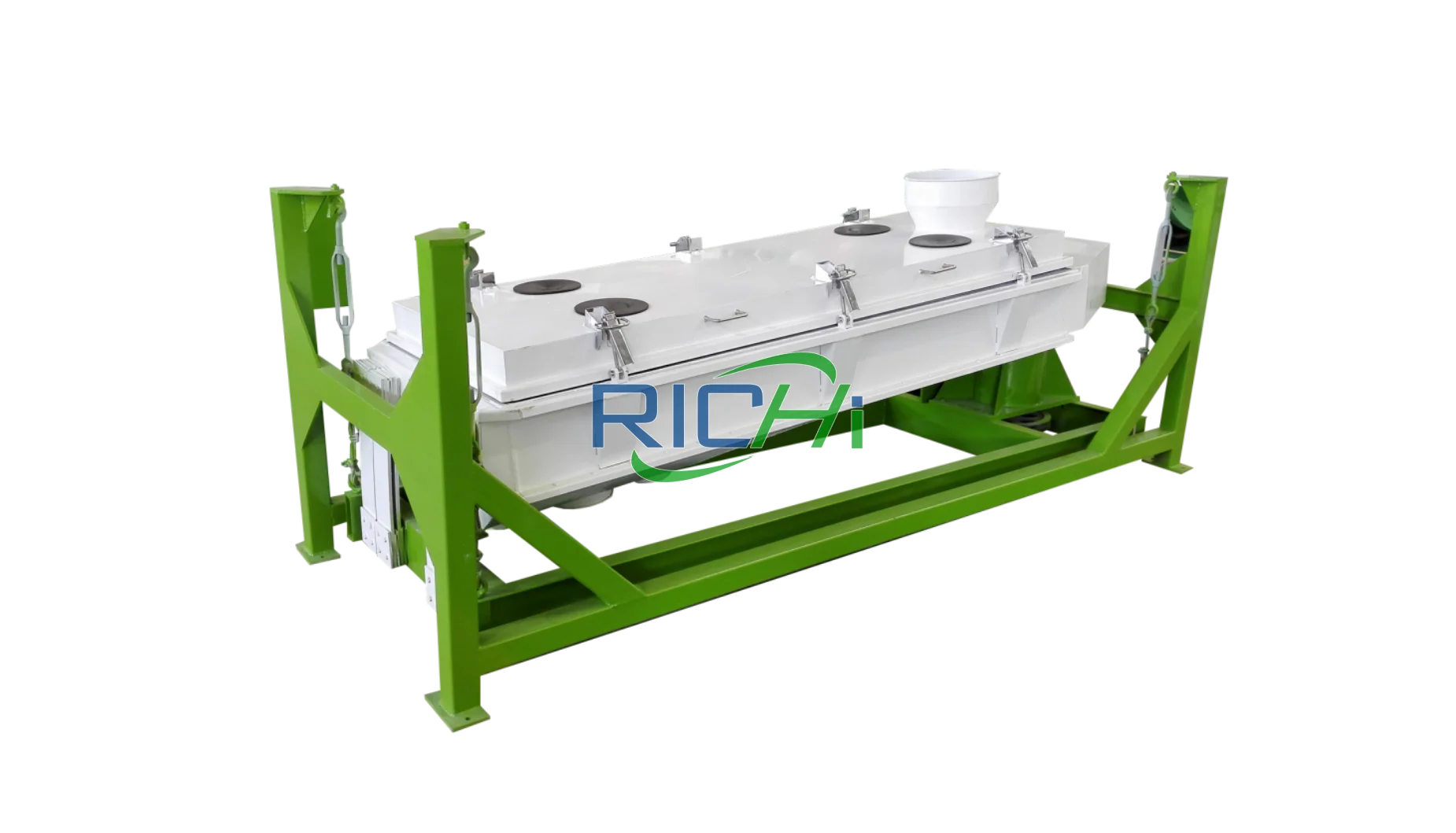

Core Advantages of Vibrating Screening Equipment
Accurate Sieving, No Damage
Utilizing a rotary screening method, particles move smoothly on the screen surface, avoiding violent shaking and minimizing particle breakage. Screening accuracy reaches over 95%.
Sorting Several Sizes at Once
Supports two or three layers of screens, allowing one machine to simultaneously separate large, medium, and small particles, saving equipment and labor while increasing efficiency.
Stable Operation, Low Noise
The equipment operates smoothly without wobbling, and noise levels are kept low, ensuring a quiet working environment for nearby workers.
Prevents Material Clogs
The discharge port is designed for smooth material discharge, preventing accumulation and reducing downtime for cleaning.
Easy to Clean, Less Prone to Dirt
The simple structure makes cleaning after production easy, minimizing material residue and reducing the risk of cross-contamination.
Robust and Durable
The entire machine is constructed of high-quality steel, with reinforced key components. It can easily last 7-8 years under normal use, saving on maintenance costs and long-term maintenance.
RICHI MACHINERY
Vibrating Screening Equipment for sale Global
Our vibrating screening equipment has been supplied to customers in over 140 countries worldwide and is widely used across different industries. From animal feed production and wood pellet processing to biomass energy and organic fertilizer pellet lines, our screening solutions help improve product quality and production efficiency in a wide range of applications. Below, we have briefly listed three real project cases of vibrating sifter machine from different industries. If you would like to learn more applications or explore projects similar to yours, feel free to contact us at any time.
vibrating screen for sale Feed Cooperative in Indonesia
- Country/Region: Indonesia
- Production Capacity: 3 tons per hour
- Equipment Model: SFJH80*2C vibrating screen machine
- Customization: Yes, adjustable screens designed for different feed pellet sizes.
Application
Screening of compound pellets for pig and chicken feed

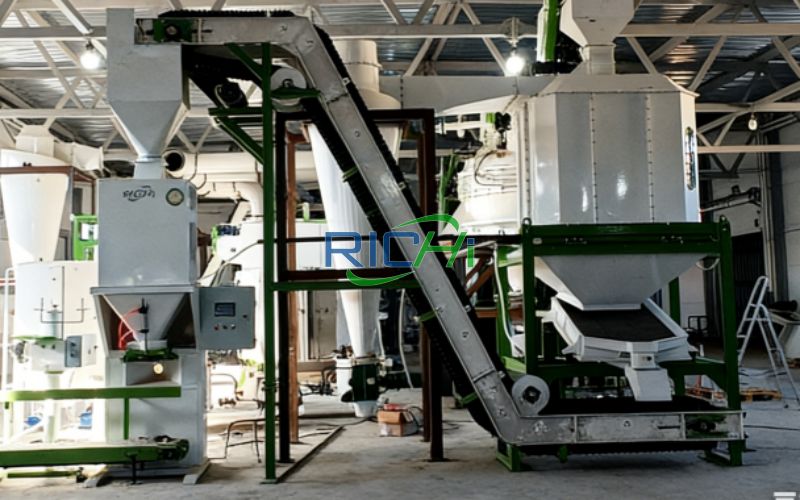

vibrating screen for sale Wood Pellet Plant in Brazil
- Country/Region: Brazil
- Production Capacity: 10 tons per hour
- Equipment Model: SFJH125*2C vibrating screen machine
- Customer Requirements: Accurate screening, reduced dust and broken particles, ensuring pellet quality.
Application
Wood pellet screening
Vibrating Screen for Sale Pet Feed Production line in the USA
- Country: USA
- Production Capacity: 20 tons per hour
- Equipment Model: SFJH150*2C vibrating screen machine
- Project Background: The client operates a pet feed production facility. They needed uniform pellet size to ensure consistent quality and nutrition in the pet feed, as inconsistent sizes were affecting customer satisfaction.
Application
Pet feed pellet screening
Frequently Ask Question
Frequently Ask Question
Which model should I choose? How do I know if the production capacity is sufficient?
The model selection mainly depends on how many tons of feed you need to produce per hour:
- 3-6 tons per hour → Choose SFJH80*2C
- 4-8 tons per hour → Choose SFJH100*2C/3C
- 8-15 tons per hour → Choose SFJH125*2C/3C
- 15-20 tons per hour → Choose SFJH150*2C/3C
- 30-40 tons per hour → Choose SFJH185*2C/3C
If you are unsure, don’t worry, contact us and tell us how much feed you need to produce every day. Our engineers will calculate it for you and recommend the most suitable model. It’s better to buy a slightly larger one so you can still use it even if your business expands in the future, without needing to replace the equipment.
Is the equipment complicated to operate? Can my workers learn how to use it?
Not complicated at all! Operation is very simple:
- Check the screen for damage before starting the machine.
- Press the start button, and the equipment will begin working.
- Observe whether the material discharge is normal.
- Clean the equipment after shutting it down.
It’s that simple; half a day of training is enough, no special skills are required. Many of our customers’ operators are ordinary workers without professional backgrounds, and they still operate the equipment very well. We will provide operation manuals and video tutorials.
What is the approximate vibrating screen machine price, and what factors affect it?
The price of a vibrating screen machine mainly depends on the following factors:
- Model size: Production capacity ranges from 3 tons/hour to 40 tons/hour, with prices ranging from a few thousand dollars to tens of thousands of dollars.
- Number of screen layers: Two-layer screens are cheaper than three-layer screens.
- Material configuration: Stainless steel is more expensive than ordinary carbon steel, but it is more durable.
- Degree of automation: Machines with automatic control systems will be more expensive.
We at RICHI are a professional manufacturer of various animal feed pellet machines, aquatic feed pellet machines, wood pellet machines, and various biomass organic fertilizer pellet machines. All equipment is sold directly from the factory, completely eliminating any middlemen. You will get the most reasonable price, so you don’t have to worry about high prices.
The specific quotation needs to be determined based on your actual needs. Contact us, and we will provide you with the most transparent and reasonable quotation.
Can your vibrating screen equipment be seamlessly integrated into my existing production line? Will incompatibility issues lead to reduced production efficiency?
That’s an excellent question, and many customers share this concern. Please rest assured, compatibility is not a problem!
Firstly, RICHI is a professional manufacturer of various animal feed pellets, aquatic feed pellets, wood pellets, and various biomass organic fertilizer pellet equipment. With over 30 years of experience, we have a deep understanding of various production line configurations. Our vibrating screen equipment uses standardized interface designs and can connect to most brands of pellet mills, coolers, elevators, packaging machines, and other equipment on the market.
Before ordering the equipment, you only need to provide us with information about your existing production line, suchs as brand, model, inlet and outlet dimensions, and installation height. We will confirm all technical parameters in advance to ensure a perfect match. If adjustments to the inlet height, outlet position, flange size, etc., are needed, we can customize them according to your requirements before shipment, allowing for direct installation upon arrival. When the equipment is shipped, we will send experienced engineers to your factory to handle the connection, installation, and commissioning with your existing production line, ensuring smooth operation of the entire line.
It will not reduce production efficiency; on the contrary, it will improve it! Our equipment’s processing capacity is designed for continuous production and will not become a bottleneck in your production line. Instead, due to its high screening efficiency and stable operation, it will improve the overall production efficiency and product quality of the entire line. You only need to provide the basic information of your existing production line, and we will take care of the rest. We will provide you with the most professional integration solution!
Any Question?
Why Choose RICHI Machinery?
RICHI Machinery has been deeply involved in the vibrating screening equipment industry for 30 years. Its customers are spread across Europe, America, Africa, Asia Pacific, Middle East and other regions, and its sales network covers more than 140 countries and regions. It has successfully completed more than 1,200 complete sets of pellet projects with a high level of professionalism, making it a recognized leader in the industry.
Efficient and comprehensive after – sales service:
RICHI Machinery has a comprehensive and well – established after – sales service system. It has multiple overseas logistics routes to ensure that machine arrives safely and on time. Later on, if there’s any abnormality with the customer’s machine, we’ll provide after – sales staff to offer preliminary solutions right away. And within 48 hours, we’ll send professional technicians to the site for service, minimizing the customer’s downtime.
Scientific customized services:
We have a diverse and rich product system. With over 200 products, we can meet the needs of various pellet production customers. The company is equipped with a professional R&D and design team.
Excellent equipment quality:
RICHI Machinery has won many international authoritative certifications. The company has passed BV certification, ISO9001 International Quality Management System Certification, European CE Certification, and Swiss SGS Certification, among others. You can find us on YouTube.
