Tree dryer
Tree dryer is mainly used to adjust raw material moisture content to an ideal level for pelletizing. By continuously lifting materials and ensuring full contact with hot air, it effectively removes moisture from biomass raw materials.In the biomass pellet production line, the tree dryer is located between the crushing stage and the pelletizing stage, serving as a critical and indispensable process.

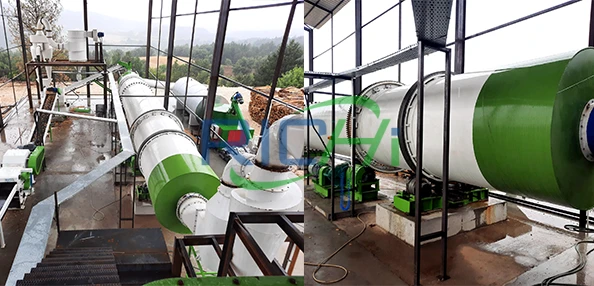

RICHI Tree Dryer Overview
Tree dryer, also known as rotary drum dryer, is a widely used industrial drying equipment. By continuously lifting materials and making them fully contact with hot air, it efficiently removes moisture from materials. In biomass pellet production lines, the tree dryer is mainly used to dry raw materials to a moisture content suitable for grinding and pelletizing. Moreover, dried sawdust can be used for biomass pellet pressing, charcoal production, and artificial board manufacturing.
The Key Role of Tree Dryer
Tree dryer is very important for wood processing plants and biomass pellet factories. It mainly handles sawdust, wood chips, shavings and small wood blocks, which are mostly waste and leftovers from wood production. Its main functions are as follows:
√
Prepare good materials for biomass pellets
Dry wet wood with high moisture (such as 50%) to 10%–12% moisture content. If moisture is too high, pellets will be loose and easy to break. If too low, pellets are hard to form and cost more energy.
√
Make pellets burn better with higher heat
Drier wood produces more effective heat. Drying improves the calorific value of biomass pellets, making them burn more fully and steadily, meeting high-quality fuel standards.
√
Provide qualified materials for panel production
Dried shavings and wood chips are main raw materials for particleboard and fiberboard. Stable moisture content is essential for later gluing and hot pressing.
√
High capacity and cost saving
With a three-cylinder structure, the tree dryer has high heat efficiency, can process waste continuously in large quantities. It solves waste accumulation problems and turns waste into valuable products.
Technical Features of RICHI Tree Dryer
RICHI tree dryer integrates high efficiency, energy saving, environmental protection and intelligence into one. The equipment adopts a negative pressure air induction system, a three-layer sleeve drum combined with lifting plates, as well as key technologies of an efficient and eco-friendly system. With these technical features, our tree dryer achieves stable, efficient and environmentally friendly operation.
Prepare good materials for biomass pellets
- The system uses a blower and an induced draft fan to create negative pressure, which moves materials toward the discharge port.
- Hot air passes directly through materials, so heat transfers fast and saves energy. We can control temperature accurately in different zones. Drying time can be adjusted by changing fan pressure and drum speed.
- The tree dryer can be installed horizontally. It is compact, saves space, and is easy to clean and maintain.
Make pellets burn better with higher heat
- The dryer has three layers of drums. The outer layer keeps heat inside, reducing heat loss by about 60% compared to single-drum dryers.
- When the drum rotates, lifting plates pick up and sprinkle materials, making them contact hot air fully. Materials flow through three drums, so drying time is longer and more even. Thermal efficiency is much higher.
- Hot gas passes through inner, middle and outer drums one by one, making full use of heat without waste.
Provide qualified materials for panel production
- The feeding and discharging ports are well sealed to prevent air leakage and dust.

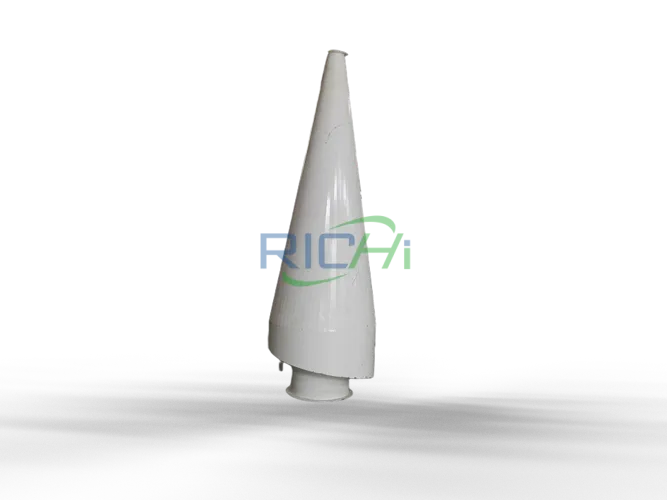

- It can be equipped with a two-stage dust removal system: cyclone first, then bag filter. Exhaust gas is clean and meets environmental standards.
Global Customer Cases

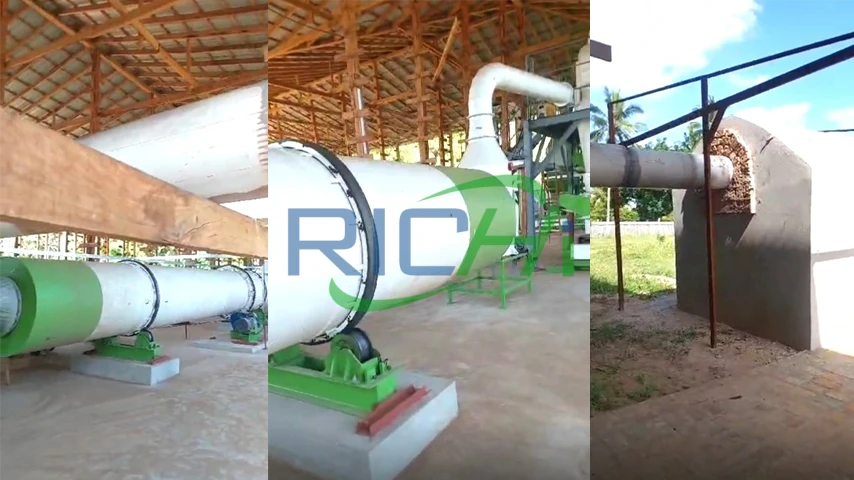

Tree Dryer for Sale South Africa
This South African customer purchased a tree dryer for drying wood chips. The dryer can be matched with the customer’s own hot air system and meets the production requirement of 1 ton of wood pellets per hour. The dried raw materials can also be used directly in hot-air furnaces.

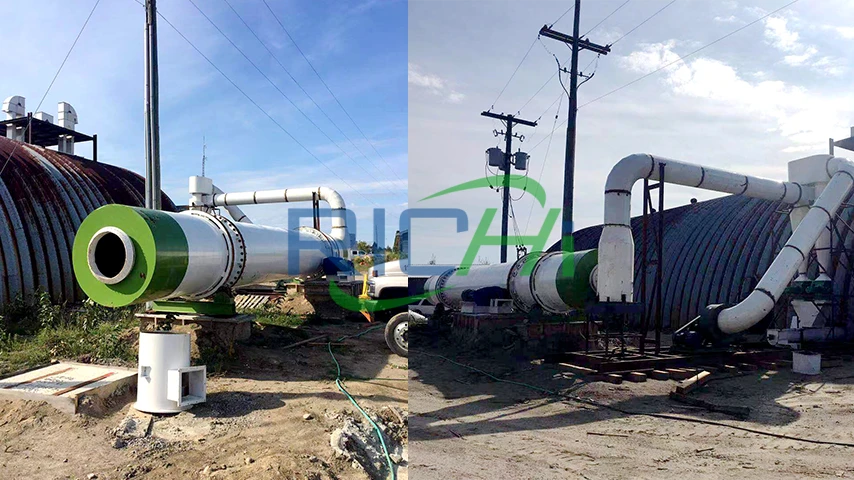

Tree Drying Machine in Canada
This Canadian customer purchased a tree dryer for a 1-2 T/H wood pellet line. The equipment can not only handle various raw materials such as sawdust and wood scraps to meet the customer’s demand for diversified raw materials, but also has the advantages of high drying efficiency and small floor space.

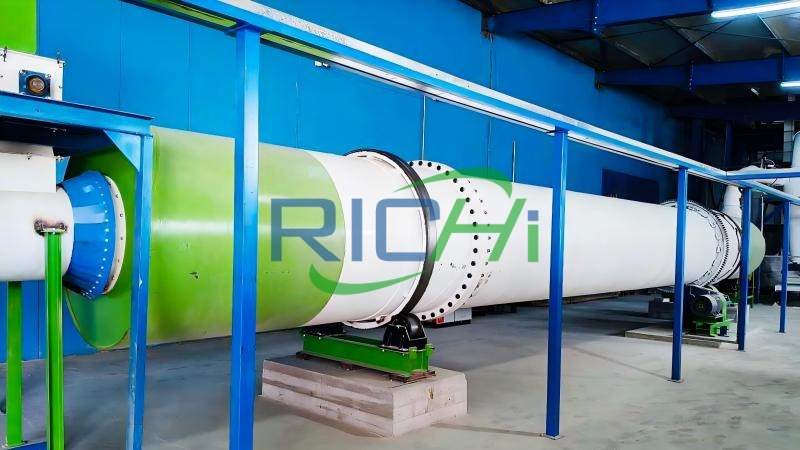

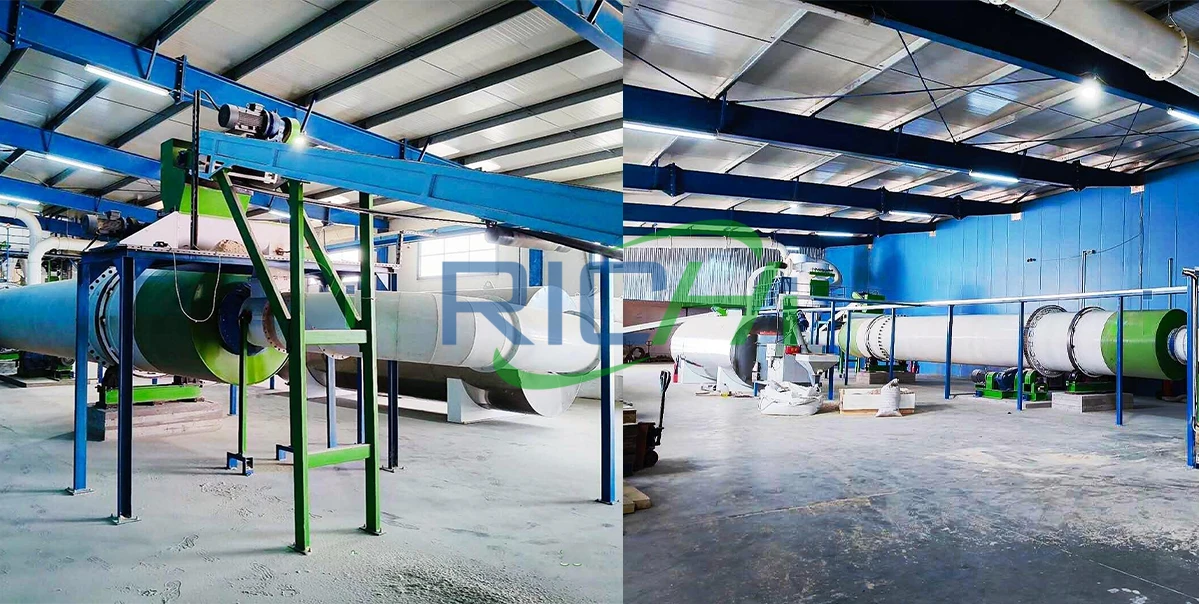

Tree Dryer Machine in Romania
The tree dryer we provided for the Romanian customer has perfectly solved the problem of efficient drying of the customer’s wood raw materials (mixed hardwood and softwood). It can quickly dry wood raw materials with a moisture content of 30%-60% to the optimal moisture content of 10%-15% for pelletizing.
Tree Dryer in Moldova
A customer from Moldova purchased a tree dryer together with a dust removal system.This configuration not only effectively keeps the production workshop clean, but also ensures exhaust emissions meet European environmental standards.

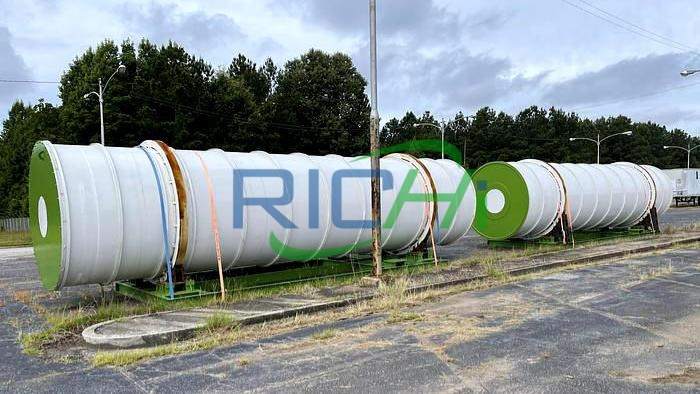

Tree Dryer Machine in USA
The customer from the United States requires a production capacity of 10 tons of wood pellets per hour.To match this large-scale production, we supplied the customer with two tree dryers.The two dryers are designed in parallel.Even if one unit shuts down, the other can still operate normally without affecting overall production.

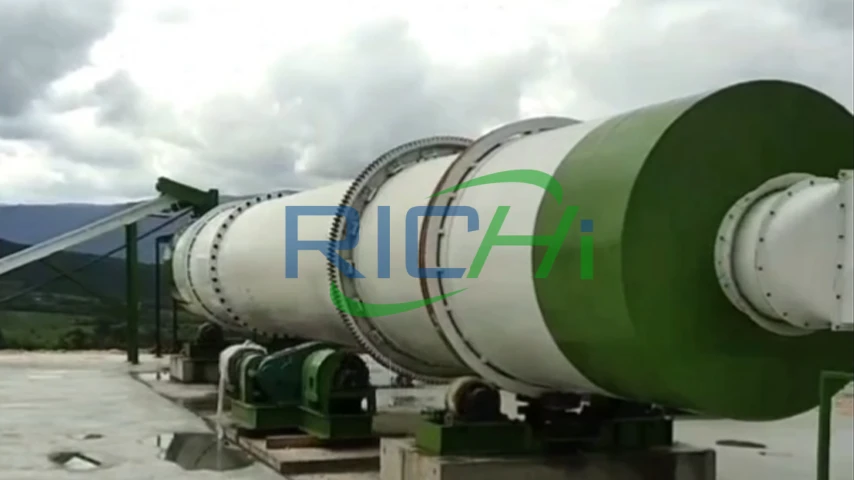

Tree Dryer in Turkey
A biomass pellet enterprise from Turkey purchased our tree dryer for its 2 T/H biomass pellet production line. The machine meets the customer’s demands for continuous production, providing reliable support for producing high-quality wood pellets.
Various Tree Dryer Models and Specifications
RICHI offers a wide range of tree dryers, including single-drum and triple-drum nested dryers, to satisfy customers’ diverse budgets and drying requirements. We also provide professional customization services to meet your specific needs.
| Model | φ0.6*6 | φ0.8*8 | φ1.2*12 | φ1.5*15 | φ1.8*18 | φ1.8*20 | φ1.8*36 | φ1.8*12*3C | φ1.8*24*3C |
| Diameter（m） | 0.6 | 0.8 | 1.2 | 1.5 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Length（m) | 6 | 8 | 12 | 15 | 18 | 20 | 36 | 12 | 24 |
| Number of Layers | 1 | 3 | |||||||
| Drum Speed（rpm） | 3~12 | ||||||||
| Inlet Air Temperature（℃） | 400~500 | ||||||||
| Outlet Air Temperature （℃） | 70~80 | ||||||||
(Note: Richi Machinery’s products are always updated and improved. Therefore, if there is any difference between the pictures, feature descriptions and performance parameters of the actual model, please refer to the actual product.)

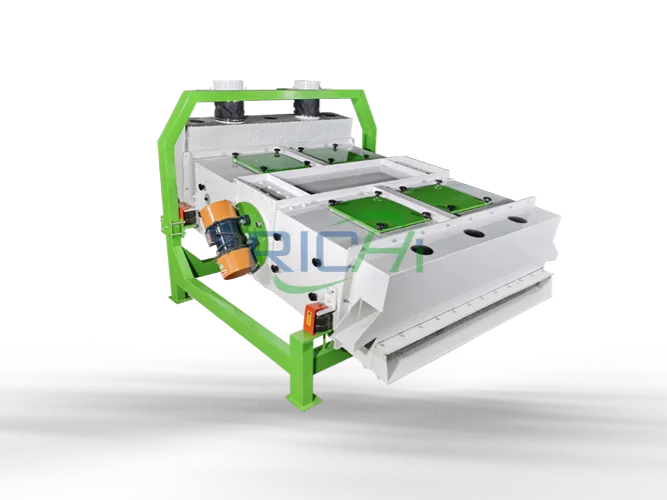

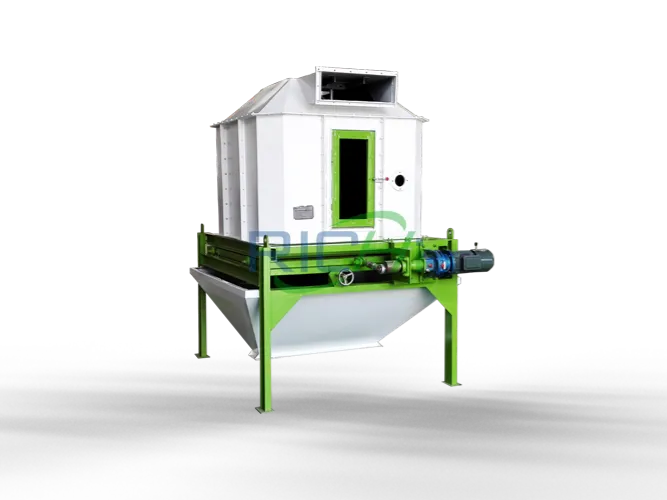

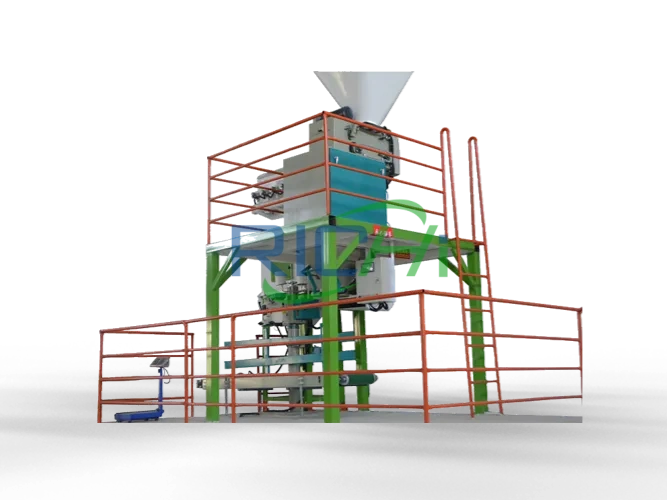

Other Equipment We can Provide
RICHI Comprehensive After-Sales Support
Choosing RICHI means you gain not just a reliable piece of equipment, but a trusted long-term partner. We back our machines with a comprehensive after-sales service system to keep your production running smoothly.
1-Year Warranty
We provide a 1-year warranty for the entire machine. Non-human-induced failures during the warranty period will be repaired and replaced with parts free of charge.
On-site Installation & Commissioning
Our professional engineers will install and commission your machine on-site to ensure stable and normal operation.
Operation Training
After installation, our engineers will give you detailed operating guidance. We also provide a full set of operation and daily maintenance manuals.
Lifetime Technical Support
RICHI is committed to long-term partnerships. We offer regular inspection services and a 24-hour online support system to answer your questions at any time.
