Fish Feed Production Line In Russia
RICHI Machinery has successfully delivered two different-sized fish feed production line in Russia. The two lines have capacities of 5–6 tons/hour and 1.5–2 tons/hour respectively, and both support flexible production of various raw material formulations and floating and sinking pellets. These two projects fully demonstrate RICHI’s comprehensive strength in aquaculture feed process design, customized fish feed production lines, and intelligent feed equipment.
Project 1
1.5–2 T/H fish feed production line
Project 2
5–6 T/H fish feed production line
Overview of Fish Feed Production Line In Russia
1.5–2 tons/hour Fish Feed Production Line
This Russian client is a small to medium-sized aquaculture farm and feed processing user. The client wanted to control investment costs as much as possible and planned to expand production in the future. Our technical engineers configured a compact and easy-to-operate fish feed production line for them.
- Project Date:May 2024
- Designed Output:1.5–2 tons/hour
- Main Raw Materials:Fishmeal,corn,soybean meal,vitamins,minerals,and additives
- Application:Small to medium-sized aquaculture farms
- Particle Size:2–4 mm
- Customization Required:Yes,can be customized according to raw material formulation and site conditions
- Project Features:Compact structure,low investment cost,simple operation and maintenance
- Installation Period:Approximately 15 days
- Number of Workers Required:2–3 people

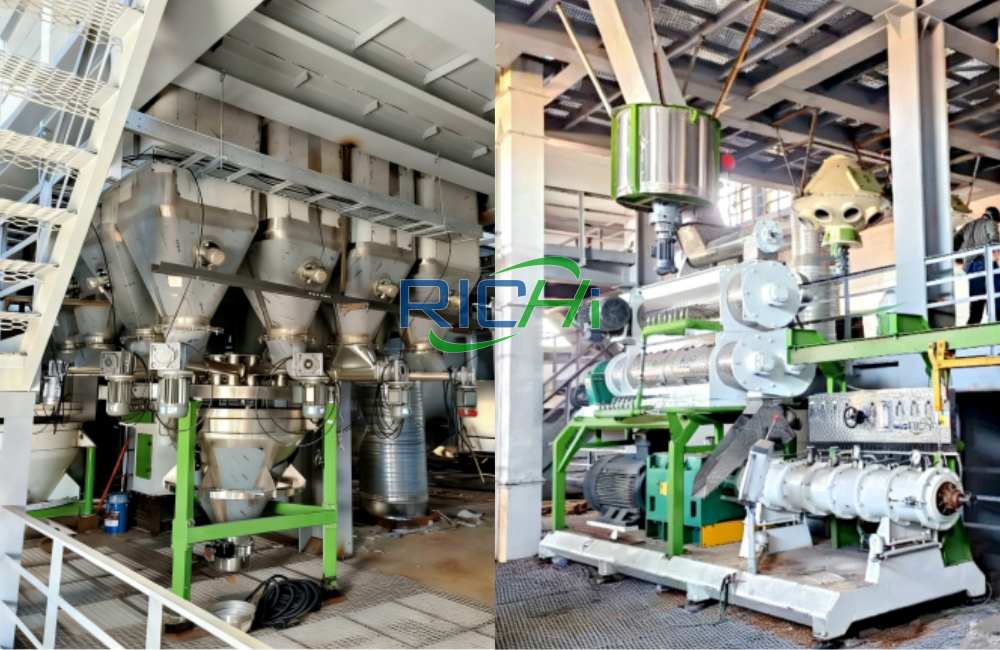

5–6 tons/hour Fish Feed Production Line
The 5–6 tons/hour project is primarily aimed at medium to large-scale commercial aquaculture enterprises. It can achieve 24-hour uninterrupted production and has a very high level of automation. This production line precisely controls the temperature and moisture content during the production process,preventing the fish feed pellets from disintegrating in the water and better retaining nutrients. The client expressed great satisfaction.
- Project Date:July 2023
- Designed Output:5–6 tons/hour
- Main Raw Materials:Fishmeal,corn,wheat,soybean meal,oils,vitamins,and additives
- Application:Medium to large-scale commercial aquaculture enterprises,professional feed mills
- Particle Size:2–6 mm
- Customization Required:Yes,can be customized according to process,capacity,and automation requirements
- Project Features:High output,continuous production,high degree of automation
- Installation Period:Approximately 25 days
- Number of workers required:3–5 people
- Level of automation:Highly automated
1.5–2 ton project — Alexei Ivanov
“This production line runs very stably and is very easy to operate. The feed pellets produced are uniform and suitable for the various fish we raise. After using it,we have greatly reduced the cost of purchasing external feed,and we are very satisfied.”
5–6 ton project — Sergey Petrov
“The automation level and output of the production line exceeded expectations,and the efficiency improvement was significant. The feed quality is stable,the fish are growing very well,and it has brought considerable profits to our fish feed plant.”
On-site videos of two projects of Fish Feed Production Line in Russia
The following on-site video authentically documents the successful delivery of two fish feed production lines by RICHI Machinery in Russia, with capacities of 1.5–2 tons/hour and 5–6 tons/hour respectively. The video highlights the overall structural layout of the entire production line and the on-site configuration of each core equipment, helping you to intuitively understand the system composition and actual installation effects of fish feed production lines at different production scales.
1.5–2 tons/hour Fish Feed Production Line
5–6 tons/hour Fish Feed Production Line
What services do we provide to our clients in Russia?
Optimized factory layout
Free fish feed formulation
Russian drawings provided
Customized equipment manufacturing
On-site installation and commissioning
Comprehensive operation training
Fish Feed Production Line In Russia Equipment List and Display
The core equipment and some auxiliary equipment used in the two fish feed production lines (1.5–2 tons/hour and 5–6 tons/hour) are basically the same. Therefore, the table below lists the equipment used in both projects together, making it easier for you to understand what equipment is needed for a complete fish feed production line. Images of some core equipment are also shown at the bottom of the table to help you with your fish feed plant project.
| Equipment list for two fish feed production lines in Russia | |||
| Silo | Raw Material Receiver | Raw Material Cleaning System | Feeder |
| Single-shaft Mixer | Double-shaft Mixer | Feed Grinder | Double Screw Fish Feed Extruder |
| Belt Dryer | Cooler | Pellet Sieving Machine | Automatic Packaging Machine |
| Screw Conveyor | Belt Conveyor | Vacuum Coating Machine | Control System |
| Storage Bin | Weighing & Metering System | Vibrating Sieve | Elevator |
A display of some key equipment in the fish feed production line in Russia

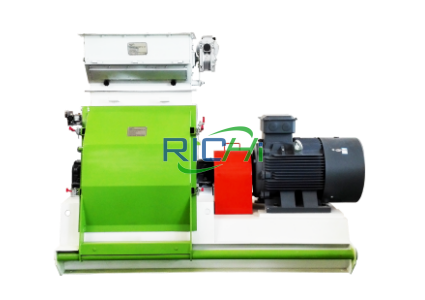

Fish feed Hammer mill
Fish feed mixer
fish feed extruder

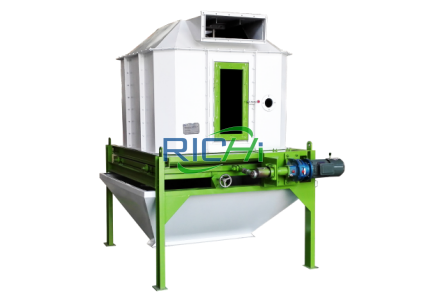

Fish feed cooler

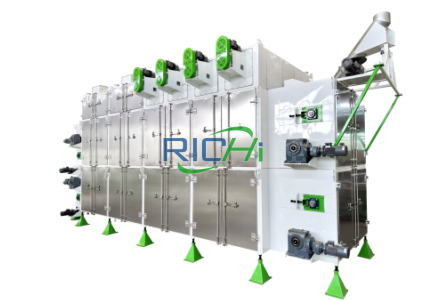

Fish feed belt dryer

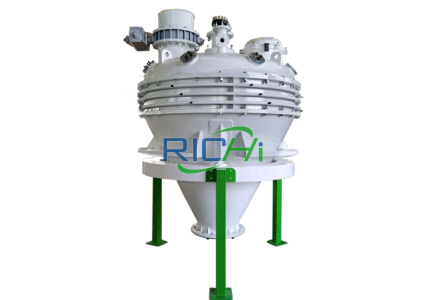

spraying machine
Feed bagging machine
Production Process of Fish Feed Production Line in Russia
This project comprises two fish feed production lines with capacities of 1.5–2 tons/hour and 5–6 tons/hour, respectively. The overall process flow of the two production lines is largely the same, with the main differences lying in the raw materials and the various equipment models. The complete fish feed production process is shown below:
1. Raw Material Receiving and Storage
Fishmeal, corn, soybean meal, and other raw materials enter the production line through receiving equipment and are temporarily stored in silos or storage bins to ensure uninterrupted production.
2. Raw Material Cleaning
The raw materials are first cleaned to remove impurities and metal objects, protecting the equipment for normal operation.
3. Raw Material Crushing
The cleaned raw materials enter a crusher and are crushed to a suitable fineness for subsequent processing.
4. Batching and Mixing
The ingredients are automatically weighed and batched according to the formula ratio and thoroughly mixed to ensure uniform nutrition in the feed.
5. Fish Feed Extrusion Molding
The mixture enters a fish feed extruder, where parameters are adjusted to produce floating or sinking fish feed.
6. Drying Process
Newly formed pellets enter the drying system to reduce moisture content and prevent mold and breakage.
7. Cooling and Shaping
Dried pellets are cooled to a higher temperature, making them more compact and easier to store and transport.
8. Screening and Recycling
Substandard pellets are screened out and recycled for reprocessing, ensuring a uniform finished product.
9. Automated Packaging
Qualified fish feed is automatically weighed and packaged for direct sale or aquaculture.
Project Cases Related to Fish Feed Production Line in Russia
Floating Fish Feed Production Line For Sale Norway
- Country: Norway
- Feed Type: Floating Fish Feed
- Applicable Fish Species: Salmon, trout, and other cold-water fish, etc.
- Capacity: 6–8 tons/hour
- Particle Size: 2–10 mm (adjustable)
- Main Raw Materials: Fishmeal, fish oil, soybean protein, corn, wheat, vitamins, and minerals, etc.

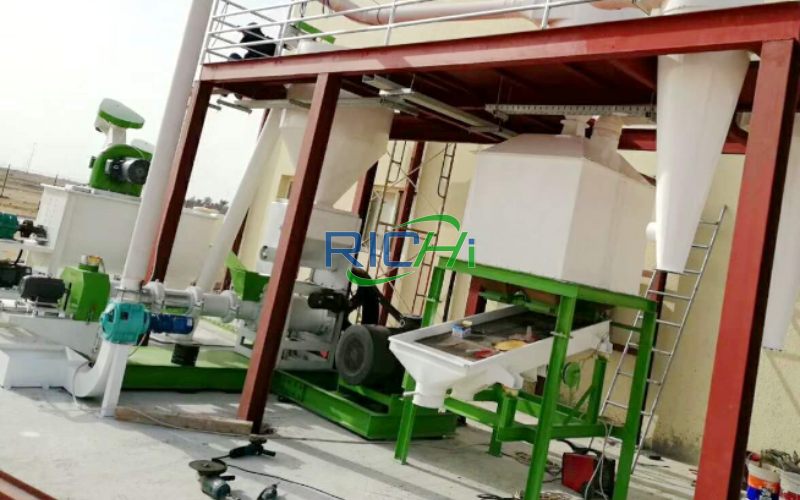

Fish Feed Production Line For Sale Japan
- Project Background: The client wanted to build their own fish feed production line for producing both floating and sinking fish feed. The requirements included a compact structure, small footprint, and ease of operation and maintenance.
- Country: Japan
- Feed Type: Floating Fish + Sinking Fish
- Capacity: 2–3 tons/hour
- Pellet Size: 1–4 mm
- Main Raw Materials: Fishmeal, Cornmeal, Soybean Meal, Trace Elements, etc.

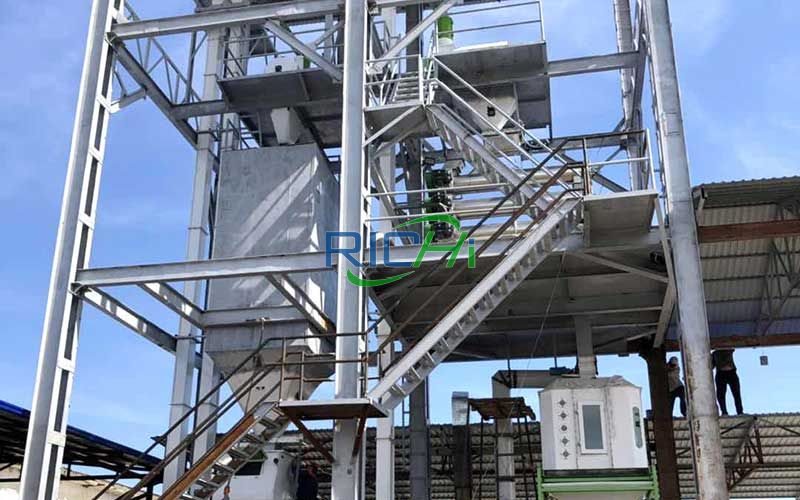

Sinking Fish Feed Production Line For Sale Uzbekistan
- Country: Uzbekistan
- Feed Type: Sinking Fish Feed
- Applicable Fish Species: Carp, Grass Carp, Catfish, and other freshwater fish, etc.
- Capacity: 5 tons/hour
- Pellet Size: 2–6 mm
- Main Raw Materials: Corn, Wheat, Soybean Meal, Fishmeal, Mineral Additives, etc.
- Project Results: After the production line was put into operation, the sinking fish feed pellets formed well and sank stably, gaining high recognition from customers.
Why Choose RICHI Machinery?
Efficient and comprehensive after – sales service:
RICHI Machinery has a comprehensive and well – established after – sales service system. It has multiple overseas logistics routes to ensure that machine arrives safely and on time. Later on, if there’s any abnormality with the customer’s machine, we’ll provide after – sales staff to offer preliminary solutions right away. And within 48 hours, we’ll send professional technicians to the site for service, minimizing the customer’s downtime.
Scientific customized services:
We have a diverse and rich product system. With over 200 products, we can meet the needs of various fish feed production customers. The company is equipped with a professional R&D and design team. According to your actual situation, whether it is a small fish feed factory or a large industrial fish feed plant, we will design personalized solutions for you based on the actual situation.
Excellent equipment quality:
RICHI Machinery has won many international authoritative certifications. The company has passed BV certification, ISO9001 International Quality Management System Certification, European CE Certification, and Swiss SGS Certification, among others. You can find us on YouTube.
