Feed Mill Mixer
A feed mill mixer is a piece of equipment used in the feed processing process to mix raw materials and premixes. This mixer plays an extremely crucial role in feed production. Efficient mixing is the key to producing high-quality feed. If the mixture is improper, the nutrients in the feed produced are unbalanced,the nutrients of the feed and the animals cannot meet their own nutrition during consumption, which will lead to problems like slow growth and reduced immunity.
RICHI feed mixing machines can fully blend various raw materials through scientific design and reasonable mixing methods. This ensures that every batch of feed has balanced nutrients, providing a guarantee for the healthy growth of animals. Whether you’re replacing equipment or buying it for the first time, we recommend choosing RICHI,which is the world’s leading sales. Contact us right away to get professional product selection advice and customized solutions!
Types of feed mill mixer
There are many common types of feed mixer machines on the market with various performances. Based on different stirring structures and working principles, feed mixing machines can be divided into the following three categories. They differ in terms of principles, transmission methods, maintenance, and so on. Now, let me give you a detailed introduction.
Brief Introduction
SLHJ series single shaft double layer paddle feed mixing machine
This is a pretty common type of mixer in feed production. It centers around a single mixing shaft. When it’s in operation, the big and small paddles rotate at high speed, and strongly shear, throw and flip the material to quickly achieve the effect of uniform mixing.
There’s basically no maintenance cost involved; you just need to replace the lubricating oil once a year. This mixer has high mixing efficiency and can complete a mixing cycle in about 3 minutes.
SLHJ series single shaft double layer paddle feed mixing machine
SLHJ series single shaft double layer paddle feed mill mixer
| Model | Motor connection | Material | Power (kw) | Mixing amount per batch (kg/P) | Effective volume (m³) |
| SLHJ1A | Direct connection | Carbon steel | 11 | 500 | 1 |
| SLHJ1B | Direct connection | stainless steel | 11 | 500 | 1 |
| SLHJ2A | Direct connection | Carbon steel | 22 | 1000 | 2 |
| SLHJ2B | Direct connection | stainless steel | 22 | 1000 | 2 |
| SLHJ3A | Direct connection | Carbon steel | 30 | 1500 | 3 |
| SLHJ4A | Direct connection | Carbon steel | 37 | 2000 | 4 |
| SLHJ6A | Direct connection | Carbon steel | 55 | 3000 | 6 |

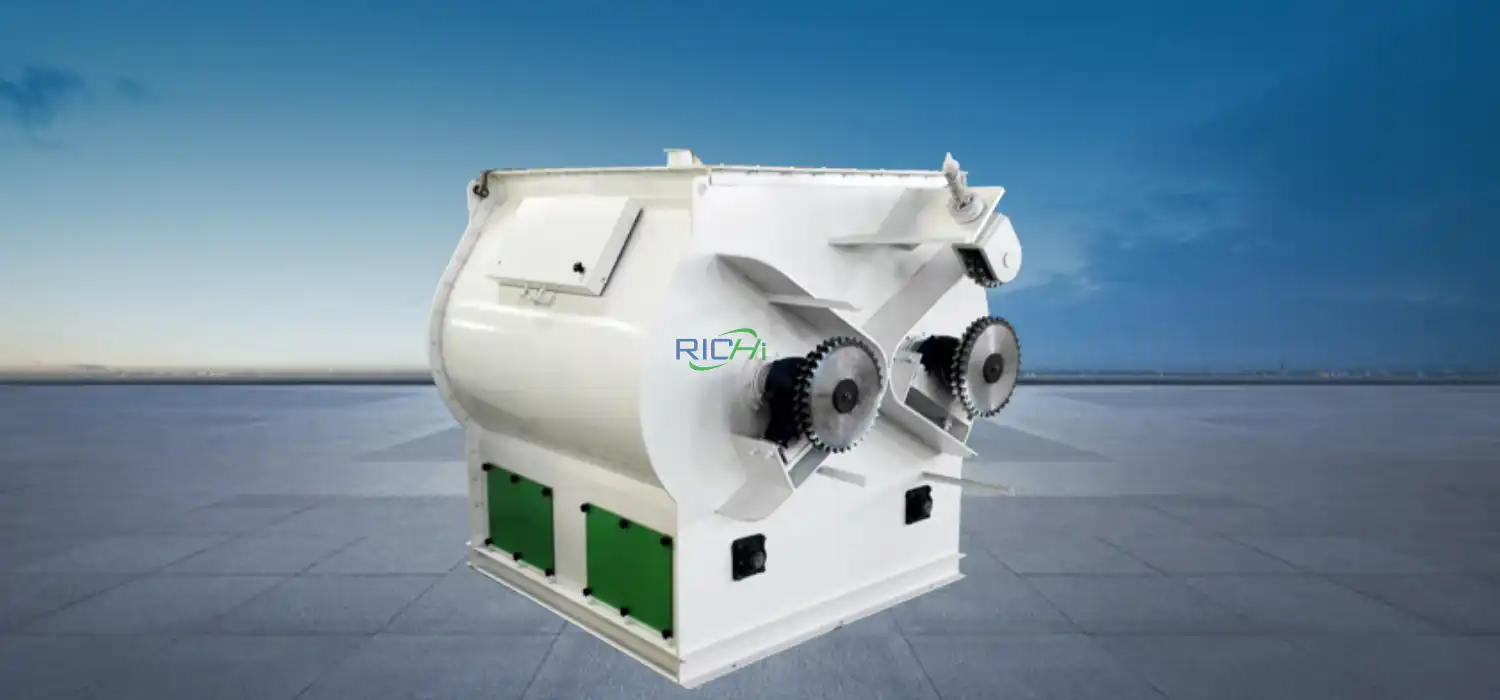

SLHSJ Series Twin Shaft Paddle feed mixing machine
RICHI twin-shaft paddle mixer is made of stainless steel or carbon steel, which can mix a variety of materials efficiently and evenly. It is widely used in feed, food, chemicaland other industries. It is suitable for mixing powder, granular, flake and block materials.
The material of the equipment has good corrosion resistance, which ensures the quality of feed and reduces maintenance costs. The cylinder has a circular cross-section and a longer discharge door, which can effectively avoid mixing dead corners and improve cleaning and discharging efficiency.
SLHSJ Series Twin Shaft Paddle feed mixing machine
SLHSJ Series Twin Shaft Paddle feed mixing machine
| Model | Motor connection | Material | Power (kw) | Mixing amount per batch (kg/P) | Effective volume (m³) |
| SLHSJ0.5A | Chain | Carbon steel | 5.5 | 250 | 0.5 |
| SLHSJ0.5B | Chain | stainless steel | 5.5 | 250 | 0.5 |
| SLHSJ1.0A | Chain | Carbon steel | 7.5 | 500 | 1 |
| SLHSJ1.0B | Chain | stainless steel | 7.5 | 500 | 1 |
| SLHSJ2.0A | Chain | Carbon steel | 18.5 | 1000 | 2 |
| SLHSJ4.0A | Chain | Carbon steel | 30 | 2000 | 4 |
SLHY series single shaft double screw feed mixing machine
The SLHY series single-shaft ribbon mixer has a gentle mixing process and can effectively ensure the uniformity of raw material mixing. The equipment adopts a horizontal cylinder structure with a ribbon-type mixing blade inside to achieve efficient mixing.
The equipment is equipped with a butter filling pipe and a return air pipe. The shaft end and the discharge door adopt a unique sealing design to effectively prevent leakage and air leakage, and improve the service life and sealing effect.
SLHY series single shaft double screw feed mixing machine
SLHY series single shaft double screw feed mill mixer
| Model | Power (kw) | Mixing amount per batch (kg/P) | Effective volume (m³) |
| SLHY0.5A | 4 | 250(manual feeding) | 0.5 |
| SLHY1.0A | 7.5 | 500 (manual feeding) | 1 |
| SLHY1.0A | 7.5 | 500 (pneumatic feeding) | 1 |
| SLHY2.5L | 18.5 | 1000 (pneumatic feeding) | 2.5 |
| SLHY3.5L | 30 | 1500 (pneumatic feeding) | 3.5 |
| SLHY5.0L | 37 | 2000 (pneumatic feeding) | 5 |
| SLHY7.5L | 45 | 3000 (pneumatic feeding) | 7.5 |
STHJ series molasses high speed feed mixing machine
The STHJ series molasses high-speed mixer is specially designed for adding molasses to ruminant feed. The equipment adopts a high-speed operation structure and has a continuous mixing function. It is usually installed above the pelletizer and seamlessly connects with the entire pelletizing process.
The whole machine has a compact structure, convenient operation, and easy cleaning and maintenance. It is suitable for modern feed mills to achieve efficient and accurate molasses addition operations and improve feed quality and nutritional stability.
STHJ series molasses high speed feed mixing machine
STHJ series molasses high speed feed mixing machine (A-carbon steel, B-stainless steel)
| Model | Power (kw) | Output (T/H) |
| STHJ35x200A/B | 30 | 15-20 |
| STHJ40x250A/B | 37 | 20-25 |
| STHJ50x275A/B | 45 | 25-30 |
ZGH Series Drum feed mixing machine
The ZGH series rotary drum mixer integrates crushing and mixing, which can fully mix a variety of raw materials and increase the contact area between materials. The equipment occupies a small area, is easy to install and move, and is suitable for production needs with limited space.
The mixer has a fast discharge speed, less residue, a reasonable feeding structure, simple operation, and is convenient for daily inspection, sampling and cleaning. It is particularly suitable for the production of small-dose additive premixes manually configured in feed factories. It has a small investment and is easy to use. It is an ideal choice for small-scale premix processing.
ZGH Series Drum feed mixing machine
ZGH Series Drum feed mixing machine
| Model | Power (kw) | Output (KG/Batch) |
| ZGH-100 | 2.2 | 100 |
| ZGH-200 | 2.2 | 200 |
| ZGH-300 | 3 | 300 |
| ZGH-500 | 3+4 | 500 |
about Feed Mill Mixer
In modern feed production, precise mixing of various ingredients is essential to ensure feed quality and animal nutrition. Feed mixers play a key role in this process, mixing various ingredients evenly before pelleting or extrusion. Whether in livestock feed or poultry feed production line, mixers determine the consistency, nutritional value and stability of the final product.
Definition of Feed Mill Mixer
A feed mixer machine is a mechanical device used to fully and evenly mix various feed ingredients, like corn, soybean meal, and wheat bran, along with certain premixes such as minerals and vitamins, according to the requirements of scientific formulas, and finally make feed that meets the nutritional needs of animals.
A high-quality animal feed mixer machine ensures consistent blending results, which is crucial for maintaining feed uniformity and nutritional balance. Common types of mixed feeds include premixes, concentrate feeds, and full-price feed, etc. These are mainly suitable for the processing of poultry, cattle and sheep ruminants, and aquatic feed.
The quality of a mixer directly affects the nutritional value and taste of the feed. Choosing a reliable, durable, and safe mixer not only flexibly mixes feed but also significantly boosts production efficiency and cuts down on production costs.
In addition, a good feed mixer machine must also has high adaptability and be able to handle different types and forms of feed raw materials, such as powder, granular or liquid raw materials.
Working principle of feed mill mixer
The working principle of a feed mixer machine mainly relies on the movement of the paddles. These paddles make the feed raw materials move in various ways inside the drum, thereby achieving mixing. After the mixing is completed, the material is discharged from the discharge port. Currently, there are two discharge methods: manual and automatic discharge. In a complete feed pellet line, the mixer plays a crucial role in ensuring that all ingredients are uniformly blended before pelletizing begins.
During the mixing process, we need to pay attention to parameters like mixing time and rotation speed to ensure the stability of the mixing process and the reliability of the mixing quality. As for the stirring speed, it needs to be scientifically adjusted based on the characteristics of the materials and the type of the mixer. If the speed is too fast, the materials might separate out; if it’s too slow, it’ll prolong the mixing time and affect production efficiency.
Why choose RICHI feed mill mixer?
There’s a wide variety of feed mixing machine on the market, and their quality varies from good to bad. Choosing a high-quality mixer is crucial for your feed processing plant. RICHI feed mixer machines have become the top choice for many feed processing plants due to their high-quality performance and their application of a variety of raw materials.
High mixing efficiency
Different types of feed mixing machines all boast relatively high production efficiency, capable of meeting the demands of feed production in various scales. Take the single-shaft paddle mixer as an example. We use two sizes of paddles, which not only create two working zones to enhance mixing efficiency but also prevent materials from tilting and converging towards one end. At the same time, the application of an automated control system reduces manual operations, further boosting production efficiency.
Wide application scope
We offer a diverse range of mixers that can adapt to the mixing of various feed raw materials. Whether it’s powdered, granular raw materials, or special ingredients containing oils and trace elements, our mixers can achieve uniform mixing. Additionally, the full range of specifications for mixing machines are suitable for feed production enterprises and breeding farms of different sizes, meeting diverse production needs.
Reliable quality
The key components of our feed mixing machines, like the paddles and spiral ribbons, are made of high-strength stainless steel and undergo a special heat treatment process. This significantly enhances their wear resistance and corrosion resistance. The discharge doors are sealed with silicone, and the port is sealed with specially designed filler to ensure no leakage. All our inspection doors are equipped with limit switches to protect personal safety.
Easy to operate and maintain
Our mixers are equipped with oversized inspection doors and have a well-designed structure, making daily maintenance and upkeep convenient. This helps reduce the equipment’s maintenance costs and downtime. At the same time, they come with a user-friendly operating interface, so that the operator can master the operating methods of the equipment after simple training.
Application of feed mill mixer on production line
To help you better understand how the feed mixer machine works in a real production environment, we’ve prepared this on-site video demonstration. It shows how the mixer integrates into a 1–2T/H feed production line, highlighting its role in ensuring efficient, uniform blending of feed materials. This is a key step in any animal feed processing plant, where consistency and quality directly impact the final feed performance.
The feed mixer machine is positioned in the middle stage of the feed production line. By mixing the ingredients, it ensures the even distribution of nutrients, making the pelleted feed more nutritious. This helps create unique advantages for the processing plant’s feed products and boosts their economic value. The specific production line is as follows.
Through various cleaning devices, we remove impurities like stones, metals, and dust from different feed raw materials to ensure their cleanliness. Based on a scientific feed formula, we measure out the exact amounts of each ingredient.Then,we crush the ingredients to an appropriate particle size to facilitate mixing and animal digestion.The feed mixer machine fully stirs the raw materials and crushed various raw materials and mixes evenly.After mixing, the material goes into the pellet mill to be made into pelleted feed. Then it passes through a cooler to reduce the temperature of the pellets, so that the pelleted feed meets the specified quality standards. Finally, the feed is packaged, and the whole production process is completed.
Apart from being suitable for feed production lines, our mixers can also be used in different biomass production lines such as wood chip pellets, grass straws, etc. You’re free to choose our products. If you’re a newcomer to this industry, we can provide you with considerate services, send professional personnel to provide you with more detailed product explanations, and help you open the processing factory as quickly as possible. Click here.
Choosing a professional feed mixer is the core guarantee for choosing feed quality! Whether it’s for large-scale feed production or the precise requirements of professional aquatic feed, the mixing uniformity, residue rate, efficiency, and reliability are always the measure of the value of equipment.In the future, feed mixer machines are developing towards directions like intelligence, high efficiency and energy saving and green and environmentally friendly.
RICHI MACHINERY
Global Applications of RICHI Feed Mill Mixer for Sale
In modern feed and biomass pelleting plants, the mixing process plays a decisive role in product quality. RICHI Machinery provides global customers with a variety of feed mill mixer models, which are widely used in various production lines such as poultry feed, aquatic feed, biomass pellets, premixes, etc.
The following are our typical application projects in many countries, covering different production capacities, raw material types and process requirements. If you are looking for a high-efficiency, well-structured and stable mixing equipment, these cases will provide you with valuable references. If you’re interested in more RICHI project cases, feel free to contact us anytime.
feed mill mixer for Sale Vietnam
- Application project: Applied to 2-3T/H poultry feed production line
- Time: March 2024
- Equipment details: Used with SLHSJ1.0B double-shaft paddle mixer, made of stainless steel, with a mixing batch of 500kg, suitable for efficient and uniform mixing of powder and pellets.
Feed Mixer for Sale Brazil
- Application: Premixing of grass powder and auxiliary materials in 5T/H biomass pellet production line
- Time: November 2023
- Equipment details: Equipped with SLHY3.5L single-shaft double-screw ribbon mixer, suitable for medium-yield grass biomass pelleting, mixing batch 1500kg.

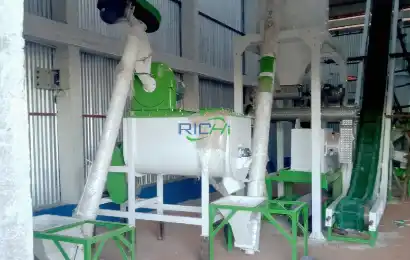

Feed Mixer for Sale Egypt
- Application: 1-2T/H ruminant concentrated feed adding molasses mixing section
- Time: January 2024
- Equipment details: STHJ35×200B molasses high-speed mixer is selected, with a power of 30kw and a production capacity of 15-20T/H, which effectively improves the efficiency of molasses addition.
Feed Mixer for Sale South Africa
- Application: Applied to 3T/H cattle feed powder premixing section
- Time: September 2023
- Equipment details: Use SLHJ2A single-shaft double-layer paddle mixer, made of carbon steel, mixing amount 1000kg/batch.
Feed Mixer for Sale Russia
- Application: 2T/H sawdust biomass pellet line pretreatment mixing system
- Time: February 2024
- Equipment details: Optional SLHSJ2.0A double-shaft paddle mixer, carbon steel material, mixing volume 1000kg, used with supporting crushing and drying system.

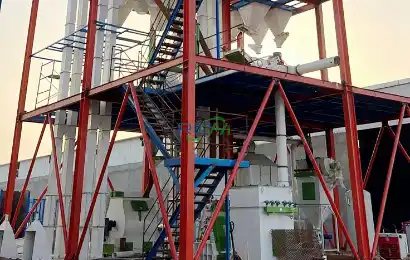

feed mill mixer for Sale Kenya
- Application project: 8T/H livestock feed pellet production line core mixing section
- Time: May 2024
- Equipment details: Optional SLHJ3A single-shaft double-layer paddle mixer, power 30kw, mixing batch 1500kg; equipped with precision weighing system and pulse dust removal structure.
Feed Mixer for Sale Uzbekistan
- Application: Applied to 10T/H cattle feed pellet production line
- Time: April 2024
- Equipment details: Equipped with SLHY7.5L single-shaft double-screw mixer, mixing volume 3000kg/batch, with automatic metering system and conveying device, to meet the needs of large-capacity cattle feed premixing section.
feed mill mixer for Sale Argentina
- Application: 10T/H chicken feed pellet line front mixing system
- Time: February 2024
- Equipment details: Use SLHJ4A single-shaft double-layer paddle mixer, carbon steel material, mixing volume 2000kg/batch, suitable for powder + pellet mixing; with precise oil injection system.
Feed Mixer for Sale Iran
- Application project: 10T/H ruminant concentrate supplement production line
- Time: December 2023
- Equipment details: Equipped with SLHY7.5L mixer, suitable for high-proportion soybean meal, corn, premixed additive combination, to meet the needs of fast mixing and continuous discharging.
Why Choose RICHI Machinery?
RICHI Machinery has been deeply involved in the pellet manufacturing industry for 30 years. Its customers are spread across Europe, America, Africa, Asia Pacific, Middle East and other regions, and its sales network covers more than 130 countries and regions. It has successfully completed more than 1,200 complete sets of pellet projects with a high level of professionalism, making it a recognized leader in the industry. For customers concerned about feed mill mixer cost, RICHI provides cost-effective turnkey solutions tailored to different production scales and budgets.
Efficient and comprehensive after – sales service:
RICHI machinery has a comprehensive and well – established after – sales service system. It has multiple overseas logistics routes to ensure that machine arrives safely and on time. Later on, if there’s any abnormality with the customer’s machine, we’ll provide after – sales staff to offer preliminary solutions right away. And within 48 hours, we’ll send professional technicians to the site (within China) for service, minimizing the customer’s downtime.
Scientific customized services:
We have a diverse and rich product system. With over 200 products, we can meet the needs of various biomass production customers. The company is equipped with a professional R&D and design team. According to your actual situation, whether it is a small feed factory or a large industrial feed factory, we will design personalized solutions for you based on the actual situation.
Excellent equipment quality:
RICHI Machinery has won many international authoritative certifications. The company has passed BV certification, ISO9001 International Quality Management System Certification, European CE Certification, and Swiss SGS Certification, among others. You can find us on YouTube.
