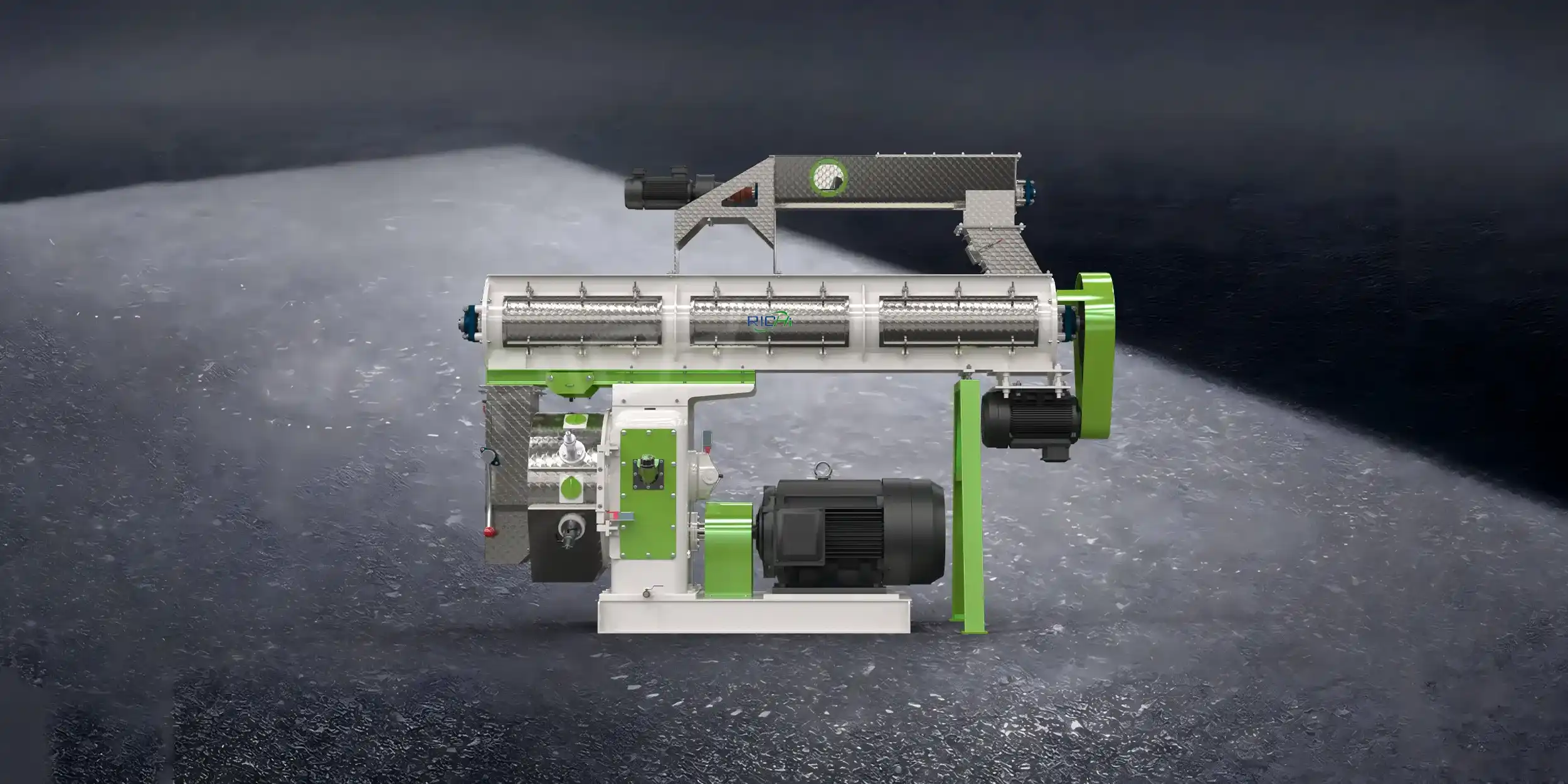

Chicken Feed Pellet Making Machine
Chicken feed pellet making machine is a kind of feed pellet processing machinery, which can directly crush the crushed corn, soybean meal, straw, grass and etc into compacted feed pellets. The produced chicken feed pellets have smooth appearance, high curing degree and high feed conversion rate.
About chicken feed pellet making machine
Chicken feed maker machine belongs to a kind of feed production machinery, which can process crushed corn, wheat, fish meal, etc., into feed pellets for chickens. Our chicken feed pellet machines are driven by Siemens motors.
The machine can not only produce chicken feed pellets, but also produce various animal feed pellets, such as cattle feed pellets, rabbit feed pellets, duck feed pellets and so on.
The chicken feed pellets produced by our chicken feed pellet maker machine are smooth on the surface and fully mature inside, which is not only conducive to the digestion and absorption of nutrients, but also can kill common pathogenic microorganisms and parasites.
If you plan to join in the chicken feed pellet manufacturing industry, then this machine is ideal for you.
Our chicken feed pellet machines also have different production capacities, from small scale of 1-2T/H to large production capacity of 100T/H, for your choice. And we can customize the chicken feed production machine according to your needs to meet your actual needs.
High quality pellet machines make high-quality feed pellets
Customize a top quality chicken feed pellet machine
Technical Features Of chicken Feed Pellet making Machine
Chicken feed pellet making machine is the key equipment used to make chicken feed pellets. It has the characteristics of stable performance and easy operation. Here are some features of chicken feed pellet machine summarized by RICHI Machinery.
- The chicken feed pellet machine is equipped with an observation door, which is convenient for inspection and maintenance at any time
- The machine has strong applicability of raw materials, which can process various food materials, such as fish meal, corn, wheat, grass and other feed raw materials.
- Chicken feed maker machine adopts ring mold design, good pressing effect and high production efficiency.
- The machine can be customized single layer, double layer, three layer conditioner pelletizer to produce high-quality livestock and poultry and aquatic feed pellets
- Chicken feed pellet machine has the features of compact structure, beautiful appearance, easy operation, high output and low energy consumption.
- Imported high-quality SKF bearings are used in the transmission part of the whole chicken feed production machine to ensure high efficiency, stability and low noise.
- The machine has strict and standardized production and technical shutdown, good quality and high efficiency.
- Chicken feed pellet machining has a high-temperature heating process for chicken feed pellets, which can degrade the ingredients in the raw materials into substances that are more easily absorbed by chickens. Moreover, high temperature can denaturate various enzymes in chicken feed raw materials, so that the palatability of pellet feed is better and the food intake of chickens is increased.
- Chicken feed pellet machine adopts variable frequency adjustable speed stainless steel feeder to ensure the production of high quality chicken feed pellets.

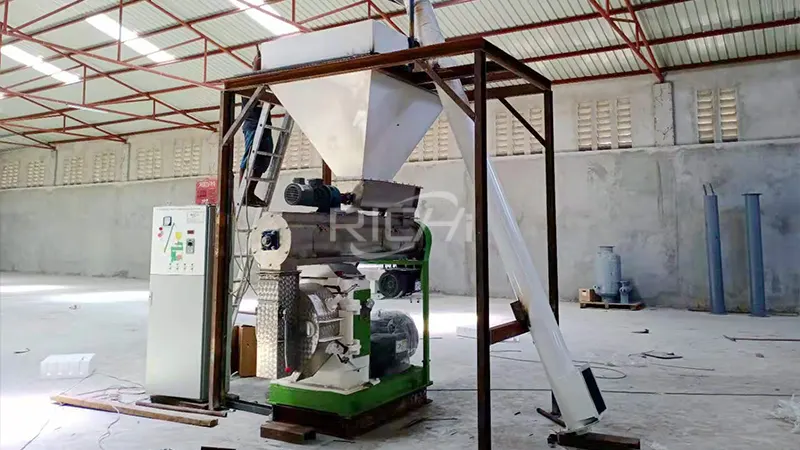

- The machine adopts gear drive, and the output is about 15% higher than the belt drive type.
Various capacities of RICHI chicken feed pellet making machine
1.0-2.0T/h chicken feed pellet maker
| Model | SZLH250 |
|---|---|
| Capacity(T/H) | 1.0-2.0 |
| Main Motor Power(KW) | 22 |
| Feeder Motor Power(KW) | 0.75 |
| Conditioner Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 250 |
| Finished Pellet Diameter (mm) | 2-12 |
3.0-4.0 T/h chicken feed pellet machine
| Model | SZLH320 |
|---|---|
| Capacity(T/H) | 3.0-4.0 |
| Main Motor Power(KW) | 37 |
| Feeder Motor Power(KW) | 1.5 |
| Conditioner Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 320 |
| Finished Pellet Diameter (mm) | 2-12 |
5.0-7.0 T/h chicken feed pellet making machine
| Model | SZLH350 |
|---|---|
| Capacity(T/H) | 5.0-7.0 |
| Main Motor Power(KW) | 55 |
| Feeder Motor Power(KW) | 1.5 |
| Conditioner Power(KW) | 3 |
| Ring Die Diameter (mm) | 350 |
| Finished Pellet Diameter (mm) | 2-12 |
8.0-12 t/h chicken feed making machine
| Model | SZLH420 |
|---|---|
| Capacity(T/H) | 8.0-12 |
| Main Motor Power(KW) | 110 |
| Feeder Motor Power(KW) | 1.5 |
| Conditioner Power(KW) | 7.5 |
| Ring Die Diameter (mm) | 420 |
| Finished Pellet Diameter (mm) | 2-12 |
10-18 T/h chicken feed maker machine
| Model | SZLH508 |
|---|---|
| Capacity(T/H) | 10-18 |
| Main Motor Power(KW) | 160 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 508 |
| Finished Pellet Diameter (mm) | 2-12 |
15-25 T/h chicken feed production machine
| Model | SZLH558 |
|---|---|
| Capacity(T/H) | 15-25 |
| Main Motor Power(KW) | 180/200 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 558 |
| Finished Pellet Diameter (mm) | 2-12 |
20-30 t/h chicken feed pellet mill
| Model | SZLH678 |
|---|---|
| Capacity(T/H) | 20-30 |
| Main Motor Power(KW) | 220/250 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 678 |
| Finished Pellet Diameter (mm) | 2-12 |
25-40 t/h chicken feed pellet mill machine
| Model | SZLH768 |
|---|---|
| Capacity(T/H) | 25-40 |
| Main Motor Power(KW) | 280/315 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 768 |
| Finished Pellet Diameter (mm) | 2-12 |
Can’t find the suitable chicken feed production machine you want?
Contact us to customize for you
Two types of chicken feed making machine
The chicken feed pellet machine can be divided into two types from the structure of the flat die pellet machine and the ring die pellet machine. Each type has its own suitable customers and existing advantages and disadvantages. The following is a brief introduction of these two types of chicken feed pellet maker.
Ring Die chicken feed pellet machine
- Ring die chicken feed pellet mill has a greater range of production capacity.
- The production capacity of this type of chicken feed pellet mill is generally between 1-60T/H.
- The ring mold chicken feed pellet machine is compact and suitable for various production of chicken feed production lines and chicken feed factories.
Flat Die chicken feed pellet mill
- Compression ratio is usually: 1:4, 1:3
- Mainly consist of a hopper, press roller & flat die, motor, and control cabinet.
- Flat die pellet mill adopts flat die design, simple structure, easy to operate.
- Its output generally ranges from 200kg/h to 1000kg/h.
Ring die chicken feed pellet machine has high efficiency, large output and wide application range. And the quality of feed pellets produced by the ring die pelletizer is better than that of the flat die pelletizer. Therefore, most customers choose to purchase ring die pelletizer. The following mainly introduces the structure, working principle, application, related project cases and some FAQs of the ring mold chicken feed pellet machine.

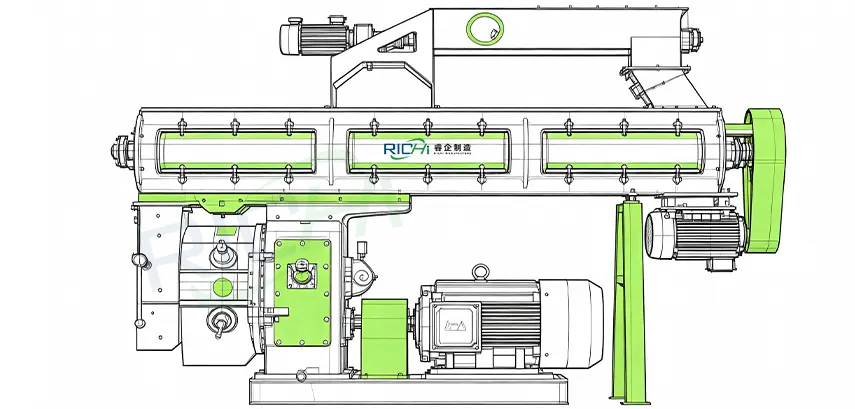

Main structure of ring die chicken feed pellet making machine
The chicken feed pellet making machine mainly consists of feeder, conditioner, pelletizing room, ring die and rollers, Siemens motor, SKF bearings and etc. Here are the introduction of the main structure of the chicken feed pellet machine.
Feeder
The feeder is located directly above the chicken feed pellet machine. The material enters the pelletizer through the feeder. Our chicken feed pellet machine adopts a stainless steel variable frequency speed feeder, which can control the feeding speed and feed amount according to your production needs.
Conditioner
The conditioner adopts stainless steel, which has a long service life and good conditioning effect. The main function of the tempering device is to make the starch in the feed material pasty through high temperature, the material is mature and easier to digest and absorb by the animals.
Pelletizing room
The pelletizing chamber is in the host structure of the chicken feed production machine.
This is where chicken feed pellets form. The cooked material enters the pelletizing chamber and automatically forms pellets.

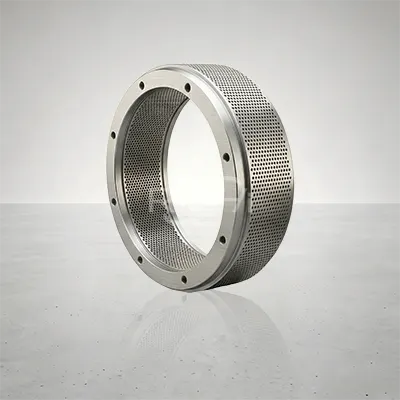

Ring die and press roller
The ring die and the press roller are the main working parts of the pellet mechanism of chicken feed pelletizer. The material is converted into chicken feed pellets under the extrusion of the ring mold and press roller.
Cutting device
The cutting device is used to cut the chicken feed pellets extruded from the die hole to the desired length. We can control the length of the pellets by adjusting the distance between the cutter and the ring die.

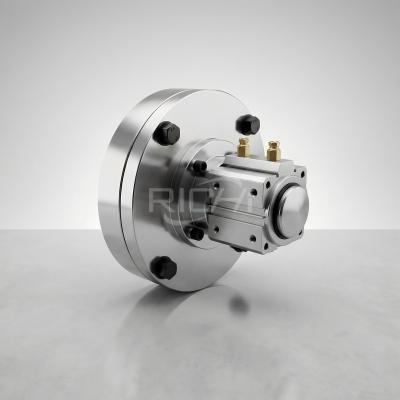

Safety pins
The chicken feed pellet machine is equipped with safety pins. When the machine is overloaded, the safety pin breaks off, which has an overload protection effect on the pelletizer.
Working principle of chicken feed pellet making machine
After understanding the structure of the chicken feed pellet machine, let’s take a look at how the machine works!
The main working principle of the machine is similar to that of the animal feed pellet machine. First of all, the crushed chicken feed raw materials enter into the conditioner through the feeder, and a certain amount of steam is passed into the conditioner, and the materials become mature in the container.
The cooked chicken feed then enters the pelletizing chamber and falls evenly on the ring die. The spindle drives the grinding disc to rotate, and the press roller continuously rolls through the feed layer to squeeze the chicken feed into the die hole. The material is finally extruded from the die hole in a cylindrical state and cut by the cutter to form a certain length of chicken feed pellets, which are discharged from the discharge port.
Applications of the chicken feed pellet making machine
- Chicken feed pellet mill can process the crushed material of corn, wheat, rice, soybean meal and other raw materials into feed pellets. Put it into the feeder of the chicken feed pellet machine, the pelletizer automatically processes the raw materials into feed pellets.
- The machine is suitable for all sizes of chicken farms and industrial chicken pellet processing plants.
- The chicken feed pellets processed by the chicken feed making machine have smooth surface, high internal maturity and moderate hardness, which are in line with the taste of chickens and can provide chickens with sufficient and comprehensive nutrients.
- It can make all kinds of animal feed pellets, such as rabbit feed pellets, pig feed pellets, horse feed pellets, cattle feed pellets, sheep feed pellets and so on.
Raw materials for chicken feed pellet making machine
- Corn, wheat, rice, rice: These raw materials contain 10-14% protein, also contain vitamins B1, B2, B6 and a small amount of enzymes. It provides energy for the chickens.
- Bean cake, peanut cake, protein powder, fish meal: these raw materials can provide chicken with rich protein, promote the growth and development of chicken, but also can enhance the immunity of chicken, improve the ability of chicken to resist disease.
- Alfalfa meal, sunflower cake, sunflower meal: Contains fiber, can prevent a variety of diseases, promote the healthy growth of chickens.
