Chicken Feed Pellet Machine For Sale
As a leading feed equipment manufacturer, RICHI Machinery provides a reliable chicken feed pellet machine for sale, which has received excellent feedback from poultry farms worldwide. Its capacity ranges from 1ton/h to 45ton/h, the finished pellet diameter is 2-12mm. The chicken feed pellet machine is suitable for almost all food raw materials, such as corn, bran, soybean cake, cottonseed cake, fish meal, bone meal and etc.
RICHI MACHINERY
Working video of chicken feed pellet machine
Working principle of the chicken feed pellet mill is to extrude corn, bran, soybean cake, cottonseed cake, fish meal, bone meal, and other feed raw materials, and make mixed feed pellets. The feed pellets made by a chicken feed pellet making machine have a smooth surface, a small loss of nutrients, and can kill pathogenic microorganisms.
The material is in full contact and fused with steam in the conditioner, cooked under high temperature and moisture. Then they enter the pelletizing room of the chicken feed pellet maker, under the strong extrusion of the ring die and the pressure roller, the pellets are formed and then cut into the desired length by the cutter.
140+
Country of Sale
30+
Years Experience
1.2K+
Feed Project Cases
Features of chicken feed pellet machine
- Adopts high-precision gear rotation, the efficiency is increased by about 15% than the type of belt transmission.
- Equipped with overload production device to increase the service of equipment.
- The parts that have contact with raw materials are made of stainless steel to avoid contamination of raw materials due to corrosion of equipment, and to ensure the food safety of animals.
- Adopts high-quality imported bearings and oil seals, ensuring efficiency, stability, and low noise.
- Configured with variable frequency speed feeder
- Enlarged and widened conditioner, prolongs the effective conditioning time and ensures the materials can be fully conditioned and matured.
- Centralized valve control system, reliable steam addition, and convenient operation.
- Equipped with high-efficiency conditioners, improve the pelletizing effect.

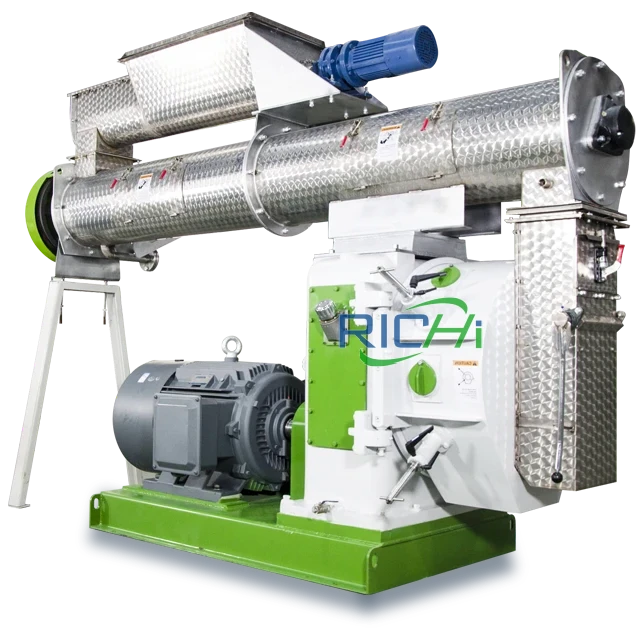

structure of chicken feed pellet machine for sale
- Feeder with anti-caking bins
- SKF bearing
- Forced feeder motor
- Cutter assembly
- Gearbox
- Shaft coupling
- Safety assembly
- Limit Switch
- Siemens motor
- Stainless steel containers
The Parameters Of The chicken Feed Pellet Machine
| Model of chicken feed pellet machine for sale | ||||||||

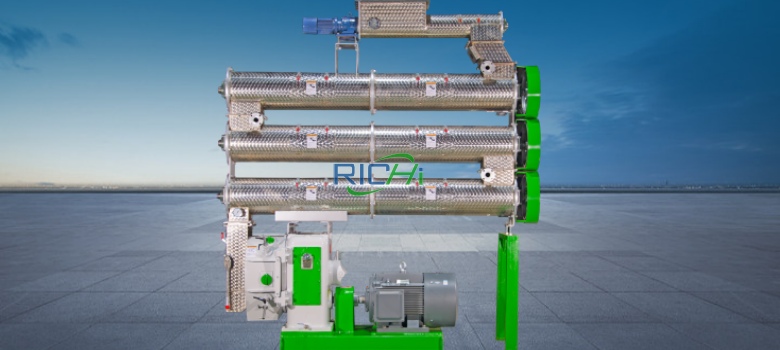

| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Main Motor Power (kW) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power (kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power (kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter (mm) | 2~12 | |||||||
| Output (T/H) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Reference Price (USD) | $7,000 – $9,000 | $10,000 – $13,000 | $14,000 – $18,000 | $20,000 – $28,000 | $30,000 – $38,000 | $40,000 – $50,000 | $55,000 – $70,000 | $75,000 – $95,000 |
Knowing so much about the chicken feed pellet machine for sale, you may have doubts: how to choose the suitable animal feed pellet machine? Then I will offer some tips for your reference! If you have any pelletization questions, welcome to contact RICHI, we are glad to help you solve your pelleting problems.
hot-selling ring die chicken feed pellet machine
- Its production capacity ranges from 1-45T/H
- Mainly consist of a feeder, conditioner, pelletizing chamber (ring die and press roller, motor)
- The compression ratio range: 1:3-1:23
Generally speaking, the higher the compression ratio, the higher the particle hardness. According to the feeding habits of chickens, chickens like to eat harder pellet feed, and the compression ratio is about 1:8. So the ring die pelletizer is more suitable for making chicken pellet feed, and the feed pellets produced by ring die poultry feed pellet machine are highly cooked and more easily digested and absorbed by the chicken.
RICHI is an expert in chicken feed pellet machinery and can provide high-grade pellet equipment, can customize a chicken feed production line according to customers’ needs.
How to choose a right chicken feed pellet mill?
First of all, according to your production capacity, different capacity requirement needs different models of machine. For example, if you want a 10TPH capacity, you can buy an SZLH 420 poultry feed mill machine. If you want a 28-45TPH capacity, you can buy two 558 or 858 feed pellet machines.
Then, think about the chicken’s kind you feed, chickens of different kinds and different growth stages eat different feed, and need different equipment. If you feed baby chicken, you need to buy a crumbler to crush the feed pellets into smaller sizes.
The last but not the least, find a reliable manufacturer. They not only can provide you with high-quality feed pellet equipment but also can help you to choose the most suitable machine for you.
As a professional feed pellet equipment manufacturer, RICHI Machinery has been devoted to the industry for 30＋ years. We strive to provide high-quality equipment at reasonable prices for every customer.
Chicken Feed Pellet Machine For Sale Global cases
A chicken feed pellet machine for sale from RICHI, it is more than just a piece of equipment; it helps our customers achieve feed freedom for their chickens. Producing high-demand chicken feed pellets from low-cost raw materials, and ultimately achieving high returns through this equipment, is our core mission and purpose in producing chicken feed equipment.
Below are some of our real-world projects featuring chicken feed pellet machines that have already been sold. With projects in over 140 countries worldwide, the improved feed conversion rates, overwhelming customer reviews, and increasing orders and repeat orders demonstrate our rigorous quality standards for chicken feed pellet machines, and our commitment to comprehensive customer service.

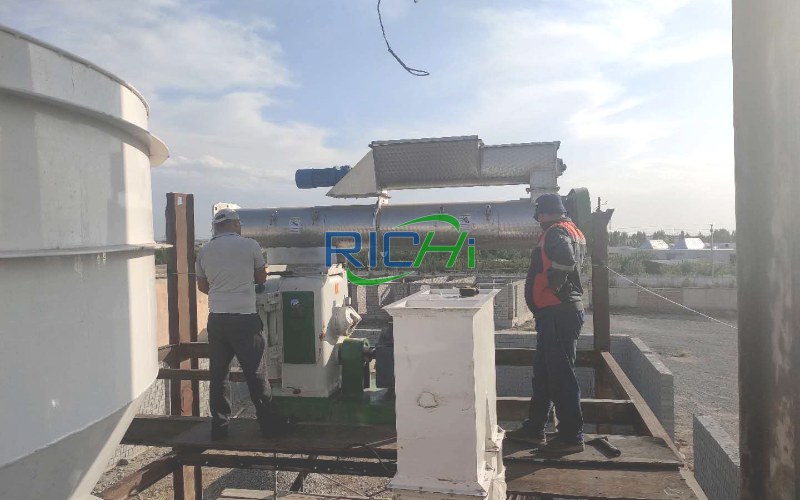

10-11T/H Chicken Feed Pellet Machine for Sale Uzbekistan
- Project Date: August 2025
- Client Requirements: 10-11 tons/hour (T/H) for broiler feed pellets with a diameter of 4.0mm.
- Selected Machine Model: SZLH420 Feed Pellet Machine
- Raw Materials: Local, inexpensive cassava and corn
- Contract Price: $25,000

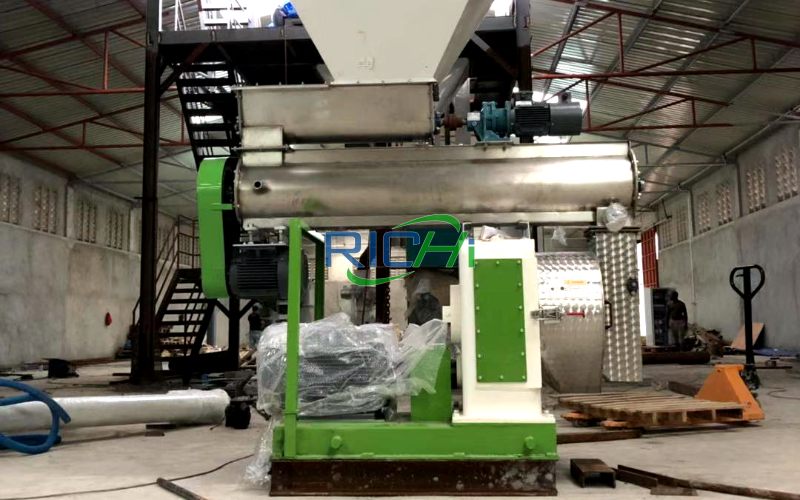

5T/H Chicken Feed Pellet Machine for Sale Vietnam
- Project Date: November 2024
- Customer Background: Integrated aquaculture and poultry farm
- Customer Requirements: One machine is required for multiple uses, producing both fish and chicken feed.
- RICHI Solution: 2.5mm sinking fish feed and 4.0mm laying hen feed. We specially equipped it with a stainless steel, corrosion-resistant ring die.
- Contract Price: $16,000

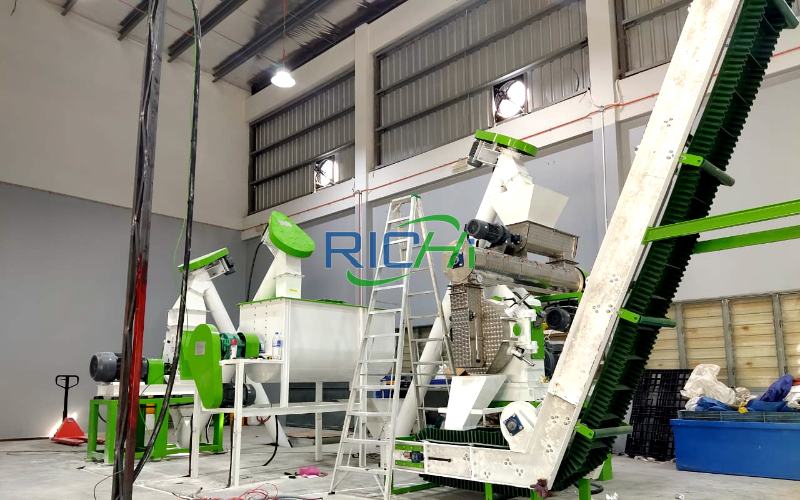

3-3.5T/H Chicken Feed Pellet Machine for Sale USA
- Project Date: September 2023
- Selected Machine Model: SZLH320 Feed Pellet Mill
- Production Capacity and Pellet Size: Production of 4.5mm organic layer pellets at a output of 3-3.5 tons/hour.
- Customer Requirements: The pelletizer must be made of food-grade stainless steel.
- Final Price: $12,500.

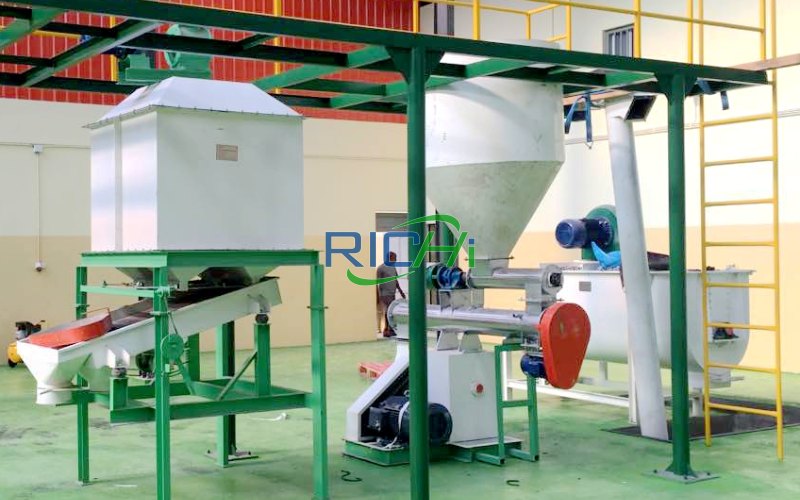

1-2T/H small Chicken Feed Production line for Sale Brazil
- Project Date: January 2024
- Client Inquiry: Hello, I am a farmer and would like to inquire about the price of the SZLH250.
- Building Size: 8m x 10m (80m²)
- Construction Duration: 5 days (including equipment installation and commissioning)
- Level of Automation: Manual loading
- Core Equipment: SZLH250 feed pellet machine, hammer mill, ribbon mixer, 3-meter screw conveyor, cooler
- Capacity and Specifications: 1-2 tons per hour, producing broiler pellets with a diameter of 4.0mm.
- Project Investment: Approximately US$14,000
- Client Comment: “This small pellet machine fully meets our daily needs. It’s easy to operate and produces uniform pellet quality. We use it not only to feed our own broilers, but the excess pellets are also very popular when we sell them to our neighbors.”

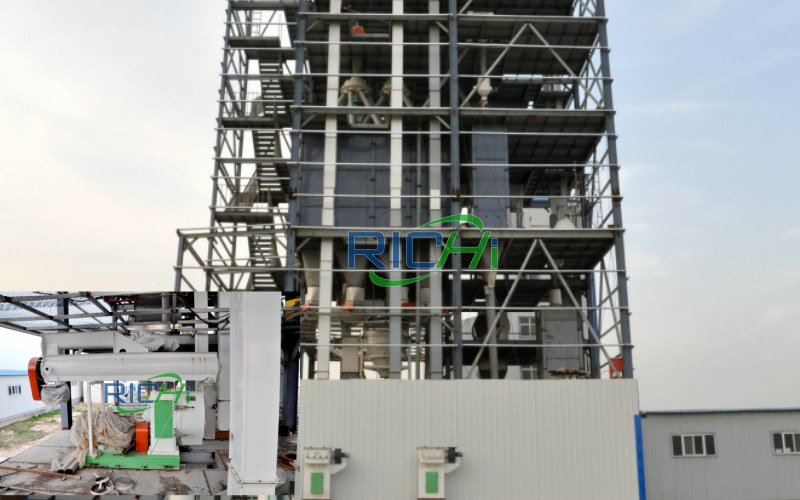

15-16T/H Chicken Feed Pellet plant for Sale Peru
- Project Date: May 2024
- Project Date: May 2024
- Customer Background: The client planned to invest in a feed mill and, after reviewing numerous existing projects, ultimately chose our company. Half of the chicken feed produced will be used for their own farms (for laying hens and broilers), and the other half will be sold commercially.
- Plant Size: 25m x 40m (1000m)
- Construction Period: 45 days (including civil engineering, equipment installation, and full-line commissioning)
- Automation Level: Fully automated production (PLC control)
- Core Equipment: SZLH508 feed pellet machine, raw material receiving and cleaning machine, pulverizer, electronic batching scale, double-layer ribbon mixer, countercurrent cooler, crusher, vibrating grading screen, automatic packaging machine, screw conveyor, pulse dust removal system, PLC automation control system
- Capacity and Specifications: Stable output of 15-16 tons per hour, capable of producing 3-5mm chicken feed pellets.
- Project Investment: US$520,000
- Customer Comment: “We considered various chicken feed equipment manufacturers for this investment and ultimately chose RICHI. I’m very pleased with this choice because the comprehensive service RICHI provides, from plant planning and equipment supply to formulation support, gives me complete peace of mind. Furthermore, the chicken feed pellets produced by this fully automated production line are high-quality, nutritious, and delicious. You can fully trust RICHI’s strength.”
how to make chicken feed pellet?

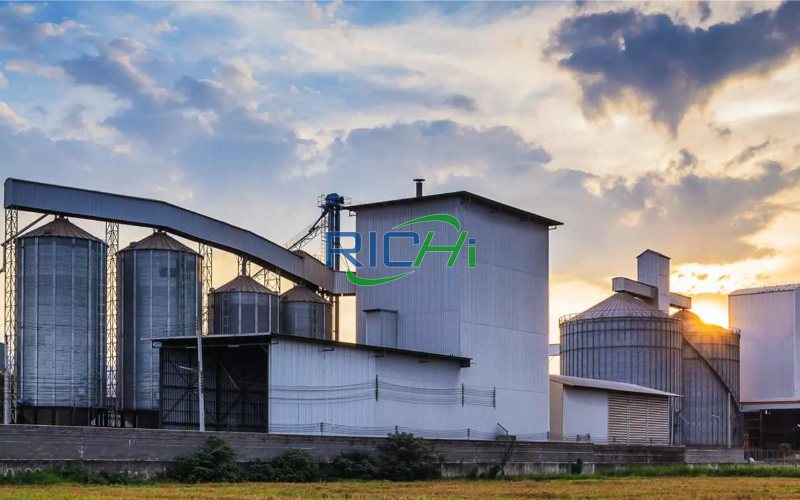

RICHI not only is a manufacturer providing various feed pellet machines, but also can undertake the entire chicken feed production line from design to installation to after-sales service.
We often encounter customers inquiring about chicken feed pellet machines. After reviewing some of our project examples, they quickly discover that larger production capacities often require additional equipment, such as crushing, mixing, and cooling.
Therefore, a chicken feed pellet machine is the core equipment for producing chicken feed pellets and a key component of the entire production line.
Of course, if you only need a single chicken feed pellet machine, we can also provide a comprehensive solution and customize the chicken feed pellet machine to best meet your needs.
We can design:
- 1-2T/H chicken feed pellet production line
- 3-4T/H chicken feed production line
- 5-7T/H chicken feed line
- 8-12T/H poultry feed production line
- 15-25T/H poultry feed manufacturing plant
- 25-40T/H chicken feed pellet plant
- 28-45T/H chicken feed production line
- ……

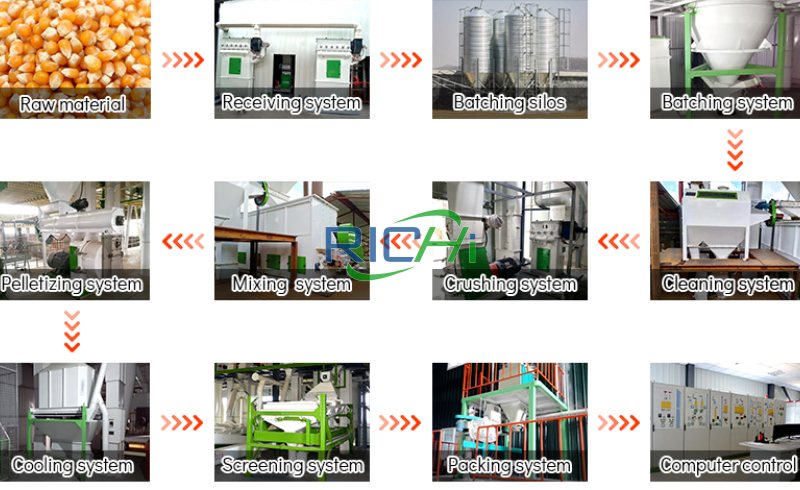

The process of the chicken feed production line are as follows:
The main equipment of this line are: feed hammer mill, single shaft double ribbon mixer, chicken feed pellet machine for sale, counterflow cooler, automatic packing system
It is worth mentioning that if you feed baby chickens, you need to equip a crumbler. RICHI SSLG Series double roll crumbler is designed for breaking large pellets into small pellets in the production of poultry feed and aquatic products, especially for baby chicken feed.
The project involved the successful completion of a chicken feed processing plant for a commercial chicken feed supplier in Canada in 2023. The plant boasts a fully automated production capacity of 20 tons/hour. The project took only 20 days from installation to commissioning, with a total investment of approximately US$680,000.
Customized Chicken Feed Production Line Project Video
The above flowchart provides a general understanding of how chicken feed pellets are produced. Below is a video of a completed chicken feed production line project, clearly showing all the equipment involved and the entire line in action. If you have any questions or require other customization, please feel free to contact us.
Poultry Feed Production Line
Animal Feed Production Line Installation Site
5T/H Animal Feed Mill in Peru
Frequently Asked Questions of chicken feed pellet Maker
Chicken of a different kind of feed formula
Once you have the chicken feed pellet mill, you can start making chicken feed pellets according to the chicken feed formula and the machine operation manual.
Here are some common chicken feed formulas for your reference：
- Baby chicken (1 to 60 days) feed formula: 62% corn, 10% bran, 17% soybean cake, 9% fish meal, 2% bone meal
- Young chicken (61 to 120 days) feed formula: 55% corn, 20% bran, 7% soybean cake, 5% cottonseed cake, 5% rapeseed cake, 5% fish meal, 2% bone meal, 1% shellfish meal.
- Egg-laying period chicken feed formula:56% corn, 10% mixed grains, 6% bran, 17% soybean cake, 5% fish meal, 3% shellfish meal, 3% clear stones.
- Broiler chicken (0-5 weeks old) feed formula: 6% fish meal, 24.7% soybean meal, 3% bran, 61.6% corn, 1.5% secondary meal, 3.2% additives
The above is the advice provided by RICHI Machinery. If you want to learn more, just contact us.
What are the advantages of chicken feed pellets?
After knowing so much about chicken feed pellet maker, how much do you know about the advantages of chicken feed pellets? Then I will tell you the advantages of feed pellets.
- After high temperature and high-pressure conditioning feed pellets, a high degree of maturation, and starch gelatinization, easier for animals to digest and absorb
- Can provide comprehensive and rich nutrition for chickens, promoting the healthy growth of chickens
- Avoid chicken from picky eating
- Can kill salmonella in the chicken feed
- It is easy to store and transport

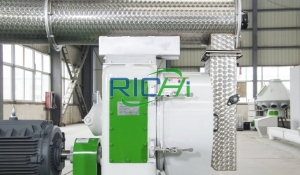

The chicken feed making machine is the chicken professional farmers and large, medium, and small-sized feed processing plants to reduce breeding costs, and improve the economic benefits of the ideal equipment, the preferred model.
There are not only the chicken feed pellet making machine, but also livestock, and aquatic feed pellet
Please briefly describe the chicken feed production process.
First of all, prepare all the materials needed according to the feed formula. If the materials need to be crushed, you should equip them with a feed crusher.
Then, put the crushed and mixed materials into the chicken feed pellet making machine through the feeder.
Next, the materials are transported to the conditioner to be cooked
Finally, the cooked materials enter the pelletizing room, then, the feed pellets are extruded from the holes of the ring die by the pressure roller and the ring die.
