Animal Feed Production Line in Zimbabwe
Animal feed production line in Zimbabwe is a production line specially designed to meet the growing market demand in Zimbabwe. RICHI Machinery combines international advanced feed processing technology with the actual situation in Zimbabwe to provide comprehensive solutions for the local area. In addition, Zimbabwe has rich agricultural resources and a booming animal husbandry industry, and is at a critical node in the modernization of feed production.
RICHI Machinery can help you set up an animal feed pellet production line in Zimbabwe at low cost and provide free technical guidance on animal feed pellet production processes and business plans. If you have any pelleting needs, please send us an inquiry directly!
Animal feed production line in Zimbabwe
Next, I will introduce the RICHI animal feed production line and the 5 tons/hour animal feed production line we completed in Zimbabwe in detail.
- Project name: 5 tons/hour animal feed processing production line
- Country: Zimbabwe
- Date: August 17, 2021
- Scope of application: This production line produces livestock and poultry animal feed pellets, supports the processing of raw materials such as corn and soybean meal, and the pellet diameter is adjustable from 2-10mm.
- Production capacity: 5 tons of animal feed pellets per hour
- Installation period: 8-12 weeks, including plant planning, equipment commissioning and operator training.
- Project highlights: Equipped with efficient mixing and pelleting equipment, it can adapt to the characteristics of high-fiber raw materials, greatly ensure the uniformity of nutrition and pellet quality, and can effectively reduce energy consumption and maintenance costs.
- Final feedback: Efficient raw material processing, uniform feed mixing, active animal feeding and reduced waste. The equipment is stable and easy to operate, and employees can quickly get started after training. The local after-sales response is timely, and engineers regularly return to optimize the process. Now the feed production and quality have been improved, and it is highly recognized in the local breeding circle.
- Some equipment and functions:
| Equipment Name | Model | Quantity | Main Function |
| Raw Material Cleaning Sieve | Drum Vibrating Screening Machine | 1 unit | Remove impurities (such as stones, metals, straws, etc.) from raw materials |
| Hammer Mill | RFSP Series Water Drop Type | 2 units | Crush raw materials such as corn and soybean meal to the required pellet size |
| Twin-Shaft Mixer | SLHSJ Series Twin-Shaft Paddle Type | 1 unit | Uniformly mix powdered/granular raw materials, and support liquid addition |
| Ring Die Pellet Mill | SZLH Series Ring Die Type | 1 unit | Extrude the mixed raw materials into pellet feeds of different diameters |
| Counterflow Cooler | Horizontal Counterflow Type | 1 unit | Cool the pellets to room temperature and reduce moisture to prevent mildew |
| Automatic Packaging System | Quantitative Weighing Packaging Machine | 1 set | Complete the weighing, packaging and label printing of pellet feeds |
There are a lot of advantages to using feed pellet production lines. Then I will introduce you to the features, working process, and main equipment of the feed pellet lines below.
RICHI MACHINE
Application of animal feed production line in Zimbabwe
RICHI’s tailor-made animal feed production line for Zimbabwe plays a key role in many fields with its advanced technology and excellent performance. The following is the application of this production line in the local area:
Chicken feed
The feed pellet specifications are carefully designed for the different growth stages of chicks and adult chickens. In the chick stage, small pellets of 2-3 mm are convenient for chicks to peck and digest; in the adult chicken stage, 3-4 mm pellets are more in line with their feeding habits.
Rabbit feed
The pellet diameter is generally 2-5 mm, fully considering the oral structure and digestion characteristics of rabbits. Adding an appropriate amount of fiber components to the feed helps rabbits maintain intestinal health and improve digestibility.
Horse feed
Feed pellets with different energy and nutritional density are produced according to the amount of exercise and growth stage of the horse. The diameter is usually 4-6 mm, which meets the nutritional needs of horses during daily activities, training and reproduction.
Pig feed
Customized feed pellets for piglets, fattening pigs and sows. Piglet feed pellets are small and nutritious, easy to digest and absorb; fattening pig feed focuses on the balance of energy and protein to promote rapid growth; sow feed strengthens the nutritional content to ensure reproductive performance and lactation ability.

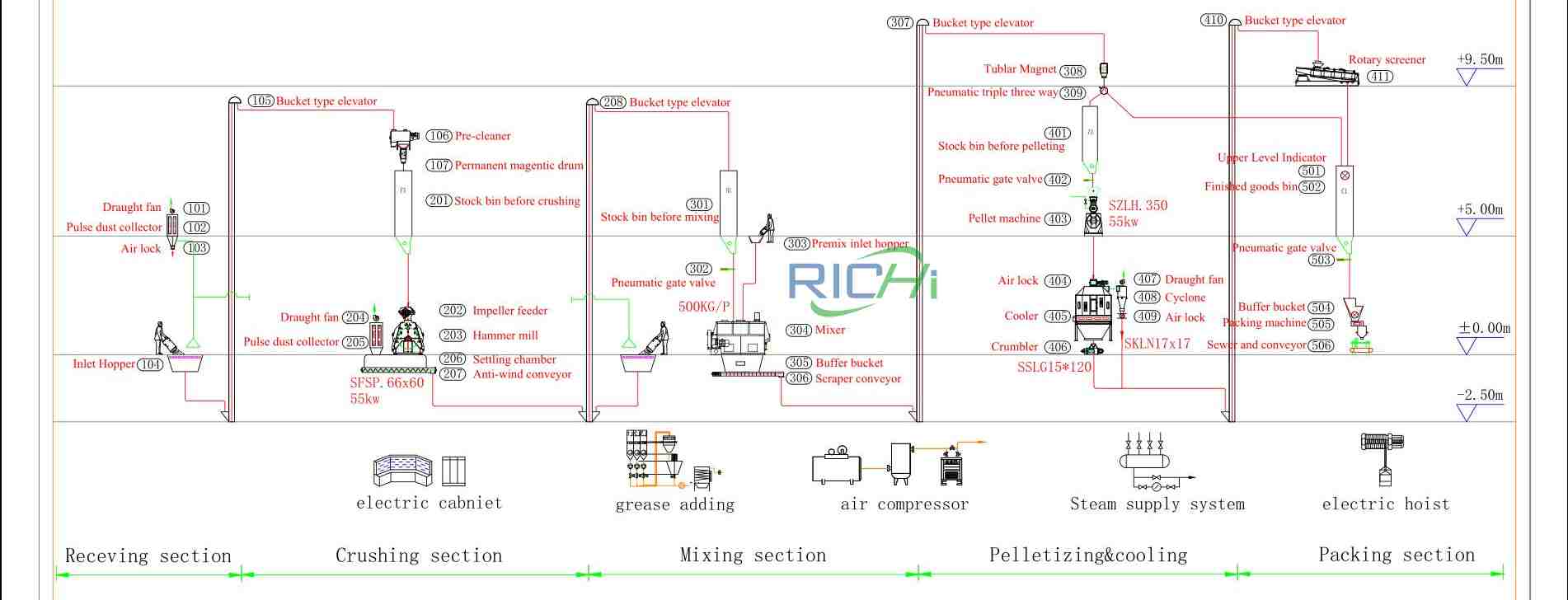

Animal feed production line in Zimbabwe: production process
In Zimbabwe, this production line is the key to ensuring the quality of feed. Its production process is fine and each link is closely connected and interlocking. Each process plays a key role. Next, we will introduce you in detail the main production process of 5T/H animal feed pellet production line in Zimbabwe:
01 Crushing system
The first step of the line is to crush the raw materials. The materials include the corn, soybean meal, wheat, they need crushing into powered materials. Then put them in to the next section.
02 Mixing system
After crushing, you can mix the crushed materials evenly through the feed mixer. Generally, the kinds of the raw materials used to make feed pellets are less than one kind, so we need to mix the raw materials, to ensure to provide uniform nutrition for the animals.
03 Pelletizing system
After mixing, the materials enter the pelletizing system. Put them into the conditioner of the animal feed pellet mill through the feeder, which can make the raw materials cooked. Under the pressure of the ring die and the rollers, the cooked materials finally pressed into uniform feed pellets.
04 Cooling system
After pelletizing, send the feed pellets to the cooling system. Due to the high temperature and moisture of the feed pellets, the feed pellets are soft and easily cracked. The temperature of the feed pellets needs cooling to room temperature, in case the surface of the feed pellets crack. In addition, the cooled feed pellets have a longer storage time.
05 Packing system
After cooling, the feed pellets can be packed manully or automatically, which makes it more convenient to store and transport.
High quality production lines make high-quality feed pellets
Customize a animal feed pellet production
CUSTOM SOLUTIONS
—— GET A QUOTE ——
Accurate control of cost accounting, scientific calculation of expected profits, to achieve cost reduction and efficiency, profit can be expected.From equipment selection and program planning in the early stage
Checking Order
Quality Test Before Delivery
Check Items When Packing
Packaging And Transport
Training Support
After-sale Service
The Main Equipment Of Animal feed production line in Zimbabwe
Drum type precleaner
RICHI Machinery Drum type precleaner is widely used in the raw material receiving part of feed pellet plant and other industries. Mainly used to remove large impurities such as rice straw, straw, hemp rope, corn cobs and etc to protect the feed pellet processing equipment from failure or damage.
Permanent magnet cylinder
The permanent magnet cylinder can clean the iron filings in the raw materials to protect the pelletizing equipment. It is mainly used for separating magnetic metal inclusions in raw materials, suitable for various scales of feed pellet mills, feed processing plant, etc.
Bucket elevator
RICHI Machinery bucket elevator is a kind of professional conveying equipment. It has novel appearance, safe and simple operation, compact structure, high production capacity. It is widely used for vertical lifting of feed pellets and raw materials in the process of producing feed pellets.
Pulse dust collector
Pulse dust collector is a centralized dust removal device, which can greatly reduce the dust generated during the process of manufacturing feed pellets. It is applicable to stand-alone or centralized air suction and dust removal or recycling filtration in feed processing, feed pellets plant, and etc.
Single-shaft paddle mixer
The single-shaft paddle mixer can mix the raw materials evenly. It adopts a double-layer rotor design, and is widely used in the feed pellet production line and other feed plants. It is featured as reasonable design, easy operation and maintenance, high mixing uniformity, and short mixing time.
Counterflow Cooler
RICHI counterflow cooler adopts advanced theory of counterflow cooling to cool high temperature and high moisture feed pellets. It is widely applied in feed processing industry for cooling of all kinds of pellet materials.
Automatic Packing System
RICHI Machinery automatic packing system is a professional quantitative weighing and packaging equipment. It is suitable for quantitative weighing and packing pellets and powdered materials. The equipment is featured as high packing accuracy, fast packing speed and high efficiency.
The animal feed pellet maker is the core equipment in feed processing lines, directly determining the quality of the pellets. Therefore, choosing a good animal feed pellet machine for sale is essential when producing feed pellets. If you’re interested in making pellets, feel free to contact RICHI — we will customize and provide high-grade pellet equipment tailored to your needs.
Animal feed pellet making machine
The animal feed pellet making machine is undoubtedly the core equipment in the entire feed processing line. Its performance directly affects the quality of feed pellets. RICHI Machinery’s animal feed pellet machine is carefully designed and manufactured using new technologies and materials. Notably, the ring molds, rollers, and doors of its granulation chamber are made of stainless steel, which offers good durability, stability, and hygiene.
The working principle of this machine is to first temper the raw materials to a certain temperature and humidity. Then, the strong extrusion pressure between the ring die and the pressing roller forces the raw materials to pass through the die holes on the ring die, finally forming feed pellets with a regular shape and uniform size.
Here are the parameters of RICHI animal feed pellet press. If you don’t know how to choose, just contact us directly.
| Model | SZLH250 |
|---|---|
| Capacity(T/H) | 1-2 |
| Main Motor Power(KW) | 22 |
| Feeder Power(KW) | 1.1 |
| Ring Die Diameter (mm) | 250 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH320 |
|---|---|
| Capacity(T/H) | 3-4 |
| Main Motor Power(KW) | 37 |
| Feeder Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 320 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH350 |
|---|---|
| Capacity(T/H) | 5-7 |
| Main Motor Power(KW) | 55 |
| Feeder Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 350 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH420 |
|---|---|
| Capacity(T/H) | 8-12 |
| Main Motor Power(KW) | 110 |
| Feeder Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 420 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH508 |
|---|---|
| Capacity(T/H) | 10-18 |
| Main Motor Power(KW) | 160 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 508 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH558 |
|---|---|
| Capacity(T/H) | 15-25 |
| Main Motor Power(KW) | 180/200 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 558 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH678 |
|---|---|
| Capacity(T/H) | 20-30 |
| Main Motor Power(KW) | 220/250 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 678 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH768 |
|---|---|
| Capacity(T/H) | 25-40 |
| Main Motor Power(KW) | 250/280 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 768 |
| Finished Pellet Diameter (mm) | 2-12 |
| Model | SZLH858 |
|---|---|
| Capacity(T/H) | 28-45 |
| Main Motor Power(KW) | 315/355 |
| Feeder Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 858 |
| Finished Pellet Diameter (mm) | 2-12 |

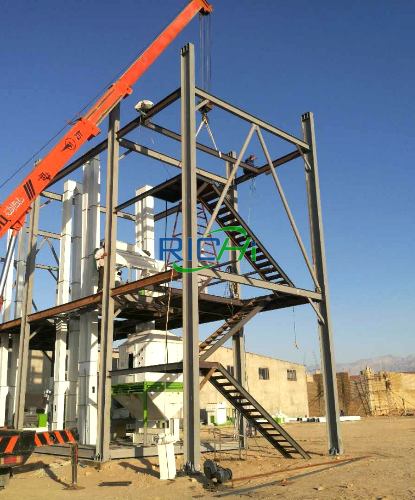

Overview of the full process service of Zimbabwe animal feed production line project
In the early stage of animal feed mill plant in Zimbabwe project, we deeply understand customer needs, cover information such as breeding scale and animal species, and customize scientific process solutions. The animal feed pellet making machine is manufactured using high-quality materials, adheres to international standards and customization requirements, and undergoes strict quality control. After the manufacturing is completed, customers are invited to the factory for acceptance and optimization and adjustment based on feedback.
When the equipment is sent to Zimbabwe, RICHI dispatches professional installation engineers to assist in the installation and solve problems in time. After installation, comprehensive debugging is carried out to optimize equipment parameters and ensure that the feed quality meets the standards. After debugging is completed, engineers conduct operation, maintenance and maintenance training for customer workers.
After the project is delivered, the after-sales team regularly calls customers to understand the use and maintenance of the equipment and provide professional advice. RICHI’s full-process service helps the development of Zimbabwe’s breeding industry.
Contact Us
Project cases
RICHI has not only built many animal feed production lines in Zimbabwe, but also built many animal feed processing plants in other regions. Its products have covered more than 150 countries and regions including Japan, Canada, Germany, Russia, the United Kingdom, Australia, Chile, etc. If you want to start an animal feed pellet business, you can refer to the following project cases:

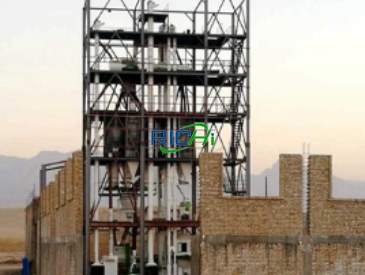

Ethiopia 1.5-2.5 tons/hour livestock and poultry feed pellet project
- Country: Ethiopia
- Name: Multifunctional livestock and poultry feed processing system
- Total power: 62KW
- Production capacity: 1.5-2.5 tons/hour
- Plant size: 8m × 5m × 5.5m
- Description: Supports fast switching between two recipes, equipped with recipe preset and batch traceability functions, in line with the food safety regulations of the Ethiopian Ministry of Agriculture.

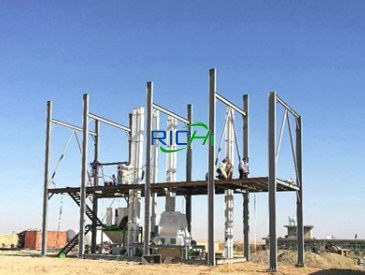

South Africa 3-5 tons/hour cattle and sheep feed pellet automated production line
- Country: South Africa
- Name: Large ruminant pellet feed plant
- Total power: 88KW
- Production capacity: 3-5 tons/hour
- Plant size: 12m × 8m × 6m
- Description: The project is located in the main forage producing area of KwaZulu-Natal Province, with a high degree of automation, integrated remote monitoring system and energy-saving cooling system, and stable pellet quality.
Turkey 6-10 tons/hour compound feed fully automatic production line
- Country: Turkey
- Name: Compound animal feed production line
- Total power: 145KW
- Production capacity: 6-10 tons/hour
- Plant size: 25m × 12m × 7m
- Description: The project is located in the Aegean coastal area of Turkey and serves many medium and large feed brand customers. The entire line has fully automatic batching, mixing, granulation, cooling and packaging functions, and supports the switching production of cattle and sheep ruminants, poultry feed and pet food.
1. A small production line only requires 1-2 people, while a large production line requires 5-10 people, which can effectively reduce labor costs and make production more efficient and convenient.
2. The process design is scientific. The small production line does not require on-site civil engineering and welding, which simplifies the installation process, shortens the installation cycle, and can be put into use quickly.
3. The structure is novel and compact, the layout is reasonable, easy to operate and maintain, safe, low failure rate, high-quality equipment, and long service life.
4. The volume is small and does not take up too much space. The production speed can be adjusted as needed. It can be customized according to customer requirements to save costs to the greatest extent.
Of course. The raw material formula of animal feed processing plant in Zimbabwe is provided by RICHI Machinery. We not only provide advanced animal feed pellet production line equipment, but also provide customers with professional feed formula support.
According to the feedback from Zimbabwean customers, our animal feed production line is not difficult to maintain. RICHI Machinery is designed for easy maintenance, and key components are modularly designed for easy disassembly and replacement. At the same time, detailed operation manuals and maintenance guides are randomly equipped to provide customers with comprehensive maintenance guidance. You can find us on YouTube.
Five Core Advantages of Choosing RICHI
Complete industrial chain
As a local enterprise, RICHI Machinery has built its own R&D, production and sales system. It has 30+ models of equipment covering multiple fields such as granulation, grinding, drying, etc. It has passed international certifications such as ISO and CE, and its business covers more than 100 countries. It has served more than 2,000 customers in total, with dual guarantees of quality and delivery capabilities.
Comprehensive and thoughtful service
The professional team conducts in-depth research on raw material characteristics, production capacity targets and site conditions, and customizes the entire process from solution design to equipment delivery, adapting to the needs of small and medium-sized farms to large factories, rejecting “over-configuration” and providing cost-effective “precision” solutions.
Guaranteed quality
Strictly implement ISO9001 standards, implement quality accountability and safe production management, and achieve full process traceability from design to manufacturing through QC quality control, SPC statistical process control and other means to eliminate quality risks and ensure equipment durability and stability.
Reliable delivery and rapid production
Following the four-fold inspection process of “order verification → factory quality inspection → packing re-inspection → scientific packaging”, engineers provide on-site guidance on infrastructure construction, installation and commissioning until the production line meets the standards and acceptance, using standardized processes to ensure efficient implementation of the project and shorten the production cycle.
Complete after-sales guarantee system
A technical team of nearly 100 people covers the entire process of consulting, design, installation and maintenance, providing customized technical solutions and operation training for animal feed production line in Zimbabwe. After delivery, they regularly visit the equipment operation status, quickly respond to after-sales needs, and help the production line operate stably in the long term.
