Animal Feed Pellet Mill
The animal feed pellet mill can produce pellet feed for various animals, such as cattle feed pellets, chicken feed pellets, duck feed pellets, pig feed pellets, rabbit feed pellets, etc. It can be divided into types of pellet mill, that is flat die animal pellet mill and ring die animal pellets mill. Here we mainly talk about the ring die type. This ring die animal pellet mill machine has various production capacities from 1 tons/h to 45 tons/h, which is widely used in the feed pellet production line for feed plant and animal farms of various scales.


RICHI MACHINERY
Video of animal feed pellet mill

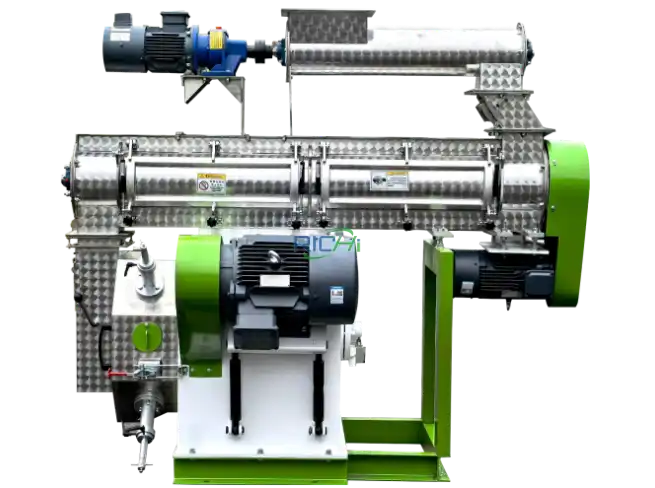

The machine shown in this video is the RICHI pellet mill animal feed. It is a multi-functional pelletizing machine, which can convert various powdered food materials into pellet feed for animal consumption. The animal feed pellet mill can make high quality feed pellets for livestock, poultry and other animals. What’s more, the machine equipped with forced feeder can also be used for the production of ruminant feed pellets containing grass meal in the raw material.
The feed pellets made by animal pellet mill machines are delicious and easy to digest. In addition, the pellet feed can provide a balanced combination of different kinds of nutrition for the better growth of animals. This is why more and more people are choosing to join feed pellet production for business.
RICHI Machinery is a specialized manufacturer of animal feed mills.We can customize the feed pellet production line according to your requirements. All you need to do is tell us your raw material, your production capacity, and your budget and we will design a highly efficient pelletizing line for you.

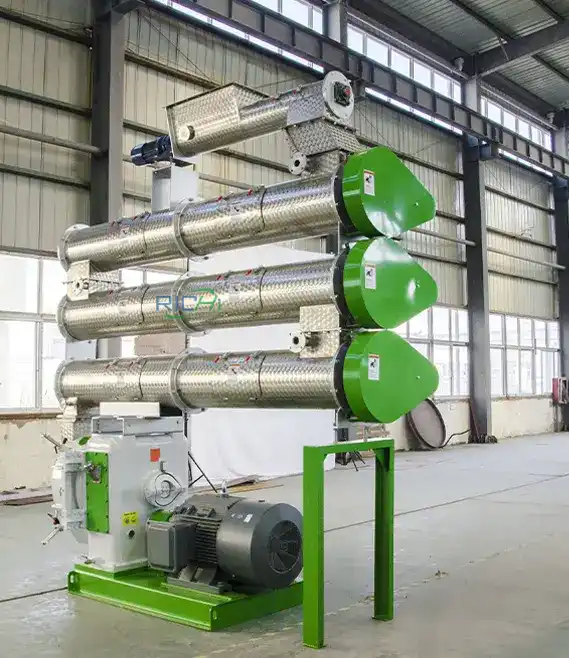

Working principle of animal feed pellet mill
- The material enters into the conditioner through the feeder, which adopts the frequency conversion impeller motor. It can adjust the speed according to the demand to provide the suitable feeding quantity for the conditioner.
- Conditioner consists of motor, spindle, tempering rotor, shell and steam port and so on, its primary function is to pass into the steam, will be a certain amount of mixture of material tempering to a certain temperature and humidity, to cook the material, and then sent to the granulation room for granulation.

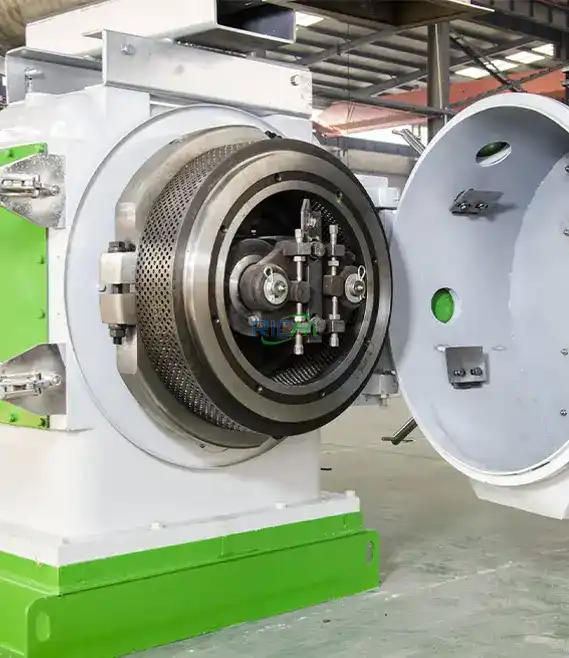

- Pelleting room is the core component of the animal feed mill, where completed the pelletizing of materials. The material is tempered by the tempering device, the starch is pasturized and the material becomes mature, and then it enters into the pelleting chamber, and through the extrusion of the stainless steel ring die and the pressure rollers, the granules are formed and extruded out from the die holes. The pelletizing chamber is equipped with a cutter device, which can control the regulation of the length of the pellets.

Parameters and classification of animal feed pellet mill
At RICHI, we are well aware that different animals have significant differences in nutritional requirements, pellet specifications, and raw material ratios. Therefore, our animal pellet mills are not only reliable in performance and scientific in structure, but also can provide customized pellet feed production solutions based on the feeding characteristics of rabbits, pigs, chickens, sheep, cattle and other animals. No matter what kind of livestock and poultry farming you are engaged in, we can create an efficient, energy-saving and stable feed pelleting system for you.
Here are common animal feed pellet mill models with their production capacities, and power ratings:
Model Type | Production Capacity Range (T/H) | Power (KW) |
SZLH-250 | 1~2 | 22 |
SZLH-320 | 3~4 | 37 |
SZLH-350 | 5~7 | 55 |
SZLH-420 | 8~12 | 110 |
SZLH-508 | 10~18 | 160 |
SZLH-558 | 15~25 | 180/220 |
SZLH-678 | 20~30 | 220/250 |
SZLH-768 | 25~40 | 250/280 |
SZLH-858 | 28~45 | 315/355 |

Chicken feed pellet mill
The chicken feed pellet making machine is suitable for various poultry feed formulas and can prepare feed pellets suitable for different growth stages such as chicks, broilers, and laying hens. The finished pellets are dense and nutritionally balanced, which helps to improve feed conversion rate and egg production rate, and is suitable for use in poultry breeding enterprises and feed processing plants.

Pig feed pellet mill
The pig feed mill is suitable for processing high-energy, protein-balanced corn and soybean meal feeds. It is evenly pelleted and has moderate hardness, which helps to promote the rapid growth of piglets and improve fattening efficiency. It is widely used in professional pig farms and medium and large feed mills.

Cattle feed pellet mill
The cattle feed pellet machine is designed to meet the crude fiber and energy needs of dairy cows and beef cattle, and supports the processing of bulk raw materials such as alfalfa, cotton hulls, and grass. The pellets are dense and full, suitable for large-scale ranches and ruminant feed processing lines, improving feeding efficiency and reducing feed waste.

Sheep feed pellet mill
The goat feed pellet making machine can process a variety of raw materials such as grass powder, straw, corn, wheat, etc. to make pellet feed with good palatability and storage resistance. The pellets are uniform and compressible, especially suitable for forage-based formulas to meet the nutritional needs of ruminants such as sheep and goats.

Rabbit feed pellet mill
The rabbit pellet making machine is designed to meet the needs of rabbits’ stomachs and their high fiber requirements. The equipment can process small feed pellets with small diameter, soft texture, easy chewing and digestion, which is especially suitable for rabbit farms and small animal feed processing, improving feeding rate and reducing waste.



Benefits of animal feed pellet mill
- It can improve the working efficiency of the users, reduce the feeding cost, and increase the profit.
- It can guarantee the comprehensive nutrition of livestock and poultry, feeding pellet feed can increase the amount of animal feeding, avoid animal picky eating, is conducive to digestion and absorption, and shorten the growth cycle.
- Can press cattle, and sheep feed pellets, but also can process pigs, chickens, ducks, geese, and aquatic fish feed pellets, are multi-functional feed pellet mill equipment.
- The feed made by the animal feed pellet machine is easy to transport and store, and can be stored for up to half a year without deterioration.
- The animal feed pellet machine supports mold aperture customization, and can adjust the particle size and density according to the needs of different animals, with strong adaptability.
- The equipment has a compact structure, simple operation, convenient maintenance, long service life, and is suitable for long-term high-intensity work.
- The use of this equipment can achieve large-scale and standardized feed production, effectively improve product quality and enhance market competitiveness.
What are the types of animal feed pellet mill?
With the continuous progress of the breeding industry, the demand for feed is increasing day by day, the number of farms and feed plants has also increased several times. Whether for animal farms or feed factories, animal feed pellet mill both has a high utilization rate. Large animal farms use feed pellet production line or powder production line, while small and medium-sized farms also choose to use small pellet feed production line, powder production line, or directly choose the feed pellet machine stand-alone equipment. But how much do you know about the animal feed pellet makers? Below I have made a brief introduction to the two main types of feed pellet mill.
Generally speaking, animal feed milling equipment is divided into three types, one is the ring die feed pellet machine, one is the flat die feed pellet machine, and one is the feed extruder. Today we mainly get to know the first two types. The floating fish feed extruder machine is mainly used to make floating material, to make the pellet feed not sink, and suitable for fisheries fish and shrimp feed. The ring die feed pellet machine and flat die feed pellet machine are more applied to pigs, cattle, sheep, chickens, ducks, geese, and other livestock and poultry animals.

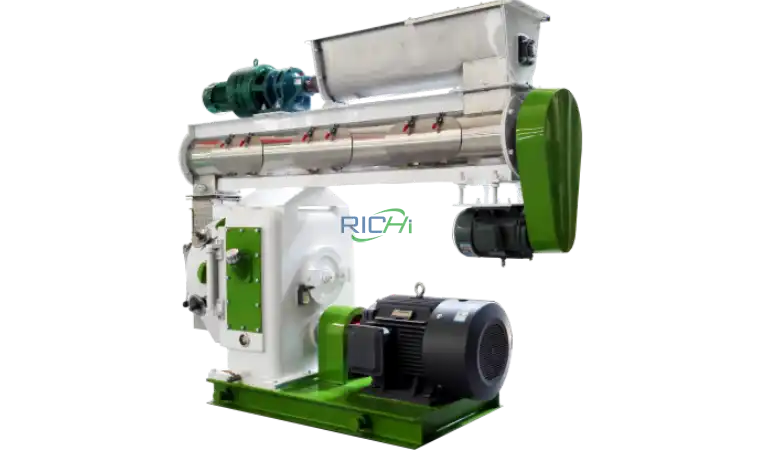

Ring Die Animal feed pellet mill
Ring die pellet machine is generally used in animal feed production lines. Because of its large output, high internal maturity, it is well loved by many customers. Generally, the smaller ring die feed pellet mill is model SZLH 250. And its output is 1-2T/H. Commonly used larger ring die feed pellet mill is SZLH420, the hourly output of pellet feed is between 8 tons – 12 tons. Of course, RICHI Machinery can customize pellet mill animal feed according to your needs, we can design 1-100T/H feed pellet mill.

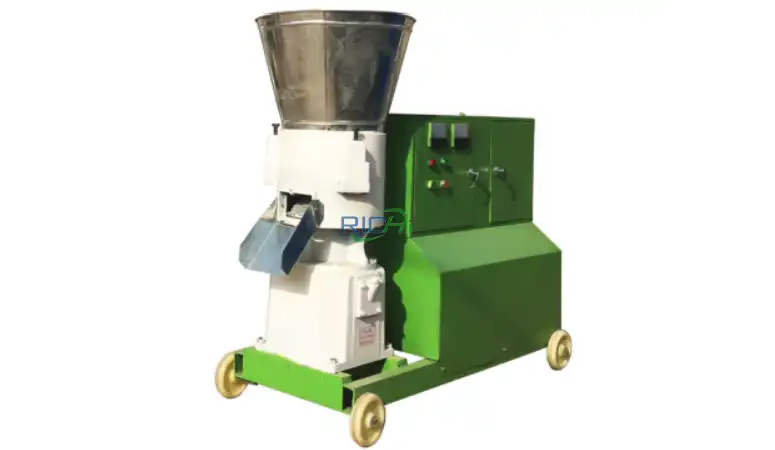

Flat Die animal feed pellet mill
Flat die feed pellet mill has low output compared with ring die feed pellet mill, generally lower than 1000KG/H. Moreover, ring die pellet mill does not contain conditioner device. So the material maturity is not as high as ring die pellet mill. And the compression ratio is small, which is suitable for fewer animals. So more customers who want to make feed pellets choose to buy ring die pellet mill to produce feed pellets. However, flat die pellet mill also has its own advantages. Such as lower price, smaller size, and more convenient to use.
RICHI MACHINERY
Project cases of animal feed pellet mill for sale
With over 30 years of experience in the feed machinery industry, RICHI Machinery has become a trusted global brand in the field of animal feed milling equipment. Our solutions have been successfully exported to 150+ countries and regions, serving farms, feed plants, and agribusinesses of all sizes.

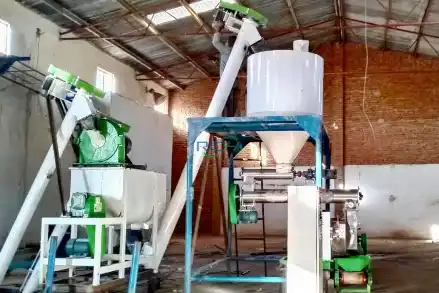

0.8T/H animal feed mill for sale South Africa
- Project Name: Small livestock feed pellet production line project
- Country: South Africa
- Raw materials: corn meal, fish meal, premix, additives, etc.
- Output: 0.8 tons/hour
- Particle size: 2.5mm
- Core equipment: SZLH220 pellet machine, small mixing equipment, conveyor
- Project features: This equipment is used for daily chicken feed processing and is customized for a family farm. It occupies a small area, has low energy consumption, and is easy to operate. It is suitable for users who are investing in feed processing for the first time.

1T/H animal feed pellet making machine For Sale Saudi Arabia
- Project Name: Grass mixed sheep feed pellet machine project
- Country: Saudi Arabia
- Raw materials: grass meal, bran, soybean meal, mineral additives
- Output: 1 ton/hour
- Particle size: 6mm
- Core equipment: SZLH250 pellet machine, crushing and mixing integrated equipment
- Project features: It is used for sheep feed pelleting to meet the needs of feeding concentrated feed in desert pastures. The equipment has a compact structure and adapts to high temperature and dry environment.

2T/H Animal Feed Pellet Mill For Sale Russia
- Project Name: Rabbit Feed Pellet Preparation Project
- Country: Russia
- Raw Materials: Alfalfa Meal, Corn, Soybean Meal, Minerals, etc.
- Output: 2 tons/hour
- Pellet Specification: 2.5mm
- Core Equipment: SZLH250 Rabbit Feed Pellet Machine, Crushing System, Screw Feeding Device
- Project Features: This equipment is specially developed for rabbit farms, with a specially customized compression ratio to ensure the palatability and nutritional balance of pellets, and customer feedback is excellent.

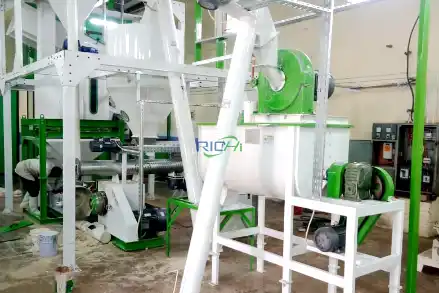

3T/H animal feed pellet making machine For Sale Vietnam
- Project Name: Pig Feed Pellet Processing Project
- Country: Vietnam
- Raw Materials: Corn, Soybean Meal, Wheat Bran, Additives
- Output: 3 tons/hour
- Pellet Specification: 4.0mm
- Core Equipment: SZLH350 Pellet Machine, High-efficiency Mixer, Elevator
- Project Features: The equipment is used for self-sufficient pig feed production in medium-sized farms, with flexible design, stable operation, and good moisture and rust resistance.

5T/H Animal Feed Pellet Mill For Sale Egypt
- Project Name: Chicken Feed Processing Production Line Project
- Country: Egypt
- Raw Materials: Corn, Wheat Flour, Fish Meal, Bone Meal
- Output: 5 tons/hour
- Particle Size: 3.5mm
- Core Equipment: SZLH420 Chicken Feed Pellet Machine, Mixing System, Dust Collector
- Project Features: Mainly used for pellet feed processing of local broiler breeding enterprises, equipped with dust removal and cooling devices, with high pellet forming rate.

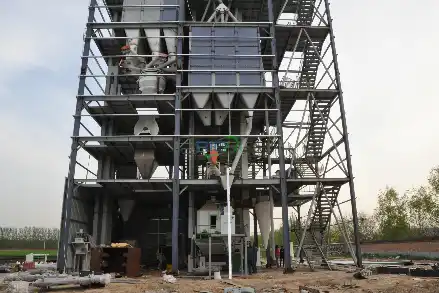

10T/H animal feed mill for sale Mexico
- Project Name: Multi-Raw Material Compound Feed Pellet Processing Project
- Country: Mexico
- Raw Materials: Corn, Soybean Meal, Grass Meal, Premix
- Output: 10 tons/hour
- Particle Size: 4.5mm and 6mm
- Core Equipment: SZLH558 Pellet Machine, Automatic Control System, Finished Product Packaging Equipment
- Project Features: The equipment is used for centralized cattle and sheep mixed feed production, supports remote monitoring and automatic fault alarm, and has high production efficiency.
How to choose the right animal feed pellet mill?
Whether it is a farmer or a feed processing plant, you may feel confused on how to choose the right animal feed pellet making machine. Regarding the choice of pelletizing machine, first of all, we should clarify our own needs, how much output, how much budget. Above briefly introduced under the flat die and ring die two kinds of granulators, then how to choose between the two?


Here are some suggestions for your reference when choosing a pelletizer.
- First of all, from the aspect of output. If your production demand is relatively small, the output is less than 1000kg/h, for your own breeding feed use, it is recommended to use flat die pellet mill.
- On the contrary, if your production demand is relatively large, to start a feed mill or medium and large farms, we recommend you to use ring die pelletizer. Ring die animal feed pellet making machine has high efficiency, large output, low energy consumption, more suitable for users with large output demand.
- When making concentrate feed, for example, when making pig feed, chicken feed or full-price feed, many people choose a ring die feed pellet mill.
- When the feed quality is high, choose ring die pelletizer. The maturing degree of ring die pellet maker is much higher than that of flat die pellet maker, and the luster of the produced feed pellets will be better.
- Ring die pellet mill sealing is also better than flat die pellet mill, in the pelletizing process will not produce a lot of dust, very suitable for production line use!
- In terms of budget, if you have a low budget for investing in a feed pellet mill, only about two thousand dollars and your production needs are not high, then a flat die pellet mill can meet your needs.
- If you have a sufficient budget, large production demand, and pay more attention to the pellet quality, we still recommend you buy a ring mold animal feed pellet machine. Generally speaking, the cost of animal feed milling machine is between $7,000-$100,000, which depends on the model of pelletizer you choose.
RICHI MACHINERY
Why Choose RICHI Machinery
Choosing RICHI Machinery means you’ll receive not only high – quality equipment but also one – stop solutions and comprehensive service support. Here are some key reasons to choose us:

30 years of industry experience
Since its establishment in 1995, RICHI Machinery has amassed 30 years of rich experience in the design, production, and R & D of animal feed pellet press. With our profound technical accumulation and global development, we can provide our customers with reliable equipment and solutions.

Customized turnkey solutions
We offer a complete turnkey production line, covering project design, equipment manufacturing, installation and commissioning, and personnel training, according to your specific needs. Whether it’s a small farm or a large feed factory, we can tailor a suitable production plan for you.

Complete after – sales service
We have a comprehensive after – sales system, providing you with all – round services from pre – sales consultation to after – sales maintenance. This includes professional and systematic training to help you quickly master equipment operation and maintenance skills and maximize project requirements. You can find us on YouTube.

Frequently Asked Questions about the animal feed pellet mill
Here are some FAQs about animal feed pellet makers. If you have any other pelletizing problems, welcome to contact us. And we will contact you within one business day to answer your questions.
What are the reasons for low efficiency and low output of animal feed pellet machine?
After purchasing the animal feed milling machine, the most annoying thing that the animal pellet mill has low efficiency and doesn’t produce any feed pellets, of course, this kind of situation is rarely occurs. Especially if you buy our company’s ring die animal pellet maker, this situation will almost never occur. And our after-sales and technical team are at your service all the way, we will help you to solve any problems you encounter in the process of pelletizing. Below is my summary of several possible causes of low output of animal feed milling equipment and slow discharging, for your reference.
Pelleting chamber feed port, mold hole blockage
First of all, you can check whether the feeding port and mold hole of the feed pellet mill are blocked. If they are blocked, it will greatly affect the pelletizing efficiency and pelletizing effect of the animal feed milling machine. In this case, we give you two suggestions: one is to clean and inspect the machine regularly. The other is to use oil before and after the use of the granulator over the animal pellet mill, to avoid the occurrence of clogging phenomenon, affecting the output of the pelletizer.
Inappropriate moisture content of raw materials, too large size
Animal pellet mill is a kind of dry in and dry out mechanical equipment, the raw material water content has strict requirements, if the raw material water content is not suitable, it is also difficult to ensure good pelletizing effect. If the water content of your raw material is too big or too small, the pellets are hard to be molded. You can adjust the material to the right moisture content through auxiliary equipment such as drying machine, tempering device and so on. Generally speaking, it is best to have a moisture content of about 15% before the material enters the pelletizing chamber. In addition to the moisture content is not appropriate, the size of the material will also affect the effect of pelletizing, you can use the crusher to get appropriate fineness of the material and then put into the animal feed pelelt maker for pelletizing.
Pressure roller and ring die gap between the inappropriate
No matter what machinery, the use of a long time may appear wear and tear. The pressure roller of the animal feed milling machine is the same, in the long-term work of pelletizing materials, pressure roller will inevitably wear, which requires us to timely inspection, timely replacement of the pressure roller. In addition, the gap between the ring die and pressure roller should be adjusted to the right distance to ensure the pelletizing effect. The ring die and pressure roller of RICHI livestock feed pellet mill are made of stainless steel, long service life, you can rest assured that you can choose. Moreover, we will customize the production process for you according to your production needs, including the adjustment of the gap between the pressure roller and the ring die, our technical team will also give you professional guidance suggestions.
Low voltage
Electricity provides power for the animal feed mill, which is the premise to ensure that the pelletizer can work efficiently. So the voltage must not be too low, or it will be easy to appear the problem of unstable efficiency of the animal feed milling machine.
what is an animal feed pellet mill?
An animal feed mill is a kind of mechanical equipment, which can produce feed pellets. With the continuous maturity and development of feed pellet machine technology, more and more feed mills and farmers choose to use feed pellet machine to make pellets.
There are many models of feed pellet machine, small and medium-sized suitable for small farms and feed mills, large scale suitable for large farms, and large feed mills. Feed pellet machine is suitable for many raw materials, such as wheat, corn, bone meal, wheat bran and so on, which can make feed pellets. Feed pellets made by feed pellet machines can store or feed directly to animals, which can improve animal nutrition and reduce breeding costs.
where to buy animal feed pellet machine?
There are many places where you can buy feed pellet machine, such as pellet equipment platform, pellet machine manufacturer official website. The premise is to choose a reliable, professional pellet machine equipment. If you are interested in joining the pellet manufacturing business, but do not know where to buy animal feed pellet machine, you can leave your contact information to us, our professional engineers will provide you with professional pelleting solutions according to your needs, but also welcome you to the site inspection. Now let me give you a brief introduction to our company. (Read more: RICHI Pelletizer >>)
RICHI Machinery is a large-scale animal feed pellet mill manufacturer. We produce multifunctional feed pellet mill with various models SZLH250, SZLH320, SZLH350, SZLH420, SZLH508, SZLH558, SZLH678, SZLH768 feed pellet mill equipments for users to choose.
Our company strictly observes ISO9000 international quality management system standards, EU CE certification, and many international patents. We strictly control the quality from steel procurement, production process to assembly and warehousing. In the production process to implement self-inspection, sampling and factory inspection of the “three inspection” system, each pellet mill, crusher factory are debugging, up to standard before being allowed to leave the factory, to ensure that the user receives the equipment on the same day can put into normal production.
As long as you are interested in our products, you can come to my company to visit, negotiate. For all the purchase of feed pellet mill users, my company can send people for training and guidance and equipment maintenance, for you to relieve the worries.
