Animal Feed Pellet Making Machine
RICHI animal feed pellet making machine can produce pellet feed for chickens, pigs, cattle, duck, rabbits and other animals.
- Production capacity: 1-45T/H
- Final feed pellets: 2-12mm
- Suitable raw materials: soybean meal, fish meal, corn, bran, and so on.
Video of animal pellet making machine
This video shows RICHI SZLH series animal pellet machine. The machine mainly consists of Siemens motor, stainless steel frequency conversion speed regulator feeding device, stainless steel conditioner used to heat the raw material for maturing, and pelleting chamber. With low output and high efficiency, it is ideal for pelletizing equipment!
Ring die animal feed pellet making machine is mainly suitable for large and medium-sized feed plants to process and make all kinds of pellet feed. The pelletizing machine adopts a double-layer stainless steel lengthened tempering device, the tempering time can reach 3-5 minutes, which greatly improves the maturing degree of the feed raw material, and can be used for the production of all kinds of high-grade animal feed pellets.
High quality pellet makers make high-quality feed pellets
Choose a high quality pellet making machine for animal feed
Various capacities of RICHI animal feed pellet making machine for sale

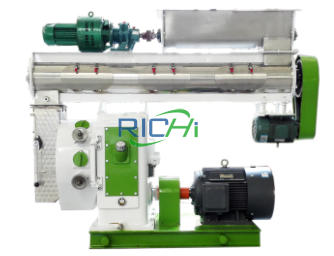

1.0-2.0T/h animal feed pellet machine for sale
| Model | SZLH250 |
|---|---|
| Capacity(T/H) | 1.0-2.0 |
| Main Motor Power(KW) | 22 |
| Feeder Motor Power(KW) | 0.75 |
| Conditioner Power(KW) | 1.5 |
| Ring Die Diameter (mm) | 250 |
| Finished Pellet Diameter (mm) | 2-12 |
3.0-4.0 T/h animal pellet making machine

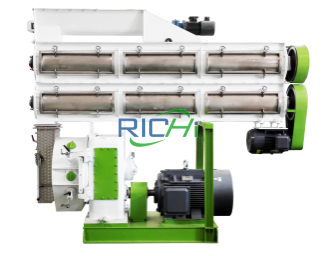

| Model | SZLH320 |
|---|---|
| Capacity(T/H) | 3.0-4.0 |
| Main Motor Power(KW) | 37 |
| Feeder Motor Power(KW) | 1.5 |
| Conditioner Power(KW) | 2.2 |
| Ring Die Diameter (mm) | 320 |
| Finished Pellet Diameter (mm) | 2-12 |

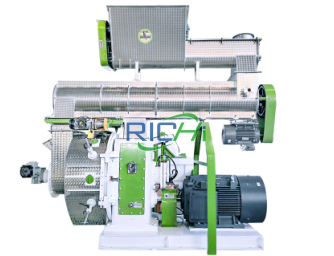

5.0-7.0 T/h pellet making machine for animal feed
| Model | SZLH350 |
|---|---|
| Capacity(T/H) | 5.0-7.0 |
| Main Motor Power(KW) | 55 |
| Feeder Motor Power(KW) | 1.5 |
| Conditioner Power(KW) | 3 |
| Ring Die Diameter (mm) | 350 |
| Finished Pellet Diameter (mm) | 2-12 |
2.0-5.0 t/h pellet maker machine animal feed
| Model | SZLH420 |
|---|---|
| Capacity(T/H) | 8.0-12 |
| Main Motor Power(KW) | 110 |
| Feeder Motor Power(KW) | 1.5 |
| Conditioner Power(KW) | 7.5 |
| Ring Die Diameter (mm) | 420 |
| Finished Pellet Diameter (mm) | 2-12 |
10-18 T/h high quality animal pellet machine
| Model | SZLH508 |
|---|---|
| Capacity(T/H) | 10-18 |
| Main Motor Power(KW) | 160 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 508 |
| Finished Pellet Diameter (mm) | 2-12 |
15-25 T/h animal feed pellet making machine
| Model | SZLH558 |
|---|---|
| Capacity(T/H) | 15-25 |
| Main Motor Power(KW) | 180/200 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 558 |
| Finished Pellet Diameter (mm) | 2-12 |
20-30 t/h Animal feed pellet mill
| Model | SZLH678 |
|---|---|
| Capacity(T/H) | 20-30 |
| Main Motor Power(KW) | 220/250 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 678 |
| Finished Pellet Diameter (mm) | 2-12 |
25-40 t/h animal food pellet making machine for sale
| Model | SZLH768 |
|---|---|
| Capacity(T/H) | 25-40 |
| Main Motor Power(KW) | 280/315 |
| Feeder Motor Power(KW) | 2.2 |
| Conditioner Power(KW) | 11 |
| Ring Die Diameter (mm) | 768 |
| Finished Pellet Diameter (mm) | 2-12 |
Features of animal feed pellet making machine
- The feeding system of this machine is controlled by variable frequency speed motor, which is easy to control;
- Screw feeder, conditioner, and the big door cover are made of stainless steel, precision machining, longer service life;
- Two-layer full-length large open door stainless steel jacket tempering device using radial multi-point air intake, so that the raw materials and steam contact more fully, more uniform tempering;
- Transmission structure upgrade: the original belt type transmission structure has been upgraded and improved to gear transmission mechanism, high transmission efficiency, stable speed ratio, output than the belt-type transmission increased by about 15%.
- The conditioning device adopts special paddle structure design, frequency conversion control, long tempering time, high material maturation
- Humanized design, comes with open door safety protection device: the large door cover of the pelletizer is equipped with a travel switch, automatic power failure when the maintenance door cover is opened, to achieve active protection;
- The main transmission system adopts aviation-grade gears and gear shaft transmission structure, high precision CNC gear grinding process to ensure smooth transmission and low noise;
- Equipped with a new type of safety protection system, such as the main motor overload, the safety pin breaks to play the role of overload protection;
- The integrated design of large door cover, inclined groove and discharge outside the machine ensures the sealing and no steam and dust leakage;
- Upgrade and optimization of the main drive and pressing chamber, customized slightly tapered stainless steel die cover, larger and more uniform material guide;
- Intelligent control: equipped with electric ring die lifting device, automatic oil cooling circulation system, automatic grease lubrication system, optional granulator automatic control.
main parts of the animal feed pelletmaking machine
Animal feed pellet making machine is mainly composed of three main parts: feeder, conditioner and main machine. Among them, the main machine consists of body, chassis, spindle base plate, hollow spindle assembly, ring mold, rollers, tool parts, safety devices, main motor drive system and other parts. The following is a brief introduction to the main components of the pellet maker.
Variable frequency speed feeder
The feeder is equipped with frequency conversion speed control motor, which can control the feeding volume and feeding speed according to the demand of pelletizing. It can be configured according to customer’s demand.
Stainless Steel Conditioner
The machine is equipped with stainless steel moderator, and the number of layers of moderator can also be configured according to customer’s pelletizing requirements.

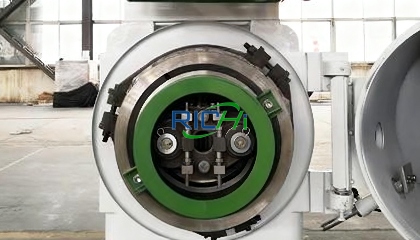

Pelletizing chamber
The pelleting chamber is an important working part of the animal feed pellet maker. It is here that animal feed is formed from raw material sorghum, maize, soya meal, rice and wheat etc.

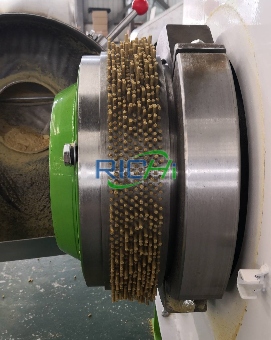

Ring die and roller
Both parts are made of 304 stainless steel with precision technology. Strong durability and large pressing force. The material is mainly converted into feed particles through the extrusion of these two working parts.
Cutting device
The cutter device is available in three configurations: fixed carbide blades, rotary carbide blades, and rotary alloy steel blades. You can choose the desired style according to your needs.
Motor
Regarding the motors used in the granulator, we adopt imported Siemens motors with strong power and low power consumption.
Applications of the animal pellet making machine
- The machine is widely used in large, medium and small animal feed plants and farms.
- Produce chicken feed pellets, duck feed pellets, pig feed pellets, rabbit feed pellets, cattle feed pellets, shrimp feed pellets and other animal feed pellets.
- Applicable for animal feed pellet production line of various production capacities.
- Process all kinds of food materials, like corn, soybean cake, soybean meal, wheat bran, peanut meal, bone meal, wheat, fishmeal, etc
Why choose RICHI Machinery?
- Devoted to the pellet machinery industry for 27years
- All products have passed ISO, CE, SGS, BV, and other international certifications.
- Have a perfect sales system and a complete service network
- Can customize a turnkey pellet production line project according to your need.
Project cases related to animal feed pellet making machine
As a professional animal feed pellet mill manufacturer, RICHI Machinery has undertaken a lot of animal feed pellet mill projects around the world. The below are some project cases related to feed pellet machine we have done for your reference.
3-5T/H animal pellet making machine
- Country: Uzbekistan
- Date: November 21, 2017
- Guiding animal feed making machine price:$10,000-$20,000
1-2T/H pellet making machine for animal feed
- Country: Mexico
- Date: July 24, 2019
- Guiding animal feed making machine price: $7,000-$10,000
3-5T/H animal Feed Pellet making Machine
- Country: Ecuador
- Date: August 17, 2019
- Guiding animal pellet machine price:$10,000-$20,000
3-5T/H animal Pellet Machine
- Country: Columbia
- Date: August 6, 2021
- Guiding animal feed making machine price:$10,000-$20,000
CUSTOM SOLUTIONS
—— GET A QUOTE ——
Accurate control of cost accounting, scientific calculation of expected profits, to achieve cost reduction and efficiency, profit can be expected.From equipment selection and program planning in the early stage
Checking Order
Quality Test Before Delivery
Check Items When Packing
Packaging And Transport
Training Support
After-sale Service
FAQ about the animal feed pellet making machine
what role does the conditioner play in the animal feed production process?
Conditioner is the main equipment in the conditioning process of animal feed pellet machine, its main function is to heat and condition the material before pelleting, so that the material fully absorbs heat, moisture and liquid, so that the starch paste, to achieve or close to the requirements of the pelleting process, and at the same time, complete the material delivery from the feeder to the pellet maker machine animal feed.
The functions of the conditioner of the animal feed pellet making machine are:
- Promote the pasting of starch and protein modification in feed, improve the quality of pellets and digestibility of feed.
- Improve pelleting efficiency. By adding steam, the material is softened and has plasticity, which is conducive to extrusion molding and reduces the wear and tear on the ring die and pressure roller, the working parts of the cow feed pellet making machine, improves the output of the pellet machine, and reduces the power consumption.
- Kill salmonella in feed. The combined effect of high temperature in the tempering process and friction heat and pressure in the pelletizing process can kill salmonella, which is beneficial to the health of livestock and poultry.
- Increase the ratio of liquid raw materials (molasses, oil and fat) added in the middle of feed.
What are the advantages of pellet feed processed by animal feed pellet machine?
As the development of feed pellet machine technology becomes more and more mature and the demand for feed in the farming industry is increasing day by day, and more and more people choose to join the pellet manufacturing industry. So, what are the advantages of the feed processed by animal feed pellet machine? Here are a few advantages specifically.
Avoid picky eating
With a variety of ingredients in the feed formula, the nutrition is comprehensive, which can prevent the animal from the powder to pick its favorite, refusing to intake the phenomenon of other ingredients.
high compensation rate
In the process of pelletizing, due to the combined effect of moisture, temperature and pressure, the feed undergoes some physicochemical reactions, which makes the starch pasteurized and the enzyme activity enhanced, and enables the fed animals to digest the feed more effectively, which translates into the increase of body weight.
Reduce pollution
Avoid automatic grading of feed ingredients. In the powder storage and transportation process due to a variety of powder volume quality is not the same, it is very easy to produce grading. After making granules, there is no grading of feed ingredients, and granules are not easy to dust, in the feeding process of granular materials on the air and moisture pollution is much less than the powder.
Good mobility
Feed pellets are easy to manage. Many powders, feeds with added molasses or high fat and urea feeds often stick in the silo. Pelletized feeds rarely stick due to their good flowability. Pellets are most popular for large-scale dairy or poultry farms that utilize automatic feeders.
Sterilization
The salmonella bacteria in animal feed can be killed by the feed pellet mill processing. Salmonella bacteria are retained in the animal tissues after being ingested by the animal to avoid gastrointestinal diseases of salmonella that people will get if they eat animals infected with this bacteria.
Transportation economy
After pelletizing, generally will make the bulk density of feed increased by 40% -100%. It can reduce the warehouse capacity, saving transportation costs.
