Animal Feed Hammer Mill
In the modern feed processing field, the animal feed hammer mill is one of the most important processes in feed production. As an efficient crushing equipment, it crushes the raw materials (wheat, corn, barley, etc.) to find the optimal pellet size. And it is widely used in various feed production companies and farmers, providing important support for the production of high-quality feed. Whether it is a large feed processing plant or a small professional farmer, the feed mill plays an indispensable role.
RICHI Machinery feed hammer mill is an efficient and versatile product that provides several advantages to livestock farmers and animal feed producers. It grinds and crushes grains, oilseeds and other feed ingredients into fine pellets. This fine grinding process improves the digestibility and nutrient absorption of feed, making livestock healthier. Feed mills can also ensure uniform pellet size for consistent feed quality. In addition, our hammer mills are simple to operate, easy to maintain and clean, ensuring minimal downtime and maximum productivity. With its sturdy structure and durable components, this product guarantees long-term reliability, making it the first choice in the feed industry.

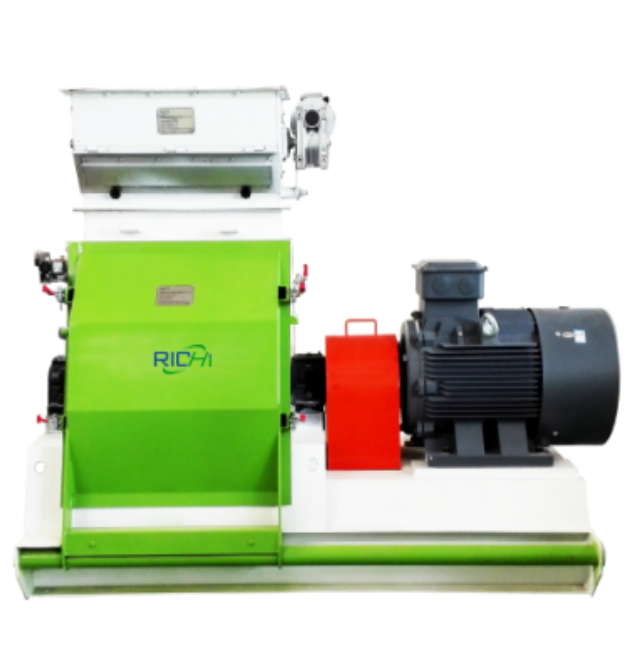

What is an animal feed hammer mill?
The animal feed hammer mill adopts a hammer-type design and occupies a key position in livestock and aquatic feed processing. It can be used to crush various common feed raw materials, such as corn, wheat, soybeans, etc., and has a high yield. It is usually used in the crushing process of large farms or feed mills. It can be used alone or often used in feed pellet production lines, working in conjunction with other processing machinery such as premix feed mills and animal feed pellet making machines.
The feed hammer mill for sale by RICHI Machinery, is mainly composed of both moving and fixed parts. The moving components include the hammer frame plates, hammers, spacer sleeves, and pins. During operation, the hammers produce a powerful impact force through high-speed rotation. The fixed parts, such as tooth plates and screens, form a crushing chamber together with the rotor. The machine base provides structural support, while the feed inlet features a material-splitting and magnetic separation device to ensure even feeding and efficient removal of metal impurities. Finally, the discharge port handles the output of the finished product.
When the machine is working, the material enters the crushing chamber through the feed port, and the high-speed rotating hammers continuously hit the material to break it. The crushed material is screened through the screen, and only pellets that meet the specific pellet size requirements can pass through the screen and become qualified feed products.
RICHI Machinery is a specialized manufacturer of feed mills. We can customize the feed pellet production line according to your requirements. All you need to do is tell us your raw material, your production capacity, and your budget and we will design a highly efficient pelletizing line for you.
RICHI MACHINERY

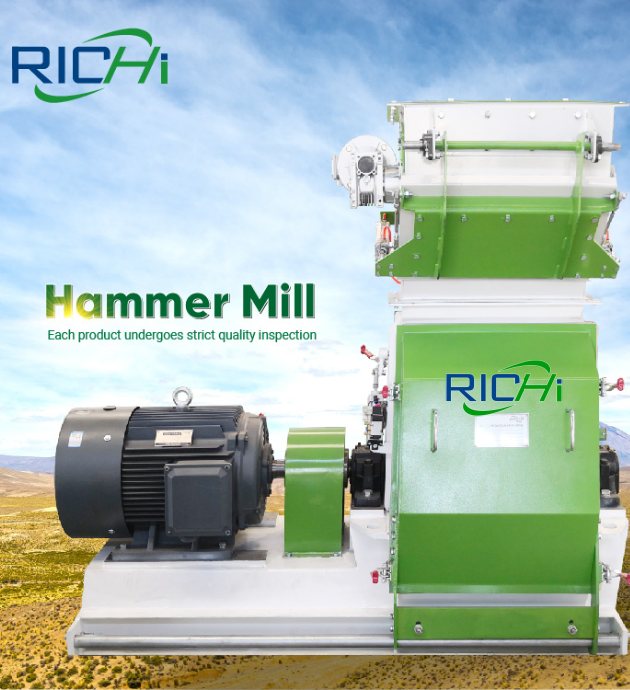

Working principle of animal feed hammer mill
The working principle of animal feed hammer mill is based on the impact crushing of materials by high-speed rotating hammers. When the material enters the crushing chamber from the feed inlet, it will immediately contact the high-speed rotating hammer. The hammer runs at an extremely high linear speed, giving the material a strong impact force, which is similar to the linear speed of the end of the hammer.
In the crushing chamber, the material is not only directly hit by the hammer, but also contacts the screen surface under the action of centrifugal force and moves in a circular motion on the screen surface. However, under the influence of the material’s own gravity, most of the material will gather at the bottom of the crushing chamber, that is, at the discharge port, and a small part will be distributed around the screen surface. As the crushing process continues, the material that meets the pellet size requirements will be discharged through the screen, while the material that does not meet the requirements will continue to be crushed repeatedly in the crushing chamber until it can pass through the screen.
Taking the common horizontal hammer mill as an example, the motor drives the main shaft and the turbine fastened to the main shaft to rotate at high speed, and the turbine and the grinding block on the screen ring form a reasonable and compact structure. The material will be subjected to close friction and strong impact grinding in the rotating airflow, and will be ground again in the gap between the blades and the grinding block, and finally the pellet size between 1 and 50 mm will be achieved through the adjustment of the screen.
RICHI MACHINERY
Application fields of animal feed hammer mill
Feed hammer mill has a very wide range of applications, especially in livestock and poultry, aquaculture, biomass energy production and various other feed processing fields. Here is a brief introduction:
Livestock and poultry feed processing
In the process of livestock and poultry feed production, feed grinders are widely used to grind raw materials such as corn, soybean meal, bran, etc., to help improve the nutritional absorption rate of feed and promote the growth of livestock and poultry.
Aquatic feed processing
The aquaculture industry often uses feed grinders to grind raw materials such as fish meal and shrimp meal to ensure the uniformity and palatability of feed pellets and promote the healthy growth of aquatic animals.
Biomass energy production
The equipment can also be used to crush biomass raw materials such as wood chips, rice husks, and straw, providing an important processing method for the production of biomass pellet fuel.
High quality animal feed mills make high-quality feed pellets
If you are interested in this machine, I will take you to learn about RICHI Machinery’s hammer mill. If you have any needs or questions, please leave a message for consultation.
Features of RICHI animal Feed Hammer Mill
The hammer mill for feed is novel and efficient.
This design provides unique advantages for the operation of the entire equipment, ensures the high performance of the equipment during operation, and enables it to better adapt to different production conditions and meet various needs of feed processing.
he innovative feed inlet design of the RICHI technical team can achieve fast, uniform and accurate feeding in the actual production process.
This precise and efficient feeding method ensures that the material can enter the crushing chamber stably and orderly, so that the subsequent crushing process can be carried out efficiently and continuously, improving the overall production efficiency.
The hammer head is one of the key components of the animal feed hammer mill, and its quality directly affects the crushing effect and service life of the equipment.
We use high-standard 65mn steel to manufacture the hammer head, which has high hardness and stronger impact force, and can crush various feed raw materials more effectively.
The equipment has a unique design for portability.
Whether in daily operation, maintenance inspection, or in scenarios where the equipment needs to be moved, this portable design is convenient for staff to use, improving the overall convenience and flexibility of the equipment.
Bearings play a key role in the stable operation of the equipment.
Our equipment uses bearings made of high-standard steel, and the body thickness is much higher than that of the same industry. This thick body structure provides a more stable support and a better installation environment for the bearings, enabling the equipment to operate stably and reliably for a long time, providing strong support for continuous feed processing and production.
The motor is the power core of the hammer mill.
We use high-standard Siemens motors, which are known for their high stability and reliable performance. It has a stable output power to ensure that the equipment maintains a uniform and efficient operation during operation. Moreover, this high-quality motor has a long service life, providing a solid guarantee for the long-term stable operation of the animal feed processing plant.
Technical parameters and application scenarios of animal feed hammer mills
Depending on different production requirements, the technical parameters of animal feed hammer mills will vary, and the application scenarios will also vary greatly. The following are the technical parameters of several common models:
| Model | Power (kW) | Output (t/h) | Spindle Speed (r/min) |
| SFSP56*40a | 30 | 3 – 5 | 2980 |
| SFSP56*40b | 37 | 4 – 6 | 2980 |
| SFSP66*60a | 55 | 5 – 8 | 2980 |
| SFSP66*60b | 75 | 6 – 9 | 2980 |
| SFSP66*80a | 90 | 8 – 10 | 2980 |
| SFSP66*80b | 110 | 10 – 13 | 2980 |
| SFSP66*100 | 132 | 12 – 16 | 2980 |
| SFSP138*30E | 110/132 | 15 – 20 | 1440 |
| SFSP138*40E | 132/160 | 18 – 25 | 1440 |
01 SFSP56*40a
Suitable for small-scale farms or feed processing workshops. These places usually have a small amount of raw material processing, such as some small poultry farms.
02 SFSP56*40b
Suitable for small-scale professional farmers with a certain scale, such as small pig farms. The increased output of this model can better meet their feed supply, and it is easy to operate and convenient for daily use.
03 SFSP66*60a
Suitable for medium-scale feed processing plants, such as those that supply feed to multiple small-scale farmers in the surrounding area. This model can ensure production efficiency.
04 SFSP66*60b
Suitable for medium-scale breeding enterprises with higher output requirements, such as some medium-sized aquaculture farms. This model of crusher can meet their long-term and large-scale feed production needs.
05 SFSP66*80a
Suitable for large-scale feed production enterprises, capable of meeting large-scale production requirements.
06 SFSP66*80b
Suitable for large-scale feed production enterprises, especially those with extremely high requirements for production capacity and efficiency. For example, some large livestock and poultry feed production enterprises.
07 SFSP66*100
Suitable for large-scale comprehensive feed production enterprises. These enterprises usually face a broad market and have a huge demand for output.
08 SFSP138*30E
Suitable for super-large feed production enterprises. These enterprises usually have large-scale production bases and advanced production technologies.
09 SFSP138*40E
Suitable for super-large feed production enterprises with extremely high output requirements, such as some international feed giants. The high output and stable performance of this model of crusher can meet their large-scale and high-efficiency production needs, meet their global market supply requirements, and enhance the core competitiveness of enterprises.
RICHI MACHINE
Related product series of animal feed hammer mill
In the field of feed processing, different types of animal feed hammer mills meet the diverse needs of different users. The following is a detailed introduction to our company’s related products for crushers:
11111

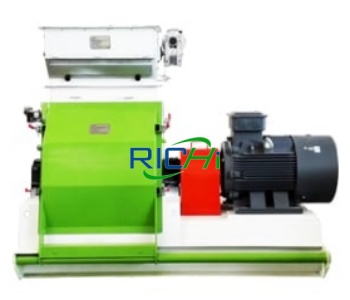

chicken feed hammer mill
As one of the core equipment for feed processing, the SFSP hammer mill plays an important role in the entire production process. When the machine is working, the raw materials are fed from the top of the hammer mill. Under the action of the high-speed rotating hammer and the friction of the screen plate, the raw materials are gradually crushed. Then, under the action of centrifugal force, they pass through the sieve holes and are discharged from the discharge port of the hammer mill base. This process is both efficient and stable, and can accurately control the pellets of the crushed materials, ensure the quality of the products, and lay the foundation for subsequent feed processing links.
11111

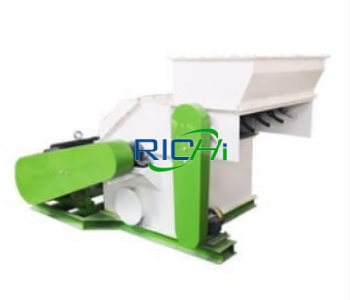

Grass shredder
The grass shredder adopts a top-feeding design, which is simple to operate and highly efficient. When the raw materials enter the equipment from the top, they are gradually crushed and ground more finely and evenly under the action of the high-speed rotary hammer and the friction of the screen plate. After that, the crushed material passes through the sieve holes and is discharged smoothly from the outlet of the crusher base under centrifugal force. This finely processed material is ideal for use in the grass pellet mill, where it can be further compressed into uniform, high-quality grass pellets.
For crushing alfalfa, straw, hay and other grass raw materials, the grass crusher has undergone necessary upgrades. For example, the entrance has been widened. This design greatly improves the efficiency and output of crushing relatively light grass raw materials. The raw materials can enter the equipment more quickly and smoothly, effectively improving production efficiency.
1111
11111

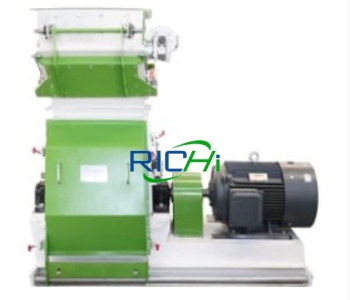

horse feed crusher
The SFSP animal feed crusher plays an important crushing role in the feed production line. The raw materials enter from the top of the equipment. Under the action of the high-speed rotary hammer and the friction of the screen plate, the raw materials are gradually crushed. After continuous friction and screening, the crushed materials become more delicate and uniform. After that, under the action of centrifugal force, the materials that meet the pellet size requirements pass through the sieve holes smoothly and are discharged from the outlet of the feed hammer mill base, becoming high-quality raw materials for making animal feed.
In addition, the design of this equipment fully considers the characteristics and needs of animal feed production. It can adapt to a variety of different types of raw materials, whether it is grains, beans or other additives, it can be efficiently crushed, and can produce animal feed with balanced nutrition and good palatability, providing strong support for the development of livestock and poultry farming.
1111
1111

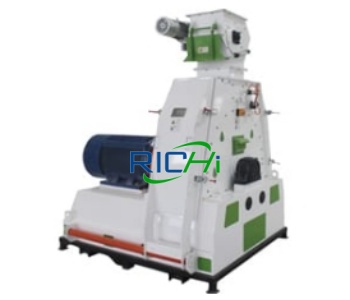

cattle Feed Grinder
SFSP Animal Feed Grinder is a powerful assistant in the field of feed processing. RICHI Machinery has more than 25 years of experience in granulation solutions and related industries. As the market’s requirements for animal feed quality continue to increase, the demand for special product grinding is growing. This grinder can be used in almost any application, whether it is coarse grinding or fine grinding requirements, it can easily cope with it. In the grinding process of raw materials such as animal feed, fish feed, pet food, etc., it can accurately control the degree of grinding according to different formulas and product requirements. For example, when producing animal feed, in order to meet the digestion needs and taste requirements of different animals, the raw materials need to be ground more finely. The SFSP Animal Feed Grinder can rely on its precise grinding technology to produce fine raw materials that meet the standards and ensure the high quality of animal feed.
111
1111

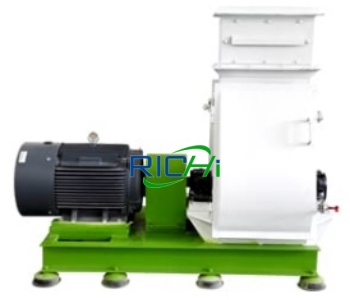

sheep Animal Feed Crushing Machine
In order to meet the crushing needs of a large number of special products, the R&D team of SFSP Animal Feed Crushing Machine has continuously optimized and upgraded it to make this grinder widely adaptable to various application scenarios. Whether it is coarse grinding or fine grinding, it can complete it excellently. It has shown excellent performance in the crushing process of raw materials for producing animal feed, fish feed, pet food, etc. For example, when processing some raw materials with high fiber content, ordinary grinders may be blocked or incompletely crushed, while SFSP Animal Feed Crushing Machine can quickly crush these raw materials into the required pellet size through its unique design and efficient crushing mechanism, ensuring the quality stability and nutritional balance of feed products.
11111
11111

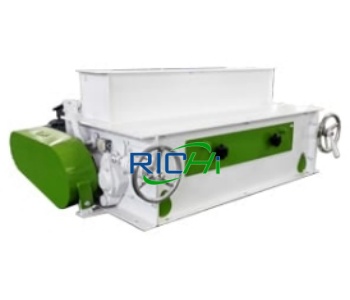

cow Pellet Crusher
SSLG Series Pellet Crusher is an important link in the feed processing process. It crushes the large pellet feed products produced by the pelletizer and cools them into smaller pellet feed products with the help of the cooler. Compared with the traditional method of using small hole ring molds to produce small pellet feed, this method has obvious advantages.
RICHI has a professional R&D and design team that can customize the overall design and construction plan according to the specific needs of customers. Whether it is a small feed processing plant or a large-scale enterprise, RICHI can meet different feed production process requirements by optimizing the combination of various equipment. For example, according to the customer’s production requirements, site space limitations and budget, we can reasonably match crushers, coolers and other auxiliary equipment to provide customers with personalized, one-stop solutions to help customers improve production efficiency, reduce production costs and enhance market competitiveness.
111
Customer Cases
In the field of feed breeding, animal feed mills of different sizes have diverse production needs and operation models. RICHI focuses on various fields of feed breeding. Its products have covered more than 150 countries and regions including Japan, Canada, Germany, Russia, the United Kingdom, Australia, Chile, etc., serving thousands of customers, and many cases have become local benchmark projects.
2024.10.19
Medium-sized feed mill project in Brazil
A medium-sized feed mill in Brazil purchased a SFSP66*80a crusher with an output of 8-10 tons per hour, which effectively increased production capacity, optimized feed pellet size and enhanced market competitiveness.
2024.06.19
Large-scale breeding farm project in Russia
A large-scale breeding farm in Russia introduced several SFSP66*100 crushers, which can produce 12-16 tons per hour, to ensure the stable production and supply of feed and promote the stronger growth of livestock and poultry.
2023.05.19
Aquatic feed enterprise project in Thailand
Aquatic feed enterprise in Thailand selected SFSP66*60b crusher, which can produce 6-9 tons per hour, to improve the crushing effect of raw materials, improve the quality of feed and enhance the nutritional value of feed.
2023.04.05
Small-scale feed processing workshop project in Mexico
A small-scale processing workshop in Mexico uses SFSP56*40a crusher, which can produce 3-5 tons per hour, to meet customized needs and expand their company’s business scope.
2023.11.16
Cattle farm project in Argentina
A large-scale cattle farm in Argentina purchased SFSP66*80b crusher, which can produce 10-13 tons per hour, to optimize the feed for cattle and promote their healthy and high-quality growth.
2023.07.23
Malaysia Poultry Feed Factory Project
The Malaysia Poultry Feed Factory introduced the SFSP56*40b crusher, which produces 4-6 tons per hour, improving product quality, increasing sales, and enhancing the company’s core competitiveness.
Frequently asked questions
Why use an animal feed hammer mill for crushing?
1. The raw materials crushed by the animal feed hammer mill will increase the surface area of the feed, which is beneficial to the digestion and absorption of the nutrients in the feed by the animals, improve the utilization rate of the feed, and provide more sufficient nutrients for the growth and development of the animals.
2. The feed crushed by the crusher has a finer pellet size, which has a positive effect on its palatability. The fine-grained feed tastes more in line with the feeding preferences of animals, making animals more willing to eat, thereby ensuring that the animals can take in enough nutrition and make the animals grow stronger.
3. The pellet size of the crushed feed is more consistent, and when mixing multiple raw materials, it can be mixed more evenly.
4. The degree of feed crushing will affect the surface smoothness, powderization rate and powder content of the pellets. Appropriate crushing pellet size can make the surface of the pellet feed smoother, reduce the powder rate, and reduce the powder content. Such pellet feed will be more stable during storage and transportation, and will not easily cause problems such as powder flying and caking.
5. Different feeding objects and different feeding stages of animals have different feed requirements. In the process of feed crushing, the first thing to do is to meet the animal’s requirements for pellet size, which is the key to ensuring the healthy growth and efficient production of animals.
How to choose a suitable animal feed hammer mill?
1. The production capacity of each equipment varies greatly, ranging from 1 ton to tens of tons per hour. The production capacity should be matched according to its own production scale to avoid overcapacity or undercapacity, which affects production efficiency.
2. Different raw materials have different characteristics, such as hardness and humidity, which will affect the crushing effect. When choosing, these factors should be fully considered to ensure that the equipment can efficiently crush the raw materials and meet the pellet size requirements.
3. Low-energy consumption and easy-to-maintain equipment should be given priority. Low energy consumption can reduce long-term operating costs, while easy maintenance can reduce downtime, improve production efficiency, and reduce maintenance costs.
4. Well-known brands like RICHI Machinery usually have more reliable equipment quality. Our company implements strict production standards and quality control to ensure equipment performance. At the same time, RICHI’s high-quality after-sales service can provide timely technical support to ensure smooth production.
Crushing method of the hammer mill for feed
1. Crushing
This crushing method is particularly suitable for hard and brittle materials. For example, some grain pellets are relatively hard and brittle. When they enter the crushing chamber of the hammer mill, they will be crushed into smaller pellets under the strong impact of the high-speed rotating hammer because they cannot withstand the instantaneous impact force.
2. Grinding
For tough materials, grinding is a more suitable crushing method. Tough feed raw materials such as grass containing a certain amount of fiber will continuously rub and squeeze between the hammer and the screen plate after entering the crusher. As the material continues to roll and move in the crushing chamber, after a long period of repeated grinding, its tough structure is gradually destroyed and finally ground.
3. Crushing
When faced with hard materials, crushing comes into play. For example, some hard block feeds, after entering the crushing chamber, will be squeezed into a specific area of the crushing chamber under the combined effect of the hammer’s rotation and the material’s own gravity, and will be subjected to greater pressure, thereby destroying the internal structure of the material and achieving the crushing effect.
4. Saw shredding
This crushing method is more suitable for brittle materials. Some brittle feed raw materials with a certain shape and structure, in the hammer mill, are finally turned into crushed materials of appropriate pellet size under the special action mechanism formed by components such as hammers and screens, and are discharged smoothly through the screen to complete the crushing process.
Maintenance and care of the hammer mill
1. Regularly check the hammer and screen, and replace or turn them around in time to ensure the crushing effect.
2. Regularly refuel the moving parts of the equipment and ensure that the inside of the equipment is clean and free of debris.
3. Regularly check the motor and control system to ensure stable operation of the equipment.
Market prospects of animal feed hammer mills
With the large-scale development of the global breeding industry, the demand for efficient and energy-saving feed crushing equipment continues to increase. In the future, feed crushers will be more intelligent and automated to meet the growing production needs. At the same time, the advancement of environmental protection regulations has also prompted the equipment to develop in the direction of low energy consumption and low noise.
