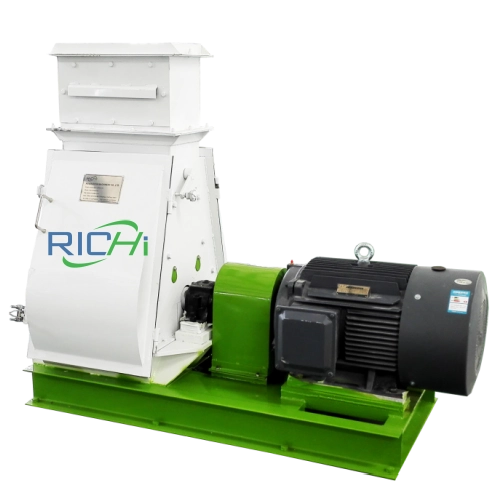

Animal Feed Grinder Machine
Animal feed grinder machine is an important equipment in the feed processing industry and has a direct impact on the production quality and efficiency of feed.Its main purpose is to crush feed ingredients into appropriate sizes to meet the requirements for subsequent pelleting. It also helps improve feed utilization and the digestibility and absorption rate for animals. Feed grinder machines are widely used in industries like feed processing, livestock farming, and food processing.
RICHI animal feed grinders have a wide range of types, covering many fields such as feed, biomass pellets, etc. The main types include water drop crushers, grass crushers, straw crushers, wood chip machines, etc. With their unique design and performance advantages, they have become the primary choice of many feed processing companies. If you want to learn more about our animal feed grinders, please contact us as soon as possible.
What is an Animal feed grinder machine
Animal feed grinder machine is also called animal feed hammer mill. It breaks and grinds various feed materials, like corn, soybean meal, and straw, animal feed grinding machine is a mechanical equipment that specializes in crushing feed raw materials. It crushes and grinds various feed raw materials, such as corn, soybean meal, straw, etc. using high-speed rotating hammer slices.This ensures that the particle size of the crushed materials meets the requirements, making it convenient for subsequent processing steps such as mixing and pelleting.
Compared with other types of crushers, animal feed grinding machines have significant advantages.
1. Compact structure: The feed grinder machine adopts a compact structural design, with a small footprint, which is convenient for installation and movement;
2. High crushing efficiency: Due to the high-speed rotation of the hammer sheet and the multiple crushing effects, the grinding machine has a high crushing effect; the crusher and feed grinding machine have significant advantages.
3.Strong adaptability: This equipment is suitable for crushing various feed ingredients, like grains, beans, and straw. The particle size of the crushed material can also be adjusted according to needs.
4.Easy maintenance: The grinding machine has a simple structure, making it easy to disassemble and clean. The maintenance cost is relatively low.
5.Safe and reliable: The equipment is usually equipped with safety protection devices, like protective guards and emergency stop buttons, to ensure the safety of operators during its operation.
RICHI animal feed grinding machines use Siemens motors and SKF bearings, which can enhance the equipment’s operational efficiency and ensure stable production capacity. The main hammer blades are made of 45# steel, and both ends of the blades are coated with tungsten carbide. This makes the machine much harder and more wear-resistant, thereby extending its service life. Our animal feed grinder mills are highly versatile and stable, gradually becoming a reliable choice for feed processing enterprises to cut costs and boost profits.
RICHI MACHINERY

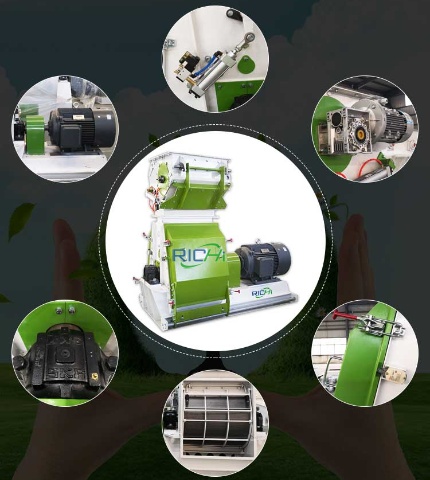

Working principle of Animal Feed Grinder Machine
30-160
Power (KW)
SFSP56*40A-SFSP138*40E
Model
1-25
Output(T/H)
1440-2980
Spindle Speed(R/Min)
The working principle of an animal feed grinder machine is based on the crushing action of high-speed rotating hammers that impact, shearing, and grinding the materials, crushing the feed raw materials into uniform particle sizes.
When the motor starts,the main shaft drives the hammers to rotate at high speed. The material enters the crushing chamber through the feed port and gets broken by the impact of the hammers. The crushed material is then thrown against the tooth plates and screen on the inner wall of the crushing chamber by centrifugal force and airflow. It collides and rubs against these components, getting further crushed and refined. Finally, the material that meets the particle size requirements is discharged through the screen, while the larger particles continue to be crushed.
During the entire crushing process, the hammer sheet and the material constantly collided and crushed until the material reached the required pellet size standard. Note that during use, you should switch the orientation of the hammers every few days to maintain the dynamic balance of the feed grinder.
RICHI MACHINE
Main types of RICHI Animal feed grinder machine
RICHI animal feed grinder machines are widely used in the feed pellet production line. They come in various types to meet crushing needs in different scenarios. Below, I’ll introduce the main types of RICHI grinding machines in detail, so that users can make reasonable choices based on their actual situations.
11111
Water drop feed grinding machine
This feed grinder uses a water drop-shaped crushing chamber. First, it reduces the backflow of materials. Second, it increases the coverage area of the screen. Combined with a reasonable secondary crushing principle, it improves the crushing efficiency. Its output is 20% higher compared to other models.
The feed grinder is widely used in feed processing. If it’s to be used for biomass pellet processing, some parts need to be adjusted. For example, a smaller motor can be used, and the screen should be thickened.
Wood chips don’t require much power during the crushing process because they’re so light. For the same volume of material going in per unit of time, the crushing capacity is low. So using a smaller motor is more energy-efficient.
It is also equipped with a mobile operating door, making maintenance and replacement of hammer blades more convenient and quick, and can be completed by a worker in a few minutes.
11111
Grass feed grinding machine
This model of the feed grinding machine is designed for crushing lightweight materials like straw, rice husks, and stalks. It’s equipped with a forced feeder that rotates clockwise to forcefully convey the materials into the crushing chamber. This feeder also has a unique paddle design – an arc-shaped plate, which makes it difficult to hang materials during operation and reduces waste of materials.
Compared with water drop crushers, it has a larger crushing chamber, which can crush more materials and significantly boost output. The back adopts a large door, which is convenient for maintenance and screen replacement.
1111
In addition to the above two commonly used crushers, we also have self-priming feed grinders, disc mills, and wood chippers, etc.All RICHI feed grinders have undergone high-precision dynamic balance inspection to ensure smooth operation and reliable performance. They’re also equipped with safety interlock devices to protect personal safety. If you have special requirements, we can also customize the crusher specially for you. Please send us an email with your needs, and we’ll arrange for a professional to provide one-on-one service.
Why use a feed grinding machine?
Feed processing involves a wide variety of raw materials. The key for processing plants to win in the market is how to produce high-quality feed pellets. The animal feed grinder machine can not only efficiently handle various feed ingredients but also flexibly adjust the crushing particle size according to the nutritional needs of different animals, ensuring the production of high-quality pellet feed.
Optimize animal nutrition absorption
1
Enhancing feed processing efficiency
2
Boosting Production Efficiency
3
High equipment performance
4
1. Optimize animal nutrition absorption
- The crushed feed has a uniform particle size, which is beneficial for animal chewing and digestion. Different animals have different needs for pellet sizes. Young animals need finer particle sizes such as 1-2mm, which can reduce digestive burden. Even pellet size can also reduce feed waste and avoid animals being picky about food or causing dust problems.
2. Enhancing feed processing efficiency
- After crushing, the feed pellets are smaller and have a larger surface area, which allows them to come into better contact with additives like vitamins and minerals, improving the mixing uniformity. This also benefits subsequent processes such as pelletizing and extrusion.
3. Boosting Production Efficiency
- The feed grinder has a fast crushing speed and high output, enabling continuous and stable operation. It enhances overall production efficiency and easily meets the large-scale and high-intensity production demands of feed processing enterprises.
4. High equipment performance
- The structural design is simple and streamlined. Core components, such as the rotor and hammer blades, are made from high-strength steel, which have good wear resistance and impact resistance. This enables the equipment to withstand long hours and high-intensity work environments.
High quality animal feed mills make high-quality feed pellets
If you are interested in this machine, I will take you to learn about RICHI Machinery’s animal feed grinder machine. If you have any needs or questions, please leave a message for consultation.
Related production lines of grinding machine
The animal feed grinder machine is a core component in the feed pellet line, working in coordination with other equipment to complete the production from raw materials to finished feed. A complete feed processing production line mainly includes processes such as raw material receiving and cleaning, crushing and batching, mixing, pelletizing, cooling and other processes.
During the raw material receiving and cleaning stage, equipment like drum screens are used to remove impurities from the raw materials, such as stones, metals, and hemp ropes. This ensures that the raw materials entering the feed grinder are clean and helps protect the equipment from damage. After cleaning, the raw materials are conveyed to the animal feed grinder machine for crushing by conveying equipment. The crushed materials are the dispensing silo through the conveying equipment.
In the batching process, various raw materials are weighed according to the feed formula and fed into the mixer in sequence. The mixer thoroughly stirs the ingredients with different compositions, ensuring an even distribution of nutrients in the feed. The mixed materials then enter the pellet mill to be made into pellet feed. After that, they pass through a cooler to reduce the pellet temperature and remove excess moisture, so that the pellet feed meets the specified quality standards. Finally, the unqualified pellets are removed by a screening device, and the qualified feed is packaged, completing the entire production process.
Feed processing enterprises of different scales can flexibly configure automated production lines according to their own needs. Besides the difference in scale, they can also choose different types of feed grinders based on requirements like feed processing or biomass pellet production, allowing for flexible combinations. Based on your needs and budget, we’ll offer you the most cost-effective and suitable production line. If you’re interested in this now, just click here right away.
With its advantages of efficient crushing, flexible adjustable, safety, and reliable quality, the feed grinder machine plays an irreplaceable role in the feed processing industry. From home-based processing to large-scale feed mills, different types and specifications of feed grinders offer comprehensive solutions for diverse production needs. In the future, feed grinding machines will develop towards intelligence and green technology, adding momentum to the high-quality development of the feed processing industry.
Related project cases of Animal feed grinder machine
In the field of animal feed production line, RICHI Machinery always adheres to technological innovation as the core and customer demand as the guide, focusing on the research and development and production of animal feed equipment. With many years of industry experience and strong technical strength, RICHI has successfully provided efficient and stable animal feed grinder machine solutions to customers in many countries and regions around the world. From single machine configuration to complete grinding system, we not only provide high-quality equipment, but also provide customized technical support and project services.

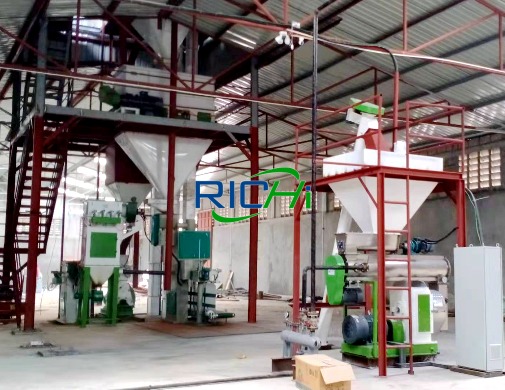

Large commercial farm in the United States
Date: August 2023
- Country: United States
- Capacity: 5T/H
- Particle size: 2-4mm
- Raw materials: corn, soybean meal, wheat bran
- Application range: broiler and laying hen feed production
- Required equipment: water drop type pulverizer, pulse dust collector, bucket elevator
- Customer feedback: “With high output, low energy consumption and easy maintenance, our feed plant efficiency has increased by 30%.”
- Project highlights: Automated control system, using Siemens PLC
- Customer needs: Efficient, clean, and uniformly crushed poultry feed grinding solution
German livestock and poultry feed factory
Date: March 2024
- Country: Germany
- Capacity: 3T/H
- Particle size: 3-5mm
- Raw materials: barley, corn, sunflower meal
- Application range: cattle feed, pig feed production
- Required equipment: water drop hammer mill, automatic feeder, soundproof cover
- Customer feedback: “RICHI helped us upgrade our 13-year-old system. The equipment is quiet and efficient.”
- Project highlights: Noise reduction design, in line with EU breeding environment standards
- Customer needs: Modern crushing solutions that meet environmental protection and production capacity needs

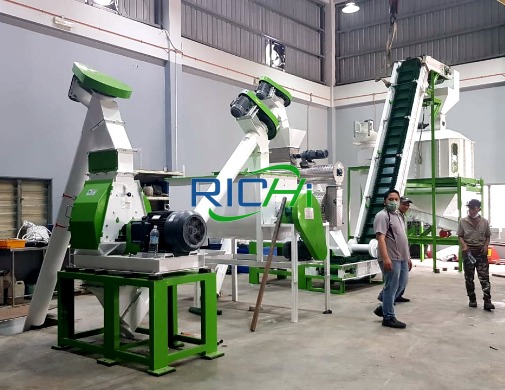

Australian integrated ranch multi-raw material production line
Date: November 2022
- Country: Australia
- Capacity: 4T/H
- Particle size: 2.5mm
- Raw materials: corn, alfalfa, oat hulls, sorghum
- Application range: Mixed feed for cattle, sheep and goats
- Required equipment: Customized water drop type grinder, automatic magnetic separator
- Customer feedback: “Highly adaptable, meeting our crushing needs for various raw materials.”
- Project highlights: Can handle a variety of high-fiber and low-fiber raw materials
- Customer needs: One machine for multiple uses, meeting the feeding needs of various animals on the ranch
French organic poultry feed production line
Date: February 2023
- Country: France
- Capacity: 5T/H
- Particle size: 3mm
- Raw materials: Organic corn, peas, rice bran
- Application range: Organic feed for free-range poultry
- Required equipment: forage grinder + fine hammer mill + dust removal and filtration system
- Customer feedback: “Very stable, meeting our consistency requirements for organic feed production.”
- Project highlights: Meet EU organic feed standards
- Customer needs: Organic feed processing solutions with gentle crushing and no loss of nutrients
（Note: This blue color was customized per customer request. RICHI’s standard machine color is green, and customization is available.）

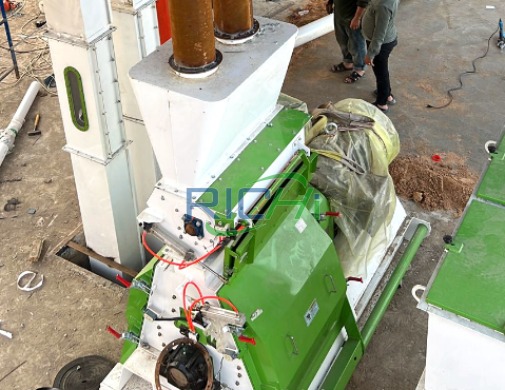

Canadian dairy farm regional feed mill
Date: September 2023
- Country: Canada
- Capacity: 6T/H
- Particle size: 3-4mm
- Raw materials: corn, bean skin
- Application range: Dairy feed production
- Required equipment: water drop grinder, pneumatic discharger, variable frequency feeding system
- Customer feedback: “The uniformity after crushing is significantly improved, which improves the quality of particles.”
- Project highlights: Intelligent feeding system to improve material pass rate
- Customer needs: Stable crushing of high-moisture raw materials while reducing energy consumption
Dutch fattening pig feed mill
Date: June 2024
- Country: Netherlands
- Capacity: 8T/H
- Particle size: 2.8mm
- Raw materials: barley, wheat, fish meal
- Application range: fattening pig compound feed
- Required equipment: dual-rotor high-efficiency grinder, dynamic balance rotor system
- Customer feedback: “High efficiency, low powder rate, easy maintenance, it is a trustworthy equipment.”
- Project highlights: dual-rotor structure, large output, uniform crushing
- Customer needs: Cooperate with new granulation equipment to improve the front-end crushing efficiency
