Wood Pellet factory
Efficient biomass energy solutions
RICHI wood pellet factory is powerful and can produce 2-12mm feed pellets, used in combustion, cat litter, animal litter and other fields. Granulation capacity 1 – 60TPH can be customized and is suitable for all kinds of feed factories. With its excellent performance, it has become the trusted choice of many feed manufacturers, helping enterprises improve efficiency and expand production and enhance competitiveness.
In the wave of the era of vigorously advocating sustainable development and actively exploring alternatives to clean energy, wood chip pellets, as high-quality biomass fuels, are increasingly attracting attention in the energy field. The pellet factory for sale, as the core equipment for converting wood waste into efficient energy products, is increasing day by day.
Overview of Wood pellet factory
Definition:
The wood pellet factory is a equipment system specially designed for processing wood chips and other biomass raw materials into granular fuels. A combination of equipment that converts waste wood materials such as wood chips, sawdust, corner wood, etc. into high energy density, easy storage and transportation of wood pellet fuel.
(1) First screen the raw materials, remove impurities such as stones and metals, and then crush and dry them to make the raw materials meet the granulation requirements.
(2) Under the action of high temperature and high pressure of the granulation host, the raw materials are extruded into pellets through the mold. The new pellets are cooled, solidified and sieved, and after qualified packaging, they can be used as a clean fuel supply market.
(3) This production line can also produce hay pellets, organic fertilizer pellets, etc., realizing waste resource utilization and green energy transformation.
Working principle:
The working principle of the wood pellet line is to make biomass raw materials into pellet fuel through physical extrusion. We first use a crusher to crush raw materials such as logs and straw into small pieces. Then, we send them into the dryer to remove excess moisture, so that the humidity of the material is suitable for forming. Next, we send the dried raw materials to the granulator and use an extrusion device to press them into granular shape. We can adjust the length of the pellets as needed. After that, we use cooling equipment to cool and shape the newly made high – temperature pellets to prevent surface cracking. Then, we screen them to remove impurities. Finally, we use a conveyor belt to send them to the packaging machine for quantitative packaging. In this way, we can form clean fuel that is easy to store and transport, realizing the efficient and environmentally – friendly utilization of agricultural and forestry waste.
Wood pellet factory: industry background and development prospects
Driven by global energy transformation and environmental protection policies, the wood pellet factory industry ushers in development opportunities, with broad market prospects and great development potential.

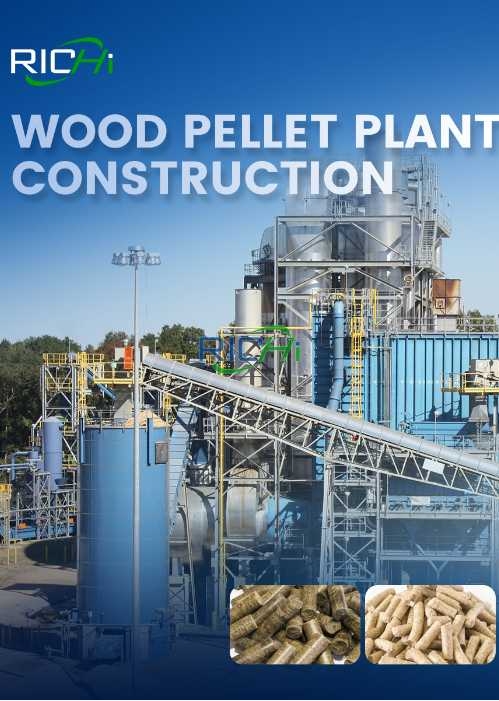

(一) Industry background
1. Driven by the transformation of the global energy structure
The world is actively promoting the transformation of the energy structure to deal with climate change and the energy crisis. As a clean renewable energy source, wood chip pellets are mainly composed of wood fibers. The trees absorb carbon dioxide during their growth, and the carbon dioxide emitted during the combustion of wood chip pellets can be regarded as a natural cycle, with almost “zero – carbon” emissions. This meets the global energy transformation needs and has become an important part of the energy development strategies of various countries.
2. Strong promotion of environmental protection policies
Countries have introduced strict environmental protection policies to limit the use of traditional high – pollution energy and encourage the development and utilization of clean energy. For example, some European countries have set clear targets for the proportion of renewable energy. They provide subsidies and tax incentives to enterprises using biomass energy and propose to expand the application of biomass energy in fields such as heating and power generation. All these have created a good policy environment for the development of the wood pellet industry.
3. Support for the advancement of biomass energy technology
With the continuous advancement of technology, the production technology of wood pellet factory is becoming increasingly mature. Regarding raw material pretreatment, we have developed more efficient crushing and drying equipment to enhance processing efficiency and improve raw material quality. Furthermore, upgraded cooling, screening, and packaging technologies help ensure intelligent and large-scale production with stable product quality. These technological advances have improved production efficiency and promoted the development of the pellet factory for sale.
(二) Development prospect
1. Steady Growth in European and American Markets: As the largest consumer market for wood pellets, Europe has an annual demand of over 30 million tons, mainly used for biomass power generation and heating. With the further improvement of European environmental standards and the continued advancement of energy transformation plans, the demand for wood pellets will maintain a steady growth. North America also attaches great importance to the development of clean energy. The application of wood chip pellets in fields such as fireplace heating and industrial boiler combustion is constantly expanding, and the market prospects are broad.
2. Huge Potential in the Asian Market: In order to respond to climate change, countries such as Japan and South Korea actively promote the application of biomass energy, and the pellet factory market is showing a rapid growth trend. In addition, Southeast Asia’s economy is developing rapidly, and the demand for energy is increasing. The environmental and cost advantages of wood chip pellets make it a potential choice for energy supply in the region, and the market demand is expected to increase significantly in the future.
3. Rich raw material resources: Crop straw, forestry waste, and other biomass resources are extremely rich. A large amount of straw and forestry processing residues, such as sawdust and bark, are generated every year. These provide sufficient raw material guarantee for the production of wood chip pellets. Rational use of these resources can not only reduce environmental pollution but also realize the recycling of resources.
4. Gradually Improved Industrial Foundation: In recent years, significant progress has been made in wood pellet production technology. The performance and quality of equipment have been continuously improved, and some technologies have reached the international advanced level. At the same time, as a professional wood chip pellet manufacturer and equipment manufacturing enterprise, RICHI Machinery has formed a relatively complete industrial chain and has a certain industrial foundation and competitive advantage.
RICHI MACHINERY
Wood pellet factory: application field
Pellet mill for wood pellets is widely used and play an important role in many fields such as energy, industry, life and agriculture, providing strong support for sustainable development.
Biomass energy
The pellet fuel produced by the wood pellet factory is a renewable energy source. We can use it in biomass power plants, boilers, fireplaces, and other equipment. Compared with traditional fossil fuels, its carbon dioxide emissions during combustion are greatly reduced, which is of great significance for reducing greenhouse gas emissions and protecting the environment. It is an important force in promoting the green transformation of energy.
Industrial use Application Field
In the industrial field, wood pellet fuel is a clean energy substitute and is suitable for heating, drying and other processes. It has stable combustion performance and high energy density, and can meet the strict energy standards of industrial production, helping enterprises to improve economic benefits while meeting production needs.
Animal Bedding and Feed Additives:
In addition to the energy field, the pellets produced by this production line can also be used to make animal bedding and feed additives. Their good hygroscopicity and breathability create a comfortable living environment for animals. Adding an appropriate amount of pellets to the feed can improve the palatability of the feed, enhance its nutritional value, and promote the healthy growth of animals.
What Raw Materials can be Processed in the Wood Pellet factory?
The wood pellet press for sale can process a wide range of raw materials, covering various forestry and agricultural wastes and some plant fruit shells, etc. We can convert them into wood chip pellets after processing.
Logs, Branches, and Pruned Tree Branches
Our Wood pellet factories can handle various types of logs, naturally – grown or pruned branches, and tree branches cut from pruning operations. We can process these forestry materials into wood chip pellets.
Sawdust and Wood Chips
The factory can process the sawdust generated during wood processing and cut wood chips and turn them into valuable wood chip pellets.
Forest Residues and Bark
Forest residues such as broken branches and leaves that fall naturally in the forest, as well as the bark peeled from trees, can be processed into wood chip pellets in the factory.
Agricultural Waste (Corn Stalks, Wheat Straw, Rice Husk)
Agricultural wastes such as corn and wheat after harvesting, as well as rice husks from unhusked rice, are raw materials that the factory can process into wood chip pellets.
Palm Fiber and Coconut Shells
The fibers of palm trees and coconut shells can be processed through a specific process in the wood pellet factory and finally converted into wood chip pellets.
Peanut Shell
The peanut shell after peanuts are shelled can become the raw material for making wood chip pellets through factory processing.
Raw Materials
Logs, Branches, and Pruned Tree Branches
Sawdust and Wood Chips
Forest Residues and Bark
Agricultural Waste
Palm Fiber and Coconut Shells
Construction
Wood pellet factory: Technical Characteristics and Advantages
— Richi Machinery —
With its unique technology, the wood pellet factory has significant advantages in energy consumption, raw material processing, molding, etc. It brings core advantages such as environmental protection, efficiency, and durability, promoting the development of the industry.
Technical Characteristics
- High – efficiency Energy – saving Technology: We adopt advanced compression molding technology and an innovative transmission system, combined with high – precision gear transmission. This enables us to produce high – energy – density pellets with low energy consumption. Compared with traditional equipment, the energy – saving effect is remarkable.
- Multifunctional Raw Material Adaptability: The production line can handle various forestry and agricultural wastes, such as various wood processing residues, fruit tree pruning branches, bamboo processing waste, and crop straw. Through special pretreatment processes, it can adapt to different fiber raw materials, reducing dependence on a single raw material and improving production flexibility.
- High – stability Molding Technology: We use processes such as cold press molding and extrusion molding, combined with grease polishing and shaping technology. This makes the produced pellets have high density and high strength. The pellets are not easily broken or lost during storage and transportation. The mold is made of high – quality alloy steel and has a long service life after special heat treatment.
- Modular Structural Design: Each production section of the line adopts standardized modules. This is convenient for quick installation and debugging. It also allows us to flexibly adjust the production capacity according to needs. It is more convenient for later maintenance and upgrading and can adapt to the needs of production lines of different scales.

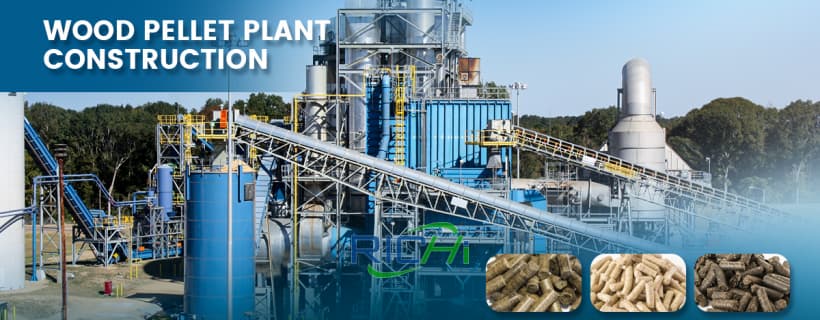

Core Advantages
- Environmentally Friendly, Low – noise, and Green Production: When the equipment is running, it generates low noise and has little impact on the environment. As clean energy, the wood chip pellets produced have far lower emissions than traditional fossil energy sources, meeting international environmental protection standards and helping enterprises achieve green production.
- Easy to Operate and High – efficiency: The intelligent control system makes operation simple, reducing labor costs and training difficulties. By recording and analyzing production data in real – time, we can optimize process parameters and improve the product pass rate.
- Wide Range of Raw Materials and Diverse Applications: We can use a variety of raw materials for production. This can not only meet the large – scale production needs of large – scale biomass power plants but also provide customized services for small farms and breeding plants. The products can be used in multiple fields such as combustion, cat litter, and animal bedding.
- Durable and Reliable, Reducing Maintenance: The key components of the equipment are made of high – quality alloy steel, which has undergone special processing. They have strong fatigue resistance and wear resistance. The equipment has a low failure rate and a long maintenance cycle, which can effectively reduce downtime losses.
High-grade wood pellet lines make high-quality wood pellets
Customize a wood pellet factory

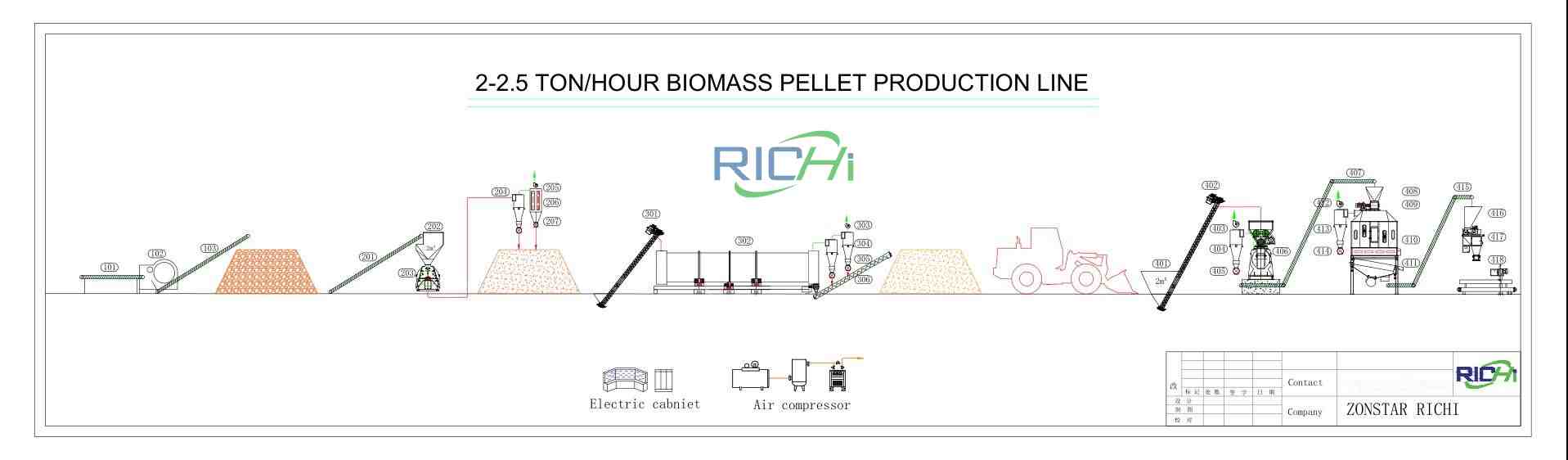

Wood Pellet factory: Process
The wood pellet production line of wood pellet factories is not fixed. We will carry out customized design based on factors such as production capacity, raw materials, and production requirements. The following takes logs as raw materials to introduce the process flow of a 2 – 2.5T/H complete wood pellet factory.
01 Wood Chipping Process
We use conveying equipment to send logs into the chipper. The chipper can cut the logs into thin wood pieces of 3 – 5mm. Such thin wood chips are beneficial for subsequent crushing processes and also facilitate the drying of raw materials.
02 Wood Crushing Process
After the chopped wood chips, we send them into the crushing section. A screw conveyor completes the crushing work. In this link, we mainly crush the small wood chips further into 2 – 3mm wood shavings to meet the raw material size requirements of the granulator.
03 Drying section
The drying process is a very critical step in the entire production process as it directly affects the subsequent granulation effect. At this stage, we usually use professional drying equipment.
During the drying process, we need to strictly control parameters such as drying temperature, time, and ventilation. If the temperature is too high, the wood chips may become over – dry and charred, affecting the quality of the pellets. If the temperature is too low, we cannot effectively remove the excess moisture, making it difficult for the pellets to form during granulation. A reasonable drying time can ensure that the wood chips reach the appropriate moisture content. The control of the ventilation volume is also very important. An appropriate ventilation volume can timely remove the evaporated water vapor, maintain the stability of the drying environment, and ensure drying efficiency and quality.
04 Pelletizing Process
We send the dried wood chips into the granulation section. Before formal granulation, we install special cleaning equipment to effectively screen out impurities such as iron and stone that may exist in the raw materials. Then, the wood chips enter the wood pellet machine for sale through the feeder. Under the extrusion of the press roller and the ring die, they are converted into wood chip pellets. Moreover, we can control the length of the wood chip pellets through a cutting device, and the pellets will eventually be extruded from the ring die hole.
05 Cooling Process of Wood Chip Pellets
After successfully producing high – quality wood chip pellets, subsequent processing is also crucial, such as the cooling process. The freshly made wood chip pellets are often at high temperature and humidity. By cooling them, we can directly cool them to room temperature to avoid surface cracking of the pellets.
06 Wood Chip Pellet Packaging Process
After cooling, we can weigh and package the wood chip pellets. The RICHI automatic packaging machine has the characteristics of large capacity, high efficiency, and convenient operation, which can greatly reduce packaging costs and labor costs.
RICHI Machinery can not only provide Wood pellet factories with this capacity but also customize production lines with a production capacity of 1 – 45T/H based on the raw materials and production needs you provide to meet your various requirements. Learn more.
Manufacturing Equipment for Wood Pellet factory
The Wood pellet factory needs to be equipped with professional equipment according to the characteristics of raw materials and capacity requirements. It covers raw material pretreatment, granulation molding, post – treatment, and auxiliary systems. The equipment in each link can achieve efficient production. The following are detailed explanations of the core equipment and technical parameters:

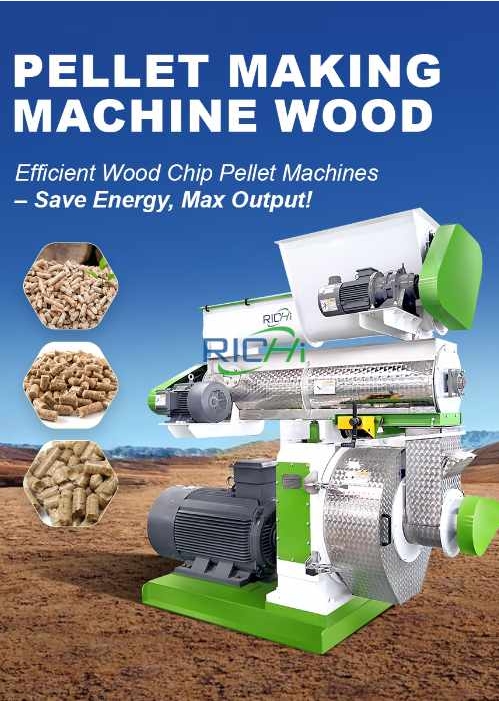

Core Equipment for Granulation and Forming: wood chip pellet machine
Function: We use the press roller and ring die of the wood pellet mill to process the pretreated raw materials into high – density and high – strength pellet fuel. It is the core equipment of the production line.
Equipment Example: RICHI MZLH series ring – mold pelletizer
Technical Advantages:
- We adopt a stainless – steel anti – arch bin design and match it with a forced feeder to ensure that the raw materials are fed evenly and avoid clogging.
- We configure Siemens high – efficiency motors to save power and reduce operating costs.
- The pelletizer can adapt to low – adhesion raw materials such as rice husks, straws, and wood chips. The pellets it produces have a large density and a wide range of applications.
If you want to know more about wood pellet machines, you can read our article wood chip pellet machine, which introduces the wood chip pellet machine in detail, can help you better understand the pellet factory maker.
Here are the parameters of our wood chip pellet machine. If you don’t know how to choose, just contact us directly.
| Model | MZLH320 |
|---|---|
| Capacity(T/H) | 0.3-0.4 |
| Main Motor Power(KW) | 37 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 320 |
| Finished Pellet Diameter (mm) | 6-12 |
| Model | MZLH350 |
|---|---|
| Capacity(T/H) | 0.5-0.7 |
| Main Motor Power(KW) | 55 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 350 |
| Finished Pellet Diameter (mm) | 6-12 |
| Model | MZLH420 |
|---|---|
| Capacity(T/H) | 1.0-1.2 |
| Main Motor Power(KW) | 90 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 420 |
| Finished Pellet Diameter (mm) | 6-12 |
| Model | MZLH520 |
|---|---|
| Capacity(T/H) | 2.0-2.5 |
| Main Motor Power(KW) | 110/132 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 520 |
| Finished Pellet Diameter (mm) | 6-12 |
| Model | MZLH768 |
|---|---|
| Capacity(T/H) | 2.5-4 |
| Main Motor Power(KW) | 250/280 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 768 |
| Finished Pellet Diameter (mm) | 6-12 |
| Model | MZLH858 |
|---|---|
| Capacity(T/H) | 3-4.5 |
| Main Motor Power(KW) | 280 |
| Main Motor Series | 6/8P |
| Ring Die Diameter (mm) | 858 |
| Finished Pellet Diameter (mm) | 6-12 |
(Note: RICHI Machinery’s products are always updated and improved. Therefore, if there is any difference between the pictures, feature descriptions and performance parameters of the actual model, please refer to the actual product.)
Hammer Crusher (for special material)
Function: We use the hammer crusher to crush wood chips, straw, rice husk and other raw materials to a pellet – sized 2 – 5mm to meet the feed requirements of the granulator.
Equipment Example: RICHI hammer crusher
Advantages:
Its wear – resistant hammer sheets crush raw materials at high speed. It has a built – in cooling structure to prevent overheating due to friction and extend its service life.
It is suitable for fiber materials such as branches and straw, with uniform discharge and low power consumption.
RICHI hammer mill design is reasonable, the internal cooling structure can effectively prevent the temperature caused by friction, causing damage to the machine, which is of course, we do not want to see. Moreover, it is very durable, very convenient to operate, high efficiency, low power consumption, and is the first choice for you to purchase crushing equipment.
Wood chipper machine
Function: We use the wood chipper to cut logs and branches with larger diameters into uniform wood chips of 3 – 5cm for subsequent crushing and drying.
Equipment Example: RICHI drum chipper (fixed/mobile)
Features:
- It has a high – speed rotating cutting head for cutting, and the thickness of the wood chip is adjustable. It is suitable for a variety of logs such as pine, poplar, and fir.
- The fixed type is suitable for factory – scale production, while the mobile type is suitable for on – site processing of raw materials in forest areas, which is flexible and efficient.
RICHI drum microtome is compact in structure, reasonable in design, easy to install, is your first choice in the selection of wood chip microtome equipment.
Roller Dryer
Function: We use the roller dryer to reduce the moisture content of raw materials to a low level, ensuring the quality of pellet forming and avoiding cracking or molding.
Equipment Example: RICHI drum dryer
Technical Features:
It uses hot air flow circulating heating, which is suitable for various raw materials such as wood chips and straw, and has high drying efficiency.
It has an intelligent temperature control system. The intake temperature ≤700℃, and the discharge moisture content is stable.
Because the pelletizing machine has strict requirements on the moisture content of raw materials, the dryer can reduce the moisture content of raw materials to about 15%.
Cooling machine
Function: We use the counter – current cooling machine to cool high – temperature pellets at 70 – 90℃ to room temperature, cure the structure, and prevent surface cracking.
Equipment Example: RICHI counter – current cooler
Advantages:
It cools with reverse airflow, making the pellets cool evenly to avoid quenching and cracking, and improving storage stability. Its pneumatic swing discharge mechanism has an adjustable discharge speed, which is suitable for different production capacity requirements.
And in order to facilitate the discharging, we adopt pneumatic system to control the pendulum flap discharging mechanism, the discharging speed is adjustable, which ensures the discharging is even and smooth. It is easy to operate and can be used for cooling various kinds of pellets.
Automatic packing machine
Fully Automatic Packaging Machine
Equipment Example: RICHI fully automatic bag packaging machine
Function: We use the fully automatic packaging machine to realize quantitative packaging of pellets. It can be connected to weighing and conveying systems, improving the automation level.
Of course, our machine can be customized according to your specific production needs, you just need to tell us your needs, we will design a satisfactory production plan for you, high quality pellet production equipment.
- Devoted to the wood pellet machinery industry for 27years
- All products have passed ISO, CE, SGS, BV, and other international certifications.
- Have a perfect sales system and a complete service network
- Can customize a turnkey pellet factory according to your need.
wood pellet factory: RICHI Machinery Case Project
In the field of wood energy, wood pellet plant for sale of different sizes has diverse production needs and operation models. RICHI focuses on the turnkey project of Wood pellet factories. Its products have covered more than 150 countries and regions such as Austria, Canada, Germany, Uzbekistan, Mexico, Australia, etc., serving thousands of customers. Many cases have become local benchmark projects.

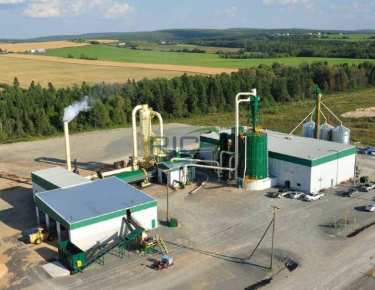

wood pellet factory for sale in Nigerian
- Country: Nigeria
- Time: August 2021
- Production capacity: 3T/H
- Total power: 450kW
- Factory area: 1500m²
- Main raw materials: wood, corn stalk, rice husk
- Finished pellet size: 6 – 10mm
- Operator: 5 people

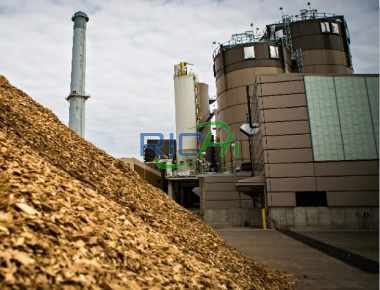

wood pellet factory for sale in Saudi Arabia
- Country: Saudi Arabia
- Time: October 2018
- Production capacity: 6T/H
- Total power: 800kW
- Factory area: 2500m²
- Main raw materials: wood, date residue, palm fiber, straw
- Finished pellet size: 6 – 8mm
- Operator: 6 people
wood pellet factory for sale in Brazilian
- Country: Brazil
- Time: December 2019
- Production capacity: 9T/H
- Total power: 1100kW
- Factory area: 3200m²
- Main raw materials: wood, eucalyptus waste, corn core
- Finished pellet size: 6 – 8mm
- Operator: 7 people
wood pellet factory for sale in Indonesian
- Country: Indonesia
- Time: March 2020
- Production capacity: 10T/H
- Total power: 1050kW
- Factory area: 3500m²
- Main raw materials: hard wood sawdust, wood chips, scraps
- Finished pellet size: 6 – 12mm
- Operator: 7 people
wood pellet factory for sale in germany
- Country: Germany
- Time: May 2019
- Production capacity: 12T/H
- Total power: 1200kW
- Factory area: 4000m²
- Main raw materials: wood, pine branches, bark, logging residue
- Finished pellet size: 6 – 10mm
- Operator: 8 people

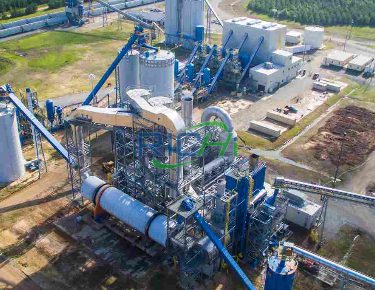

wood pellet factory for sale in Australian
- Country: Australia
- Time: June 2020
- Production capacity: 15T/H
- Total power: 1500kW
- Factory area: 5000m²
- Main raw materials: wood, eucalyptus bark, logging residue, branches
- Finished pellet size: 6 – 12mm
- Operator: 10 people
RICHI MACHINERY
How to Choose the Right Wood Pellet factory
First, clarify the production capacity and quality requirements: We should choose equipment according to our production goals and budget.
- In terms of capacity: If it is small – scale production, such as processing waste from a farm or small factory, choosing a small production line is enough. However, if we plan to produce on a large scale for power plants or export, we need medium and large – scale equipment.
- In terms of quality: We should set standards based on the purpose of the pellets. For example, when used as fuel, we should pay attention to whether the pellets are easy to burn and resistant to storage. If it is used as animal bedding, we should focus on the water absorption and cleanliness of the pellets. Then, we choose equipment that can meet our specific requirements.
Understand the key parameters of the equipment: We don’t need to remember complex data. We mainly need to pay attention to these points.
- Raw material treatment: We need to check whether the grinder can cut the raw materials to the right size (not too big or too crushed), and whether the dryer can control the moisture of the raw materials (not too wet or too dry). If these two steps are done well, the subsequent granulation will be smooth.
- Granulation host: We should check whether the machine has enough power, whether the pellet size can be adjusted (for example, common specifications are 6 – 12mm), and whether it can adapt to our raw materials (such as branches, straw, rice husks, etc.).
- Post – processing: We need to see if the cooling machine can cool down the newly made pellets to prevent cracking, and whether the packaging machine is easy to operate and can package according to the weight we need.
It is important to choose a reliable manufacturer: We should give priority to brands with a good reputation and experience.
- Look at strength: We choose a manufacturer with its own factory and R&D team. Such a manufacturer usually has mature technology and a wide variety of equipment. It can process various raw materials, such as branches, straw, and peanut shells.
- Look at the service: Good manufacturers will provide customized solutions and design production lines according to our site, raw materials, and output. They don’t just sell equipment. After – sales service is also crucial. There should be someone to guide the installation and commissioning, and they should be able to solve problems in a timely manner in the later stage. For example, they can conduct regular follow – up visits and train workers to operate the equipment, which makes it more worry – free to use.
High-grade wood pellet lines make high-quality wood pellets
The premise of reasonable selection is to choose a reliable manufacturer. In the face of market competition, how does RICHI’s technical strength and service system form differentiated advantages? The following analyzes the five core competitiveness from the aspects of independent research and development, quality control, etc.
Five Core Advantages of Choosing RICHI
Independent production of the entire industrial chain
As a local enterprise, RICHI Machinery has established its own R&D, production, and sales system. It has over 30 models of equipment covering various fields such as granulation, grinding, and drying. It has passed international certifications such as ISO and CE. Its business covers more than 100 countries, and it has a total of 2,000 customers. It provides dual guarantees of quality and delivery capabilities.
Full – process customization service
RICHI’s professional team conducts in – depth research on raw material characteristics, production capacity goals, and site conditions. From solution design to equipment delivery and customization, it can adapt to the needs of small and medium – sized breeding farms as well as large factories. It refuses “over – configuration” and provides cost – effective “precision” solutions.
International quality control system
RICHI Machinery strictly implements the ISO9001 standard, carries out quality accountability and production safety management. It achieves full – process traceability from design to manufacturing through QC quality control, SPC statistical process control, and other means. This helps to eliminate quality hidden dangers and ensure the durability and stability of the equipment.
Reliable delivery and rapid production
RICHI follows a four – fold inspection process of “order verification → factory quality inspection → boxing re – inspection → scientific packaging”. Engineers will guide the infrastructure, installation, and commissioning on site until the production line meets the standards and is accepted. It uses standardized processes to ensure the efficient implementation of the project and shorten the production cycle.
Full – cycle technical support and after – sales guarantee
RICHI has a technical team of nearly 100 people, which covers the entire process of consultation, design, installation, and maintenance. It provides customized technical solutions and operation training. After delivery, it regularly reviews the equipment operation status, quickly responds to after – sales needs, and helps the production line operate stably for a long time.
FAQ of wood pellet factory
What is a Wood pellet factory? What equipment are included?
Simply put, a pellet factory is a set of assembly lines that turn raw materials like wood, straw, and rice husks into granular fuel.
There are mainly three steps and corresponding equipment involved:
Finished product treatment: We use a cooler to cool down the freshly made pellets to prevent them from cracking. A screening machine is used to remove impurities. Finally, we use a packaging machine to pack the pellets according to their weight.
Raw material treatment: First, we use a chipper to cut logs into small pieces. Then, we use a grinder to crush these pieces into fine materials. Finally, we use a dryer to control the moisture of the raw materials (the moisture should be neither too high nor too low).
Granulation and molding: The core equipment in this step is the pelletizer. We use it to extrude the treated raw materials into pellets. The size of the pellets can usually be adjusted, for example, within the range of 6 – 12mm. You can find us on YouTube.
Is it difficult to install and debug equipment? How long will it take?
Don’t worry about the installation and debugging!
Before the equipment is shipped, we will assemble and debug it in advance to make sure all components can work properly.
After the equipment arrives at the site, we will send professional engineers to guide the entire installation process. They will also train workers step by step, teaching them how to use the equipment and what to pay attention to during operation.
Generally, a small production line can be installed and commissioned in about one week, while a large – scale one takes about two weeks. The specific time depends on the scale of the production line. This way, the equipment can be put into use smoothly.
Is the equipment maintenance troublesome? Do we need a professional?
Equipment maintenance is very simple. You just need to follow the manual!
All you need to do is regularly lubricate and dust the key parts of the equipment, and check whether the circuit and operating parts are in normal condition. Ordinary people can do these operations by reading the instructions.
If there are any problems, feel free to contact us at any time. Our after – sales team is online 24 hours a day. They can provide remote guidance or come to your site to solve the problems. We also conduct regular inspections to help you detect potential hazards in advance, ensuring the stable operation of the equipment.
Can the production line capacity be adjusted according to demand?
Before the equipment is shipped, we will assemble and debug it in advance to make sure all components can work properly.
After the equipment arrives at the site, we will send professional engineers to guide the entire installation process. They will also train workers step by step, teaching them how to use the equipment and what to pay attention to during operation.
Generally, a small production line can be installed and commissioned in about one week, while a large – scale one takes about two weeks. The specific time depends on the scale of the production line. This way, the wood pellet factory for sale can be put into use smoothly.
