Wood Pellet Machine Canada
The wood pellet machine can process all kinds of biomass raw materials, such as wood chips, logs, wood chips, waste wood, branches, straw, wheat straw, rice husk, hay and so on. The biomass pellets made by this machine can be used in fireplace, boiler, biomass power plant. Our wood pellet machine for sale Canada is widely welcomed and loved by Canadian customers. Canada is a large energy country, but also a large energy consumer, so the provision of reusable energy and green materials has become the focus of the current energy research projects.
RICHI Machinery’s wood pellet machine Canada is not only environmentally friendly and energy-saving, but also a high yield, low pollution, never any major pollution waste, is the ideal alternative to coal-fired energy materials.
Raw materials: wood, wood chips, sawdust, tree branches, and etc.
Final pellet diameter: 6-12mm
About wood pellet machine canada
The wood pellet machine is the core equipment in a wood pellet line. The parameter table below presents its key technical specifications. The wood pellet machine plays a crucial role in the entire production process, efficiently pressing the crushed and dried wood raw material into standard biomass pellets. This is crucial for product quality and production capacity. To provide a more comprehensive understanding of this equipment, we will provide a detailed introduction from two perspectives:
What is a wood pellet machine?
A wood pellet machine, also known as a wood pellet mill machine or biomass pellet machine, is a specialized machine that processes forestry waste such as sawdust and wood chips into uniform pellet fuel. This machine is primarily suitable for pelletizing raw materials such as wood, straw, rice husks, and palm shells. The pellets produced typically have a diameter of 6-12mm and are widely used in biomass boilers, heating systems, and industrial energy alternatives.
By replacing ring dies with different apertures, the pellet diameter can be flexibly adjusted to meet the pellet specifications of different customers. It is a key pelletizing equipment in the wood energy recycling industry both domestically and internationally.
Working Principle of a Wood Pellet Machine
The core structure of a wood pellet machine is the ring die pelletizing chamber. After being crushed and dried, the wood feedstock is evenly fed into the pelletizing chamber via an adjustable-speed feeder. Once the machine is started, a motor drives the press rollers and ring die to rotate at high speed. Under the dual high pressure, the feedstock is squeezed into the die holes, forming dense cylindrical pellets.
As the pellets are formed, they are cut to a set length by a fixed cutter, achieving an efficient and continuous pelletizing process. The entire process requires no binders, fully utilizing the lignin content of the raw material. Formation is achieved through physical extrusion, making it both environmentally friendly and highly efficient.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 185 | 250 |
| Broken Arch Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4~12 | |||||
| Output (T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
wood pellet machine Canada project Cases
RICHI Machinery not only provides high quality wood pellet mill single machine, but also helps customers to make excellent wood pellets and get success. If you are also planning to set up your own wood pellet factory in Canada for the production of feed pellets, biomass pellets, fertilizer pellets, etc., please feel free to contact us. We design and produce wood pellet mills in canada which can process all kinds of wood, biomass waste, energy crops and agricultural residues such as crop stalks. Here are a few projects as a case study to introduce in detail the wood chip pellet mill projects we have done. If you’re interested in more RICHI project cases, feel free to contact us anytime.
2-2.5T/H Full Automatic Biomass Wood Pellet mill for sale Canada
- Project Name: Biomass wood pellet production line
- Factory Location: Canada
Raw material: 50% moisture wood chips , 50% moisture sawdust - Production capacity: 2-2.5 tons of wood pellets per hour
- Production Process: Wood chipping—wood crushing—wood drying—pelletizing—wood pellet cooling—wood pellet packing
- Composistion: High quality wood chipper, high efficiency wood crusher, conveying equipment, dryer for drying the raw materials to 15% moisture, storage bin, wood pellet mill canada, counterflow cooler, auto-packing machine and other auxiliary equipment
- Customer Feedback:“RICHI tailored the pellet line to our compact workshop. The system handles our high-moisture materials well and delivers great pellet quality. Very satisfied with the result!”
Video of wood pellet machine Canada
We set up this wood chip pellet production line in August 2018 and the project is located in Canada. The capacity of this pellet plant is 2 to 2.5 tons per hour. It uses wood chips and sawdust as raw material, and the moisture content of the raw material is about 50%. The customer wants to produce 6-12mm biomass wood pellets, and we designed this line for the customer to produce high quality wood pellets in different sizes. for this project, biggest problem is the workshop part. customer have a very very special type workshop, and very small. We need to customize the line to fit this workshop.
wood pellet machine canada

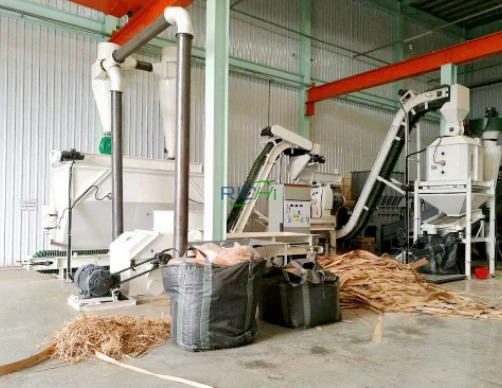

- Project: 1-2 tons/hour pellet production for home use and small-volume sales
- Project Date: July 2024
- Raw Materials: Dry sawdust, wood shavings, and a small amount of scraps
- Pellet Size: 6mm
- Core Equipment: Small crusher, hammer mill, MZLH320 small pellet mill Canada, cooler, and simple packaging machine
- Client Requirements: Simple, user-friendly equipment with a compact footprint for household heating and small-scale fuel supply to surrounding communities
- Workshop Size for this Project: 200–300㎡
wood pellet machine canada

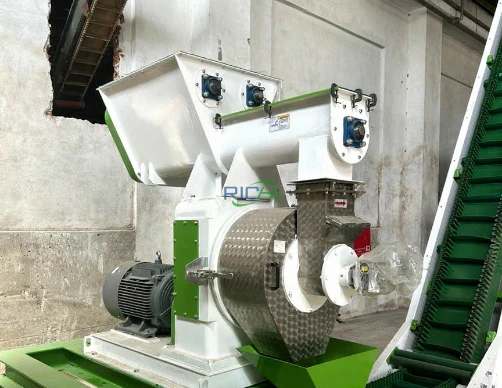

- Project: 2-3 tons/hour pellet production for farm use
- Project Date: April 2025
- Raw Materials: Farm-produced sawdust, branches, and pruning waste
- Pellet Size: 6–8mm
- Core Equipment: Crushing system, drum dryer, MZLH350 pellet machine pelletizing system, cooler, and simple silo
- Client Requirements: The farm must be self-sufficient for heating, capable of independent operation, and require easy-to-maintain equipment.
- Workshop Size: 350–400 ㎡
wood pellet machine canada

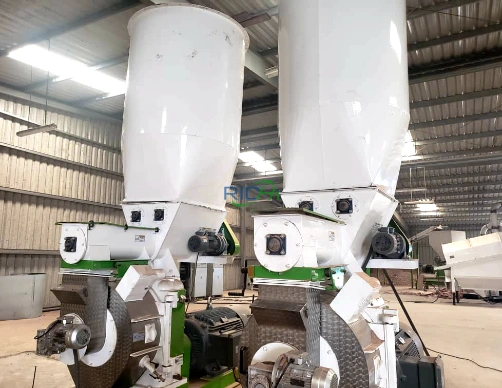

- Project: 5 tons/hour export-grade pellet plant
- Project Date: August 2023
- Raw Materials: Poplar and hardwood mixed sawdust (pre-treated)
- Pellet Size: 6mm
- Core Equipment: High-efficiency crushing, drum drying, MZLH520 pellet mill, fully automatic packaging machine
- Customer Requirements: Pellet quality must meet EU ENplus standards, and the equipment must have high continuous operational stability.
- Workshop Size: 800–1000 ㎡
wood pellet machine for sale canada

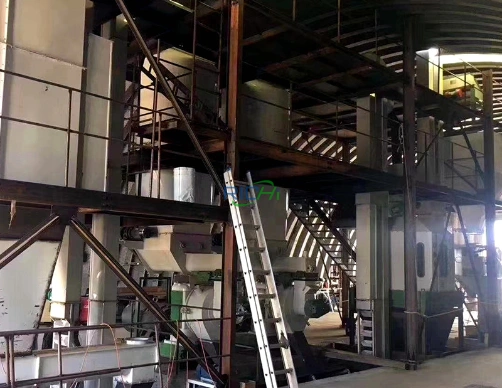

- Project: 8 tons/hour Wood Processing Byproduct Pelletization Project
- Project Date: September 2023
- Raw Materials: Wood processing plant waste, sawdust, and scraps
- Pellet Size: 6mm
- Core Equipment: Multi-stage crushing, three-drum drying, two MZLH768 pelletizers, centralized dust removal, and automatic packaging system
- Client Requirements: Utilize waste resources to achieve closed-loop utilization within the plant while expanding pellet sales channels
- Workshop Size About This Project: 1,300–1,500 ㎡

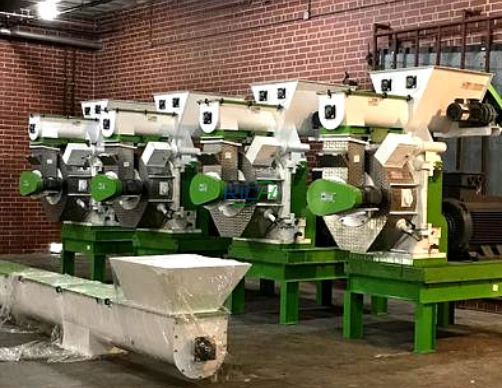

wood pellet machine for sale canada
- Project: 10 tons/hour Construction Site Wood Waste Recycling Project
- Project Date: May 2023
- Raw Materials: Demolition wood, recycled board materials, plywood waste (after pre-treatment)
- Pellet Size: 6–8mm
- Core Equipment: Heavy-duty crusher, chain conveyor dryer, MZLH858 pelletizing system, centralized dust removal, dual-station packaging machine
- Client Requirements: Recycle urban construction waste wood for energy processing, reducing landfill, and pellets for use in local thermal power plants.
- Workshop size about this project： 2800–3000㎡
wood pellet mill for sale canada

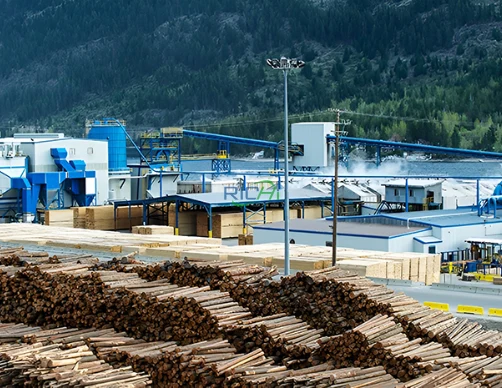

- Project: 15 tons/hour Industrial-Grade Export Pellets
- Project Date: End of 2024
- Feedstock: Forestry waste, logs, and old pallets
- Pellet Size: 6–10 mm
- Core Equipment: Wood chipper, large-scale drying system, MZLH858 pellet machine main line, intelligent weighing and packaging
- Client Requirements: Long-term supply to Europe, remote monitoring capabilities, and high-intensity operation capabilities
- Workshop Size for this Project: Over 2,500 ㎡

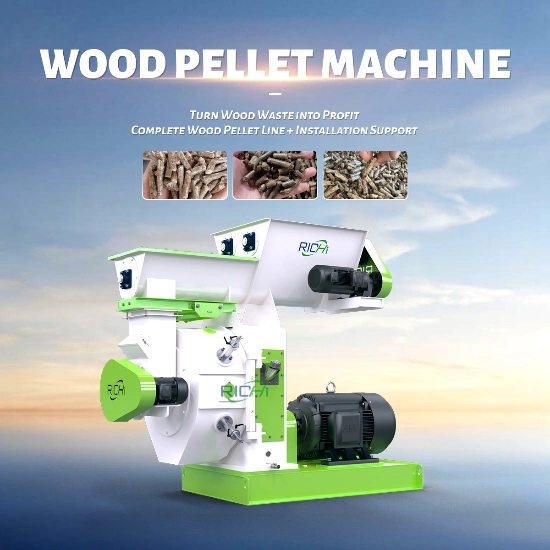

features of wood pellet machine Canada
- The main drive of the wood pellet machine for sale is rotated by high-precision gear, the efficiency is about 15% higher than that of the belt drive type, and the ring die is quick-discharge hoop type.
- The transmission part of the whole pellet press Canada adopts high-quality imported bearings and oil seals to ensure high efficiency, stability and low noise.
- The international advanced level of compensation type snake spring coupling, with novel structure, compact, safe, low fault and other performance.
- The main shaft is made of forging material, with long service life and stable and reliable quality;
- There are a number of innovative designs on the ring mold, which mainly solve the problem of ring mold cracking and effectively increase production.
- Automatic grease lubrication system, can achieve non-stop automatic refueling, easy to operate;
- Gearbox oil automatic circulation cooling system, effectively reduce the gearbox oil temperature, extend the life of gear transmission components, make the main transmission more reliable;
- Overload protection device is configured to improve the service life of the equipment;
- Arch breaking feeding device is used to avoid arch forming of materials;
- The feeder, door cover and chute are made of stainless steel for durable use;
- The specially designed forced feeding structure adopts the mixed structure of spiral + blade to make the feeding more effective;
- Forced feeding using worm gear reducer direct transmission, transmission efficiency is higher.

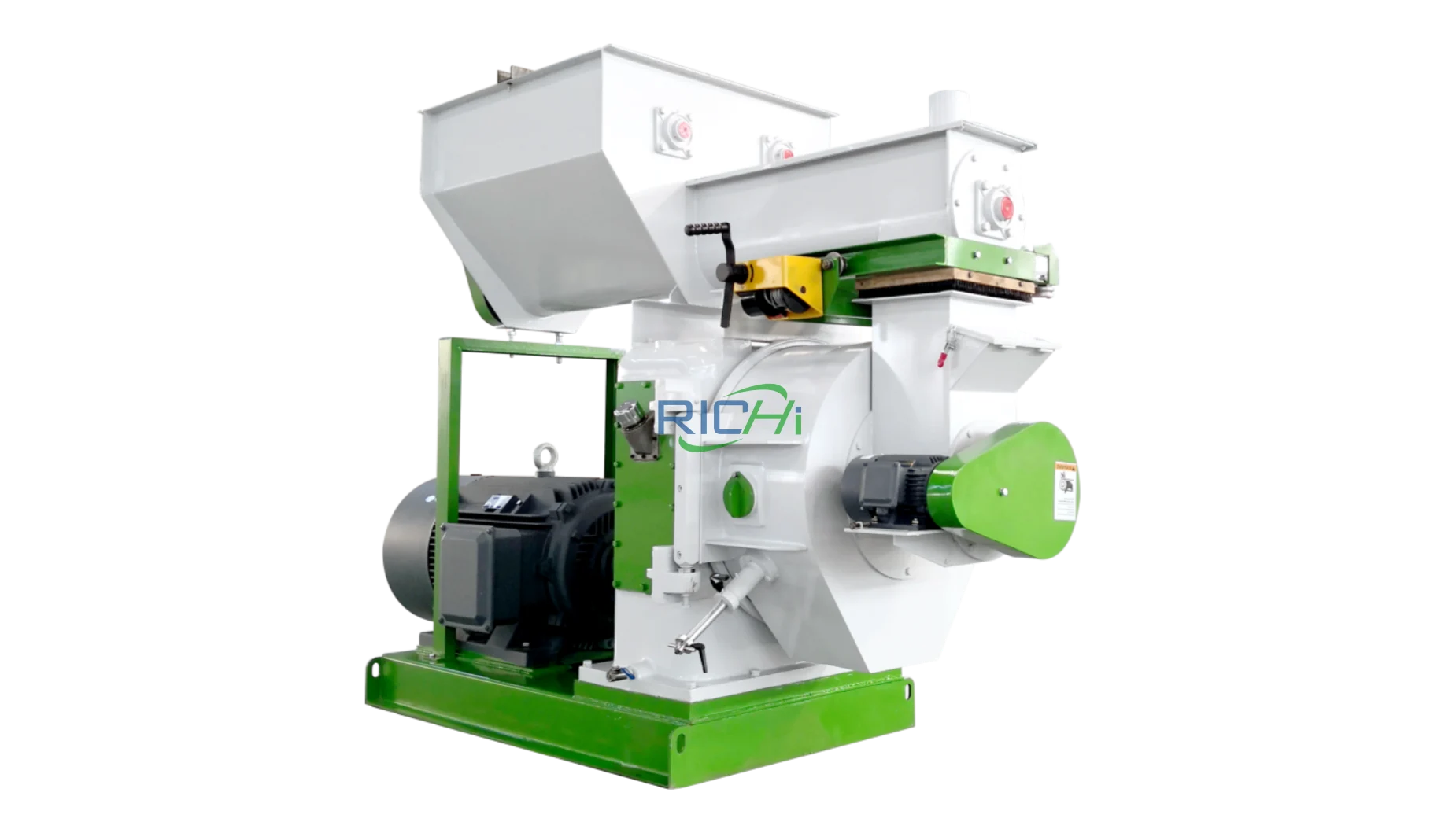

Business opportunities of Wood pellet Production Industry in Canada
Canada Has What It Takes to Develop Wood Pellet Industry
Canada covers 9.98 million square kilometers, ranking as the second largest country in the world. Of this, 9.09 million square kilometers are land. Impressively, forest area accounts for 46% of the total land, with more than 400 million hectares — making Canada one of the most forest-rich countries globally. The total accumulation of wood is about 19 billion cubic meters. All these factors provide excellent natural conditions and raw material resources for developing the wood pellet industry.
Global Demand and Local Policy Are Driving Growth
In recent years, the production and consumption of wood pellets in Canada have been growing steadily. This is largely driven by two major forces: strong international demand and favorable domestic policies. Globally, there has been a shortage of wood pellets, and industry experts predict the wood pellet sector will continue expanding over the next 20 years.
Wood Pellet Machine Canada Opportunities & Investment
The Canadian federal government plans to phase out coal use by 2030, which is expected to further boost the domestic wood pellet market. If you’re looking to enter the wood pellet industry in Canada, now is a great time. You can contact us to get a customized wood pellet machine or complete production line. With 30 years of experience, RICHI Machinery is ready to help you build a productive and profitable pellet plant.
RICHI MACHINERY
Why Choose RICHI Machinery
Choosing RICHI Machinery means you’ll receive not only high – quality equipment but also one – stop solutions and comprehensive service support. Here are some key reasons to choose us:
30 years of industry experience
Since its establishment in 1995, RICHI Machinery has amassed 30 years of rich experience in the design, production, and R & D of wood pellet mill for sale canada. With our profound technical accumulation and global development, we can provide our customers with reliable equipment and solutions.
Customized turnkey solutions
We offer a complete turnkey production line, covering project design, equipment manufacturing, installation and commissioning, and personnel training, according to your specific needs. Whether it’s a small farm or a large feed factory, we can tailor a suitable production plan for you.
Complete after – sales service
We have a comprehensive after – sales system, providing you with all – round services from pre – sales consultation to after – sales maintenance. This includes professional and systematic training to help you quickly master equipment operation and maintenance skills and maximize project requirements.
Built Around Your Needs
We can create customized turnkey pellet production line projects based on your unique requirements. For example, we provided customized technical solutions and operation training for the wood pellet machine Canada to help the production line operate stably in the long term. You can find us on YouTube.
