Wood pellet production line price
Wood pellet line is suitable for biomass fuel plants, power plants, wood processing plants, etc. Many people are concerned about its price, generally speaking, the wood pellet production line price is between 30000 USD to 3000000 USD. Today I will explain the wood pellet production line price and other details of the line.
The wood pellet production line is a production line that produces wood pellets through a series of processing of sawdust, wood chips, wood branches, and other raw materials.
Video of Wood pellet production line
This video shows the production process of a complete wood pellet production line from crushing and pelletizing to cooling and packing. The whole wood pellet production line is mainly composed of wood crusher, wood pellet machine, dust removal equipment, cooling machine, baler, conveying equipment, electric control equipment and so on.
After crushed by the crusher, the raw materials of wood pellets are pressed into wood pellets through the screw conveyor and the wood chip pellet machine; then the wood pellets are transported to the cooler through the conveying equipment for cooling treatment, and the cooled wood pellets can be packaged by the packing machine, and the users can use the wood pellets as commodities for sale or use according to their own needs.
The wood pellet production line is high production capacity and high working efficiency is high, and has a wide range of raw materials. If you want to produce wood pellets in large quantities, investing in wood pellet production lines is a good choice.
High quality production lines make high-quality wood pellets
Customize a wood feed pellet production
أنواع مختلفة من Wood pellet plant for sale
مصنع معالجة الحبيبات الخشبية
It is designed for converting all types of agricultural and forestry waste materials into efficient, environmentally friendly wood biomass pellets with a capacity of 1 to 1.2 tons per hour. This production capacity wood pellet line price is between $80,000 and $150,000.
السعة:
1-1.2T/H
Pellet Diameter:
6-12 مم
خط تصنيع الحبيبات الخشبية
This is a complete wood pellet making line, which consists of crushing system, drying system, pelletizing system, cooling machine, packing machine, etc. It can produce 2-2.5 tons per hour, which is cost-effective and the equipment is stable and efficient. The price is between $120,000 and $220,000.
السعة:
2-2.5T/H
Pellet Diameter:
6-12 مم
wood pellet manufacturing plant
Complete wood pellet production lines are designed for industrial production and can produce biomass pellets from any type of agricultural and forestry waste with customized capabilities. We can provide you with reasonable advice on choosing a cost-effective wood pellet production line.
السعة:
3-3.5T/H
Pellet Diameter:
6-12 مم
مصنع الحبيبات الخشبية للبيع
Designed for wood branch biomass pellets from any type of agricultural and forestry waste, in addition, we can customize your wood pellet production solution to meet your needs based on your raw materials, plant combined with your production requirements.
السعة:
4-5T/H
Pellet Diameter:
6-12 مم
خط الحبيبات الخشبية
This is a combined equipment of wood chip crusher, dryer, wood pellet machine, wood pellet cooler and wood pellet packing machine, which can also be said to be a wood pellet production line with a capacity of 6-7.5t/h.
السعة:
6-7.5T/H
Pellet Diameter:
6-12 مم
Wood pellet pelletizing line
The wood pellet pelletizing line is designed for large-scale industrial production of wood pellets with a capacity of 8 to 10 tons per hour, which is your best choice for people engaged in the field of medium and large-scale pellet production.
السعة:
8-10T/H
Pellet Diameter:
6-12 مم
شركة RICHI Machinery هي خبيرة في حلول تكوير الأعلاف والخشب والكتلة الحيوية والأسمدة العضوية، ونحن نصمم كل خط إنتاج كريات وفقًا لاحتياجات العملاء. لقد زودنا الآلاف من العملاء من 127 دولة بمشاريع تكوير كاملة. إذا كانت لديك أي احتياجات للتكوير، فما عليك سوى إرسال استفسار إلينا.
Can’t find the wood pellet making line you want?
اتصل بنا لتخصيصها لك
Working process of wood pellet making line
كاملة خط الحبيبات الخشبية includes the preparation of raw materials, wood crushing, sawdust drying, wood pellet pelleting, wood pellet cooling, and wood pellet packaging.
01 The pre-treatment stage of raw materials
In the wood pellet processing plant, the first step is to pretreat the collected raw materials, so as to facilitate the subsequent processing. This step requires the log to be chipped so as to facilitate the subsequent crushing of the mill.
The drum chipper can be used to cut the wood from the state of the log to the small wood chips of about 3-5CM, so as to facilitate the subsequent processing of the mixing section.
02 The crushing of wood
3-5CM small wood chips through the conveyor to the crusher for crushing. Wood chips are crushed to the appropriate fineness, the purpose of doing this is on the one hand conducive to the back of the drying, and on the other hand conducive to the back of the pelleting stage of pressing.
03 Sawdust drying
Because different wood materials have different water content, and to make good wood pellets, the water content of the raw material must be less than 15%, so after crushing, the wood chips need to be dried.
After crushing, the wood chips are transported to the آلة التجفيف الدوارة. The heat source inside the dryer is provided by the combustion machine, in the dryer, the moisture of the wood chips is volatilized and dried.
04 Pelletizing system of the wood pellet production line
This step is to make wood chips of the right fineness and moisture into wood pellets. Because the wood chips are light and easily arched, the smooth passage of the chips into the pelletizing machine requires passing through a large anti-caking feeder and then into the pelletizing chamber where they are squeezed and pressed.
After this step, the crushed wood chips become compact wood pellets.
05 تبريد الحبيبات الخشبية
The temperature and humidity of the pressed pellet are relatively high, so we need to cool them. In this way, it is convenient for storage and can better maintain the shape of the wood pellet to avoid the cold wind and hot wood pellet in direct contact, resulting in sudden cooling phenomena and particle cracking. This step mainly involves cooling the newly pressed pellet to room temperature.
06 Wood pellet packaging
After cooling, the final wood pellets can be packaged for easy storage and transportation.
Wood pellet processing equipment of the line

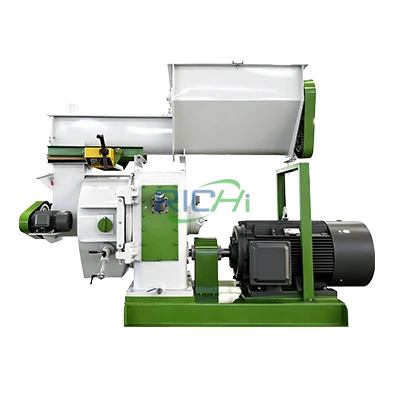

ماكينة بيليه رقائق الخشب
The machine is used to process wood chips, sawdust, straw and etc into wood pellets.
RICHI Machinery MZLH series wood pelletizer is equipped with a variable frequency impeller feeder with anti-caking bins. The features of the RICHI ماكينة الحبيبات الخشبية are:
- Compact structure, long service life
- Small volume, low power consumption, low noise
- Stable performance and adjustable feeding speed.

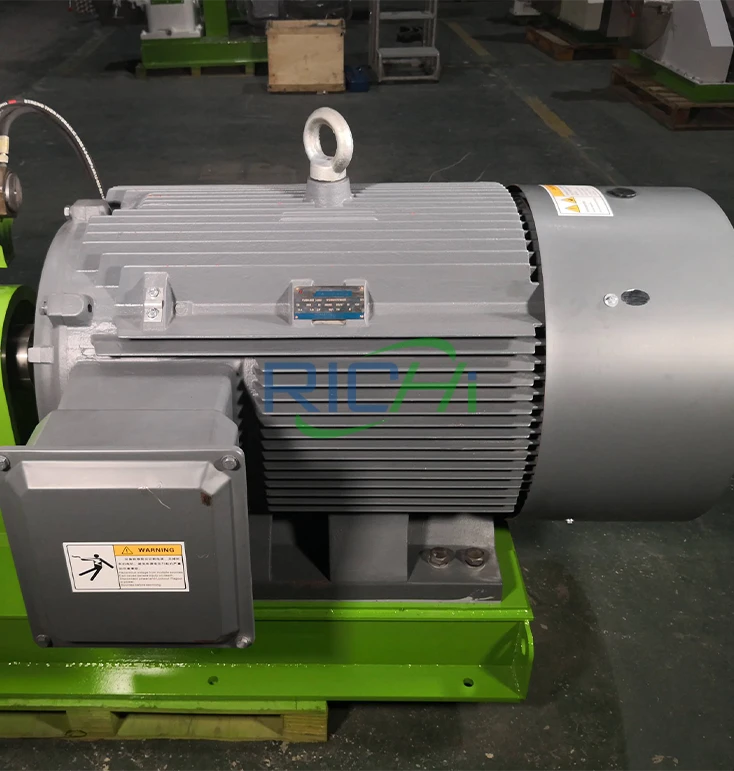

- SKF bearings, Siemens motor
فيما يلي معلمات آلة تصنيع كريات رقائق الخشب الخاصة بنا. إذا كنت لا تعرف كيفية الاختيار، فما عليك سوى الاتصال بنا مباشرةً.
| الطراز | MZLH320 |
|---|---|
| السعة (طن/ساعة) | 0.3-0.4 |
| قوة المحرك الرئيسي (KW) | 37 |
| سلسلة المحرك الرئيسي | 6/8P |
| قطر القالب الدائري (مم) | 320 |
| قطر الحبيبات النهائية (مم) | 6-12 |
| الطراز | MZLH350 |
|---|---|
| السعة (طن/ساعة) | 0.5-0.7 |
| قوة المحرك الرئيسي (KW) | 55 |
| سلسلة المحرك الرئيسي | 6/8P |
| قطر القالب الدائري (مم) | 350 |
| قطر الحبيبات النهائية (مم) | 6-12 |
| الطراز | MZLH420 |
|---|---|
| السعة (طن/ساعة) | 1.0-1.2 |
| قوة المحرك الرئيسي (KW) | 90 |
| سلسلة المحرك الرئيسي | 6/8P |
| قطر القالب الدائري (مم) | 420 |
| قطر الحبيبات النهائية (مم) | 6-12 |
| الطراز | MZLH520 |
|---|---|
| السعة (طن/ساعة) | 2.0-2.5 |
| قوة المحرك الرئيسي (KW) | 110/132 |
| سلسلة المحرك الرئيسي | 6/8P |
| قطر القالب الدائري (مم) | 520 |
| قطر الحبيبات النهائية (مم) | 6-12 |
| الطراز | MZLH768 |
|---|---|
| السعة (طن/ساعة) | 2.5-4 |
| قوة المحرك الرئيسي (KW) | 250/280 |
| سلسلة المحرك الرئيسي | 6/8P |
| قطر القالب الدائري (مم) | 768 |
| قطر الحبيبات النهائية (مم) | 6-12 |
| الطراز | MZLH858 |
|---|---|
| السعة (طن/ساعة) | 3-4.5 |
| قوة المحرك الرئيسي (KW) | 280 |
| سلسلة المحرك الرئيسي | 6/8P |
| قطر القالب الدائري (مم) | 858 |
| قطر الحبيبات النهائية (مم) | 6-12 |
(ملاحظة: يتم تحديث منتجات RICHI Machinery دائمًا وتحسينها. ولذلك، إذا كان هناك أي اختلاف بين الصور وأوصاف الميزات ومعلمات الأداء للنموذج الفعلي، يُرجى الرجوع إلى المنتج الفعلي).
Wood drum chipper
It can cut large-diameter wood into small wood chips. It is mainly composed of a machine base, knife roller, feeding mechanism, feeder, and electrical control system.
RICHI RIGX series drum chipper is an advanced equipment, that has high production capacity, and wide adaptability.
Wood crushing machine
It can be used to crush various raw materials, such as wood chips, wood logs, wood blocks, and other materials.
RICHI SFSP Series Water-drop Hammer Mill is suitable for crushing wood forestry wastes and agricultural wastes, such as wood logs, straws, and wood blocks.
ماكينة تجفيف الخشب
Wood chips are transported by wind and mixed with high temperatures in the process of continuously raising and falling in the dryer.
Wood cooling machine
It can avoid the phenomenon of a sudden cooling caused by direct contact between cool air and hot materials.

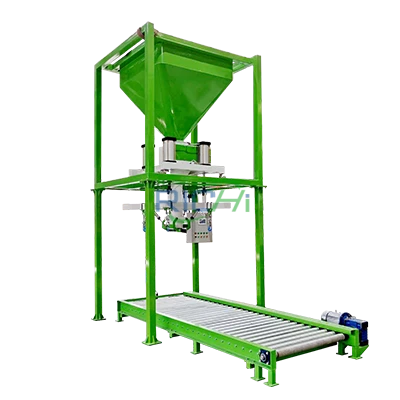

Wood packing machine
It can perfectly ensure weighing accuracy, and it is popular with more and more wood pellet production lines.
If you want to make wood pellets, welcome to contact RICHI, we will provide first-class wood pellet processing equipment, professional customized pelletizing solutions, and perfect services.
Wood pellet production line price
Here are some wood pellet production line price for your reference!
- 0.5-1 t/h wood pellet production line price: 30000-80000 USD
- 1-1.5 t/h wood pellet production line price: 100000-200000 USD
- 2-3 t/h complete wood pellet plant for sale: 120000-270000 USD
- 3-4 t/h wood pellet production line price: 200000-400000 USD
- 4-5 t/h سعر مطحنة الحبيبات الخشبية: 250000-450000 USD
- 6-8 t/h wood pellet factory for sale: 350000-550000 USD
- 8-10 t/h wood pellet production line price: 300000-800000 USD
- 10-20 t/h مصنع الحبيبات الخشبية للبيع: 500000-1600000 USD
- 20-40 t/h wood pellet production line price: 1000000-3000000 USD
Different production capacities of wood pellet production lines have different prices. Each kind of capacity of the line has a big difference from different designs, and different configurations, such as simple, low, standard, fully automatic, semi-automatic, etc, which result in different prices.
That’s why we customize wood pellet production lines for every client according to customer needs and budget. You can contact us to get your customized wood pellet production line price.
لماذا تختار ماكينات RICHI؟
- مكرسة لصناعة ماكينات الحبيبات الخشبية منذ 27 عامًا
- لقد حصلت جميع المنتجات على شهادات ISO و CE و SGS و BV وشهادات دولية أخرى.
- امتلاك نظام مبيعات مثالي وشبكة خدمات كاملة
- يمكن تخصيص خط إنتاج الحبيبات الخشبية الجاهزة حسب حاجتك.
حالات المشروع المتعلقة بخط الحبيبات الخشبية
10 T/H wood pellet manufacturing plant in United States
- البلد: الولايات المتحدة الأمريكية
- التاريخ: نوفمبر 2020
- السعة: 10 تيرابايت في الساعة
- إجمالي الطاقة: 655 كيلووات
- حجم الورشة حول هذا المشروع: 16680 م2
- Guiding wood pellet production line price: Around 1,300,000USD
- Main Raw material: wood waste from furniture factories, paper mills and other factories
- Final Wood Pellet Size: 6-8mm
- فترة التثبيت 60 يوماً
- عدد مهندسي التركيب الذين ساعدتهم شركتنا:2 شخص
- عامل التشغيل في هذا الخط: 3-4 أشخاص
2-2.5 T/H wood pellet plant for sale Germany
- البلد: ألمانيا
- التاريخ: 2020
- السعة: 2-2.5 طن/ساعة
- إجمالي الطاقة: 426.18 كيلوواط
- Workshop size about this project: 15M19.5M18M (LWH)
- Guiding wood pellet line price: around 250,000USD
- Main Raw material: softwood (90%) and hardwood (10%)
- Final Wood Pellet Size: 6-8mm
- فترة التثبيت 60 يوماً
- عدد مهندسي التركيب الذين تساعدهم شركتنا: 2 شخص
- عامل التشغيل في هذا الخط: 3-4 أشخاص
مصنع تصنيع الحبيبات الخشبية بسعة 10 طن/ساعة في المكسيك
- البلد: المكسيك
- التاريخ: سبتمبر,2018
- السعة: 10 طن/ساعة
- إجمالي الطاقة: 715 كيلووات
- Workshop size about this project: 29m24m21m(LWH)
- Guiding wood pellet production line price: FOB price start with 700000 USD.
- Main Raw material: Wood chips,wood waste
- Final Wood Pellet Size: 8mm wood pellets
- فترة التثبيت 60 يوماً
- عدد مهندسي التركيب الذين تساعدهم شركتنا: 4 أشخاص
- عامل التشغيل في هذا الخط: 3-4 أشخاص
2-3T/H Full Automatic Biomass Wood Pellet Line In Canada
- البلد كندا
- التاريخ: أغسطس 00,2018
- السعة: 2-3 طن/ساعة
- إجمالي الطاقة: 385 كيلووات
- Workshop size about this project: 26m20m12m(LWH)
- Guiding PriceFOB price start with 200000 USD. Different pelletizing solutions are available.
- Main Raw material: 50% moisture wood chips , 50% moisture sawdust
- Final Wood Pellet Size: 6-12mm biomass wood pellet
- فترة التثبيت 60 يوماً
- عدد مهندسي التركيب الذين تساعدهم شركتنا: 1 شخص
- عامل التشغيل في هذا الخط: 5-6 أشخاص
الأسئلة الشائعة خط إنتاج الحبيبات الخشبية
How to start a wood pellet business?
- Target the market according to your location and do market research. Market conditions vary from place to place, so the first step you should do your market research.
- Build a wood pellet plant. You should make a production capacity plan first. Then prepare enough raw materials and list all the required equipment for making wood pellets according to your raw materials. You can buy top-sell wood pellet making equipment from ماكينات ريتشي. We will customize your process plan according to your needs. Next, you start making your own wood pellets.
- Weigh and pack your wood pellets and sell them.
RICHI Machinery can provide you with a 1-40t/h wood pellet plant. We can also make customized designs according to your needs.
What materials can I turn into wood pellets?
Many raw materials can be used to make wood pellets.
Commonly used to make wood chip pellets are: wood forestry wastes such as wood, agriculture wastes such as stalk, straw, corn husks, alfalfa and etc.
If you don’t know if your raw materials can be used to make wood pellets, you can send us your samples, we will do a test freely for you.
How to choose a suitable wood pellet production line
Different configuration of wood pellet production line price is differnent, what we need to do is to choose a right wood pellet production line. Then I will give you some advice for your reference when choosing a suitable wood pellet production line.
- According to your production capacity. You should clear your capacity first, then you can choose a suitable production line for this capacity.
- According to your raw materials. Different materials need different equipment. For example, if your materials are logs, you need to equip a drum chipper.
- According to your purpose of producing wood pellets. If you produce wood pellets for sale, you’d better equip a packaging machine.
- According to your budget. If the budget is sufficient to choose a fully automatic high configuration, not enough to properly reduce the configuration.
- Choose a professional manufacturer, which will not only provide you with wood pellet processing equipment but also will customize a line according to you.
In terms of wood pellet production line price, you are suggested to compare the quality of equipment first, then compare the price.
